Offering guaranteed quality and technical expertise, the HYMER B-Class MasterLine is setting new standards in the premium segment. As our flagship, it embodies a state-of-the-art body shell design, exclusive design features as well as premium interior furnishings, and creates an all-round generous feeling of space.
Following the huge success of the HYMER B-Class MasterLine I, with the HYMER B-ML T we are offering the tried-and-tested features of the luxurious integrated model combined with the exceptional handling characteristics and benefits of a semi-integrated model. Equipped with the nippy Mercedes-Benz chassis cowl, the HYMER B-ML T is the next logical addition to our premium range of motorhomes.
a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Price a) |
£119,930 |
Standard chassis | Mercedes-Benz Sprinter 415 CDI |
Drive | Front Wheel Drive |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Length / Width / Height (cm) | 789 / 235 / 298 |
Body width / Internal width (cm) | 225 / 218 |
Standing height in living area (cm) | 198 |
Wheelbase (mm) | 4500 |
Mass in running order (-/+ 5%) (kg)* | 3240 (3078 - 3402)* |
Manufacturer-specified mass for optional equipment (kg)* | 821 |
Technically permissible maximum laden mass (kg)* | 4430 |
Technically permissible maximum towable mass (kg)* | 1450 |
Permitted number of seats (including driver)* | 4 - 5 |
Insulation Floor / Wall / Roof (mm) | 41 / 34 / 34 |
Overall clearance storage- / garage door W x H (cm) | 110 x 123 |

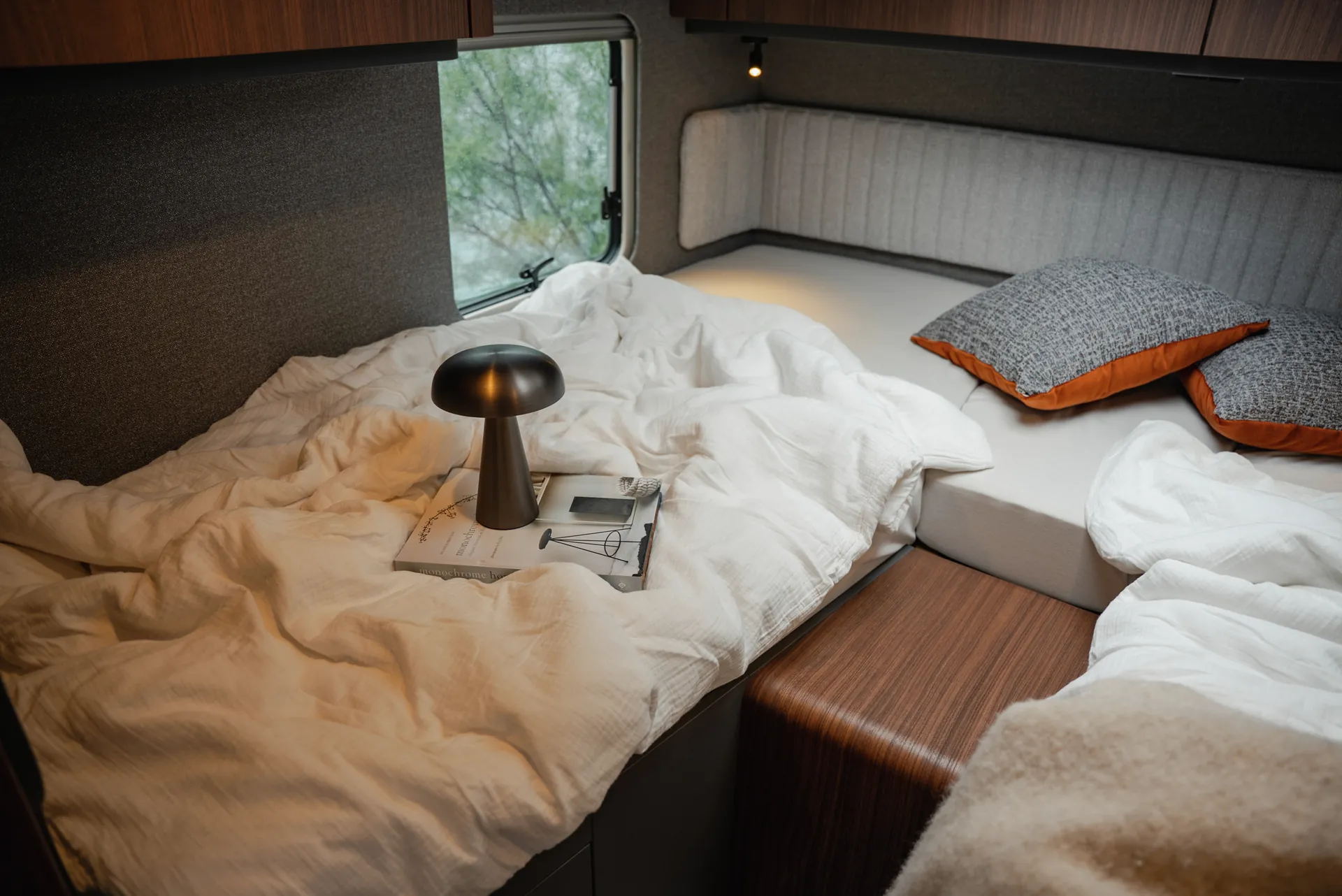

Bed dimension: Rear bed L x W (cm) | 207 - 202 x 90 |
Bed dimension: Central bed L x W (cm) | 205 x 110 - 50 |
Berths | 2 - 3 |
Bathroom W x D (cm) | 90 x 80 |

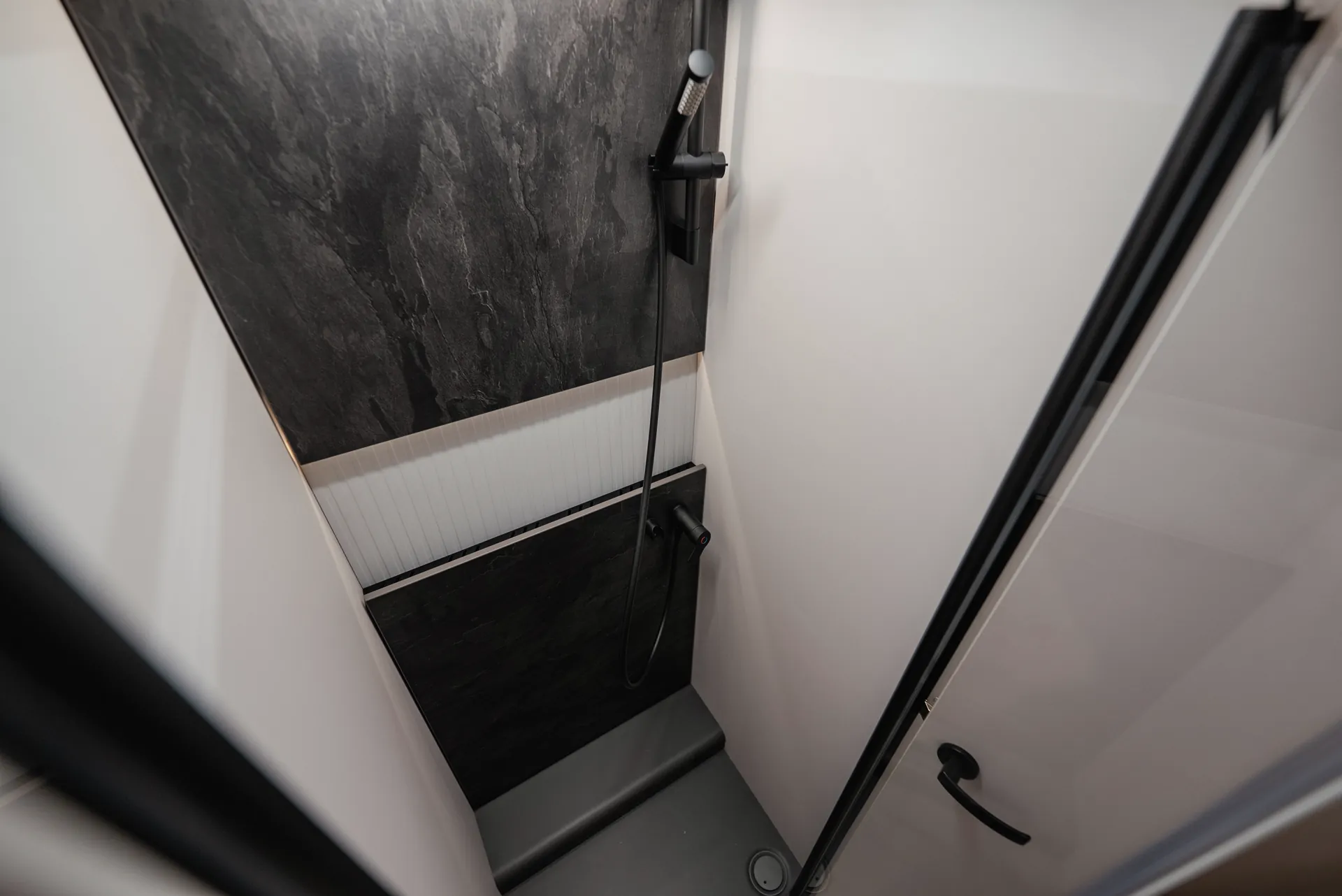

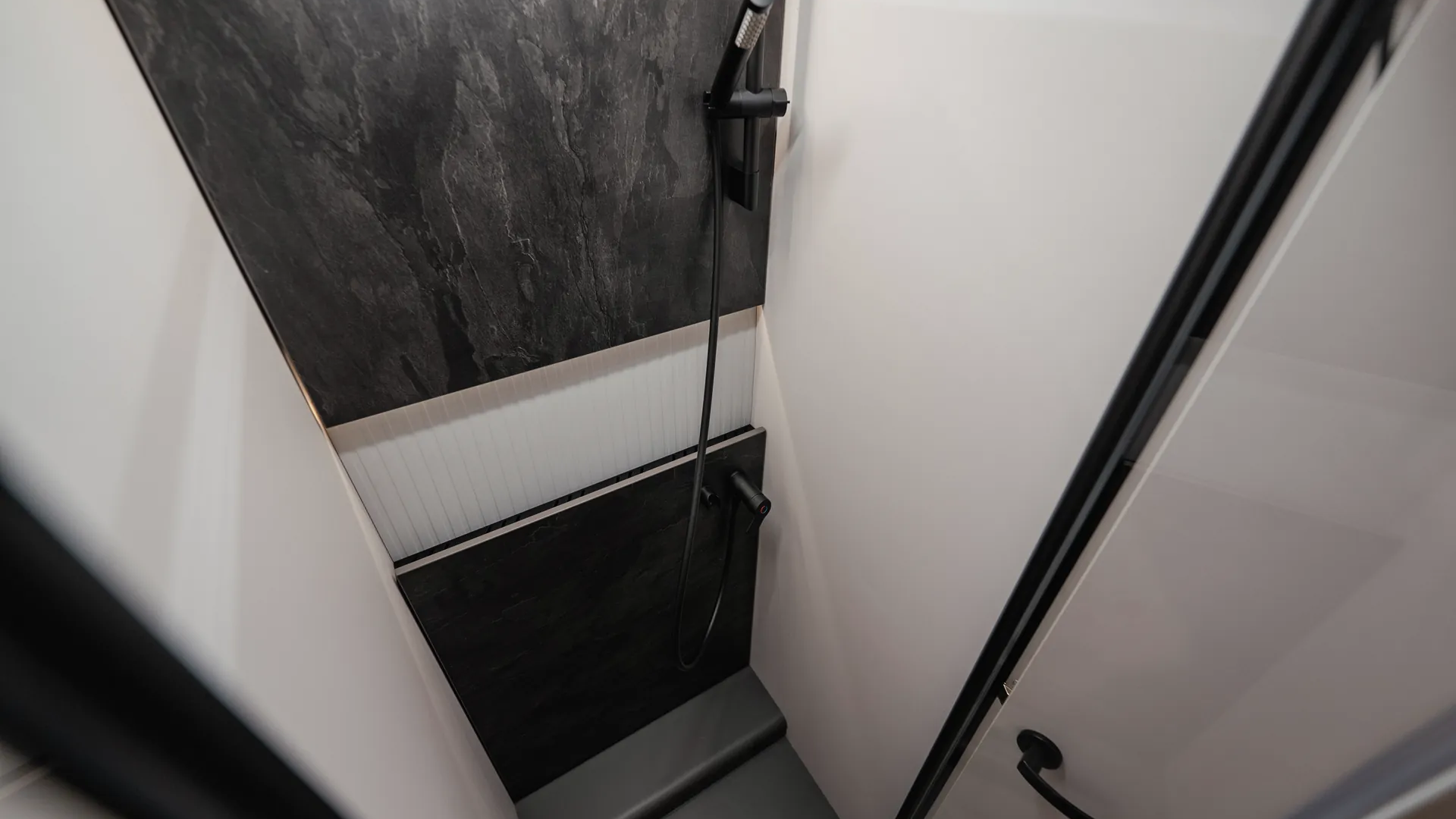

Separate shower W x D (cm) | 73 x 77 |
Wardrobe W x D x H (cm) | 30 x 57 x 190 |
Kitchen W x D x H (cm) | 107 x 58-96 x 93 |
Fridge volume (freezer compartment) (l) | 153 |
Standard heating | Gas warm air, 6 kW |
Gas bottle storage (Filling weight) | 2x 11kg |
Total fresh water tank capacity (l) | 180 |
Fresh water tank in driving filling level (l) | 20 |
Waste water tank (l) | 150 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 2 / 6 |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|

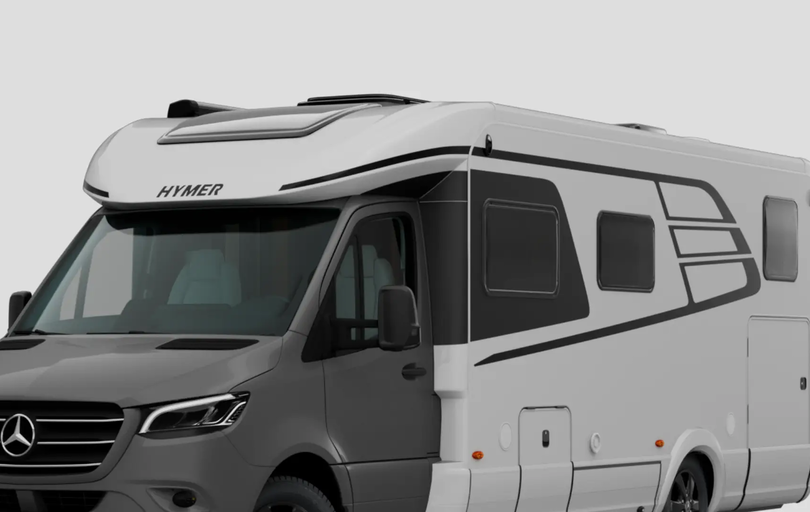

Exterior cab colour: White |

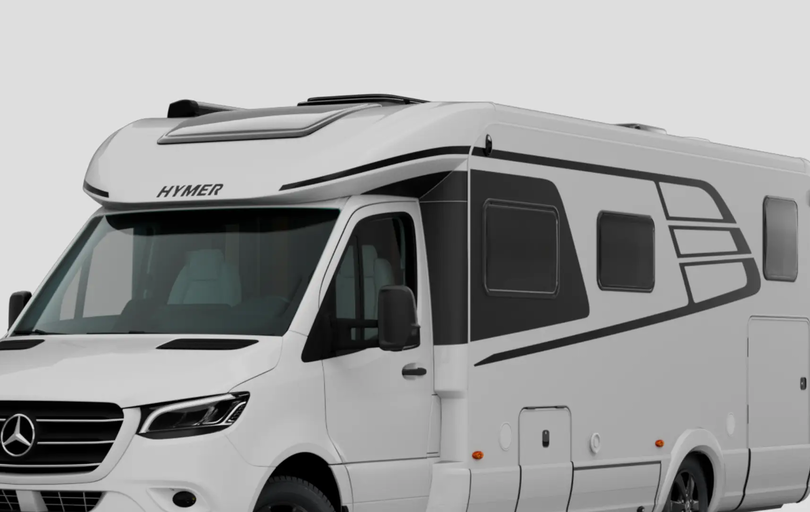

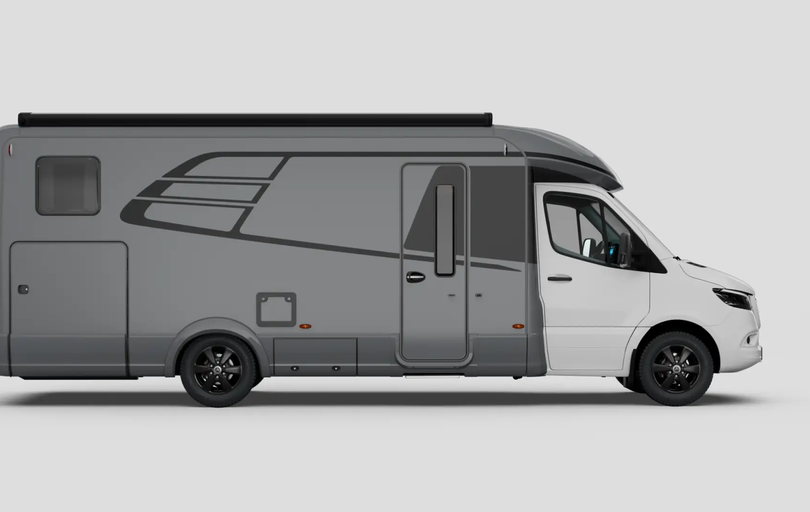

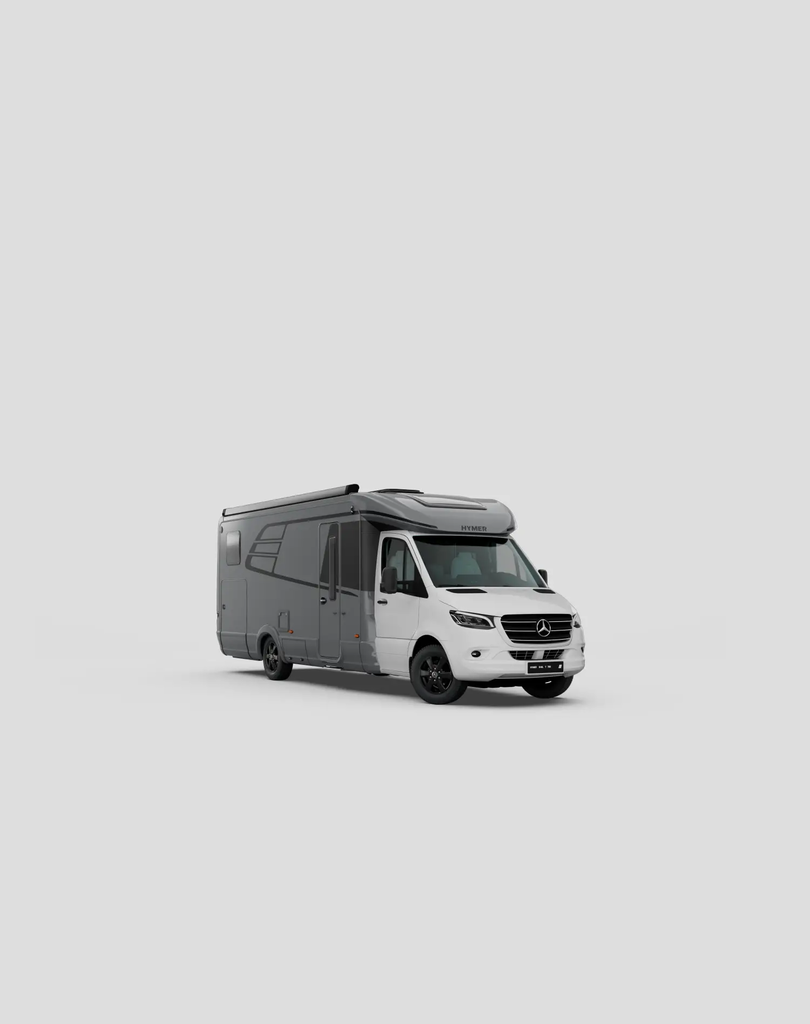

Exterior body colour: White |
Super lightweight chassis (SLC) |
Low-frame chassis with through-loading feature |
6 gear manual transmission |
22 l AdBlue tank |
92 l fuel tank |
Electrically adjustable and heated exterior mirrors |
Comfort suspension chassis |
Engine compartment insulation and cab underbody panelling |
Mud flaps, rear axle |
Daytime Running Light integrated in headlights |
Trailer hitch pre-installation |
16" steel rims with full wheel cover and all season tyres |
Electric cab windows and central locking for cab |
Driver and passenger airbag |
Cupholder driver and passenger seat |
Keyless Start (start-stop button for comfortable engine start) |
Open shelf cockpit passenger side |
ECO Start-Stop feature |
Warm air auxiliary heating, electric |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Automatic headlight control |
Intelligent Speed Assistant |
Crosswind Assist |
Body |
---|
Appealing, state-of-the-art exterior look with rounded design in smooth aluminium sheet |
Modern 3D rear design, insulated, with integrated lights |
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness) |

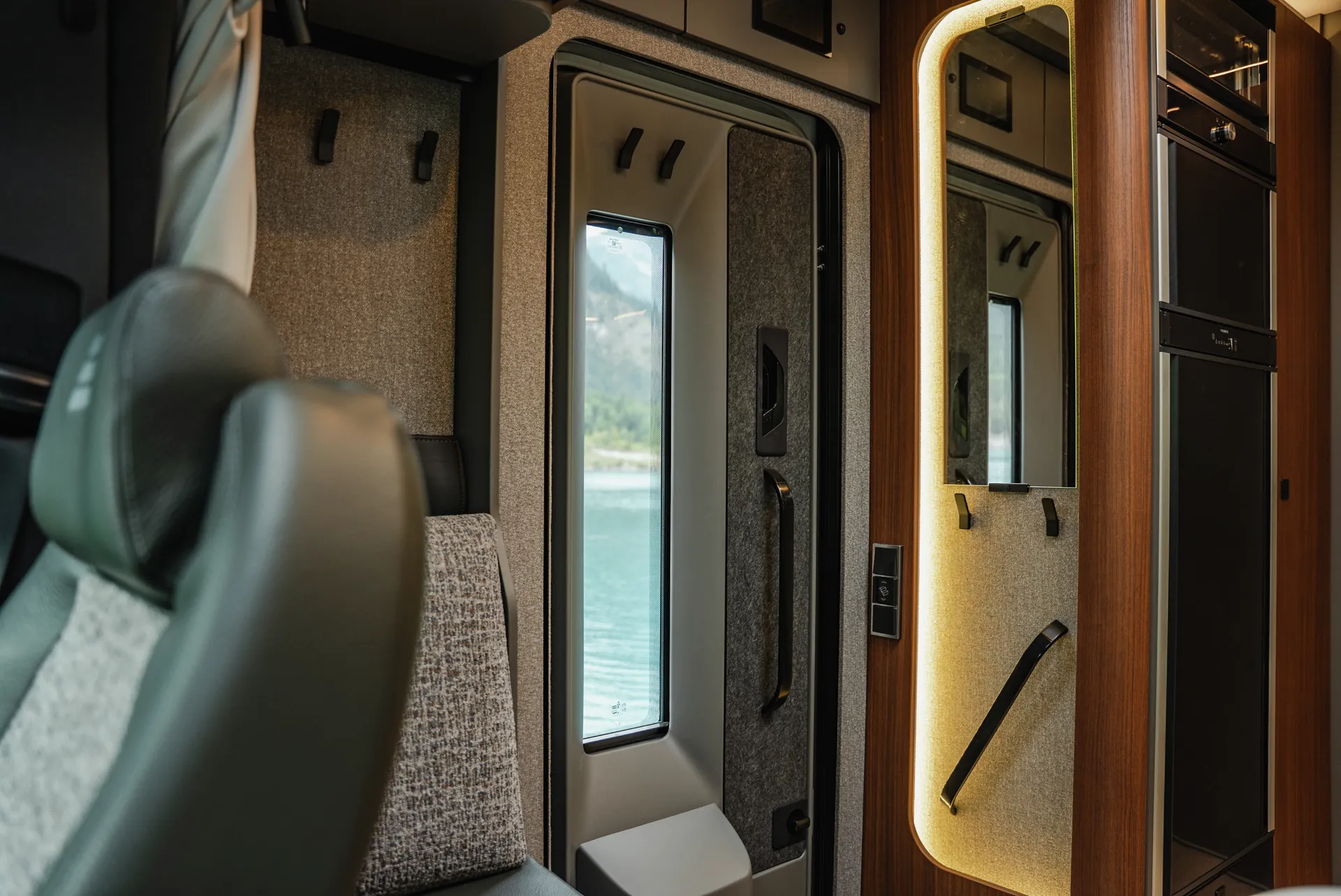

65 cm Maxi Comfort habitation door with inner shell, 2-way lock, window with blackout blind and waste bin |
Electric entrance step, 1-step |
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology |
Garage load up to 350 kg (optional 450 kg). Please note the axle load. |
Large garage doors, LH and RH side |
Large through-loading compartment with external access from both sides incl. extra deep basement compartment and access from the inside |
Panoramic skylight above cab, manually hinged |
Heated double floor incl. cellar compartments |
GRP lightweight floor with XPS insulation (41 mm floor thickness) |
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm |
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room |
Outfitting |
---|
Front seating group with 2 integrated 3-point belts |
Cab blinds |
Mosquito net on habitation door |
Living and bedroom + lighting |
---|
Multi-functional ergonomic furniture elements |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for rear bed(s) |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Lighting dimmable (via push button) |
Complete LED interior lighting |
LED worktop lighting |
LED awning light |

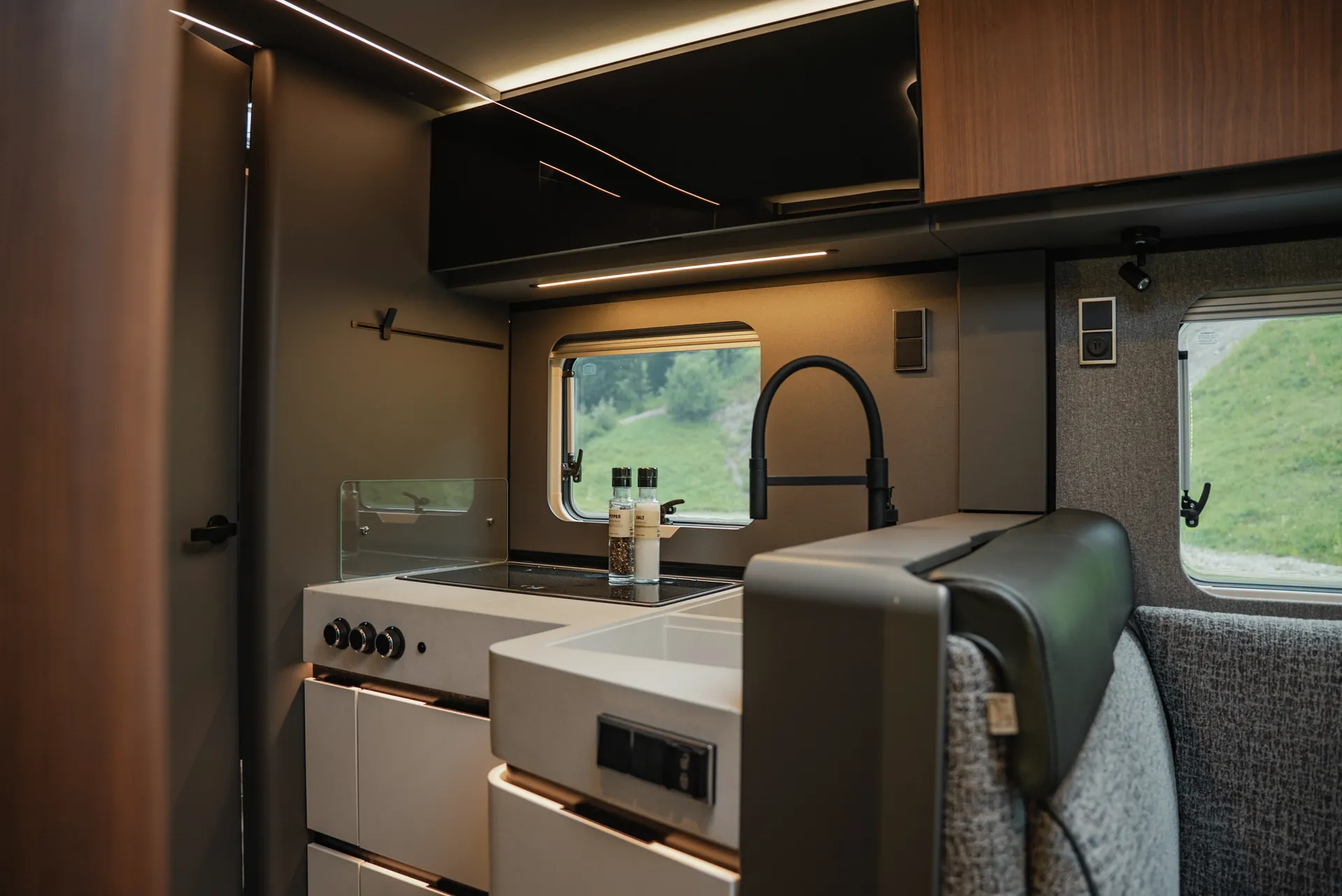

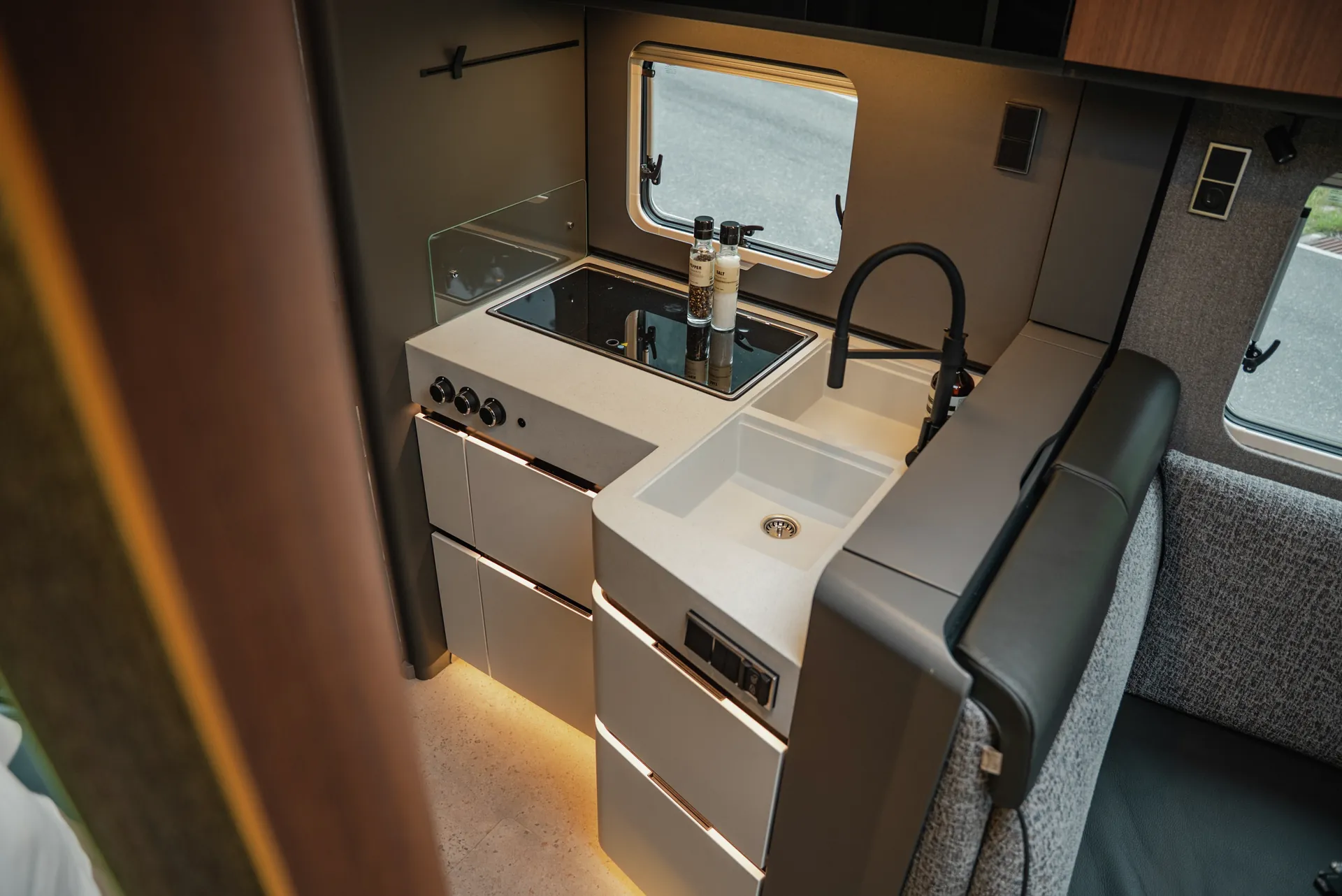

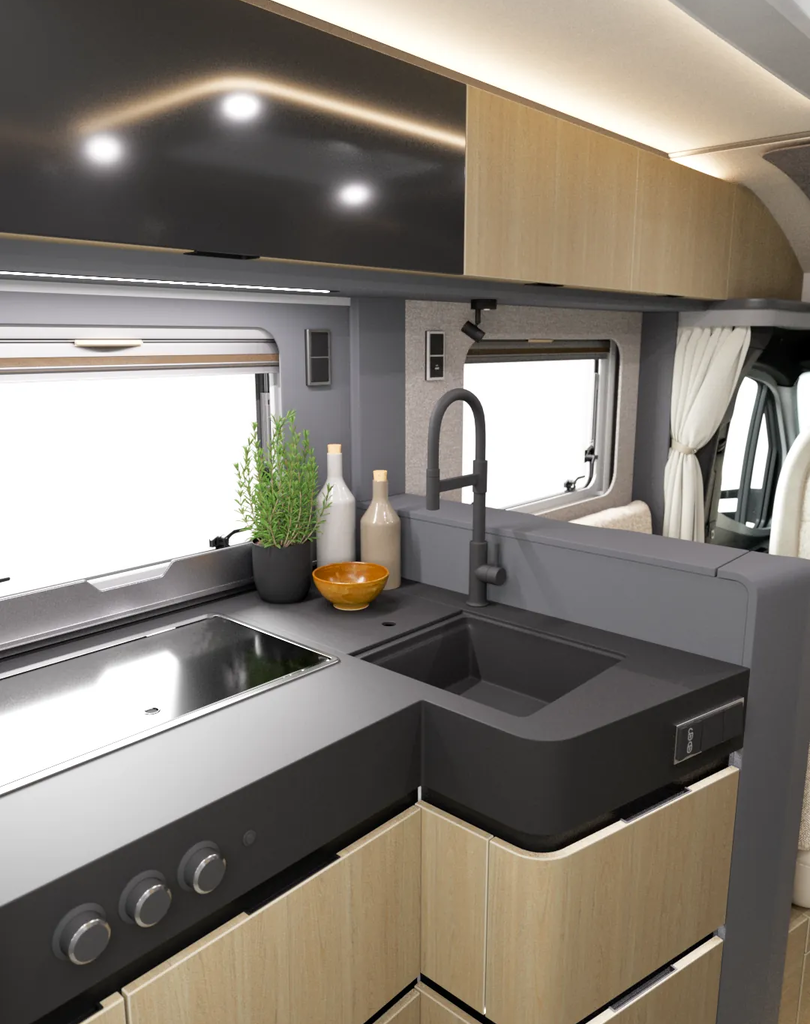

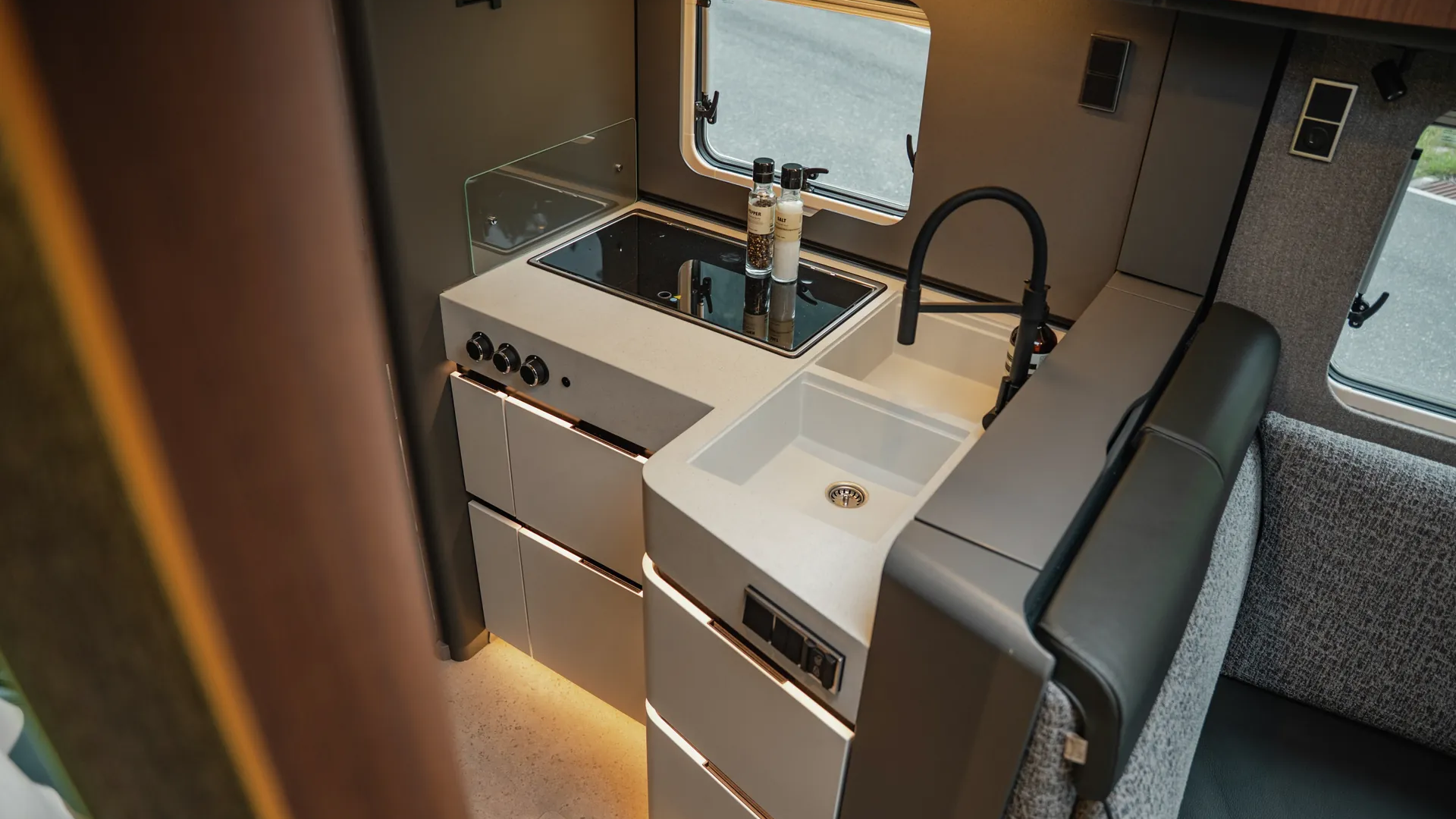

Kitchen |
---|
Pantry |
Kitchen drawer with Soft close feature and cutlery insert |
Freely arrangeable kitchen drawers, extra wide |
Structure wall panelling also serving as splash guard |
153 l Jumbo fridge |

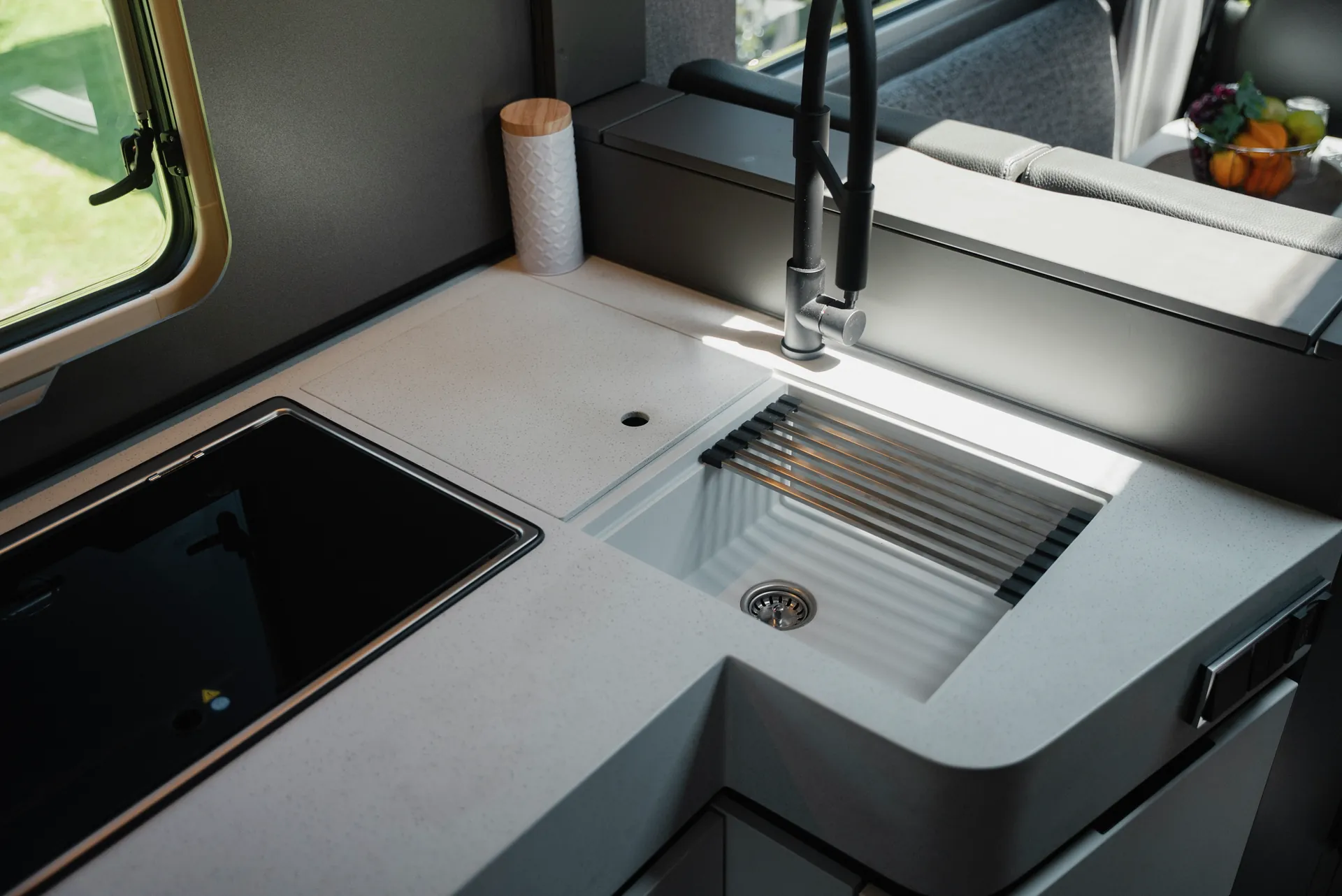

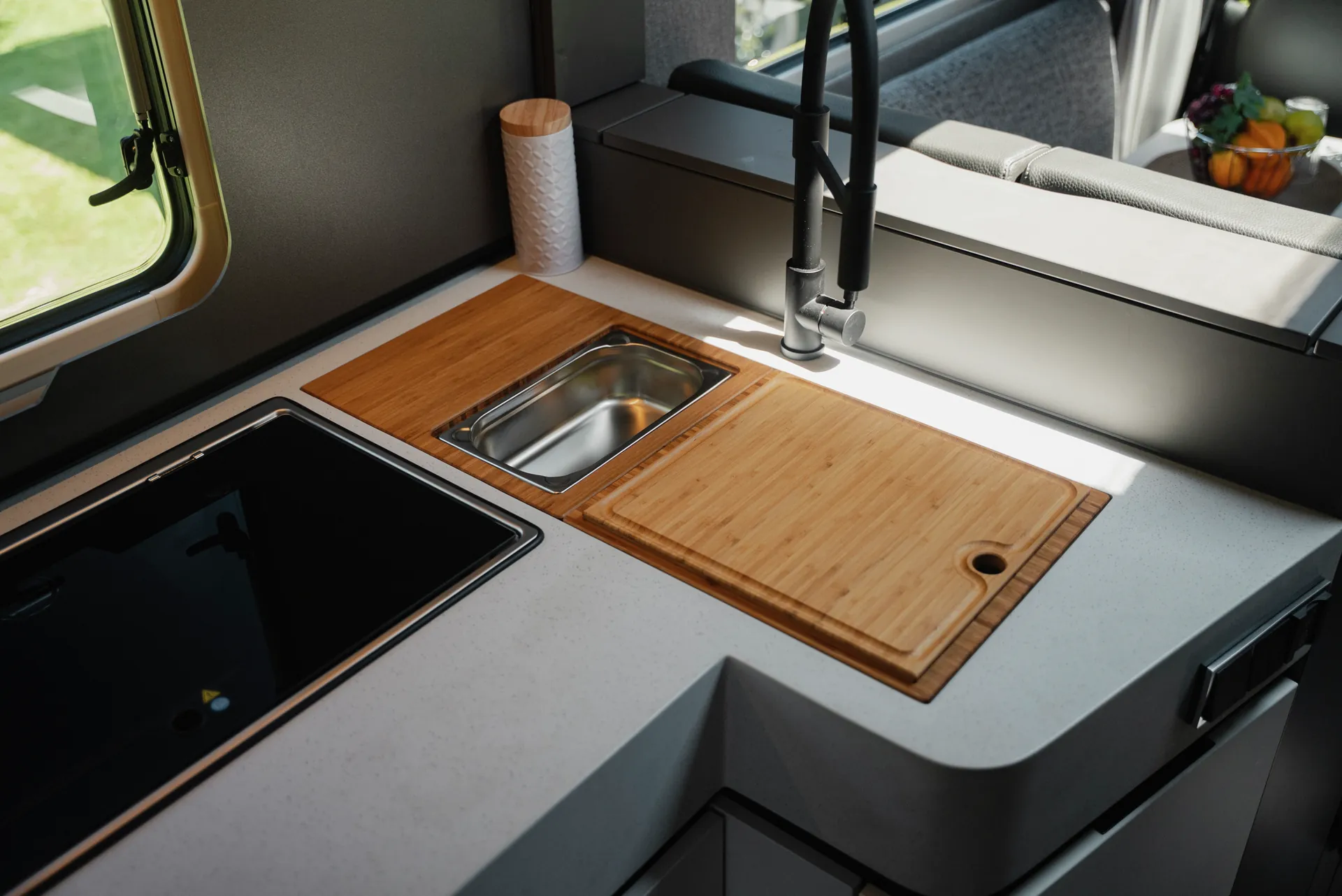

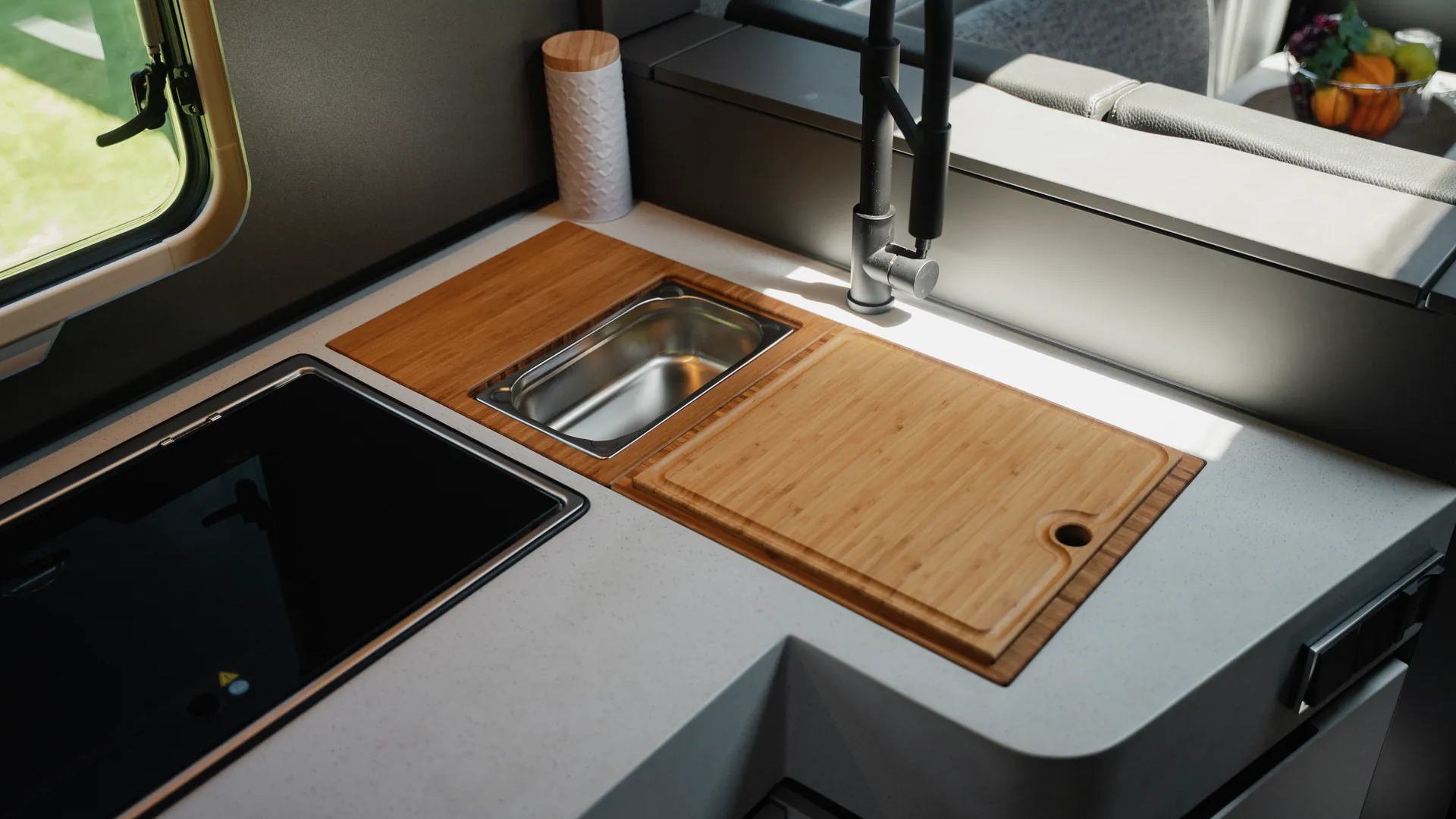

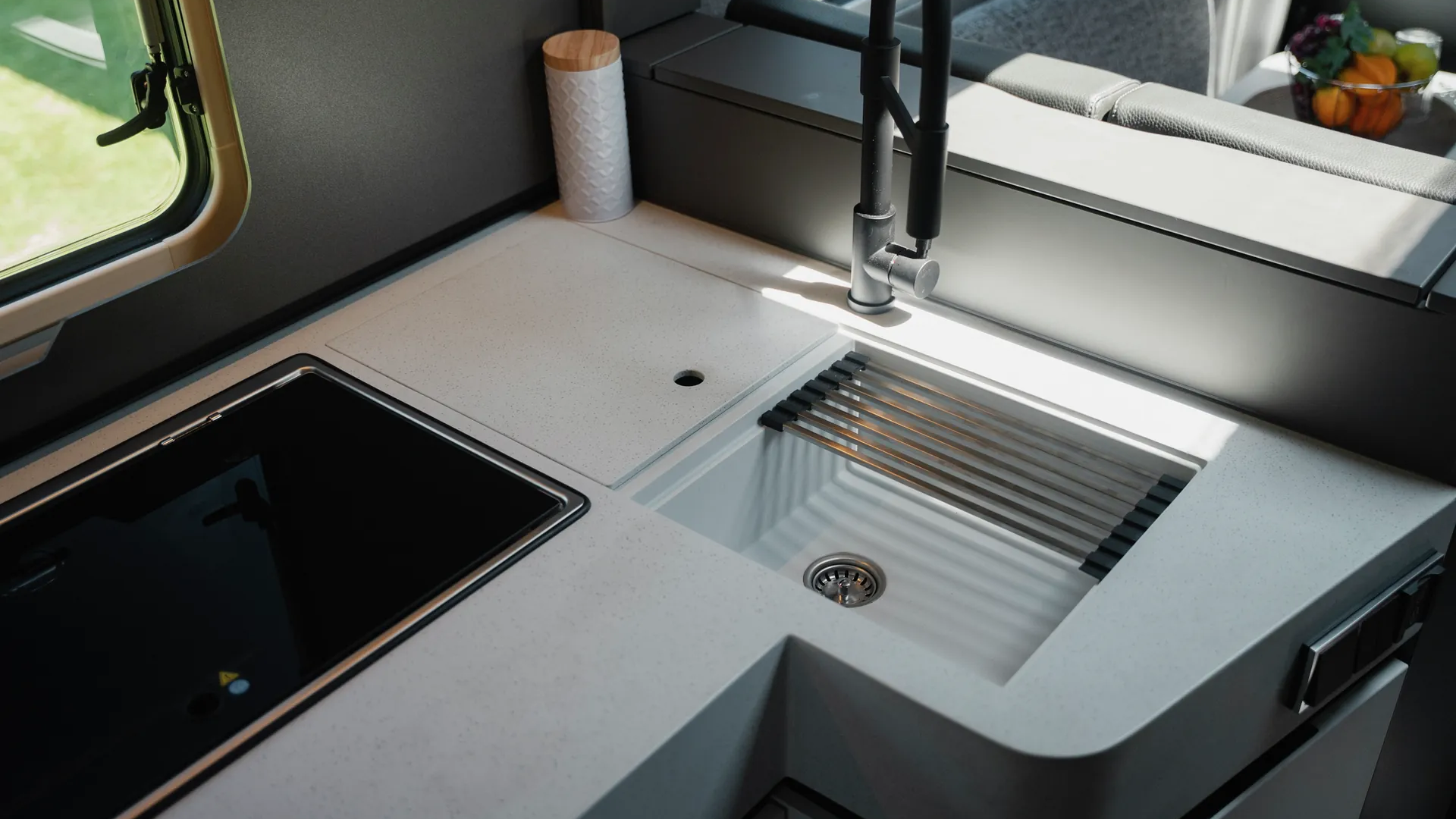

Extra deep sink with tight-fitting chopping board and high water tap |
Large cooker with glass cover and front panel operation |

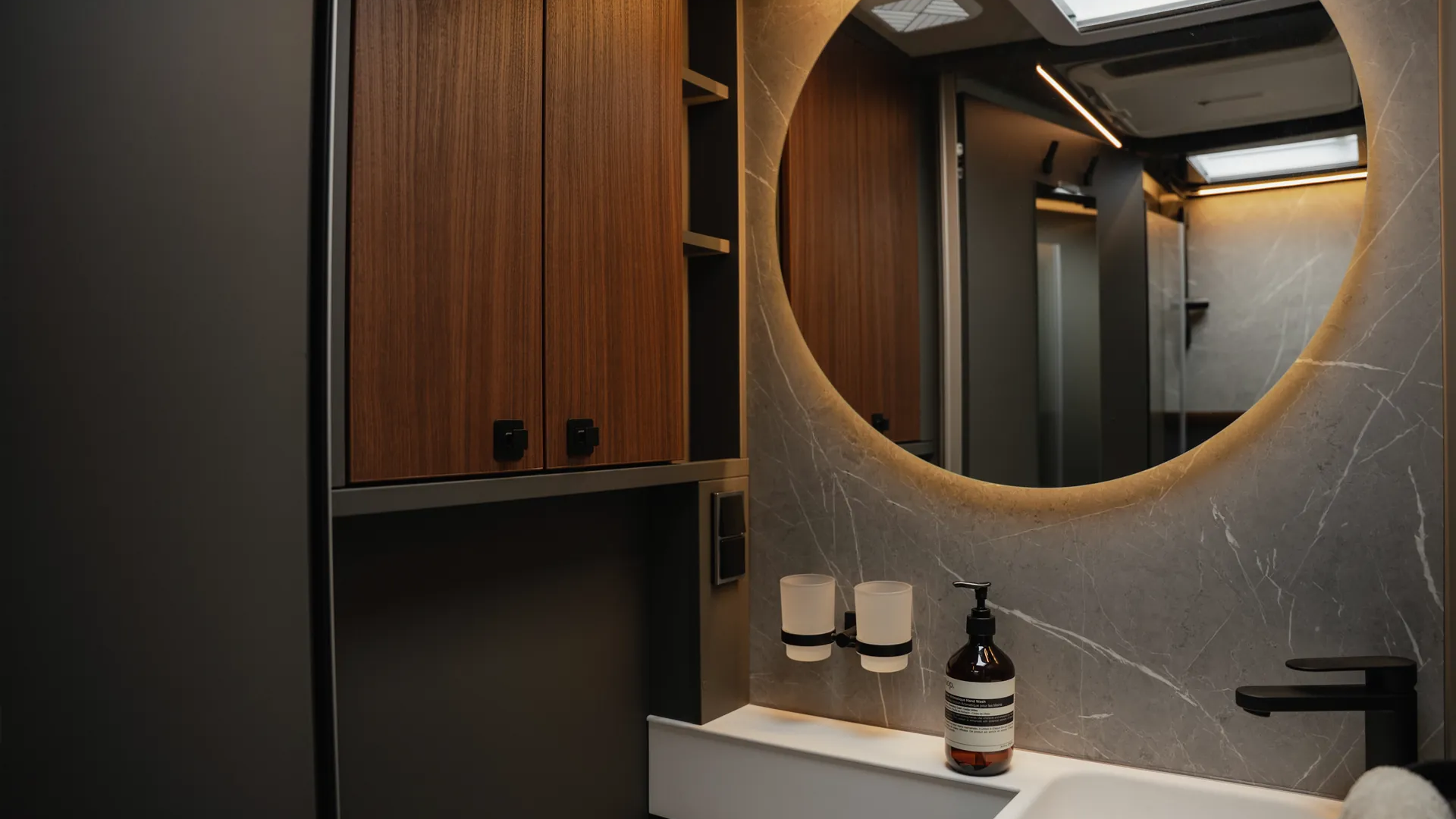

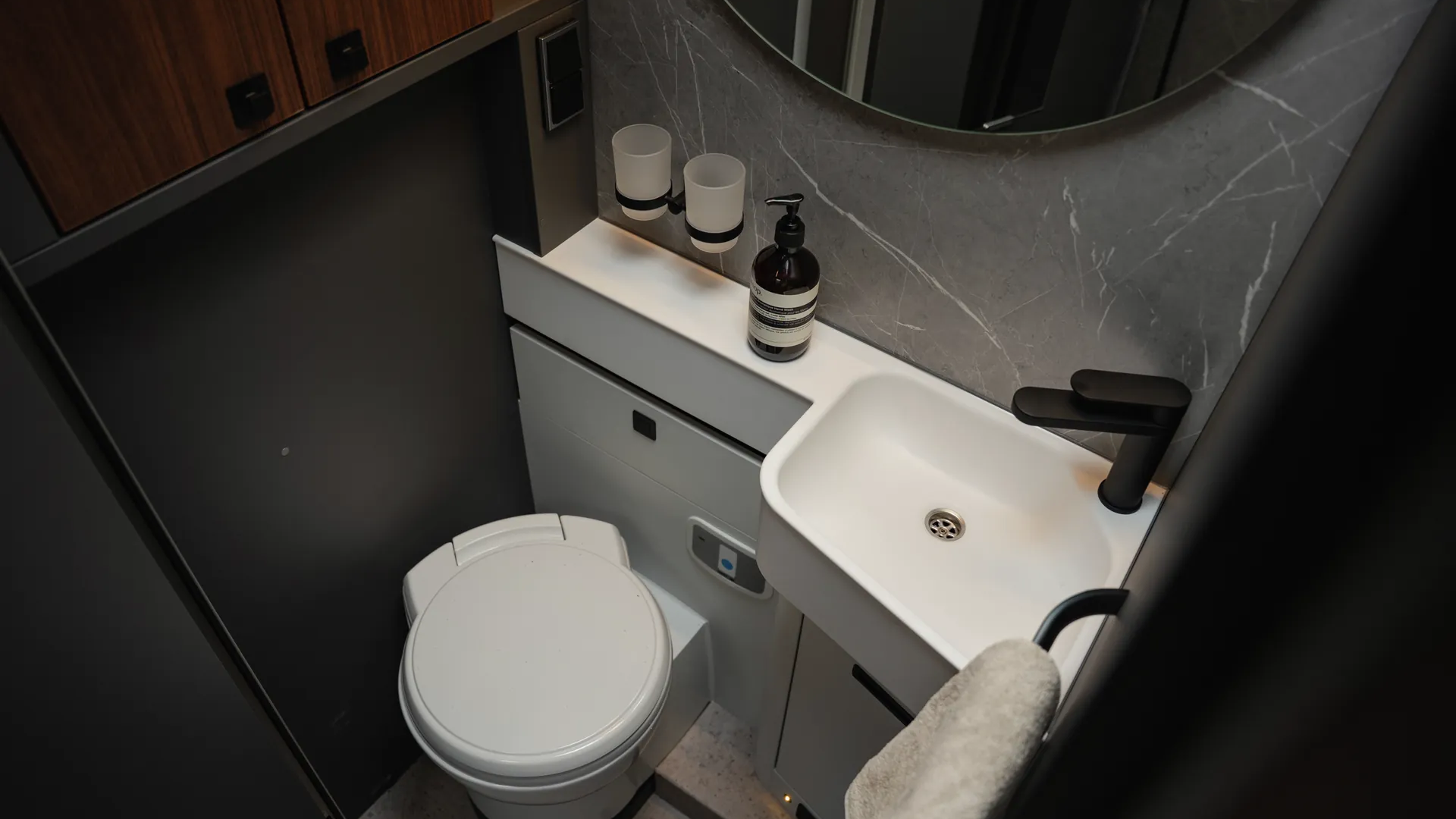

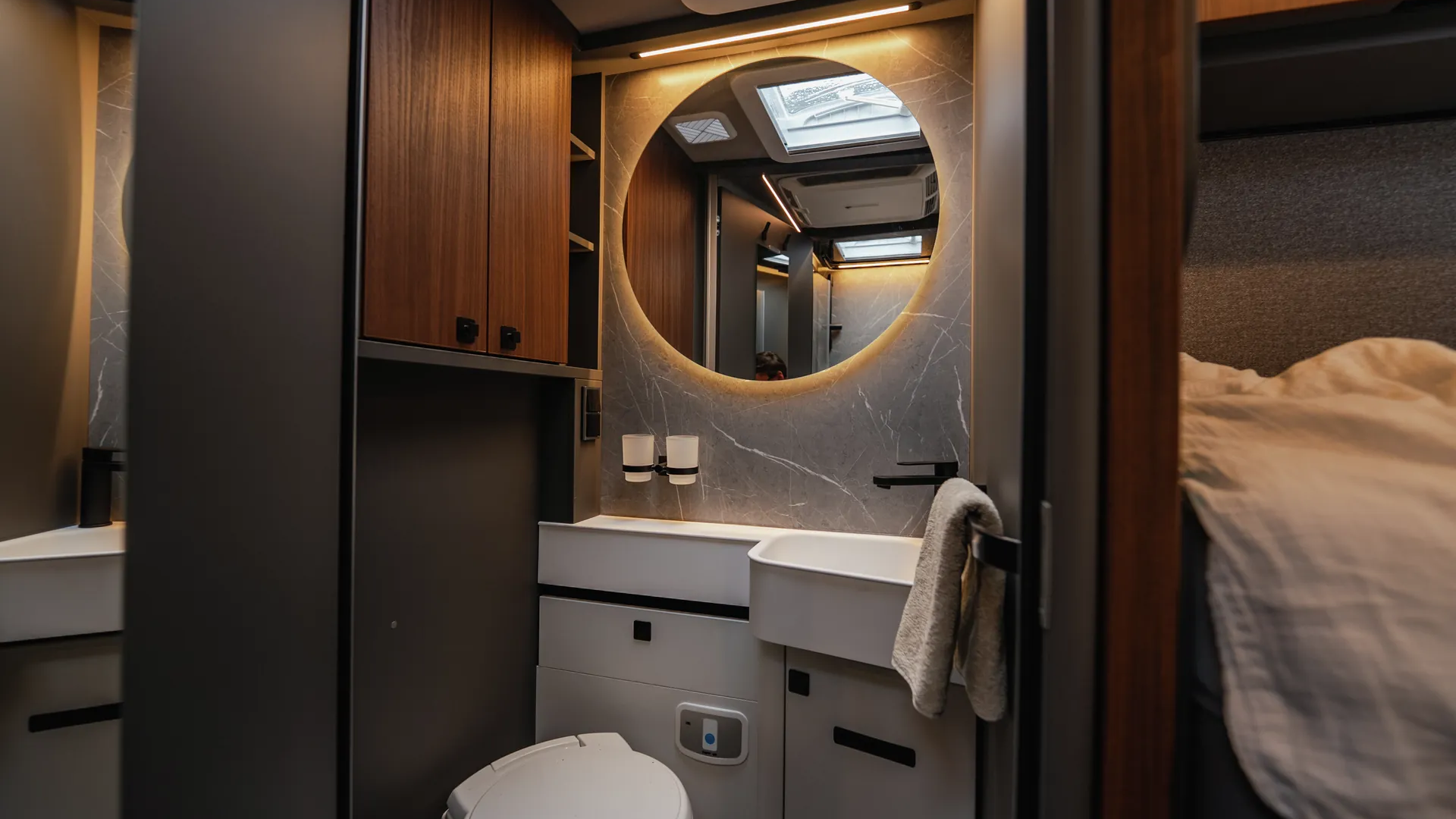

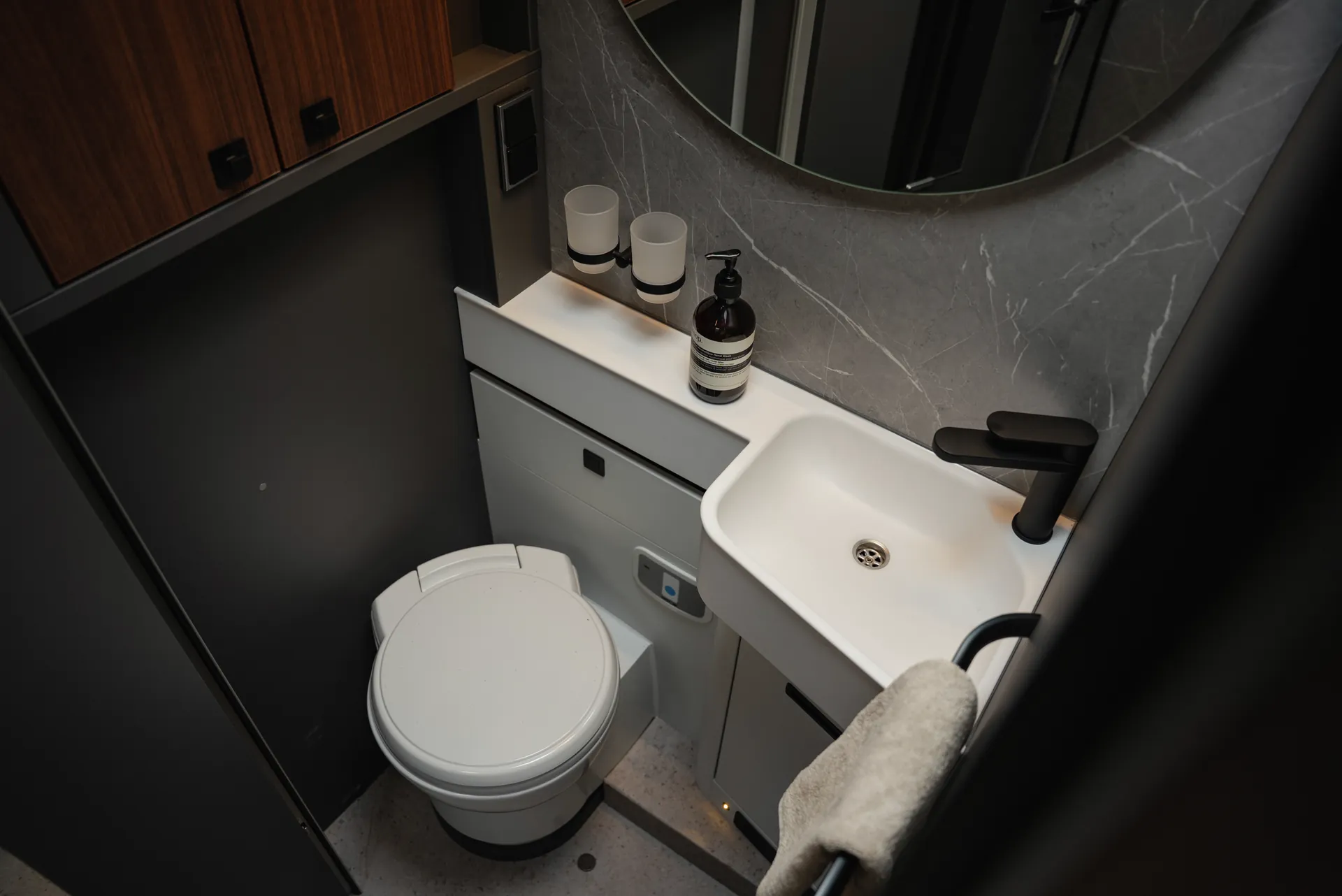

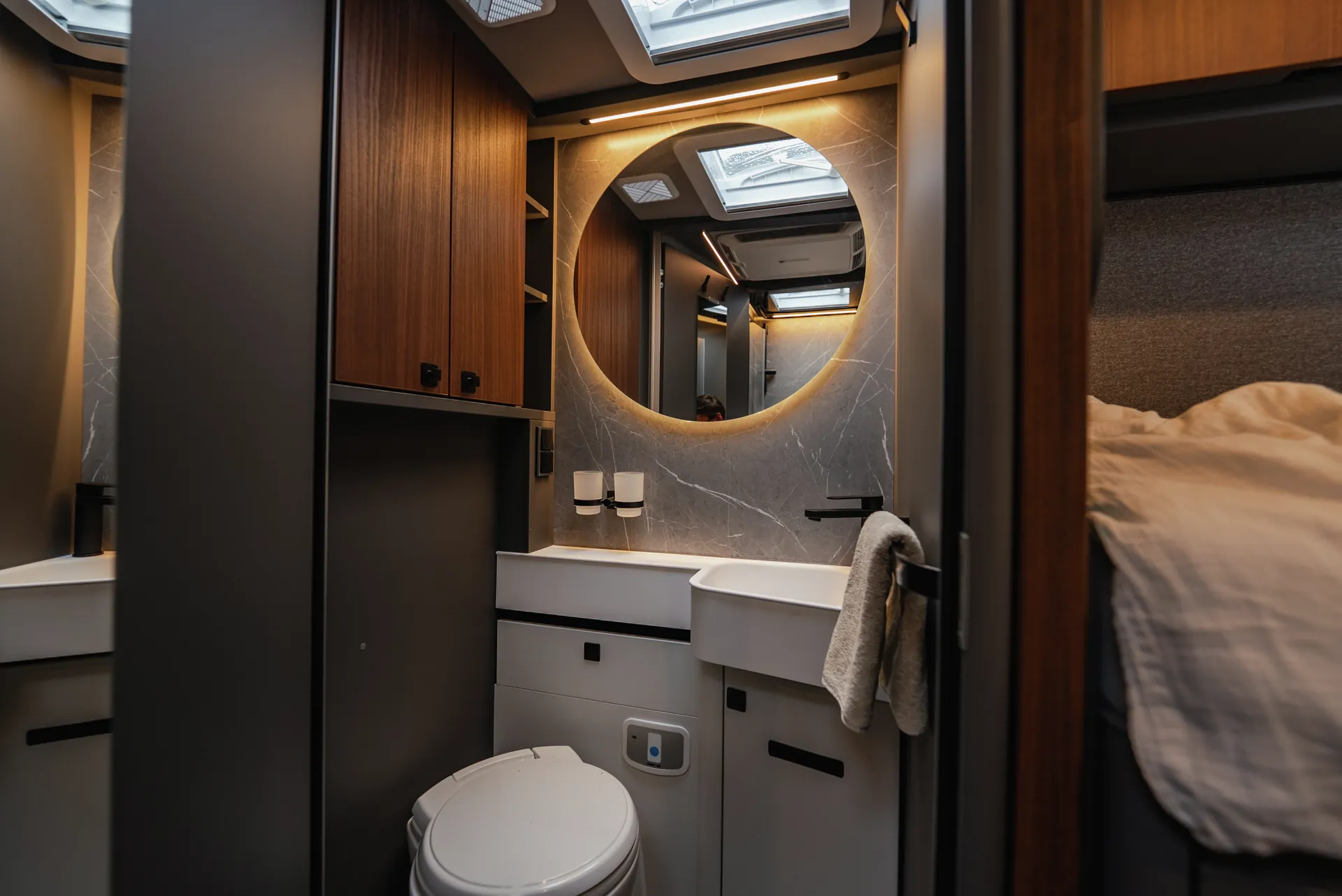

Bathroom |
---|
Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm |
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm |
Installation & Technology |
---|
6 kW gas warm air heating with 10 l warm water boiler |
LCD keypad for heating |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
7" touch display for convenient control and monitoring of smart vehicle features |
Extra low gas bottle compartment for easy gas bottle change with comfy access via external door |
HYMER Smart Battery System 2.0 (80 Ah LFP) incl. additional charger |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
Twin USB at seating group |
180 l fresh water tank, insulated and heated (20 l in driving position) |
150 l waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Automatic gas bottle changeover system with crash sensor and IceEx |
Multimedia |
---|
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab, the front bed as well as the rear, radio and DVB-T2 antenna |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Bogota |
Packages |
---|
Standard equipment |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Weight variant 3,880 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Weight variant 4,500 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Basis |
---|

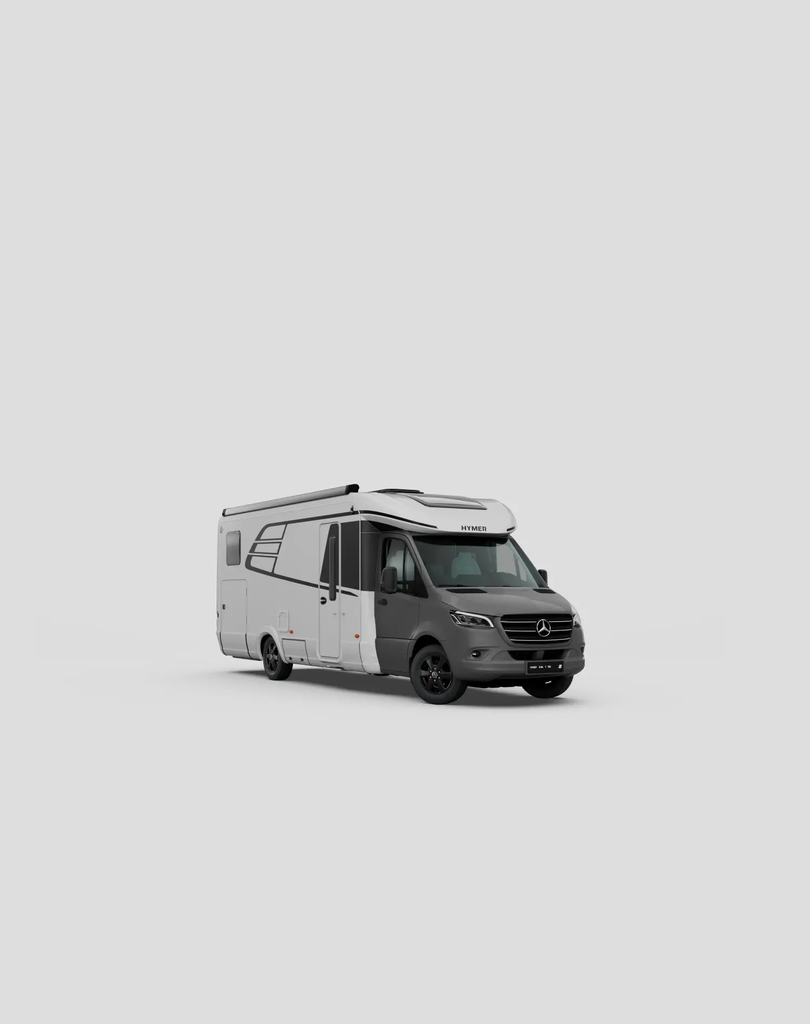

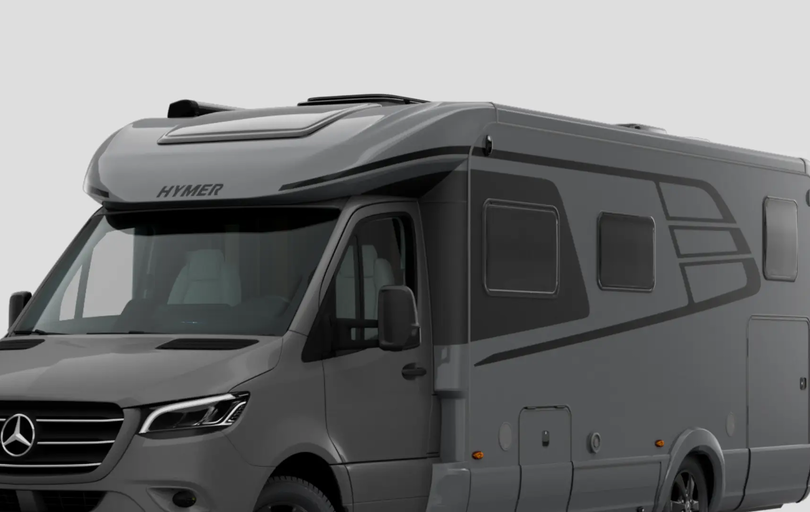

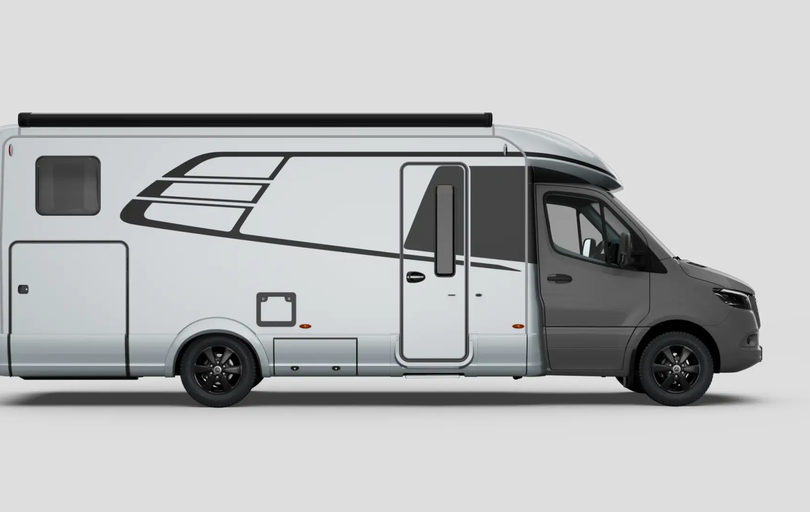

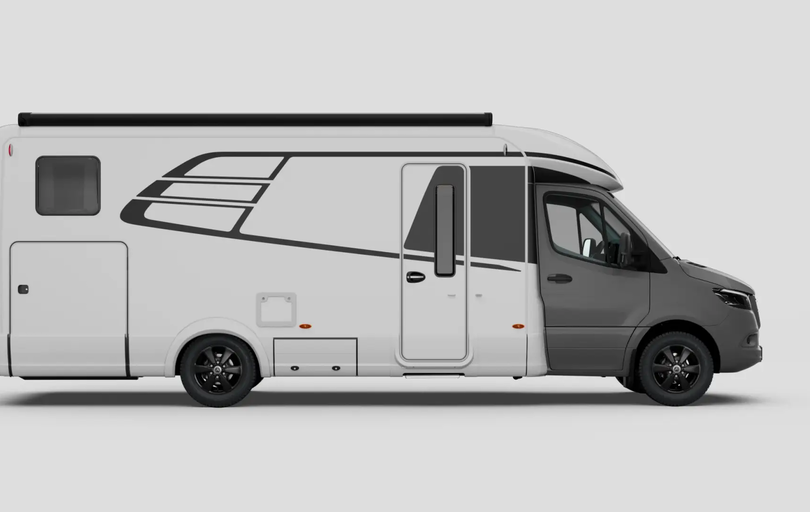

Exterior cab colour: Black / Grey |

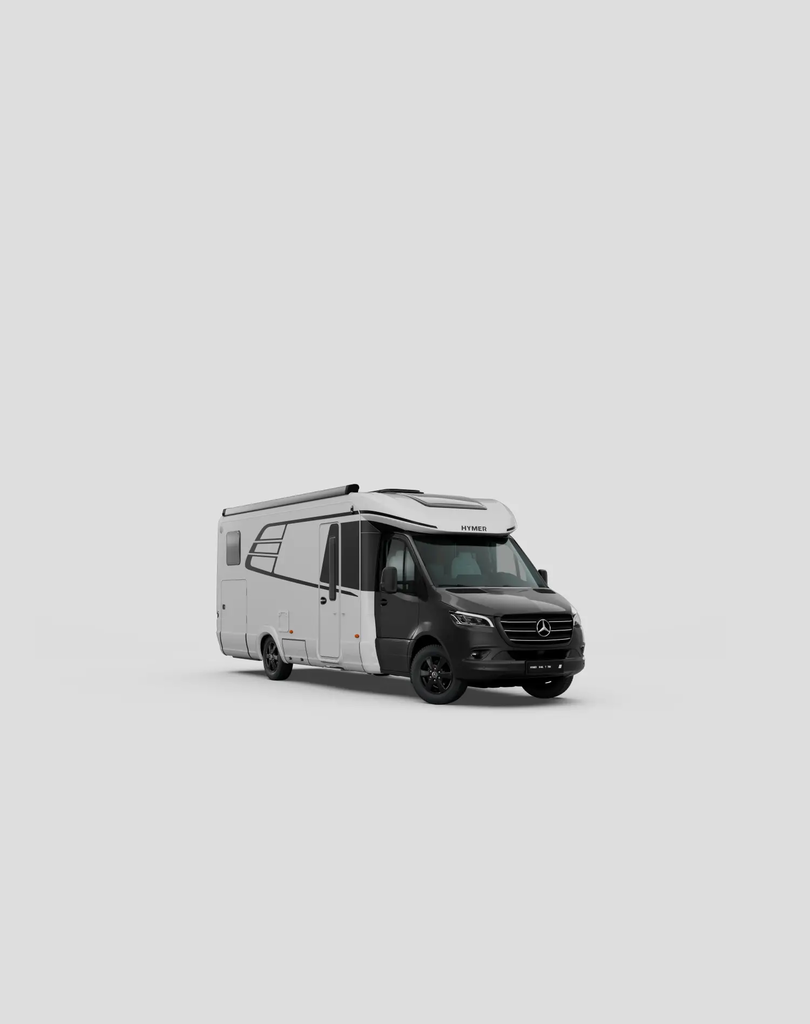

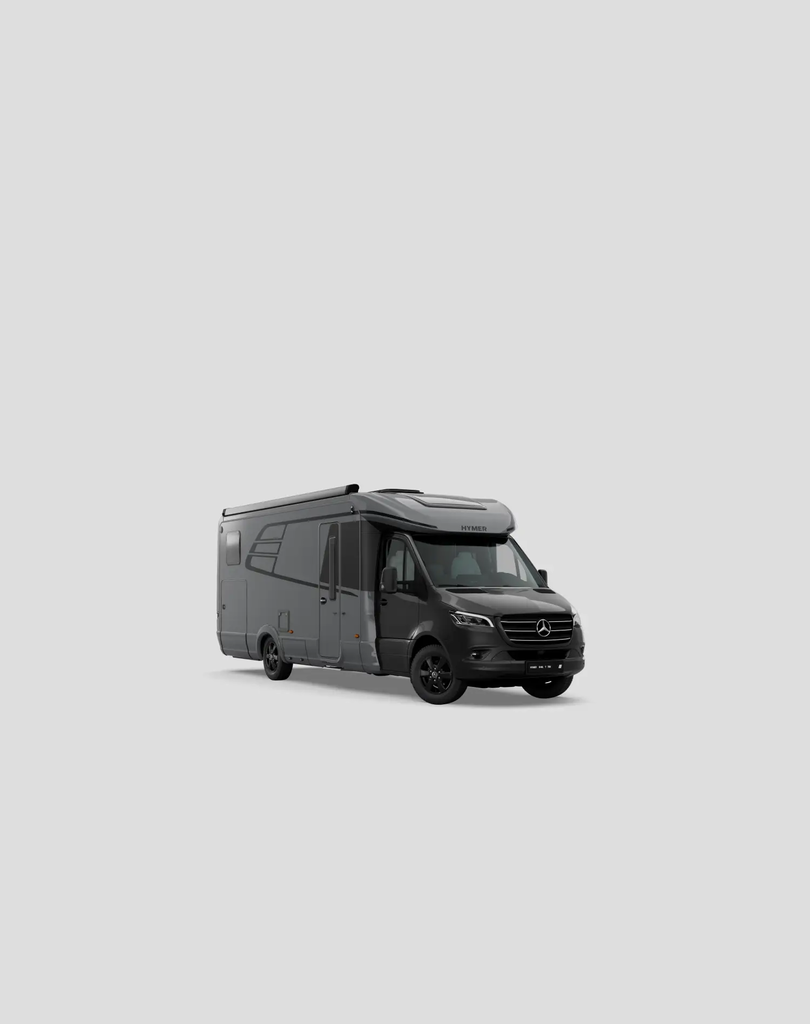

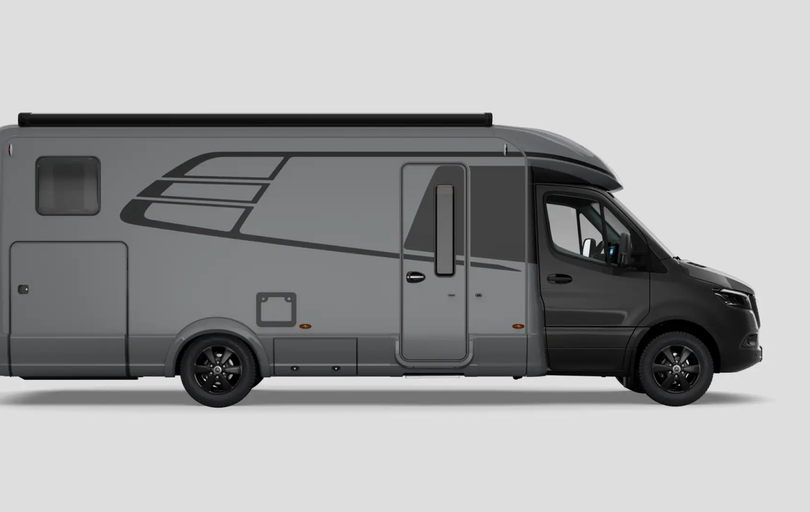

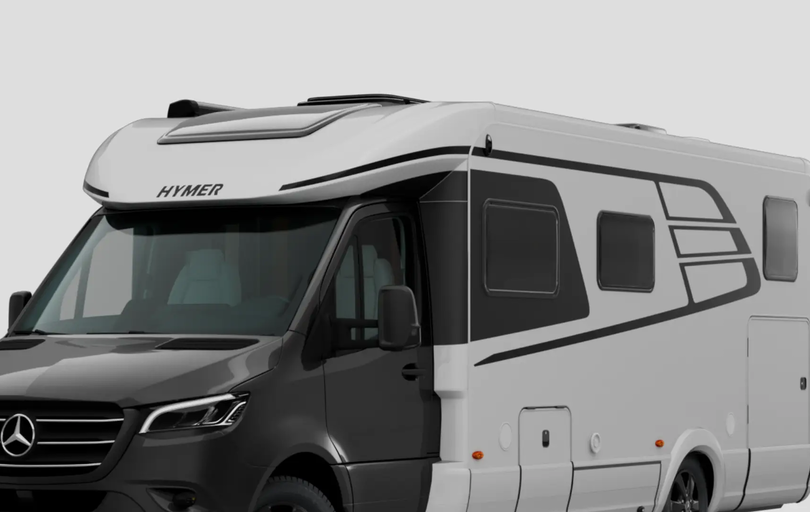

Exterior cab colour: Obsidian black (Metallic) |

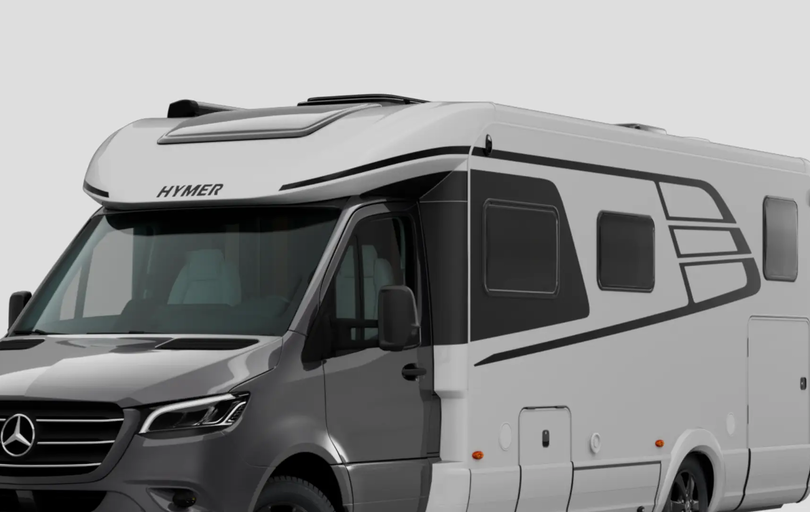

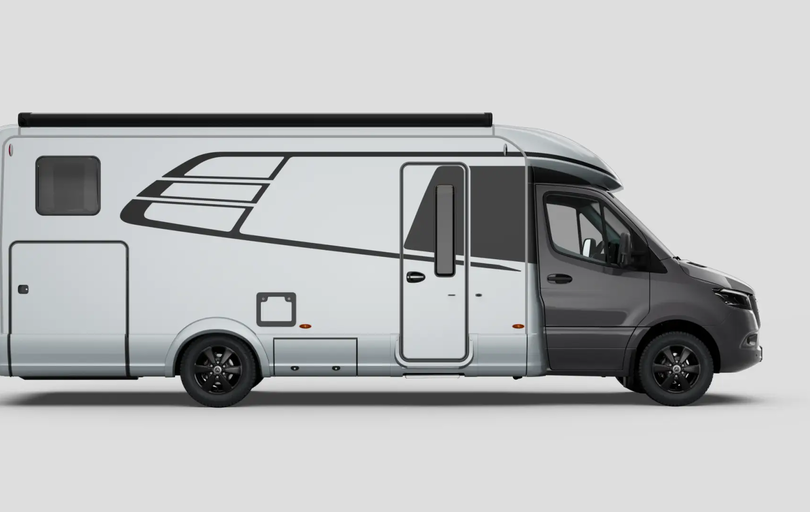

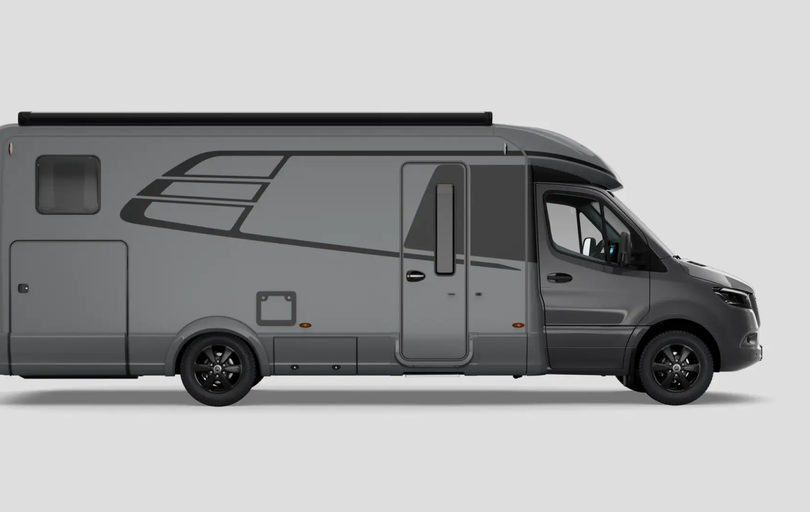

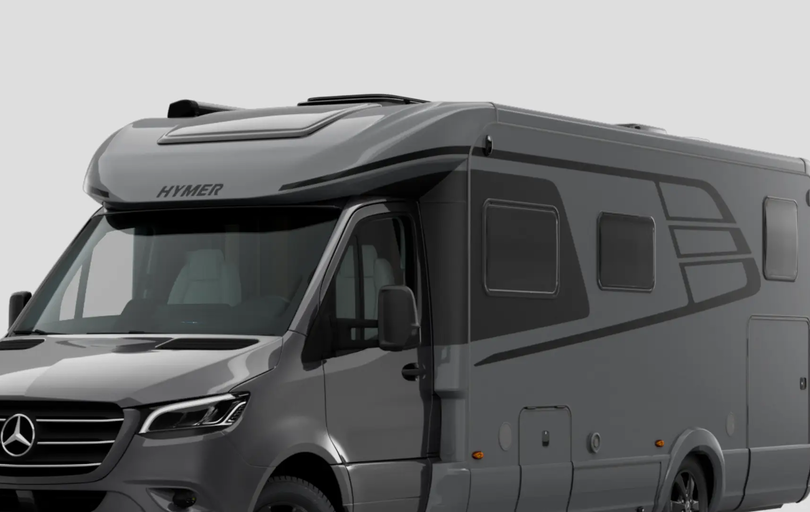

Exterior cab colour: Tenorite grey (Metallic) |

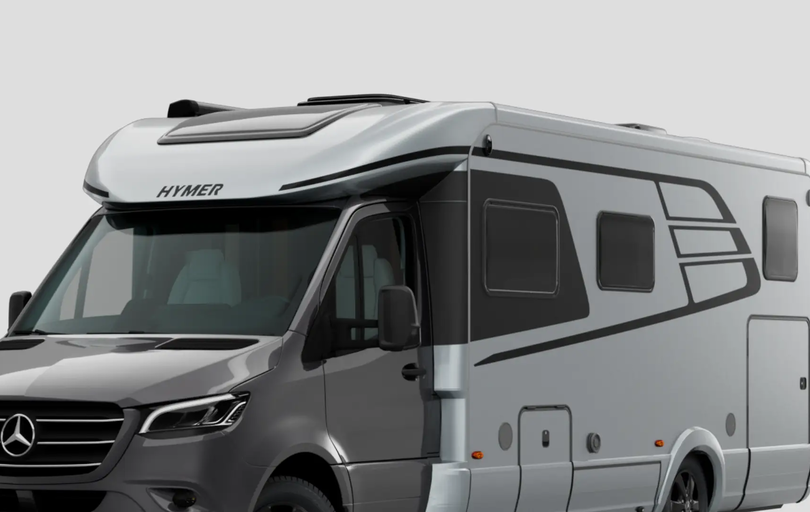

Exterior body colour: Crystal-Silver Metallic |
9G-TRONIC automatic transmission incl. Hold function |
Fog lights with cornering light |
Chrome grill |
Bumper, attachment parts and grill frame painted in vehicle colour |
Four-circuit air suspension (2 axles) |
Wet Wiper System (windscreen wiper with integrated spray nozzles) |
Heated windscreen |
LED High-Performance headlights |
16" alloy wheels (black) with All Season tyres |
16" alloy wheels (silver) with All Season tyres |
17" alloy wheels (silver) with summer tyres |
Shelf for smartphones incl. wireless charging with charge level indicator |
Cupholder instead of storage compartment |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Leather steering wheel (automatic transmission only) |
Seat heating and lumbar support for Original Mercedes-Benz seats |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
High Beam Assist |
Traffic Sign Assist |
Auxiliary heating (supports heating when heating up the vehicle) |
Fully automatic climate control THERMOTRONIC |
Steering wheel heating |
Heat insulating cab |
Body |
---|
Roof awning incl. dimmable LED lighting, white housing, 450 x 300 cm |
Roof awning incl. dimmable LED lighting, silver housing, 450 x 300 cm |
Trailer hitch (detachable ball head) |
GRP roof coating |
Hydraulic lift system with automatic front and rear levelling |
Comfort jacks, rear (2 units) |
Comfort-Plus habitation door incl. closing aid, RFID (keyless) access as well as central locking |
Frame extension incl. 450 kg garage load |
Security lock for habitation door |
Electric roof vent with function supply and exhaust air at kitchen |

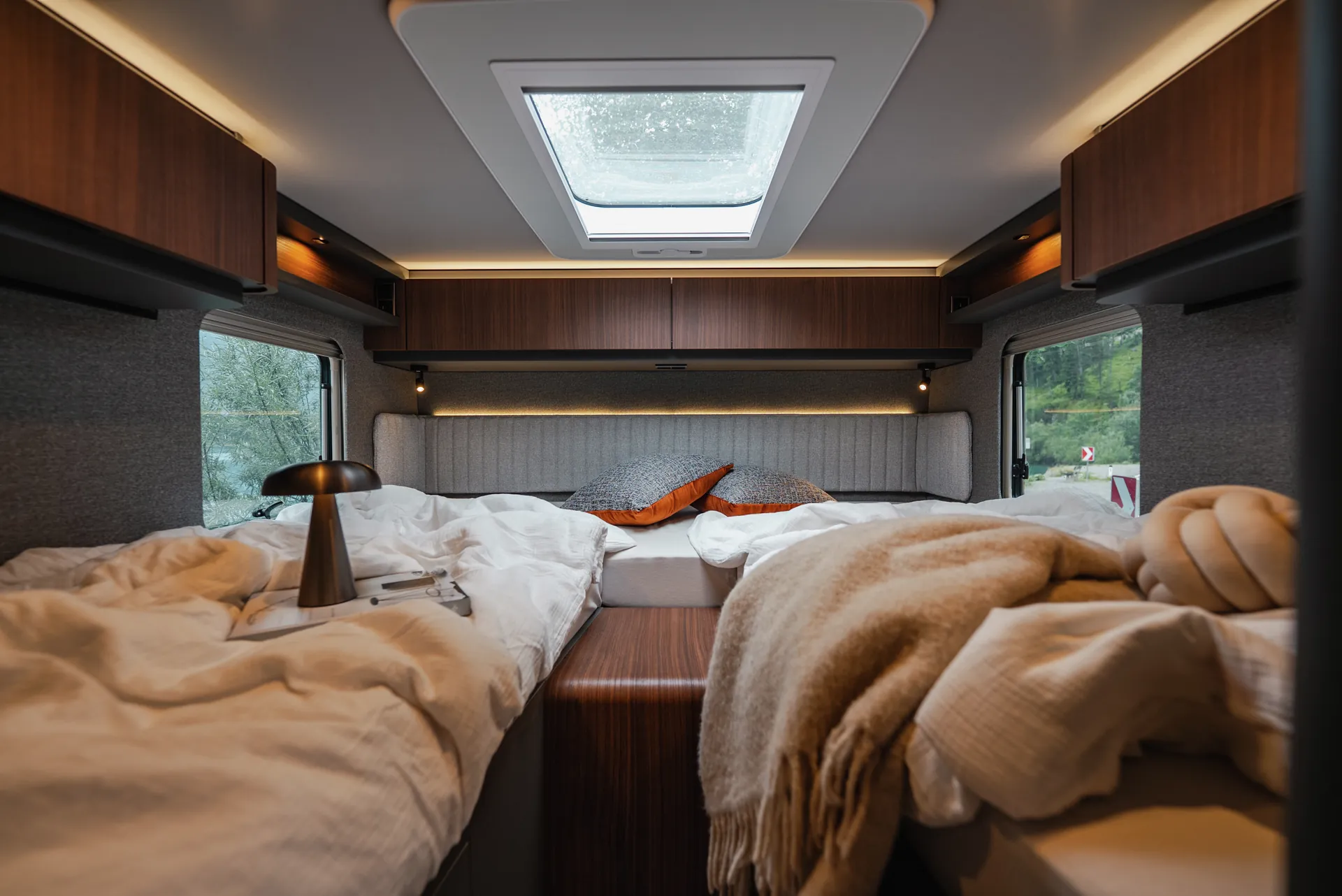

HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom |
Outfitting |
---|
Cab seats, upholstered in living area fabric, swivelling, height- and tilt adjustable with 2 armrests |
Seat heating and lumbar support for pilot seats |
Premium round and extendable table with real wood frame |
5th seat with lap belt on seat bench, RH side against direction of travel |
Insulating mat for cab footwell, supplied loose |
Insulated partitioning curtain for cab, double-layered sewn |
Checker plate floor, felt trim as well as 2 additional lashing rails in the rear garage |
Drawer and insert tray storage space in seating group |
External shower, located in garage |

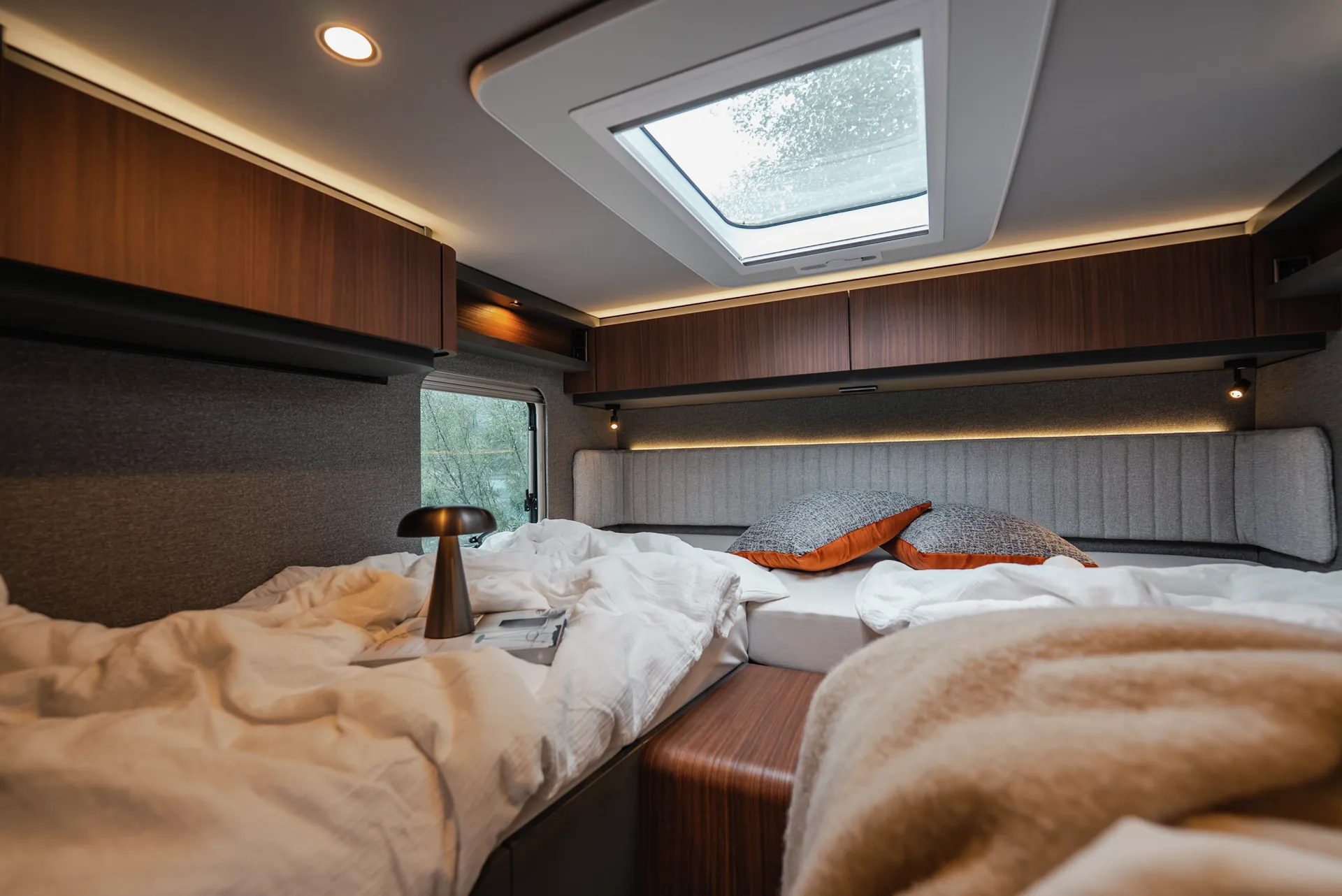

Living and bedroom + lighting |
---|
Comfort L-shaped seating group with lounge cushions, longitudinal / transverse sliding table and 2 built-in 3-point belts |
Bed conversion for L-shaped seating group incl. lowerable table |
Bed conversion for seating group incl. additional cushion and lowerable table |
Additional cushion between the longitudinal single beds incl. integrated comfort access |
Fitted sheets made to measure for rear beds individually adapted to mattress |
4 cushions |
Kitchen |
---|
TEC-Tower (153 l fridge/freezer unit, oven) |
Cooker- / oven combination |

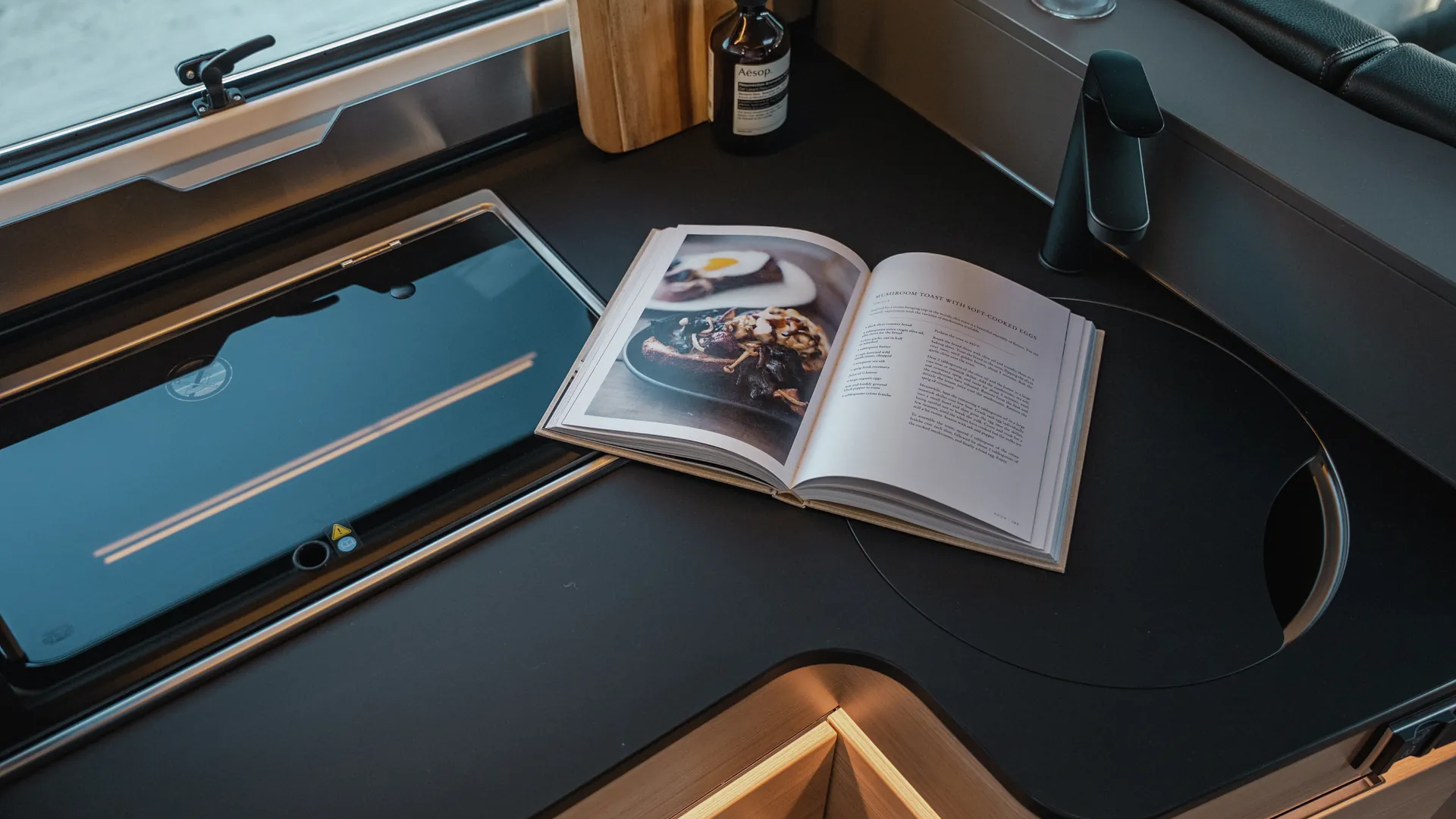

Hybrid cooker (gas- and induction cooker) |

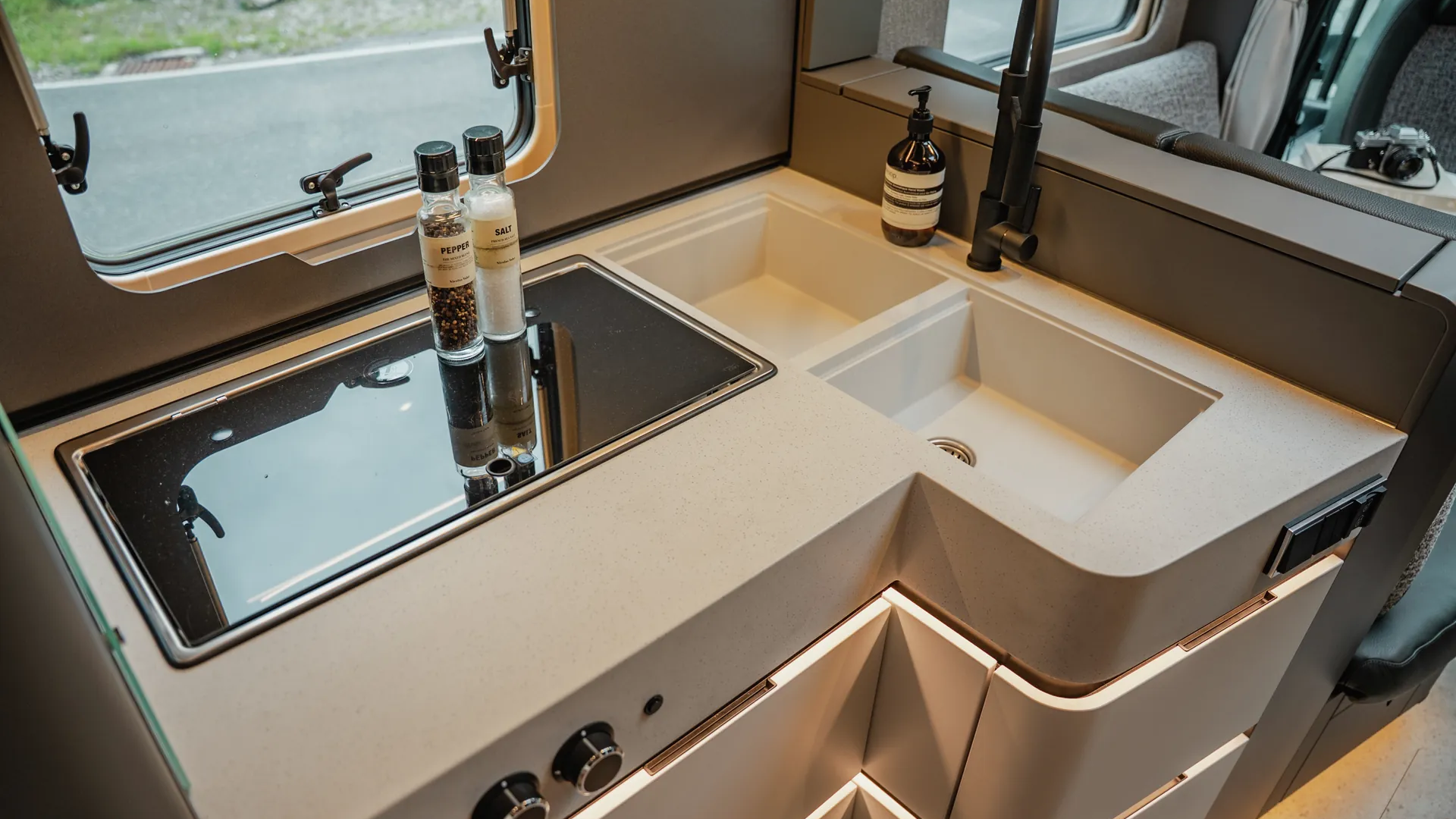

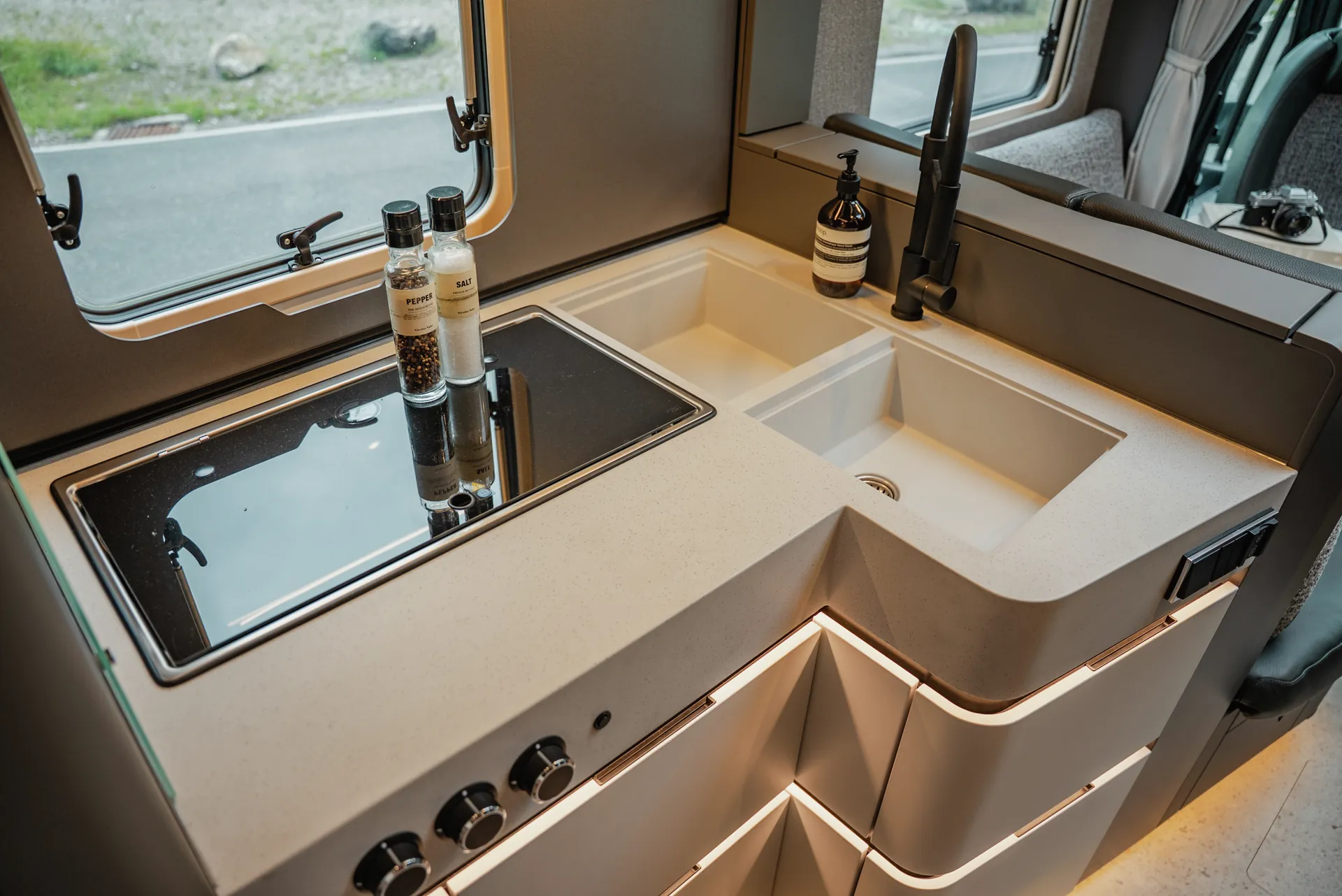

Kitchen worktop made of solid surface |
Bathroom |
---|
Ceramic toilet |
Shower insert floor with wooden surface |
Installation & Technology |
---|
6 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater |
Gas warm water heating incl. garage floor heating |
Gas-Warm water heating |
Gas-Warm water garage floor heating |
Gas filter for automatic gas bottle changeover |
External gas socket with shut-off valve |
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB as well as comfort lights |
HYMER Smart Battery System 2.0: 2nd habitation battery 80 Ah LFP incl. additional charger |
HYMER Smart Battery System 2.0: 3rd habitation battery 160 Ah LFP |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |

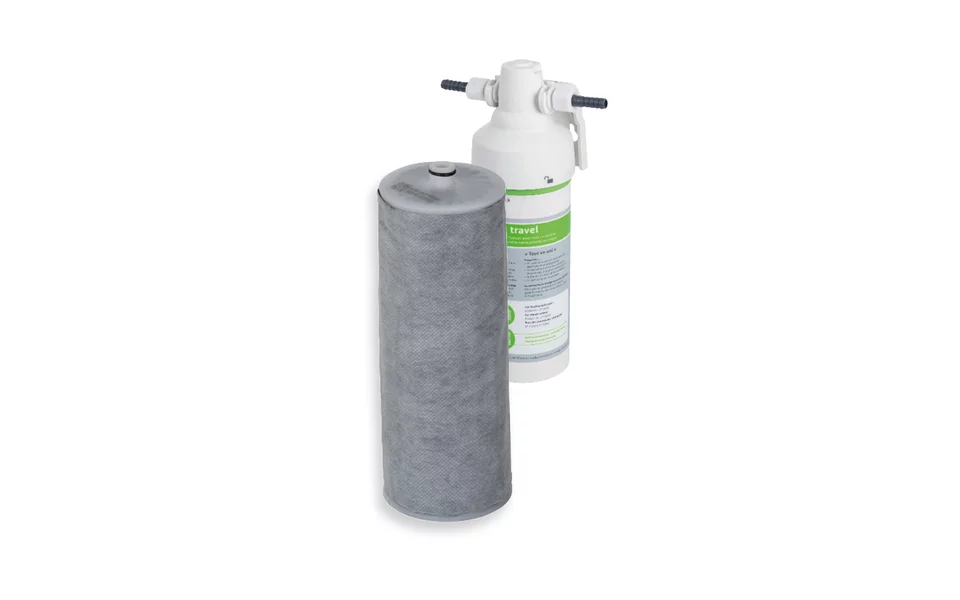

Water filter for fresh water system |
Roof AirCon, 2,400 W |
Toilet vent |
Heat exchanger for warm water heating |
Inverter 12 V to 230 V, 1,800 W with network priority circuit |
Multimedia |
---|
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket |
32" LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system with Bluetooth® (DVB-T / C, DVB-S2), electric bracket as well as receiver |
Digital flat antenna, without receiver |
Digital satellite dish, 80 cm, without receiver |
Digital satellite dish, 80 cm, Twin LNB |
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Fabrics & Furniture finishes |
---|
Furniture finish: Velvet Ash |
Fabric combination: Porto |
Textile leather-/ fabric combination: Marquis |
Leather-/ Fabric combination: Tenerife |
Leather: Grigio |
Leather: Isola |
Carpet: Laguna |
Carpet: Samona |
Packages |
---|
Equipment Line Plus |
Equipment Line Premium LP |
Style package |
Living Comfort package |
Autonomy package Lithium XL |
Arctic package |
Winter package |
Standard equipment |
---|

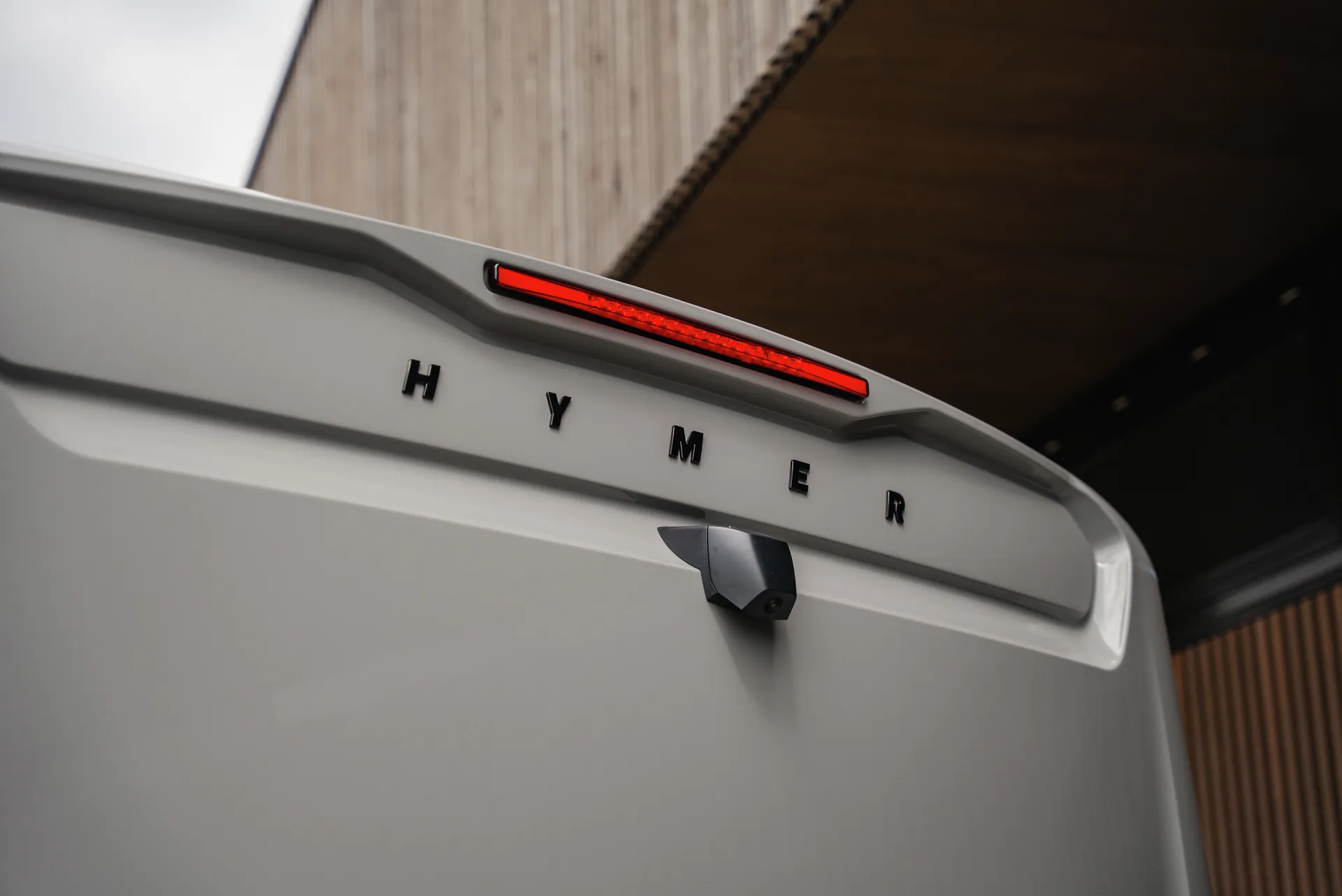

10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Heat-insulating glass with tinting strip on windscreen |
Active Lane Keeping Assist |
Attention Assist |
Rain sensor |
DAB Radio |
Semi-automatic climate control TEMPMATIC |
Electric parking brake |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
