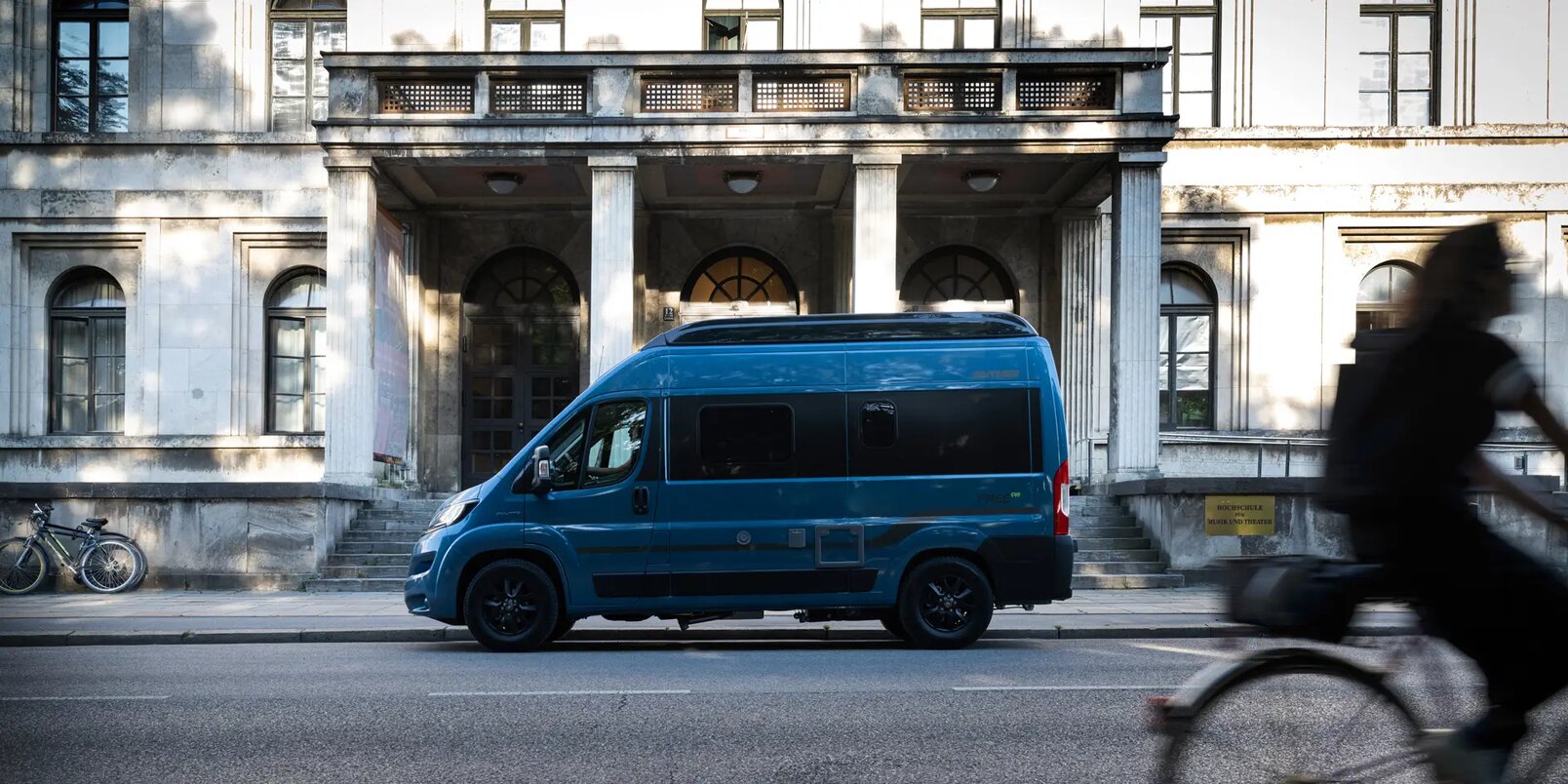

The CamperVans in the HYMER Free model range have been designed with meticulous attention to comfort for those who like to live spontaneously.
Do you like the extraordinary? Do you like to make decisions on the fly and are you flexible in your leisure time? The HYMER Free has been developed to precisely meet your needs!
Its modern design, spacious interior and high-quality furniture finishes make the HYMER Free the perfect travel companion at any altitude. It will amaze you with its many features and additional packages and extras. It’s also available with sleeping roof upon request, providing you with four berths in an instant.
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Pricea) | 63.400 € |
Standard chassis | Fiat Ducato |
Drive | Front Wheel Drive |
kW (hp) | 88 (120) |
Tire size | 215/70 R15 C |
Length / Width / Height (cm) | 541 / 208 / 260 |
Overall height (open pop-top roof) | 350 |
Roof type | Sleeping roof |
Standing height in living area (cm) | 190 |
Wheelbase (mm) | 3450 |
Mass in running order (-/+ 5%) (kg)* | 2723 (2587-2859)* |
Manufacturer-specified mass for optional equipment (kg)* | 445 |
Technically permissible maximum laden mass (kg)* | 3500 |
Technically permissible maximum towable mass (kg)* | 2000 |
Permitted number of seats (including driver)* | 4 |
Bed dimension: Front bed L x W (cm) | 182 x 101 - 62 |
Bed dimension: Rear bed L x W (cm) | 196 x 132 - 122 |
Bed dimension: Sleeping roof L x W (cm) | 200 x 135 |
Berths | 2 - 4 |
Fridge volume (of which freezer compartment) (l) | 70 (7,5) |
Standard heating | Warm air, 4 kW |
Gas bottle storage (Filling weight) | 1x 5kg1x 11kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | Gas boiler 11 l |
Waste water tank (l) | 100 |
Standard habitation battery (Ah) | 95 Ah AGM |
Sockets: 230 V/ 12 V/ USB | 2 / 1 / 1 |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 88 KW/120 hp - Euro 6D Final |
Basis |
---|
Exterior color: White |
6G manual transmission |
75 l fuel tank |
19 l AdBlue tank |
Daytime Running Light integrated in headlights |
15'' steel rims |
1x Twin USB socket in cab |
Outside temperature display |
Tool kit |
Digital display with on-board computer |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Exterior mirror electrically adjustable / heated |
Cupholder in the center of the dashboard |
Belt warning device "Unfastened seat belt" |
Glovebox, passenger side, with cooling compartment lid for 1.5 liter bottle |
Coaxial steering wheel adjustment |
Manual AirCon with pollen filter |
Breakdown kit (air compressor with additional valve) |
Seat base paneling |
Power steering |
Sensor for water in diesel fuel |
Door storage boxes with integrated bottle holder for 1.5 liter bottles |
Central locking with internal operation and remote control |
ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System |
Cruise Control |
Crosswind Assist |
Start-Stop-System incl. intelligent alternator |
Body |
---|
Electric entrance step |
Expandable rear door opening |
Black gutter above the sliding door with integrated LED lighting |
Dark tinted windows in the living area |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Skylight in bathroom, 40 x 40 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Insulated aluminum framed bathroom window |
Outfitting |
---|
Attachable table with slide-out extension |
Cab seats, swivelling, with armrests, height- and tilt adjustable |
Cab seats, armrests and seat bench upholstered in living area fabric |
Mosquito net pleated blind for sliding door |
Pedestal containing large storage compartment |
Gas bottle compartment for 2 gas bottles |
Embedded lashing eyes for ideal fixation located in floor and rear bed |
Blackout living room with pleated blinds and mosquito net |
Vertically adjustable bed frame |
Living and bedroom + lighting |
---|
Cold foam mattress for rear beds incl. Comfort bed slat frame |
Seating group wall paneling with premium heat insulating and noise canceling fabric lining |
Ambient lighting in living room and kitchen |
LED lighting |
Kitchen |
---|
Deep drawers with Premium pull-outs incl. self-closing |
70 l compressor fridge with 2-way opening |
Hob-sink combination with glass cover (2-burner hob) |
Bathroom |
---|
Shower head holder with suction cup |
Shower tray with circular gutter |
Cassette toilet with level indicator |
Compact bathroom with door |
Mirror cabinet |
Installation & Technology |
---|
4 kW warm air heating incl. 10 l warm water boiler |
Internal temperature sensor |
LCD keypad for heating |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
95 Ah habitation battery with charger |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
100 l fresh water tank, internal (20 l in driving position) |
100 l waste water tank (fitted underfloor) |
Waste water tank, insulated |
Level indicator for fresh water as well as waste water tank |
Entrance step switch protection cover |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Corfu |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E |
Fiat Ducato 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro VI-E |
Basis |
---|
Pastel: Lanzarote gray |
Pastel: Grigio Campovolo |
Metallic: Fer gray |
Metallic: Artense gray |
Metallic: Black |
9G automatic transmission (140 hp engine) |
9G automatic transmission (180 hp engine) |
90 l fuel tank |
Electric parking brake |
Trailer hitch, removable |
LED Daytime Running Light |
LED headlights |
Fog lights with cornering light |
Bumper painted in vehicle color |
16" steel rims (Light chassis only) |
16" steel wheels (Maxi chassis or automatic transmission only) |
16" alloy wheels (Light chassis only) |
16" alloy wheels (Maxi chassis or automatic transmission only) |
16" alloy rims with All Terrain tires (Light chassis only) |
16" alloy wheels with All Terrain tires (Maxi chassis or automatic transmission only) |
18" alloy rims with All Season tires, black (Light chassis only) |
18" alloy rims with All Season tires, black (Maxi chassis or automatic transmission only) |
16" All-Season tires (with snowflake symbol) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard with aluminum-colored applications |
Automatic AirCon with pollen filter |
Leather steering wheel and gear knob lever |
Multifunctional steering wheel |
Seat heating for cab seats, adjustable separately |
Auxiliary parking heating, programmable (for engine pre-heating and window defrosting) |
Fully digital cockpit with integrated 7" display |
Heated windscreen |
Distance Cruise Control incl. Intelligent Speed Assist and Drowsiness detection |
Driver Assistance System incl. Emergency Brake & Lane Keeping Assist, Traffic sign recognition, High Beam Assist as well as light and rain sensor |
Park Pilot - audible warning of obstacles in the rear area |
Blind Spot Assist incl. Rear Cross Path Detection |
Premium DAB radio pre-installation |
Grill frame, glossy black |
Skid plate, glossy black |
Headlights with black frame |
Active Lane Keeping and Traffic Jam Assist |
Body |
---|
Awning with special adapter for sleeping roof, anthracite housing, 300 x 250 cm |
Awning with adapter, anthracite housing, 325 x 250 cm |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors) |
Backrack+ |
Opening window incl. blackout blind and mosquito net, RH side, rear |
Opening window incl. blackout blind and mosquito net, LH side, rear |
Outfitting |
---|
2 folding chairs and table, incl. fixation |
ISOFIX (child seat fixation for seat bench) |
Cab blinds |
Partitioning curtain in the rear |
Living and bedroom + lighting |
---|
Bed conversion for seating group incl. additional cushion |
Fitted sheets made to measure for rear beds individually adapted to mattress contours |
Living style collection "HOME" (2 pillows as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
6 kW Diesel warm air heating with 10 l warm water boiler, altitude kit and 1,800 W electric bar heater |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
Automatic gas bottle changeover system with crash sensor and IceEx |
External gas socket with shut-off valve |
Second habitation battery (95 Ah AGM) incl. additional 18 A charger |
HYMER Smart Battery System (50 Ah Lithium) incl. additional 18 A charger and battery computer |
HYMER Smart Battery System (150 Ah Lithium) incl. additional 18 A charger and battery computer |
Additional sockets: 2 x 230 V / 1 x 12 V |
Waste water tank, insulated and heated |
Security system (alarm system) |
Pre-wiring kit Solar system |
Multimedia |
---|
Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel |
Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera |
TV pre-installation with DVB-T antenna (active) |
22" LED-TV with built-in speakers, remote control, DVD drive |
DAB Radio pre-installation |
Fabrics & Furniture finishes |
---|
Fabric combination: Denver |
Fabric combination: Jandia |
Fabric combination: Grazia (Eco Tech Material) |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Chassis package |
Ready to Camp package Light |
Ready to Camp package Maxi |
Style package |
Driver Assistance package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Pricea) | 64.900 € |
Standard chassis | Fiat Ducato |
Drive | Front Wheel Drive |
kW (hp) | 88 (120) |
Tire size | 215/70 R15 C |
Length / Width / Height (cm) | 599 / 208 / 260 |
Overall height (open pop-top roof) | 350 |
Roof type | Sleeping roof |
Standing height in living area (cm) | 190 |
Wheelbase (mm) | 4035 |
Mass in running order (-/+ 5%) (kg)* | 2848 (2706-2990)* |
Manufacturer-specified mass for optional equipment (kg)* | 325 |
Technically permissible maximum laden mass (kg)* | 3500 |
Technically permissible maximum towable mass (kg)* | 2000 |
Permitted number of seats (including driver)* | 4 |
Bed dimension: Front bed L x W (cm) | 182 x 101 - 62 |
Bed dimension: Rear bed L x W (cm) | 196 x 152 - 140 |
Bed dimension: Sleeping roof L x W (cm) | 200 x 135 |
Berths | 2 - 4 |
Fridge volume (of which freezer compartment) (l) | 90 (6,5) |
Standard heating | Warm air, 4 kW |
Gas bottle storage (Filling weight) | 1x 5kg1x 11kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | Gas boiler 11 l |
Waste water tank (l) | 100 |
Standard habitation battery (Ah) | 95 Ah AGM |
Sockets: 230 V/ 12 V/ USB | 2 / 1 / 1 |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 88 KW/120 hp - Euro 6D Final |
Basis |
---|
Exterior color: White |
6G manual transmission |
75 l fuel tank |
19 l AdBlue tank |
Daytime Running Light integrated in headlights |
15'' steel rims |
1x Twin USB socket in cab |
Outside temperature display |
Tool kit |
Digital display with on-board computer |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Exterior mirror electrically adjustable / heated |
Cupholder in the center of the dashboard |
Belt warning device "Unfastened seat belt" |
Glovebox, passenger side, with cooling compartment lid for 1.5 liter bottle |
Coaxial steering wheel adjustment |
Manual AirCon with pollen filter |
Breakdown kit (air compressor with additional valve) |
Seat base paneling |
Power steering |
Sensor for water in diesel fuel |
Door storage boxes with integrated bottle holder for 1.5 liter bottles |
Central locking with internal operation and remote control |
ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System |
Cruise Control |
Crosswind Assist |
Start-Stop-System incl. intelligent alternator |
Body |
---|
Electric entrance step |
Expandable rear door opening |
Black gutter above the sliding door with integrated LED lighting |
Dark tinted windows in the living area |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Skylight in bathroom, 40 x 40 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Insulated aluminum framed bathroom window |
Outfitting |
---|
Attachable table with slide-out extension |
Cab seats, swivelling, with armrests, height- and tilt adjustable |
Cab seats, armrests and seat bench upholstered in living area fabric |
Mosquito net pleated blind for sliding door |
Pedestal containing large storage compartment |
Gas bottle compartment for 2 gas bottles |
Embedded lashing eyes for ideal fixation located in floor and rear bed |
Blackout living room with pleated blinds and mosquito net |
Vertically adjustable bed frame |
Living and bedroom + lighting |
---|
Cold foam mattress for rear beds incl. Comfort bed slat frame |
Seating group wall paneling with premium heat insulating and noise canceling fabric lining |
Ambient lighting in living room and kitchen |
LED lighting |
Kitchen |
---|
Deep drawers with Premium pull-outs incl. self-closing |
90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode |
Expandable kitchen worktop |
Hob-sink combination with glass cover (2-burner hob) |
Bathroom |
---|
Shower head holder with suction cup |
Shower tray with circular gutter |
Cassette toilet with level indicator |
Compact bathroom with door |
Mirror cabinet |
Installation & Technology |
---|
4 kW warm air heating incl. 10 l warm water boiler |
Internal temperature sensor |
LCD keypad for heating |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
95 Ah habitation battery with charger |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
100 l fresh water tank, internal (20 l in driving position) |
100 l waste water tank (fitted underfloor) |
Waste water tank, insulated |
Level indicator for fresh water as well as waste water tank |
Entrance step switch protection cover |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Corfu |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro 6D Final |
Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E |
Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro VI-E |
Fiat Ducato Maxi 4.0 t - 2.2 Multijet - 132 KW/180 hp - Euro VI-E |
Downplating to 3.5 t (Fiat Ducato Maxi 4 t only) |
Basis |
---|
Pastel: Lanzarote gray |
Pastel: Grigio Campovolo |
Metallic: Fer gray |
Metallic: Artense gray |
Metallic: Black |
9G automatic transmission (140 hp engine) |
9G automatic transmission (180 hp engine) |
90 l fuel tank |
Electric parking brake |
Trailer hitch, removable |
LED Daytime Running Light |
LED headlights |
Fog lights with cornering light |
Bumper painted in vehicle color |
16" steel rims (Light chassis only) |
16" steel wheels (Maxi chassis or automatic transmission only) |
16" alloy wheels (Light chassis only) |
16" alloy wheels (Maxi chassis or automatic transmission only) |
16" alloy rims with All Terrain tires (Light chassis only) |
16" alloy wheels with All Terrain tires (Maxi chassis or automatic transmission only) |
18" alloy rims with All Season tires, black (Light chassis only) |
18" alloy rims with All Season tires, black (Maxi chassis or automatic transmission only) |
16" All-Season tires (with snowflake symbol) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard with aluminum-colored applications |
Automatic AirCon with pollen filter |
Leather steering wheel and gear knob lever |
Multifunctional steering wheel |
Seat heating for cab seats, adjustable separately |
Auxiliary parking heating, programmable (for engine pre-heating and window defrosting) |
Fully digital cockpit with integrated 7" display |
Heated windscreen |
Distance Cruise Control incl. Intelligent Speed Assist and Drowsiness detection |
Driver Assistance System incl. Emergency Brake & Lane Keeping Assist, Traffic sign recognition, High Beam Assist as well as light and rain sensor |
Park Pilot - audible warning of obstacles in the rear area |
Blind Spot Assist incl. Rear Cross Path Detection |
Premium DAB radio pre-installation |
Grill frame, glossy black |
Skid plate, glossy black |
Headlights with black frame |
Active Lane Keeping and Traffic Jam Assist |
Body |
---|
Awning with special adapter for sleeping roof, anthracite housing, 375 x 250 cm |
Awning with adapter, anthracite housing, 375 x 250 cm |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors) |
Backrack+ |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Opening window incl. blackout blind and mosquito net, RH side, rear |
Opening window incl. blackout blind and mosquito net, LH side, rear |
Outfitting |
---|
2 folding chairs and table, incl. fixation |
ISOFIX (child seat fixation for seat bench) |
Cab blinds |
Partitioning curtain in the rear |
Living and bedroom + lighting |
---|
Bed conversion for seating group incl. additional cushion |
Fitted sheets made to measure for rear beds individually adapted to mattress contours |
Living style collection "HOME" (2 pillows as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
6 kW Diesel warm air heating with 10 l warm water boiler, altitude kit and 1,800 W electric bar heater |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
Automatic gas bottle changeover system with crash sensor and IceEx |
External gas socket with shut-off valve |
Second habitation battery (95 Ah AGM) incl. additional 18 A charger |
HYMER Smart Battery System (50 Ah Lithium) incl. additional 18 A charger and battery computer |
HYMER Smart Battery System (150 Ah Lithium) incl. additional 18 A charger and battery computer |
Additional sockets: 2 x 230 V / 1 x 12 V |
Waste water tank, insulated and heated |
Security system (alarm system) |
Pre-wiring kit Solar system |
Multimedia |
---|
Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel |
Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera |
TV pre-installation with DVB-T antenna (active) |
22" LED-TV with built-in speakers, remote control, DVD drive |
DAB Radio pre-installation |
Fabrics & Furniture finishes |
---|
Fabric combination: Denver |
Fabric combination: Jandia |
Fabric combination: Grazia (Eco Tech Material) |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Chassis package |
Ready to Camp package Light |
Ready to Camp package Maxi |
Style package |
Driver Assistance package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Pricea) | 64.900 € |
Standard chassis | Fiat Ducato |
Drive | Front Wheel Drive |
kW (hp) | 88 (120) |
Tire size | 215/70 R15 C |
Length / Width / Height (cm) | 599 / 208 / 260 |
Overall height (open pop-top roof) | 350 |
Roof type | Sleeping roof |
Standing height in living area (cm) | 190 |
Wheelbase (mm) | 4035 |
Mass in running order (-/+ 5%) (kg)* | 2843 (2701-2985)* |
Manufacturer-specified mass for optional equipment (kg)* | 315 |
Technically permissible maximum laden mass (kg)* | 3500 |
Technically permissible maximum towable mass (kg)* | 2000 |
Permitted number of seats (including driver)* | 4 |
Bed dimension: Front bed L x W (cm) | 182 x 101 - 62 |
Bed dimension: Rear bed L x W (cm) | 192 x 120 - 54 / 182 x 80 |
Bed dimension: Sleeping roof L x W (cm) | 200 x 135 |
Berths | 2 - 4 |
Fridge volume (of which freezer compartment) (l) | 70 (7,5) |
Standard heating | Warm air, 4 kW |
Gas bottle storage (Filling weight) | 1x 5kg1x 11kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | Gas boiler 11 l |
Waste water tank (l) | 100 |
Standard habitation battery (Ah) | 95 Ah AGM |
Sockets: 230 V/ 12 V/ USB | 2 / 1 / 1 |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 88 KW/120 hp - Euro 6D Final |
Basis |
---|
Exterior color: White |
6G manual transmission |
75 l fuel tank |
19 l AdBlue tank |
Daytime Running Light integrated in headlights |
15'' steel rims |
1x Twin USB socket in cab |
Outside temperature display |
Tool kit |
Digital display with on-board computer |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Exterior mirror electrically adjustable / heated |
Cupholder in the center of the dashboard |
Belt warning device "Unfastened seat belt" |
Glovebox, passenger side, with cooling compartment lid for 1.5 liter bottle |
Coaxial steering wheel adjustment |
Manual AirCon with pollen filter |
Breakdown kit (air compressor with additional valve) |
Seat base paneling |
Power steering |
Sensor for water in diesel fuel |
Door storage boxes with integrated bottle holder for 1.5 liter bottles |
Central locking with internal operation and remote control |
ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System |
Cruise Control |
Crosswind Assist |
Start-Stop-System incl. intelligent alternator |
Body |
---|
Electric entrance step |
Expandable rear door opening |
Black gutter above the sliding door with integrated LED lighting |
Dark tinted windows in the living area |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Skylight in bathroom, 40 x 40 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Insulated aluminum framed bathroom window |
Outfitting |
---|
Attachable table with slide-out extension |
Cab seats, swivelling, with armrests, height- and tilt adjustable |
Cab seats, armrests and seat bench upholstered in living area fabric |
Mosquito net pleated blind for sliding door |
Pedestal containing large storage compartment |
Gas bottle compartment for 2 gas bottles |
Embedded lashing eyes for ideal fixation located in floor and rear bed |
Blackout living room with pleated blinds and mosquito net |
Vertically adjustable bed frame |
Living and bedroom + lighting |
---|
Cold foam mattress for rear beds incl. Comfort bed slat frame |
Seating group wall paneling with premium heat insulating and noise canceling fabric lining |
Ambient lighting in living room and kitchen |
LED lighting |
Kitchen |
---|
Deep drawers with Premium pull-outs incl. self-closing |
70 l compressor fridge with 2-way opening |
Hob-sink combination with glass cover (2-burner hob) |
Bathroom |
---|
Shower head holder with suction cup |
Shower tray with circular gutter |
Cassette toilet with level indicator |
Compact bathroom with door |
Mirror cabinet |
Installation & Technology |
---|
4 kW warm air heating incl. 10 l warm water boiler |
Internal temperature sensor |
LCD keypad for heating |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
95 Ah habitation battery with charger |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
100 l fresh water tank, internal (20 l in driving position) |
100 l waste water tank (fitted underfloor) |
Waste water tank, insulated |
Level indicator for fresh water as well as waste water tank |
Entrance step switch protection cover |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Corfu |
Chassis |
---|
Fiat Ducato 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro 6D Final |
Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E |
Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro VI-E |
Fiat Ducato Maxi 4.0 t - 2.2 Multijet - 132 KW/180 hp - Euro VI-E |
Downplating to 3.5 t (Fiat Ducato Maxi 4 t only) |
Basis |
---|
Pastel: Lanzarote gray |
Pastel: Grigio Campovolo |
Metallic: Fer gray |
Metallic: Artense gray |
Metallic: Black |
9G automatic transmission (140 hp engine) |
9G automatic transmission (180 hp engine) |
90 l fuel tank |
Electric parking brake |
Trailer hitch, removable |
LED Daytime Running Light |
LED headlights |
Fog lights with cornering light |
Bumper painted in vehicle color |
16" steel rims (Light chassis only) |
16" steel wheels (Maxi chassis or automatic transmission only) |
16" alloy wheels (Light chassis only) |
16" alloy wheels (Maxi chassis or automatic transmission only) |
16" alloy rims with All Terrain tires (Light chassis only) |
16" alloy wheels with All Terrain tires (Maxi chassis or automatic transmission only) |
18" alloy rims with All Season tires, black (Light chassis only) |
18" alloy rims with All Season tires, black (Maxi chassis or automatic transmission only) |
16" All-Season tires (with snowflake symbol) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard with aluminum-colored applications |
Automatic AirCon with pollen filter |
Leather steering wheel and gear knob lever |
Multifunctional steering wheel |
Seat heating for cab seats, adjustable separately |
Auxiliary parking heating, programmable (for engine pre-heating and window defrosting) |
Fully digital cockpit with integrated 7" display |
Heated windscreen |
Distance Cruise Control incl. Intelligent Speed Assist and Drowsiness detection |
Driver Assistance System incl. Emergency Brake & Lane Keeping Assist, Traffic sign recognition, High Beam Assist as well as light and rain sensor |
Park Pilot - audible warning of obstacles in the rear area |
Blind Spot Assist incl. Rear Cross Path Detection |
Premium DAB radio pre-installation |
Grill frame, glossy black |
Skid plate, glossy black |
Headlights with black frame |
Active Lane Keeping and Traffic Jam Assist |
Body |
---|
Awning with special adapter for sleeping roof, anthracite housing, 375 x 250 cm |
Awning with adapter, anthracite housing, 375 x 250 cm |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors) |
Backrack+ |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Opening window incl. blackout blind and mosquito net, RH side, rear |
Opening window incl. blackout blind and mosquito net, LH side, rear |
Outfitting |
---|
2 folding chairs and table, incl. fixation |
ISOFIX (child seat fixation for seat bench) |
Cab blinds |
Partitioning curtain in the rear |
Living and bedroom + lighting |
---|
Bed conversion for seating group incl. additional cushion |
Fitted sheets made to measure for rear beds individually adapted to mattress contours |
Living style collection "HOME" (2 pillows as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
6 kW Diesel warm air heating with 10 l warm water boiler, altitude kit and 1,800 W electric bar heater |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
Automatic gas bottle changeover system with crash sensor and IceEx |
External gas socket with shut-off valve |
Second habitation battery (95 Ah AGM) incl. additional 18 A charger |
HYMER Smart Battery System (50 Ah Lithium) incl. additional 18 A charger and battery computer |
HYMER Smart Battery System (150 Ah Lithium) incl. additional 18 A charger and battery computer |
Additional sockets: 2 x 230 V / 1 x 12 V |
Waste water tank, insulated and heated |
Security system (alarm system) |
Pre-wiring kit Solar system |
Multimedia |
---|
Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel |
Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera |
TV pre-installation with DVB-T antenna (active) |
22" LED-TV with built-in speakers, remote control, DVD drive |
DAB Radio pre-installation |
Fabrics & Furniture finishes |
---|
Fabric combination: Denver |
Fabric combination: Jandia |
Fabric combination: Grazia (Eco Tech Material) |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Chassis package |
Ready to Camp package Light |
Ready to Camp package Maxi |
Style package |
Driver Assistance package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
