Edition model

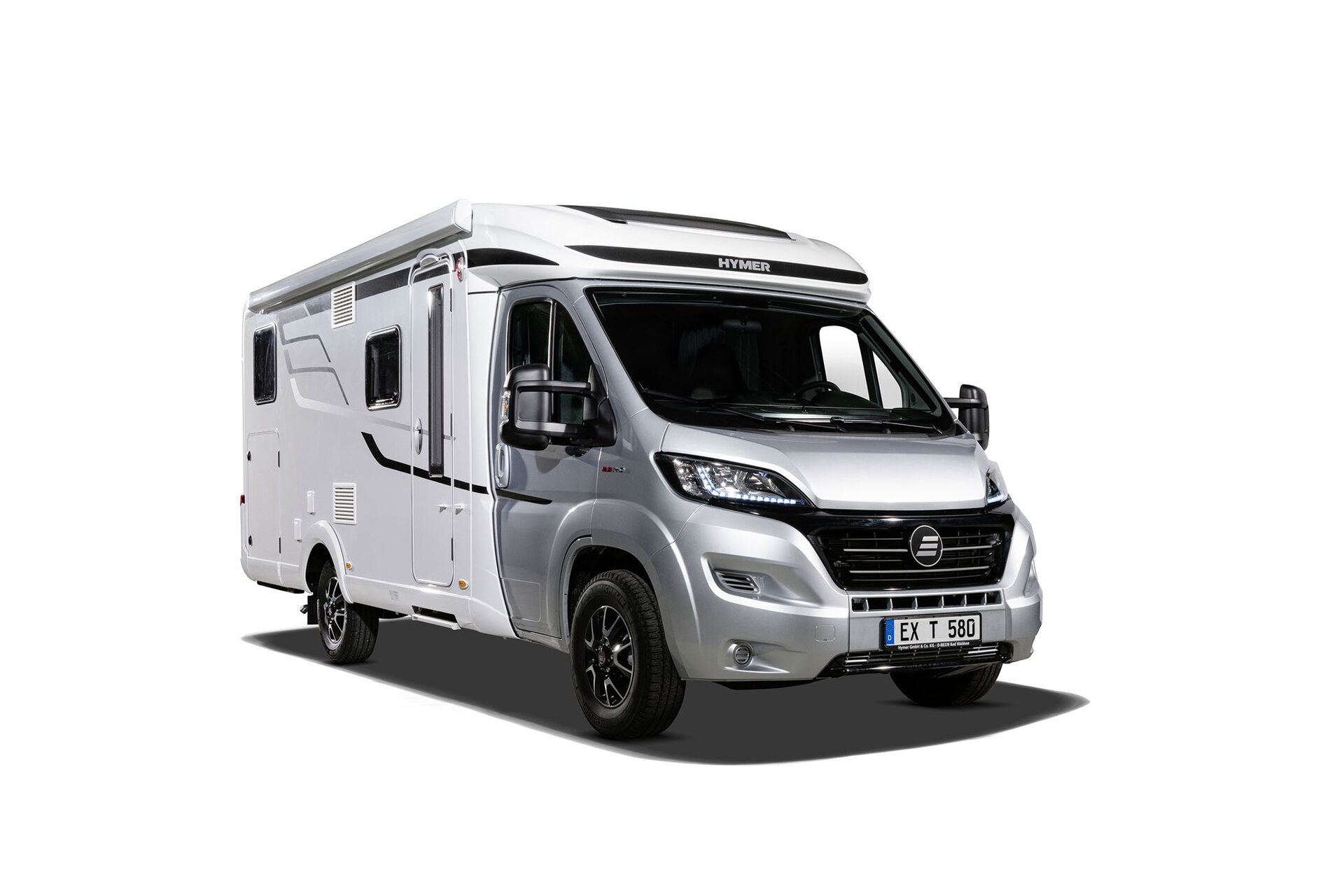

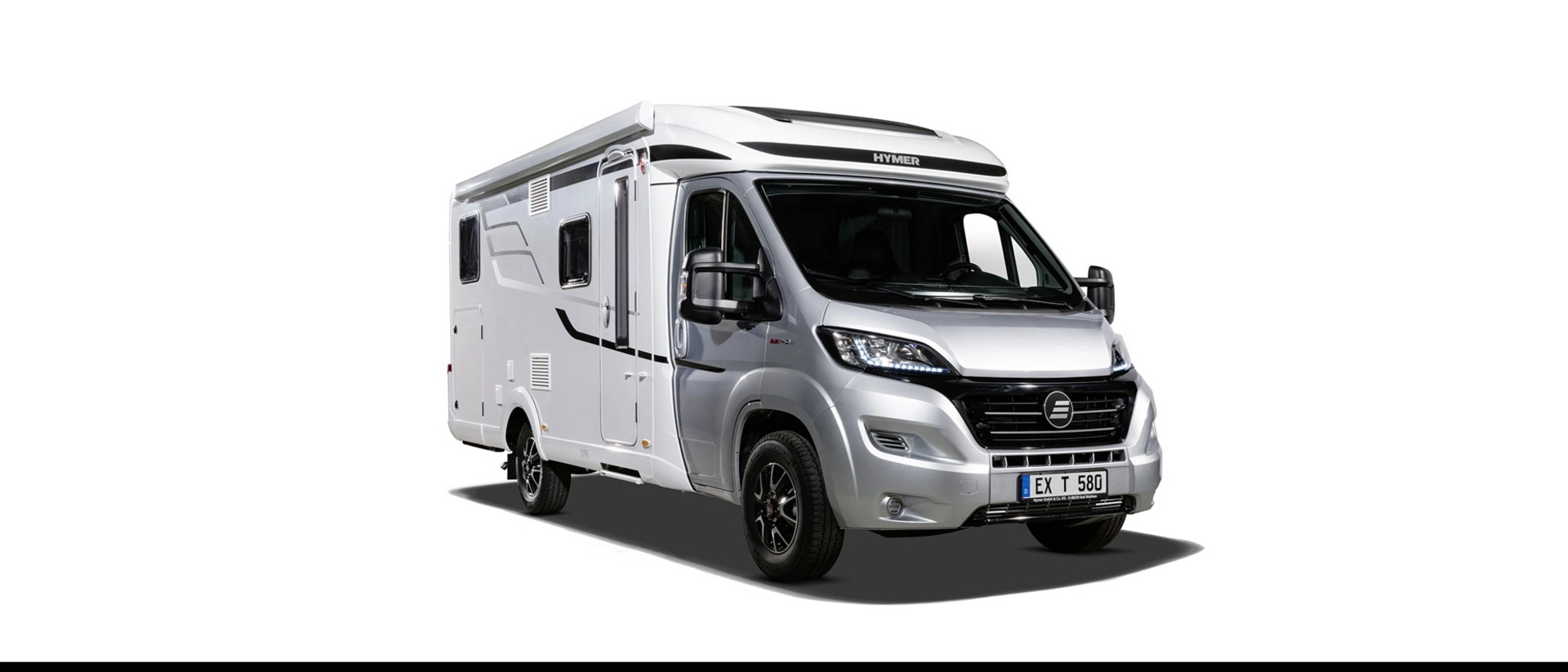

HYMER Exsis-t Pure

94.700 €: Price from^a)
2 - 3: Berths
694 cm: Length from
3.500 kg: Technically permissible maximum laden mass from*
222 cm: Width from
283 cm: Height from

^a)All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

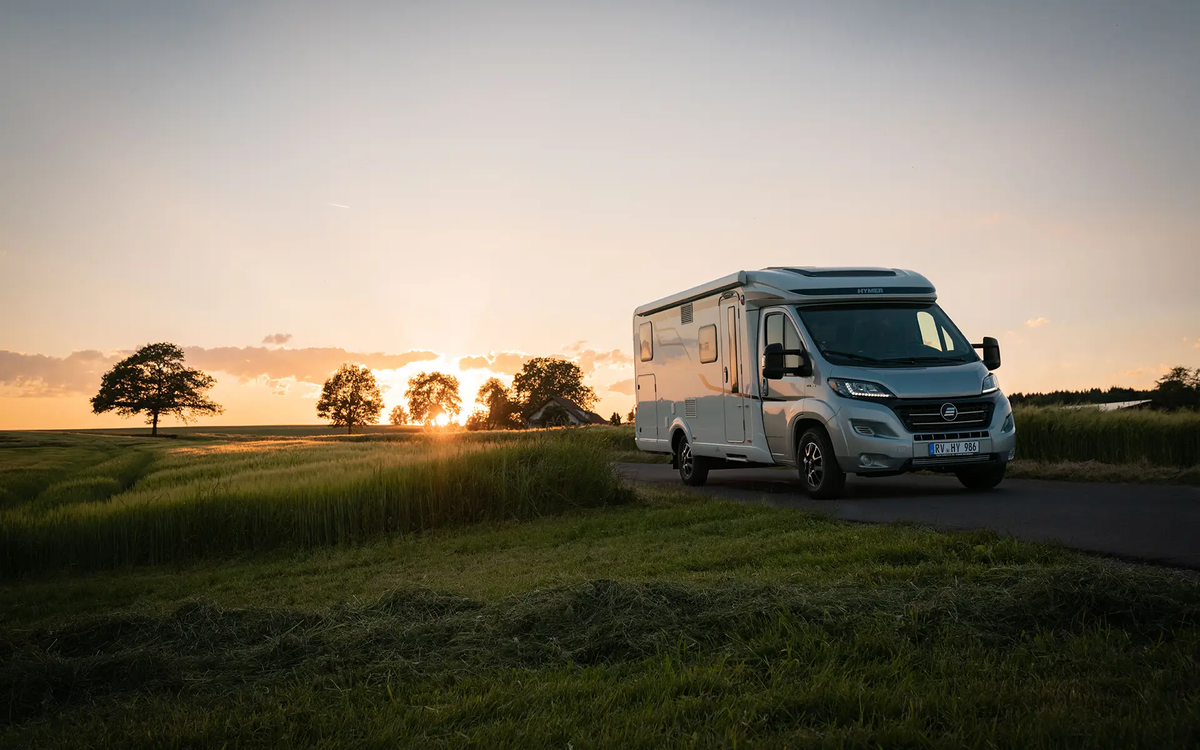

HYMER Exsis-t on a narrow street amid green meadows and cornfields at sunset

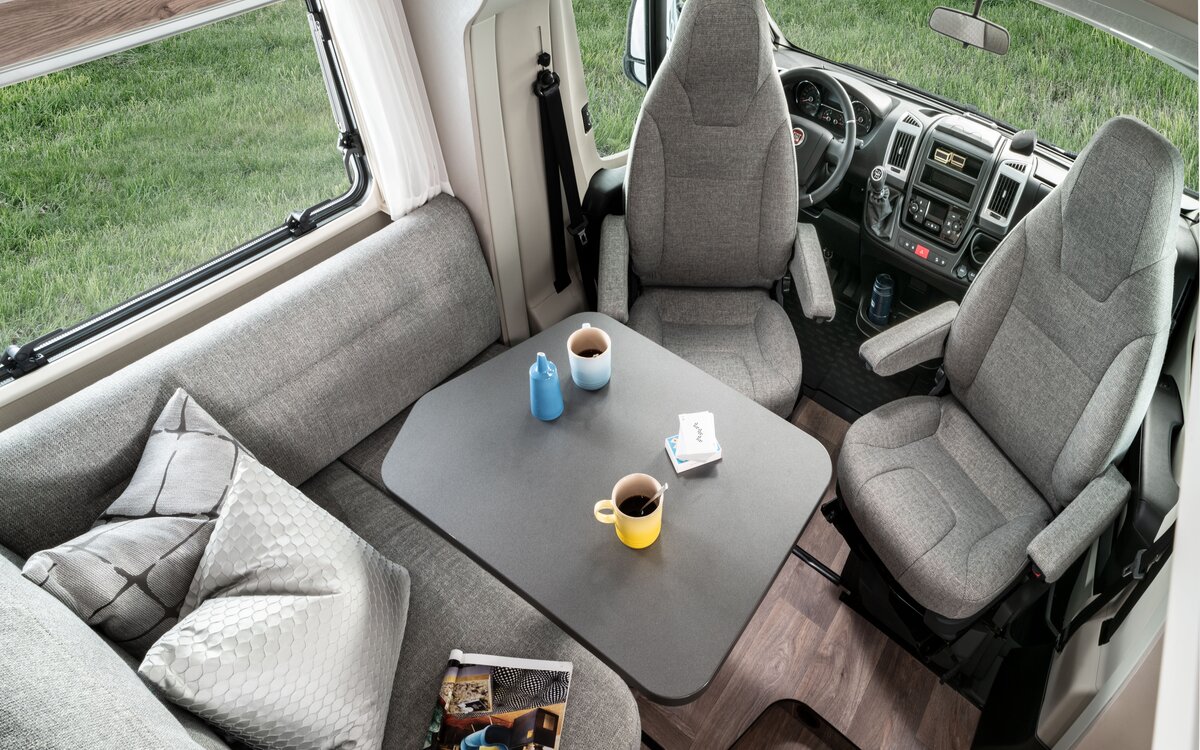

Seating group including driver's seats in the Exsis 580 with decorative cushions and magazine on the bench and dishes on the table

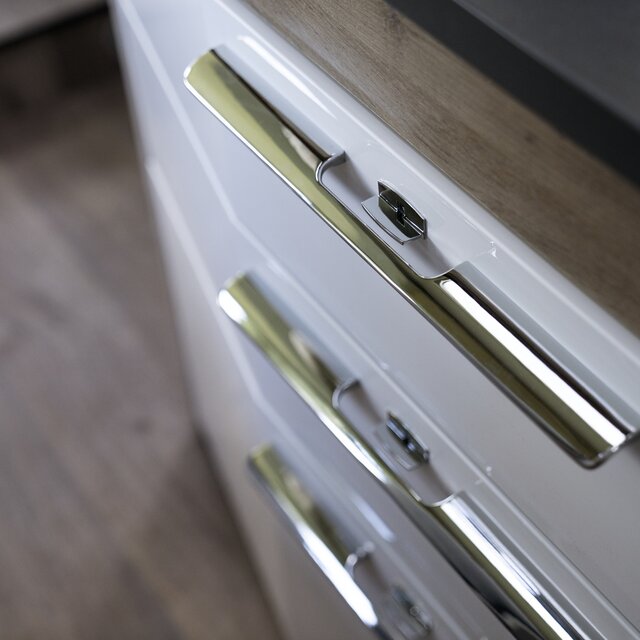

Drawer door handles on the HYMER Exsis 580 Pure

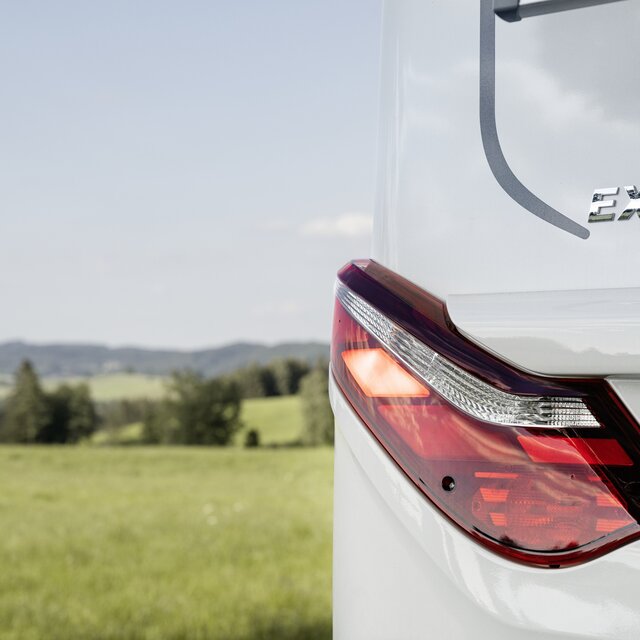

The rear light of the HYMER Exsis-t 580 Pure with a green meadow and trees in the background

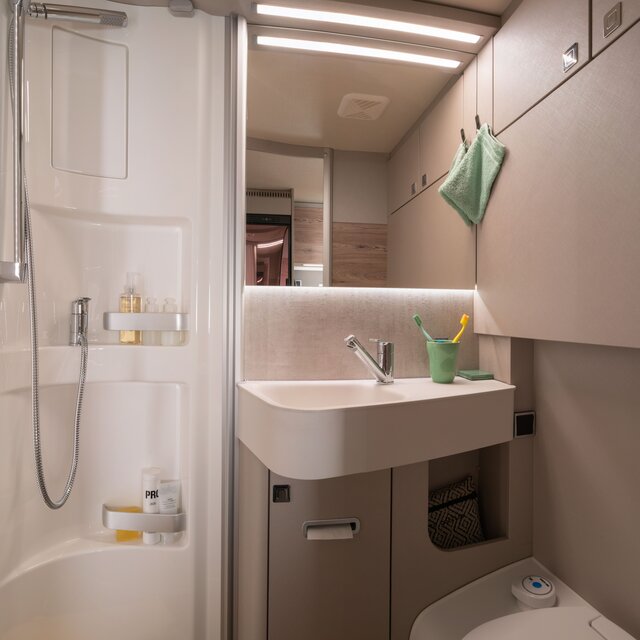

Comfort bathroom with shower cubicle, wash basin, mirror, storage cupboard and bathroom accessories in the HYMER Exsis 580

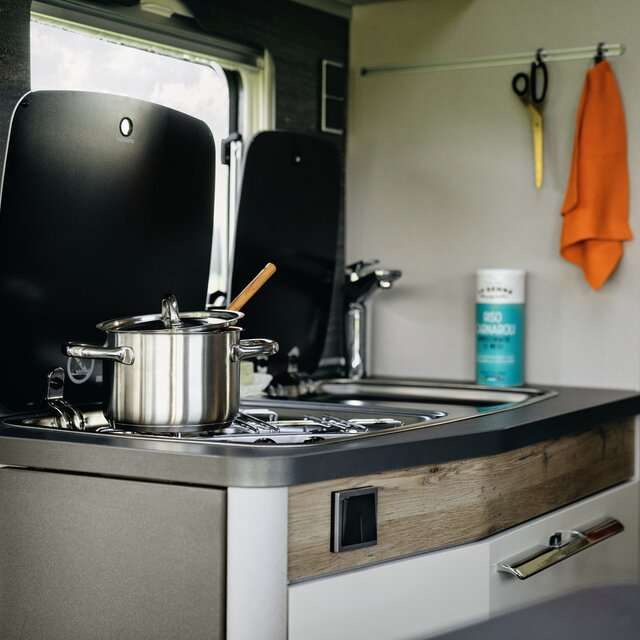

Kitchen block with a silver pot on the hob and other utensils in the Hymermobil Exsis-t 580 Pure

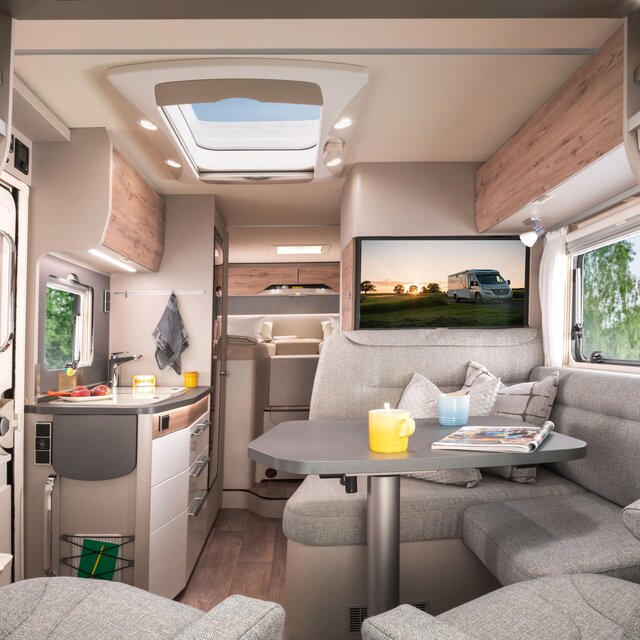

Living area in the HYMER Exsis-t 580 with seating area and plasma TV (showing a background image) as well as the entrance door, kitchen area and sleeping area

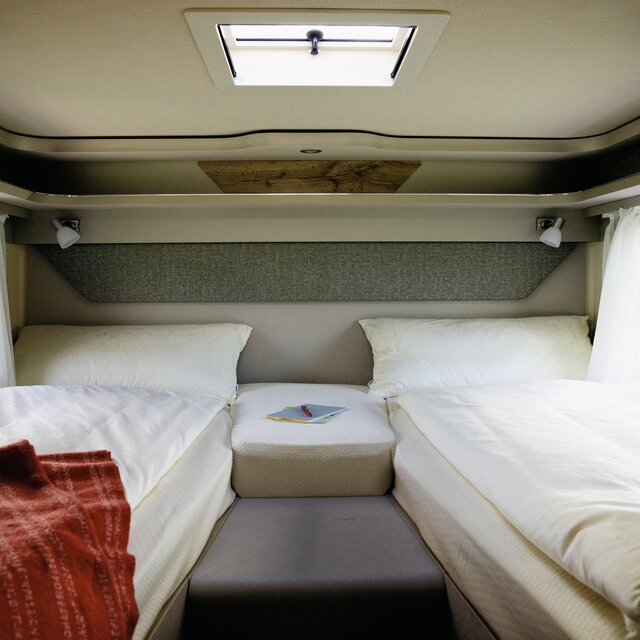

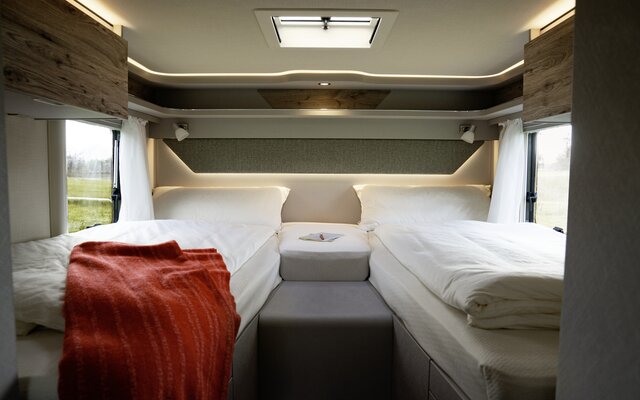

Covered lengthways single beds and red blanket in the rear of the HYMER Exsis 580 Pure

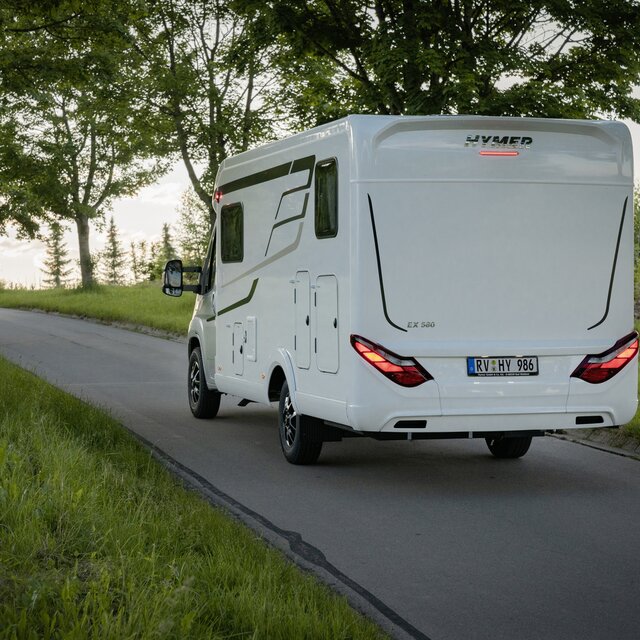

Side rear view of a semi-integrated HYMER motorhome travelling along a wooded road

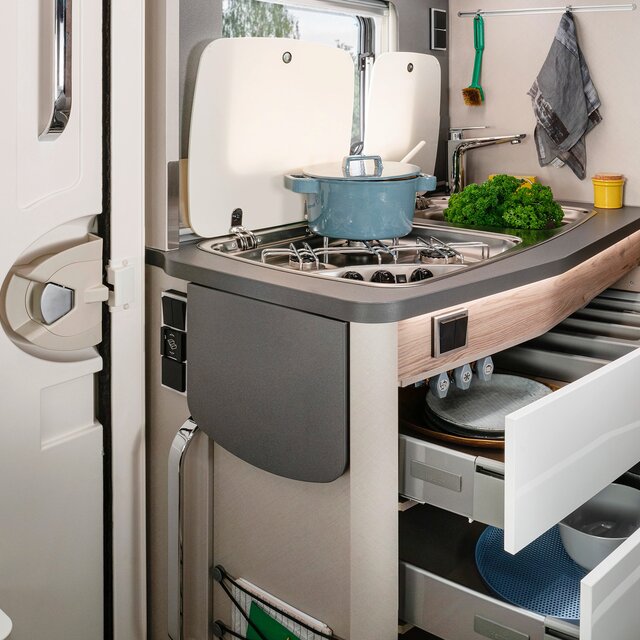

Opened drawers filled with dishes and a blue saucepan on the hob in the kitchen block of the HYMER Exsis 580

For pure travel pleasure

We’re making it easy for you to choose the right HYMER: the semi-integrated Exsis-t Pure built on the Fiat Original frame is jam-packed with features, leaving nothing to be desired where comfort is concerned.

Lightweight construction techniques used throughout and the proven 140 hp Fiat drive in combination with the Fiat Original frame – ensuring you reach your destination without any difficulty. And all at an unbeatable price.

Product Manager Ulrich B.

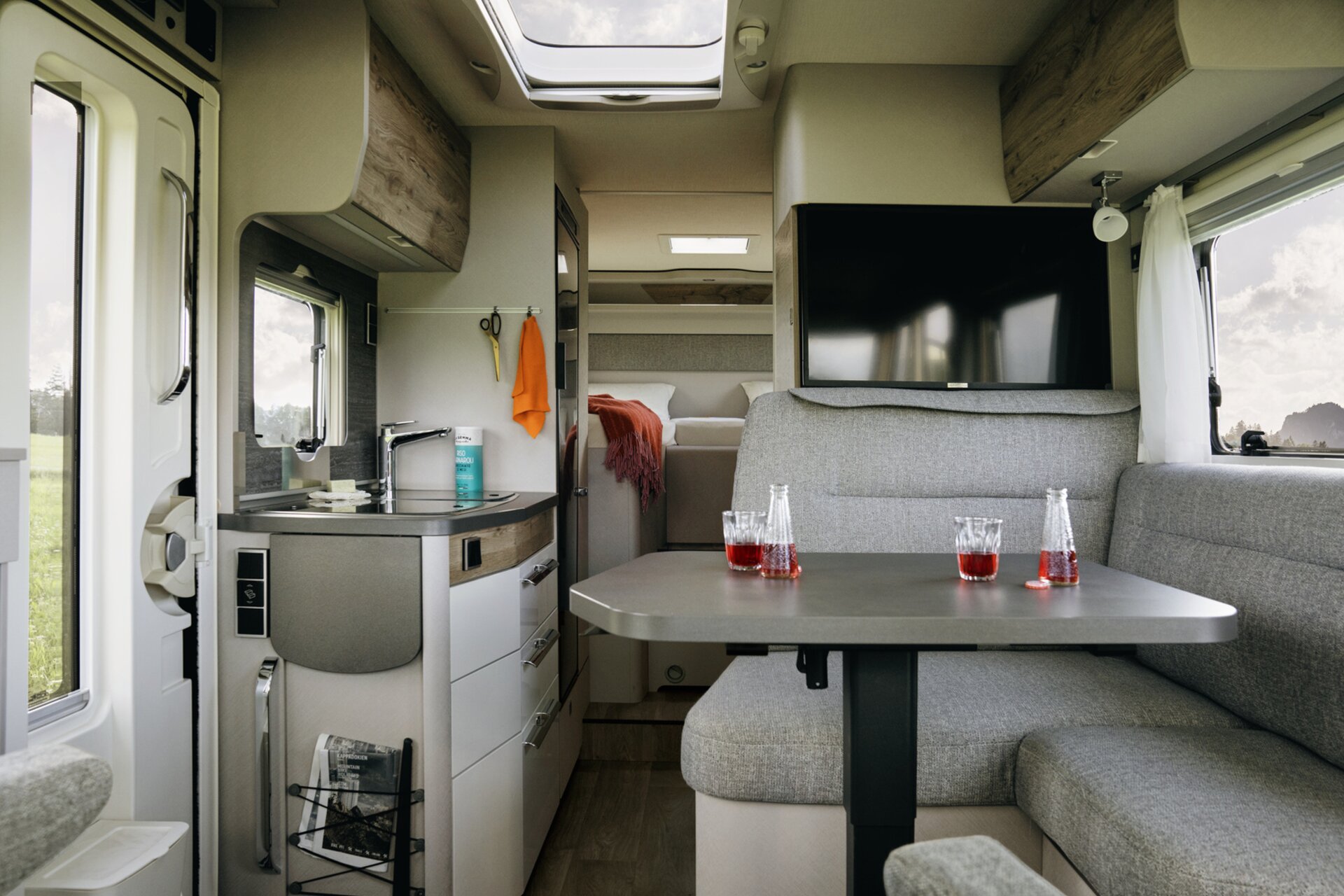

Interior of the HYMER Exsis 580 Pure: seating area, flat screen TV, entrance door, kitchen block, sleeping area

Configure the edition model to suit your requirements

Discover all of the design variants and optional accessories in our configurator. Design your HYMER Exsis-t Pure to perfectly suit your taste.

Pure

Selected highlights

New chassis with the Fiat original frame
Experience pure travel pleasure on the proven 140 hp Fiat chassis in combination with the Fiat Original frame.
For cold days
All tanks and service installations in the motorhome are insulated and heated
Many extras
Including a reversing camera, air conditioning, cruise control, ambient lighting and a panoramic roof.

A luxurious bathroom

The spacious comfort bathroom is equipped with a large shower with wooden slatted shower tray and a practical bench toilet.
A traveller’s dream

The twin beds at the rear, each measuring over 1.90 m in length, can be converted into one huge sleeping oasis using the additional cushion, which comes as standard. The integrated ladder makes it easier for you to climb into the rear bed.

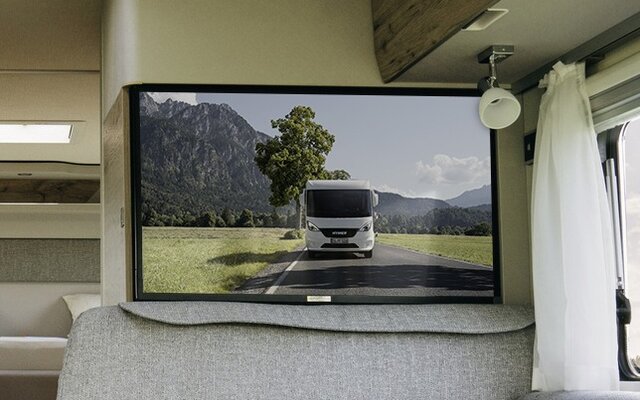

Entertainment included

The Exsis Pure edition model includes a 32" LED flat-screen TV with integrated speakers, remote control, as well as a satellite system and DVD player.

1 / 3

Covered terrace

Come rain or shine, the 4 m-long awning extends the living area of the HYMER Exsis-t Pure.
A real head-turner

The 16" alloy wheels provide the Exsis-t Pure with an assertive exterior design, transforming it into a sporty travel companion in any situation.

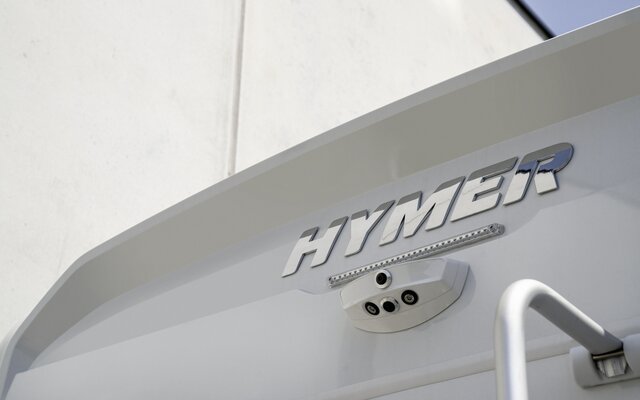

Everything in your sights

Thanks to the reversing camera with rear-view-mirror function, you’ll have everything in your sights at all times. This makes manoeuvring the edition model easy.

1 / 3

One edition model, one price

Thanks to the attractive saving and comprehensive equipment package, which leaves nothing to be desired where comfort is concerned, we’re making it easy for you to choose the right HYMER vehicle. Benefit from a huge saving and embark on a journey of pure pleasure with the HYMER Exsis-t Pure.

Already made up your mind or still have some questions? Your HYMER partner will be only too happy to help.

Your local dealer

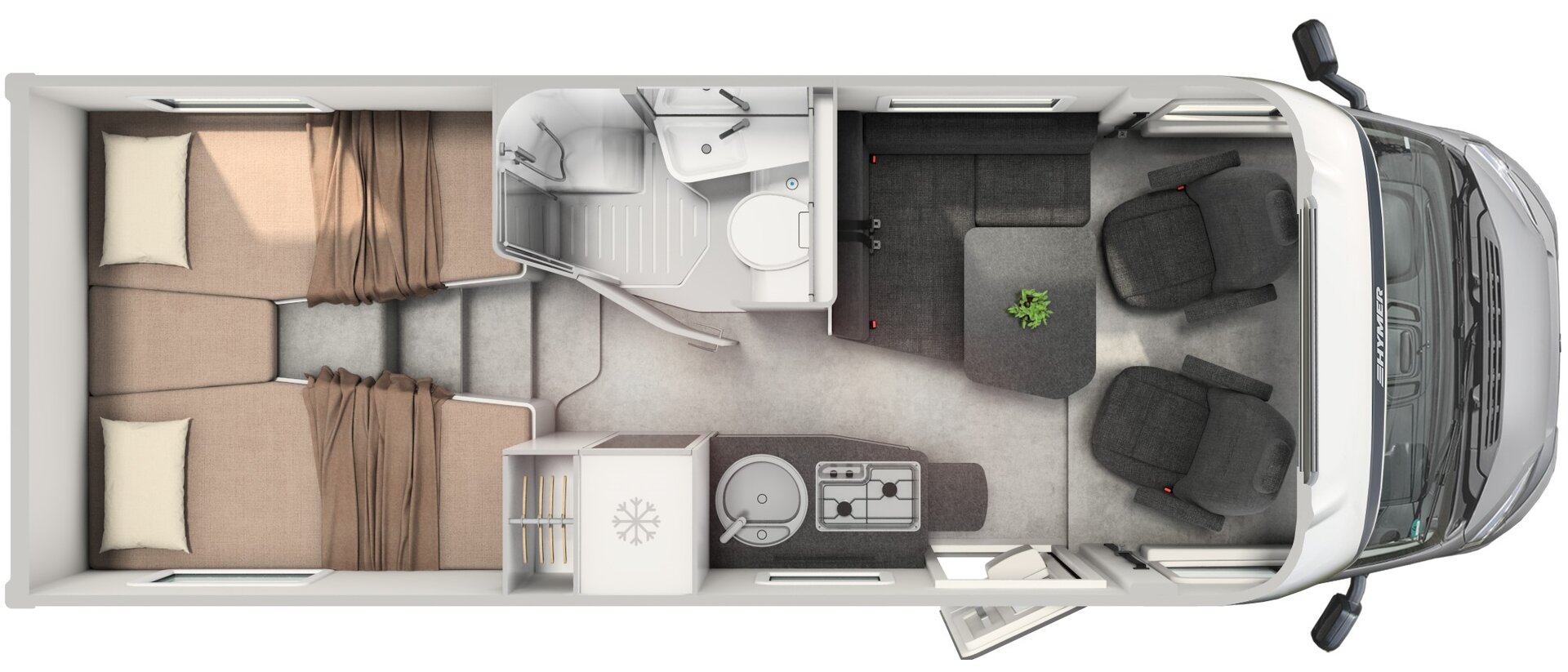

Available layouts

Detailed view

Edition model

HYMER Exsis-t 580 Pure

94.700 €: Price from^a)
2 - 3: Berths
694 cm: Length
3.500 kg: Technically permissible maximum laden mass from*
222 cm: Width
283 cm: Height

Configure

Technical data

HYMER Exsis-t 580 Pure

Description	Value
Price ^a)	94700
Standard chassis	Fiat Ducato
Drive	Front Wheel Drive
kW (hp)	103 (140)
Length / Width / Height (cm)	694 / 222 / 283
Body width / Internal width (cm)	212 / 205
Standing height in living area (cm)	198
Wheelbase (mm)	3800
Mass in running order (-/+ 5%) (kg)*	2984 (2835 - 3133)*
Manufacturer-specified mass for optional equipment (kg)*	166
Technically permissible maximum laden mass (kg)*	3500
Technically permissible maximum towable mass (kg)*	2000
Permitted number of seats (including driver)*	4
Insulation Floor / Wall / Roof (mm)	41 / 34 / 34
Overall clearance storage- / garage door W x H (cm)	85 x 109 / 75 x 85
Bed dimension: Rear bed L x W (cm)	195 x 80 / 191 x 80 / 218 x 80 (○) / 191 x 80 (○)
Bed dimension: Central bed L x W (cm)	165 x 78
Berths	2 - 3 (○)
Bathroom W x D (cm)	125 x 85
Wardrobe W x D x H (cm)	27 x 54 x 160
Kitchen W x D x H (cm)	90 x 60 x 93
Fridge volume (freezer compartment) (l)	142
Standard heating	Gas warm air, 6 kW
Gas bottle storage (Filling weight)	2 x 11kg
Total fresh water tank capacity (l)	120
Fresh water tank in driving filling level (l)	20
Waste water tank (l)	90
Standard habitation battery	95 Ah (AGM)
Sockets: 230 V/ 12 V/ USB	4 / 2 / 4

^a)This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.

* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

(○) Optional

Equipment & accessories

HYMER Exsis-t 580 Pure

Chassis / Weight variants
Fiat Ducato 3.5 t - 2.2 MultiJet - 103 KW/140 hp - Euro 6E

Basis
Exterior cab color: Lanzarote gray (Pastel)
Exterior body color: White
Fiat Ducato low-frame chassis
6G manual transmission
90 l fuel tank
19 l AdBlue tank
Exterior mirror, wide arm version
Electrically adjustable and heated exterior mirrors
Fog lights with cornering light
Headlights with black frame
Mud flaps, rear axle
Bumper painted in vehicle color
SKID PLATE in glossy black
16" alloy wheels (Light chassis only)
M+S All Season tires (with snowflake symbol)
Driver and passenger airbag
1x Twin USB socket in cab
Dashboard tray instead of tablet holder
Aluminum applications for ventilation nozzles
Electric cab windows and central locking for cab
Leather steering wheel and gear knob lever
Manual AirCon with pollen filter
Multifunctional steering wheel
Rear axle stabilizer
ABS (Anti-lock Brake System) / EBD (Electric Brake Force Distribution)
ESP incl. ASR, TRACTION PLUS and Hill Holder
Post-collision brake control
Crosswind Assist
Start-Stop-System incl. intelligent alternator
Fiat Cruise Control

Body
Awning with adapter, white or silver housing, 400 x 250 cm
Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness)
60 cm Maxi Comfort habitation door incl. window with blackout blind and waste bin
Electric entrance step, 1-step
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology

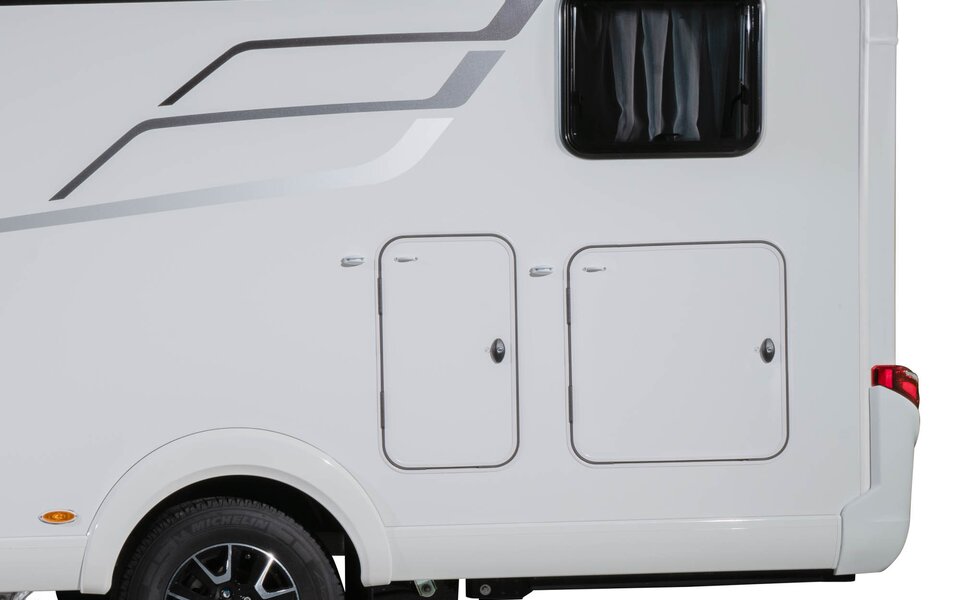

External storage flap, 75 x 85 cm, LH side
Garage load up to 350 kg (optional 450 kg). Please note the axle load.

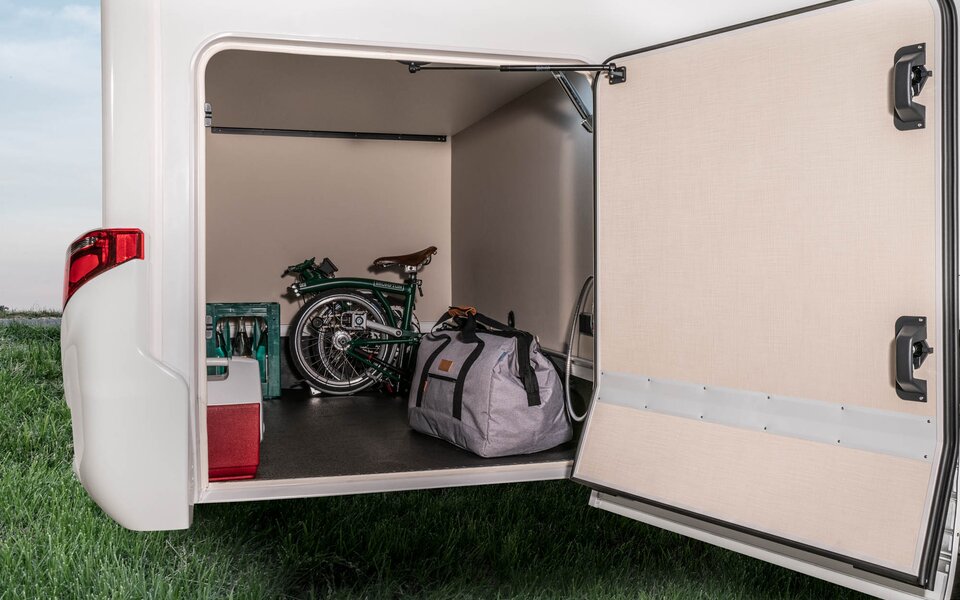

Large garage door, RH side
Panoramic skylight above cab, manually hinged
GRP lightweight floor with XPS insulation (41 mm floor thickness)
Service flap for convenient access to the board electronics on the LH side
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room
Opening windows with blackout blind and mosquito net, LH and RH side, rear

Outfitting
Cab seats, upholstered in living area fabric, height- and tilt adjustable, swivelling, with 2 armrests
Cab blinds
Mosquito net on habitation door

Living and bedroom + lighting
Bed conversion for comfort L-shaped seating group incl. additional cushion and lowerable table involving the cab seat
Cold foam mattress incl. high-quality mattress pad (knitted fabric) for better ventilation in the rear
Comfort L-shaped seating group with lounge cushions, longitudinal / transverse sliding table and 2 built-in 3-point belts
Multi-functional ergonomic furniture elements
Additional cushion between the longitudinal single beds incl. integrated comfort access

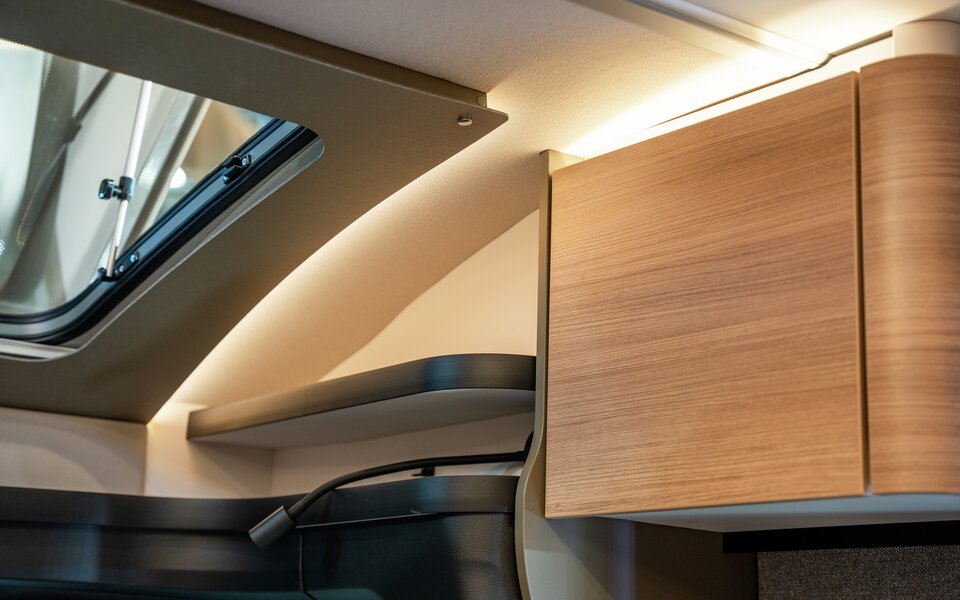

Ambient lighting
Complete LED interior lighting
LED worktop lighting
LED awning light

Kitchen
Kitchen drawer with Soft close feature and cutlery insert
Freely arrangeable kitchen drawers, extra wide

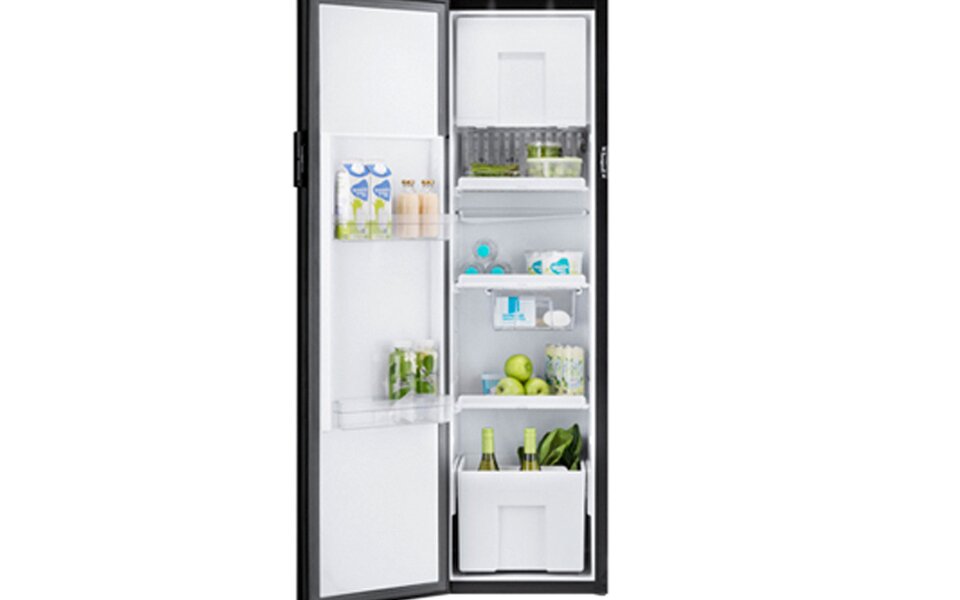

142 l Smart-Tower fridge

Bathroom

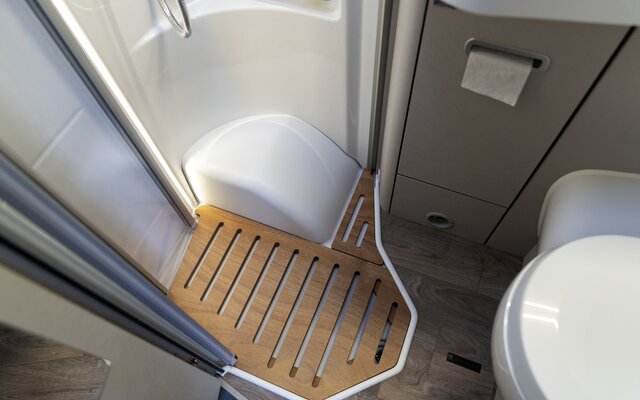

Shower insert floor with wooden surface
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm

Installation & Technology
6 kW gas warm air heating with 10 l warm water boiler
LCD keypad for heating
Automatic gas bottle changeover system with crash sensor and IceEx
Gas filter for automatic gas bottle changeover
Gas bottle compartment with access via the external flap / door
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB (incl. kitchen wall paneling)
Charging booster for safe charging of the habitation battery while driving (up to 70 A)
Reinforced battery, 12 V, 95 Ah AGM
120 l fresh water tank, insulated and heated (20 l in driving position)
90 l waste water tank, insulated and heated

Multimedia
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab as well as the alcove, radio and DVB-T2 antenna
Reversing camera
32" TV bracket
32" Smart LED-TV with built-in speakers, remote control, DVD drive, (DVB-T / C, DVB-S2) incl. receiver
Digital satellite dish, 65 cm

Fabrics & Furniture finishes

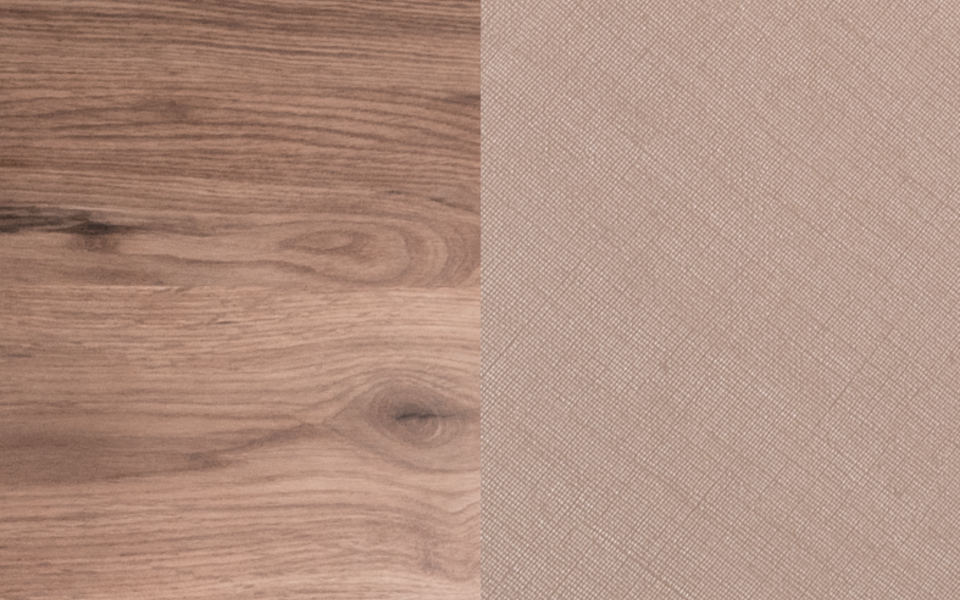

Furniture finish: Sauvignon Oak in combination with Tip Printed
Fabric combination: Corfu

Packages
Exsis Pure package (Semi-Integrated)

Chassis / Weight variants
Fiat Ducato 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
Uprating to 3.65 t (Fiat Ducato 3.5 t Light only)

Basis
Exterior cab color: Grigio Campovolo (Pastel)
Exterior cab color: Artense gray (Metallic)
Exterior cab color: Black (Metallic)
Exterior body color: Crystal-Silver Metallic
8G automatic transmission
Weight saving with 180 hp engine and automatic transmission (- 11 kg)
LED headlights incl. LED Daytime Running Light
16" alloy wheels (Maxi chassis or automatic transmission only)
Shelf for smartphones incl. wireless charging with charge level indicator
Automatic AirCon with pollen filter
Electric parking brake
Seat heating for cab seats, adjustable separately

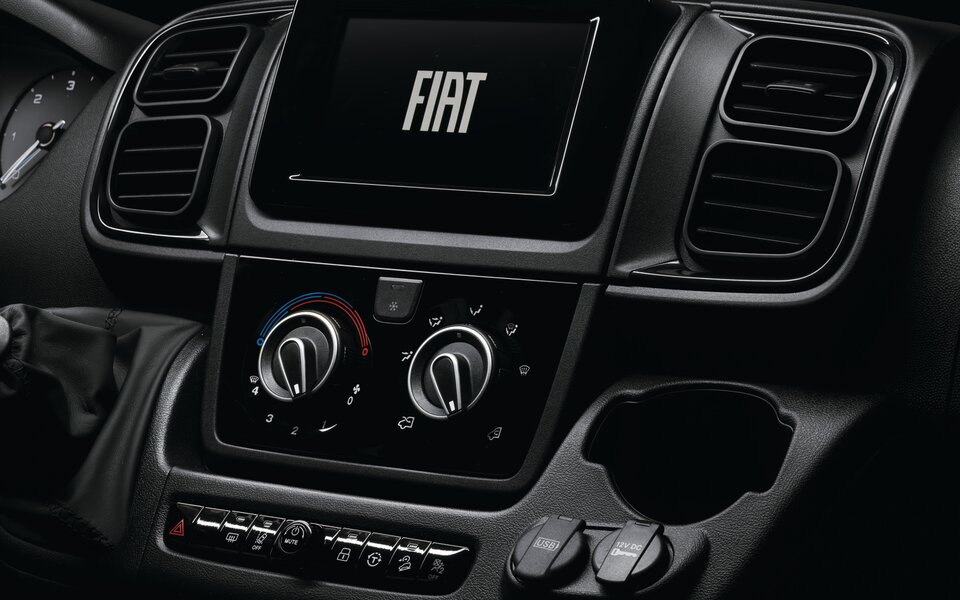

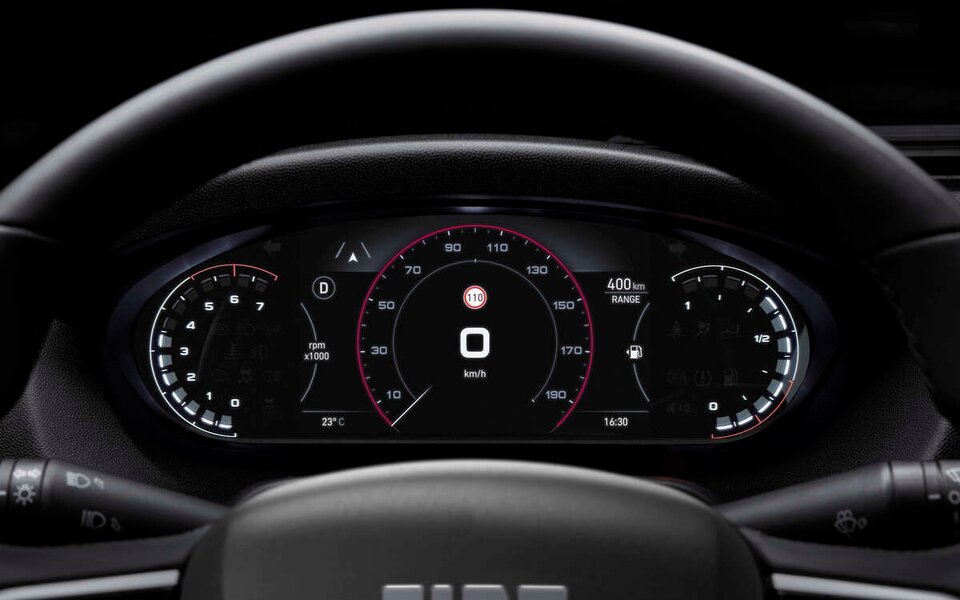

Fully digital cockpit with integrated 7" display
Heated windscreen
Third ignition key with remote control (2nd key mechanical)

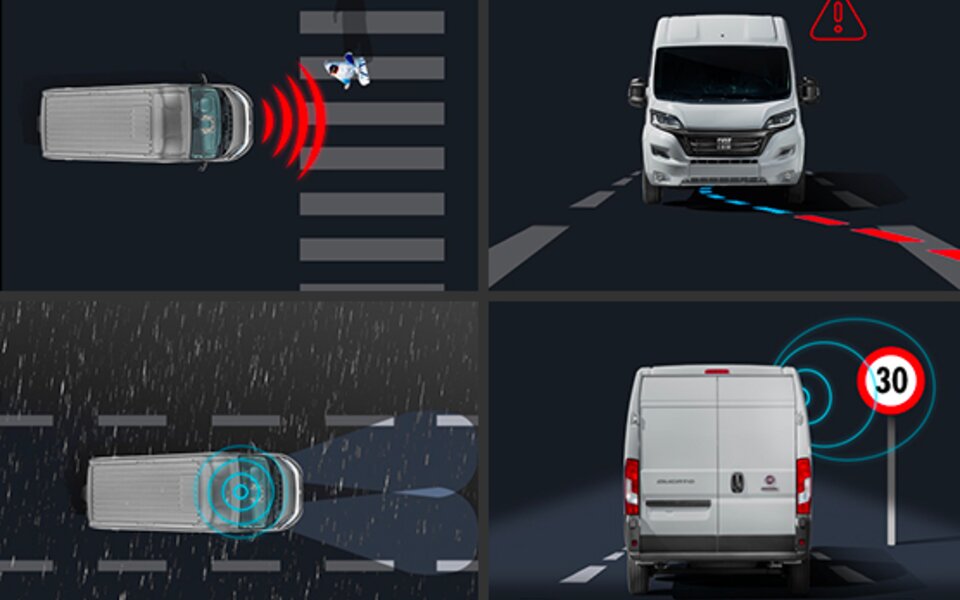

Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
Active Distance Assist 30+

Body
Trailer hitch (detachable ball head)
GRP roof coating
Comfort habitation door with window, blackout blind, integrated waste bin as well as 2-way lock
Comfort jacks, rear (2 units)
Frame extension incl. 450 kg garage load
Security lock for habitation door
Bicycle rack for two bicycles, manually lowerable, max. load 50 kg
Bicycle rack for 4 bicycles, max. load: 60 kg
Electric roof vent with function supply and exhaust air at kitchen
HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom

Outfitting
External shower, located in garage

Living and bedroom + lighting

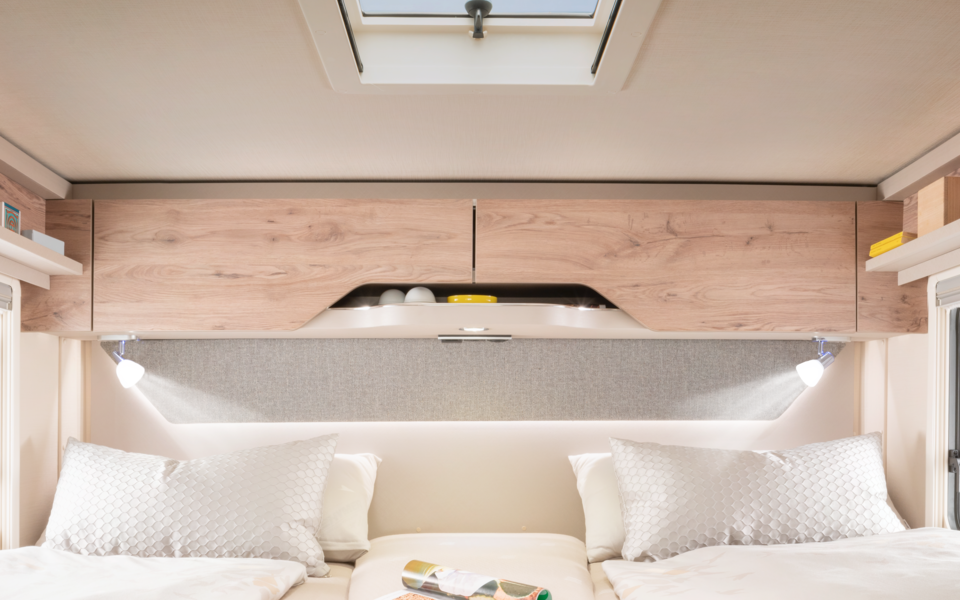

Overhead lockers above rear beds instead of open shelves
Sleeping system with cup-slatted bed frame for rear bed(s)

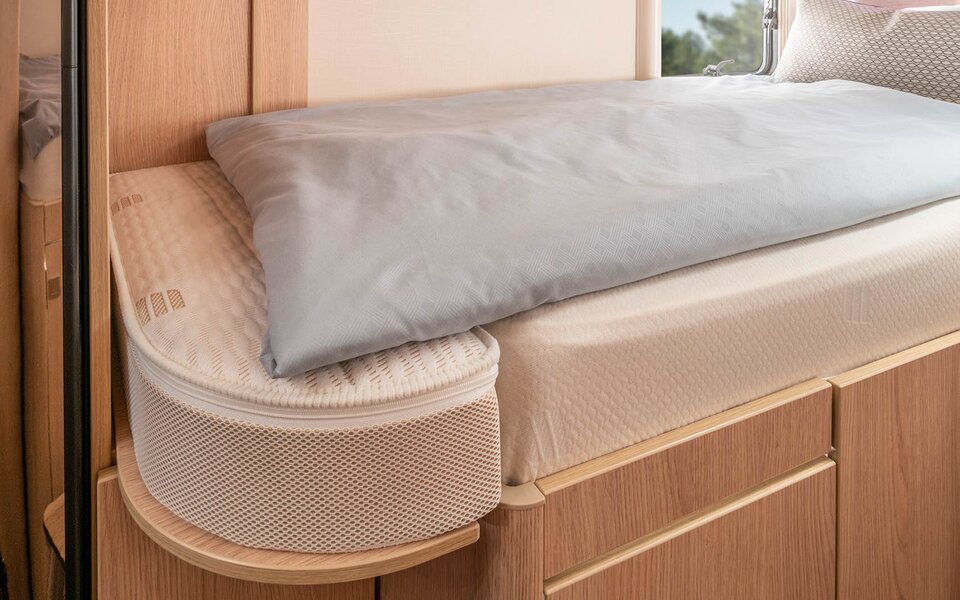

XXL bed, extra long mattress incl. semi-high wardrobe (instead of floor-to-ceiling wardrobe)
Fitted sheets made to measure for rear beds individually adapted to mattress
4 cushions

Kitchen
Cooker- / oven combination

Installation & Technology
6 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater

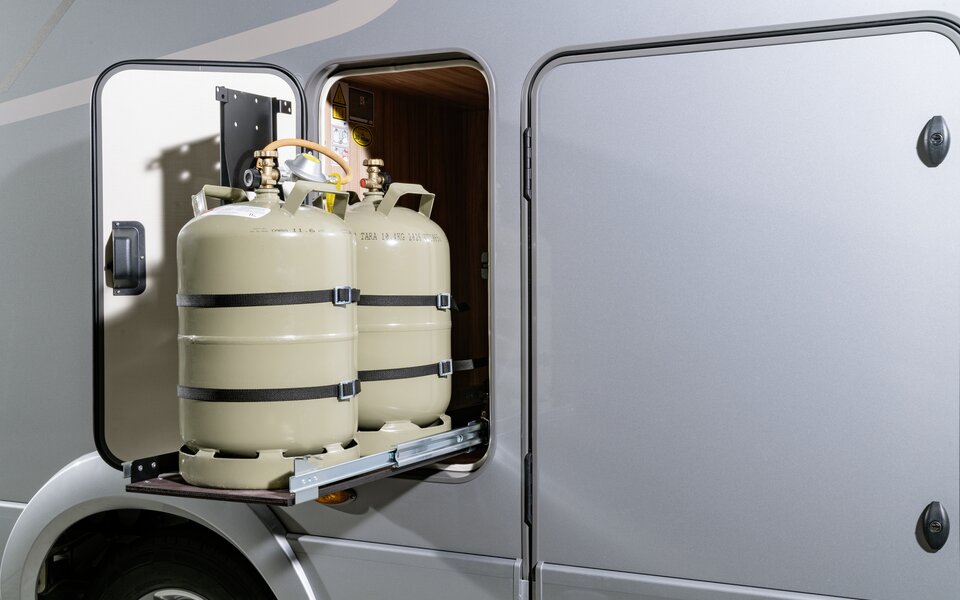

Gas bottle slide out
External gas socket with shut-off valve

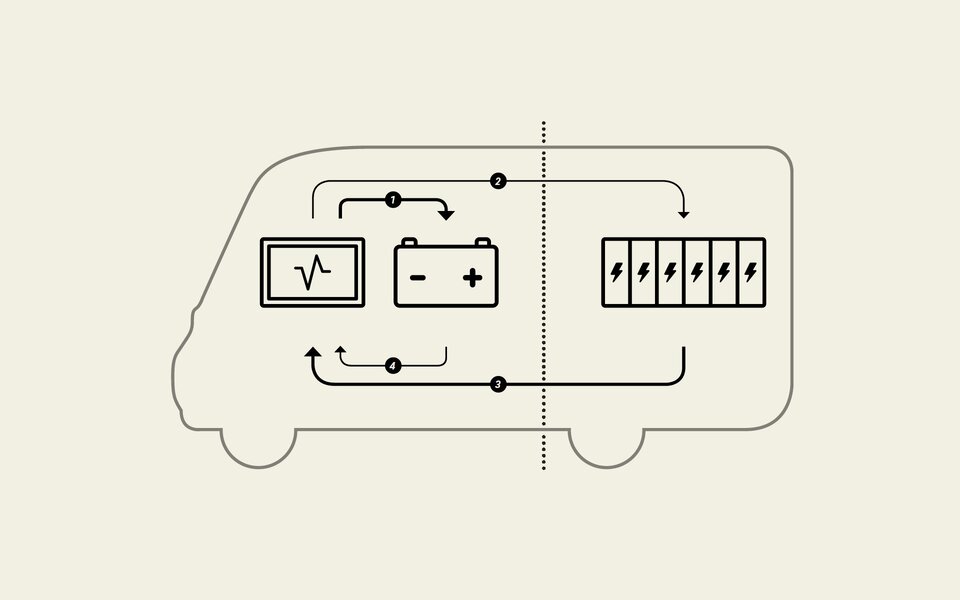

HYMER Smart Battery System (50 Ah LFP) incl. additional charger
HYMER Smart Battery System (150 Ah LFP) incl. additional charger
Second habitation battery (95 Ah AGM) incl. additional 18 A charger
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
Floor heating (electric) in habitation area and central walkway
Roof AirCon, 2,400 W
Toilet vent

Multimedia
Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto, reversing-/ service camera, rear-view mirror function, HYMER Smart Control
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket

Fabrics & Furniture finishes
Furniture finish: Chiavenna Nut
Fabric combination: Bogota
Textile leather-/ fabric combination: Marquis
Carpet: Laguna

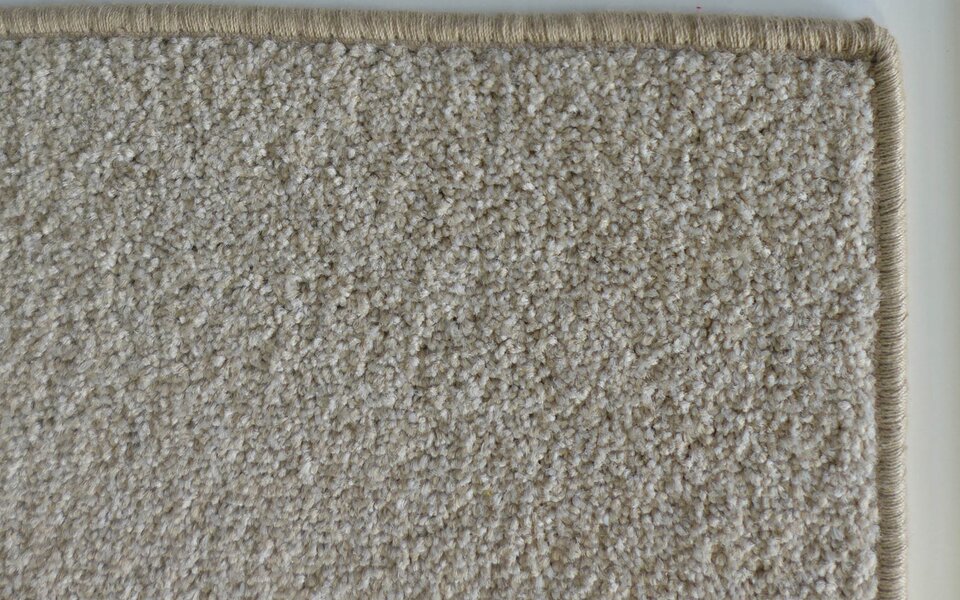

Carpet: Samona

Packages
Driving Comfort Package

TÜV approval / CoC
TÜV approval / CoC

Hymer Original Services
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to

Hymer Original Parts
Bike Carrier for two bikes
Parkpilot - rear parking aid
Sound system
E-Bike Charger
Passenger door safe for Fiat Ducato 8
External insulation
Sun protection mat
Cot
HYMER water filter clearliQ travel
Replacement cartridge for water filter
Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm
Dog bed incl. comfy cushion and leash

^a)All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

Equipment

The HYMER Exsis-t Pure comes with a comprehensive range of edition equipment and plenty of comfort for your journeys. If that's not enough, there are further equipment options for even more individuality.

Efficient lighting

The interior lighting throughout the vehicle features LED technology as standard. This cuts energy consumption by 75% and gives you hours of extra battery life. Since LEDs don’t get hot, this also improves fire and accident safety.

The perfect light for cosy comfort

Indirect ambient lighting in LED technology makes the interior shine and ensures a pleasant feel-good atmosphere, especially in the evening.

Plenty of space to enjoy

There’s room in the spacious and comfortable L-shaped seating area, which has lounge cushions and a large table that can be moved lengthways and crossways.

Soft closing and safe handling

All kitchen drawers are equipped with roller bearings for ultra-smooth action. They feature high-quality Soft close mechanisms and one-handed push-locks that prevent the drawers from opening and rattling when the vehicle is on the move.

Everything fresh and perfectly chilled

Despite its slender dimensions, a 142-litre Smart-Tower refrigerator including a 15-litre freezer compartment ensures you have plenty of cold drinks and fresh food in summer. Its interior is also clearly organised with practicality in mind.

The feel-good factor – centrally controlled

Individual temperature adjustments and the boost function for fast hot water supply and room heating - can be controlled via the central LCD control panel for the heater, also equipped with a timer.

TV on the move

Thanks to the 32" TV including Bluetooth connection, you can enjoy a real home cinema feeling even when you’re on the road.

Additional garage flap

For an even easier loading and unloading, the rear garage is also accessible via an additional LH exterior locker door. The door measures 75 x 85 cm.

Perfect privacy

The concertina cab blinds made from a premium pleated fabric protect you from prying eyes and excessive sunlight during summer time.

Driver and passenger airbags

In the event of a serious collision, the airbag can reduce the force of an impact with the head or chest. This can protect you, if you’re wearing a seatbelt, from head or chest injuries, or mitigate such injuries. Airbags on the driver and passenger sides are part of the standard equipment in all HYMER motorhomes.

For a good climate

The manual air conditioning controls the climate inside your vehicle as well as the air flow from outside. Included here is a pollen filter which actively prevents pollen, fine dust and other particles from entering the interior.

LED rear lights in a striking design

The multifunctional rear lights include LED hybrid technology and a signature design featuring the three bars of the HYMER logo – and provide excellent visibility even in challenging conditions.

Optimal insulation thanks to PUAL technology

The PUAL-foamed walls with aluminium inner and outer skin are an important component of the vehicle’s durable high-tech bodywork. The excellent insulation of the closed-cell PU foam guarantees pleasant temperatures throughout the year and low gas consumption in winter.

Easy garage access

For easy loading and unloading, the rear garage is equipped with a large garage door on the right in the direction of travel as standard.

Optimal protection from below

The nearly indestructible GRP underbody makes the motorhomes virtually immune to damage caused by inclement weather. Stone damage, grit and dirt are likewise kept at bay – a solid foundation for the service life of your entire motorhome.

All the room you need

The large, easy-access garage can carry a maximum payload of 350 kg as standard – a 450 kg version is available as an option.

Stay on track even in windy conditions

The Crosswind Assist is fitted as standard. It recognizes lane deviations caused by strong crosswinds and supports the driver with automatic braking interventions to keep in lane.

1 / 17
More power on the road

The controlled solar installation supplies 2 x 95 W and thus makes you even more independent on the move – for greater freedom and self-sufficiency.

Safer on the road

A whole range of Driver Assistance systems warn the driver of possible dangers. The Lane Departure warning system alerts you if you leave the lane, the Traffic Sign Recognition system displays traffic signs, the Collision Warning system prevents collisions and the rain sensor automatically controls the windscreen wipers.

Innovative power system: HYMER Smart Battery System

With the HYMER Smart Battery System 2.0, the self-sufficiency time of your vehicle is extremely increased. Perfectly suited for customers who love a lot of independence and like to be self-sufficient.

For even more TV entertainment on the move

For even more entertainment on the move, the sleeping area can be equipped with a second, 22-inch LED TV. The TV features built-in speakers, a DVD drive, DVB-T/C, DVB-S2 and the HYMER Smart-Multimedia System with Bluetooth.

More space for your clothes

For even more storage space in the sleeping area, you can choose additional overhead lockers instead of open shelves above the rear beds.

XXL bed with extra-long bed surface

The XXL bed available for specific layouts brings with it an extension of the lying surface on one side. This creates a longer bed and still leaves a semi-high wardrobe as well as a linen compartment.

Easy gas bottle replacement

The gas bottles are housed securely and accessibly in an exterior compartment. Changing the gas bottles couldn’t be easier thanks to the practical sliding shelf.

High-tech in the kitchen

The practical Caprice combined hob and oven offers home-from-home convenience when cooking. Its versatile range of functions lets you bake, grill and boil to your heart’s content!

1 / 8
Driving Comfort Package

Automatic AirCon with pollen filter
Shelf for smartphones incl. wireless charging with charge level indicator
Fully digital cockpit with integrated 7" display
Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto, reversing-/ service camera, rear-view mirror function, HYMER Smart Control

Exsis Pure package (Semi-Integrated)

1 / 2
Furniture finish: Sauvignon Oak in combination with Tip Printed

Furniture finish: Chiavenna Nut

Fabric combination: Bogota

Textile leather-/ fabric combination: Marquis

Carpet: Samona

Carpet: Laguna

Fabric combination: Corfu

1 / 7

Configure the edition model to suit your requirements

Discover all of the design variants and optional accessories in our configurator. Design your HYMER Exsis-t Pure to perfectly suit your taste.

The HYMER Exsis-t Pure in action

Travel stories
Balm for the soul – enjoy Sardinia with the HYMER Exsis-t 580 Pure

John and Vanessa went on a pleasure holiday in Sardinia. From relaxed family reunions to dreamy nature experiences to culinary and cultural highlights - such a trip promises pure relaxation. Particularly practical when you are traveling in a vehicle like the HYMER Exsis-t 580 Pure: you can simply stay where you feel most comfortable and savor the best moments to the full. Read for yourself:

Discover Sardinia

1 / 1

View from the driver's cab of the HYMER Exsis-t 580 Pure of the mountain range with a green meadow in front

HYMER brochures and price lists

Download a current HYMER brochure and price list and be inspired by our innovative and comfortable motorhomes and campervans

Further offers and information

Discover the technologies in your HYMER

Our technology - your plus in comfort: you are entitled to a vehicle of the highest standard - whether it's comfort, quality, safety equipment, extensive features or value retention. Discover which technologies & innovations will enhance your next journey.

Be inspired

We produce meticulously designed vehicles – for maximum comfort on the road to provide unforgettable adventures. Find inspiration in our travel stories.

Your local partner

Find out more about first-class “Made in Germany” quality. Experience the premium finish. Give the beds, seats and engine a test drive. With more than 300 HYMER service partners and dealers worldwide, someone is always nearby.

Edition model HYMER Exsis-t Pure

For pure travel pleasure

Configure the edition model to suit your requirements

Pure

Selected highlights

New chassis with the Fiat original frame

For cold days

Many extras

A luxurious bathroom

A traveller’s dream

Entertainment included

Covered terrace

A real head-turner

Everything in your sights

One edition model, one price

Available layouts

Detailed view

HYMER Exsis-t 580 Pure

Important information regarding the selection of your motorhome

Equipment

Efficient lighting

The perfect light for cosy comfort

Plenty of space to enjoy

Soft closing and safe handling

Everything fresh and perfectly chilled

The feel-good factor – centrally controlled

TV on the move

Additional garage flap

Perfect privacy

Driver and passenger airbags

For a good climate

LED rear lights in a striking design

Optimal insulation thanks to PUAL technology

Easy garage access

Optimal protection from below

All the room you need

Stay on track even in windy conditions

More power on the road

Safer on the road

Innovative power system: HYMER Smart Battery System

For even more TV entertainment on the move

More space for your clothes

XXL bed with extra-long bed surface

Easy gas bottle replacement

High-tech in the kitchen

Driving Comfort Package

Exsis Pure package (Semi-Integrated)

Furniture finish: Sauvignon Oak in combination with Tip Printed

Furniture finish: Chiavenna Nut

Fabric combination: Bogota

Textile leather-/ fabric combination: Marquis

Carpet: Samona

Carpet: Laguna

Fabric combination: Corfu

Configure the edition model to suit your requirements

The HYMER Exsis-t Pure in action

Balm for the soul – enjoy Sardinia with the HYMER Exsis-t 580 Pure

HYMER brochures and price lists

Further offers and information

Discover the technologies in your HYMER

Be inspired

Your local partner

Models and Technology

Travel & Enjoy

Service

Company

Edition model
HYMER Exsis-t Pure
