HYMER Fiat CamperVans –
Uniquely surprising

The new generation of Fiat camper vans from HYMER puts this segment in a whole new light – before you even hit the road. The new interior concept surprises with genuine premium materials, such as cork, leather, ceramics and solid-surface material borrowed from the impressive HYMER Venture S. Brand-new furnishings, such as adjustable drawers and new hinges in the overhead locker, complement the iconic furniture design with its elegant aluminium profiles.

Thanks to new connectivity solutions and optimised plumbing and electrical installations, these flexible all-rounders, which are now also winter-proof as standard, are ideally equipped for both everyday city driving and off-road touring. Thanks to extra self-sufficiency, they also give you the freedom to camp “off-grid” for days on end.


£71,840
Price froma)
2 - 4
Berths
541 cm
Length from
3500 kg
Technically permissible maximum laden mass from*
208 cm
Width from
260 cm
Height from

a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

Cookie required

Please allow the marketing cookies to view this video

open Cookie Settings

Design your vehicle in our configurator

In our configurator, you can design the HYMER Fiat camper vans to perfectly suit your taste. Discover all of the design variants and find your dream configuration.
To configurator

The main advantages

  • Powerful and efficient Fiat engine
  • Unbeatable interior ambience and “feel-good factor” due to improved insulation and optimised hot air distribution
  • One-piece disc-spring mattresses without divisions – for unsurpassed sleeping comfort in the camper van segment
  • Prolonged self-sufficiency thanks to the optional HYMER Smart Battery System 2.0 with up to 240 Ah battery capacity
  • The largest fresh water tank in the camper van segment (110 litres)
  • Insulated and heated under-floor fresh water and waste water tanks
  • Under-floor battery tray with convenient service opening via the vehicle’s interior

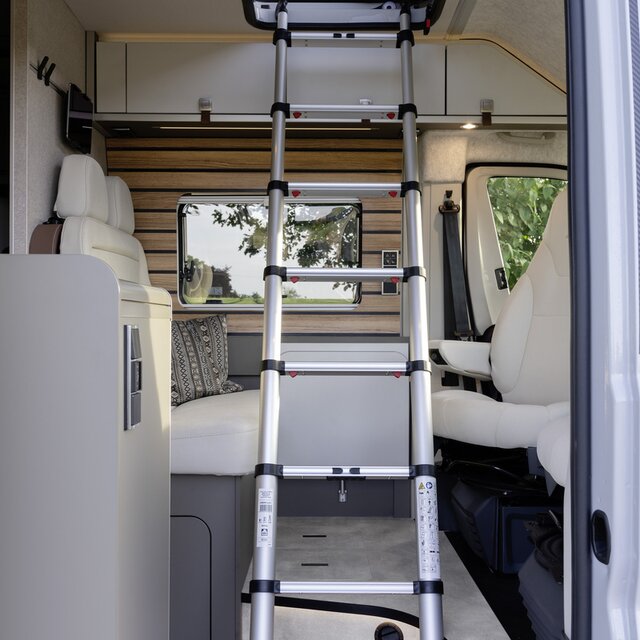

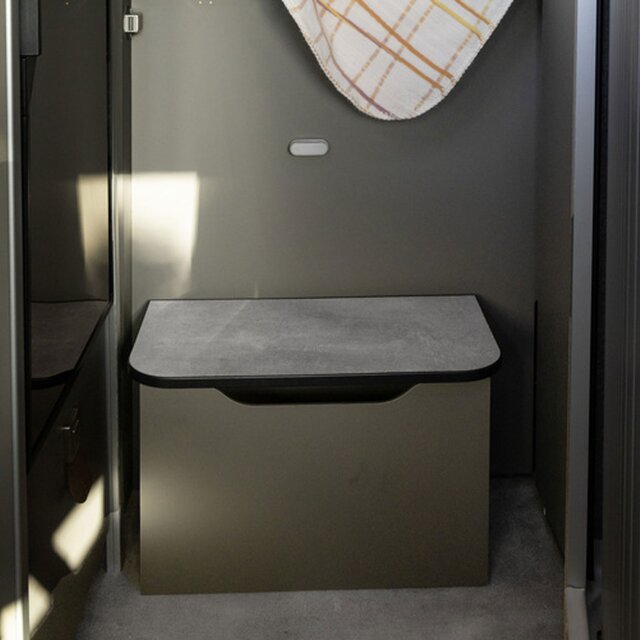

  • Pull-out bed ladder that also serves as a storage space partition
  • Electric waste water tank drainage

HYMER Connect App:
The first smart ecosystem for the connected camper

  • Technology highlight

    HYMER Connect App

    Your smart home from home – HYMER Connect is a unique, digital ecosystem that transforms your HYMER into a fully fledged smart motorhome or camper van. It combines access to vehicle information with control of all living area functions – via the convenient and intuitive app.
    More on the Connect App
1 / 1

Highlights

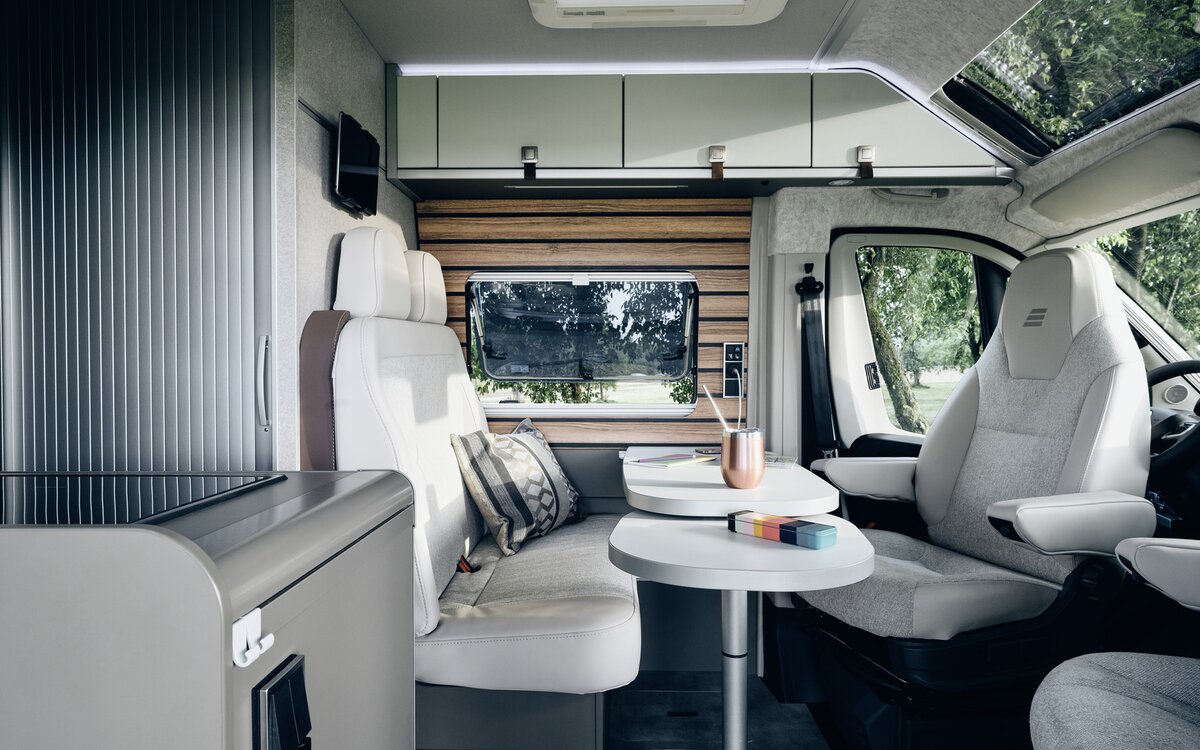

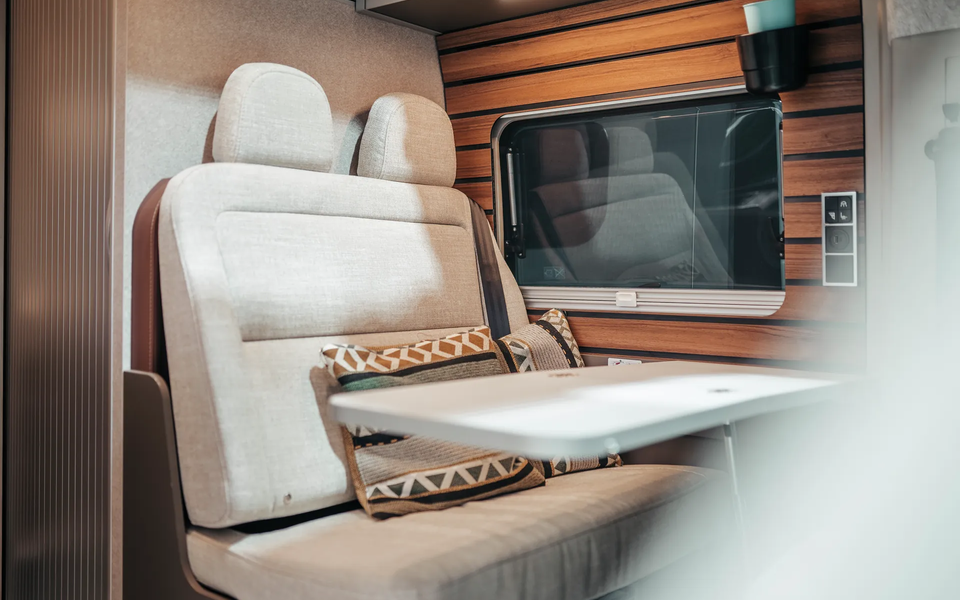

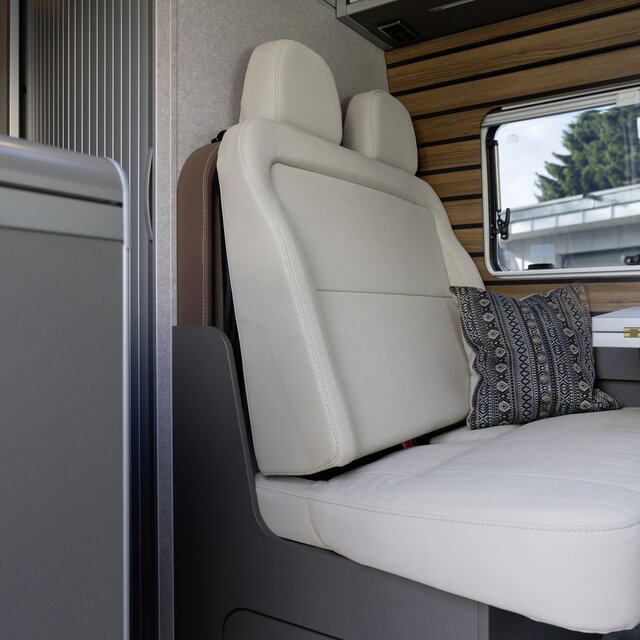

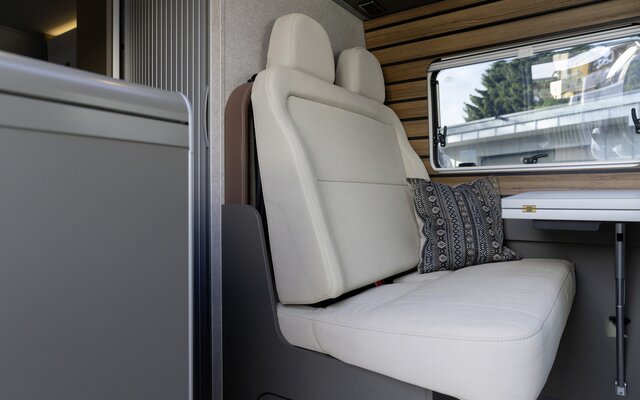

  • Travel lounge seating area

    Make yourself comfortable – adjust the seating area to your heart’s desire thanks to the ergonomic tilt adjustment of the sporty back cushion and parallel adjustment of the seat cushion. Side bolsters provide extra lateral support and ensure a comfortable sitting position. The automotive strap system and headrest adjustment are also extremely convenient, as is the extension for the standard table, which is now even easier to use.

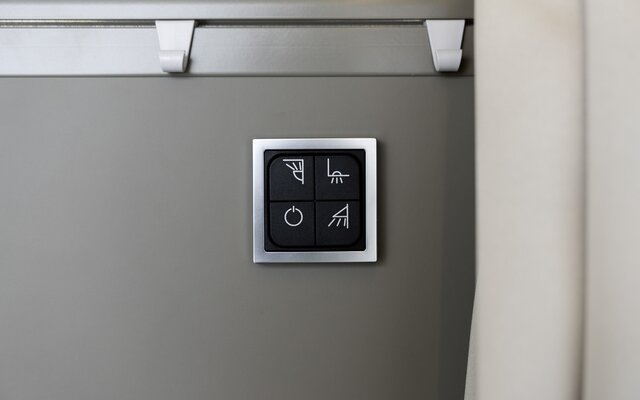

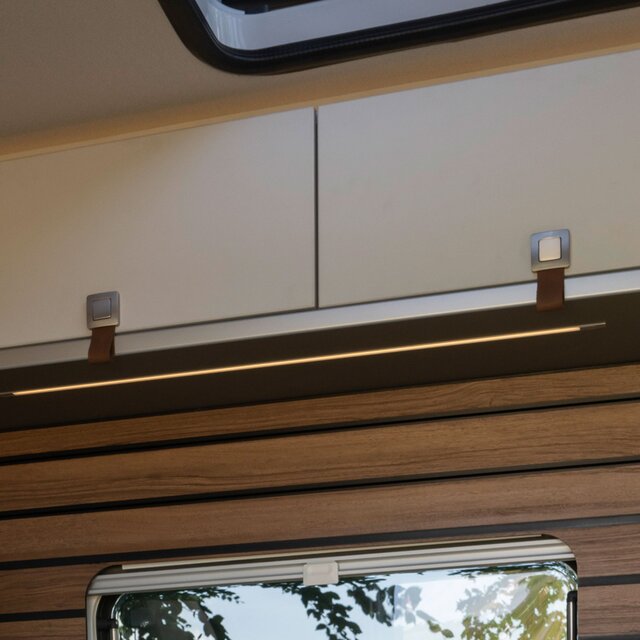

  • 4-level lighting concept

    Get in the holiday mood at any time – even late at night – with the first ever comprehensive four-level lighting concept in a camper van. Create the desired ambience in the living and kitchen area thanks to selectable lighting scenarios that you can control and program via your Connect app. Warm or cool white, with a dimming function for all lamps. Benefit from an all-round stellar lighting concept thanks to reading lights with touch control above the driver and passenger seats and an optional lighting pack including an innovative pendant lamp as well as modular lamps for the functional rail.

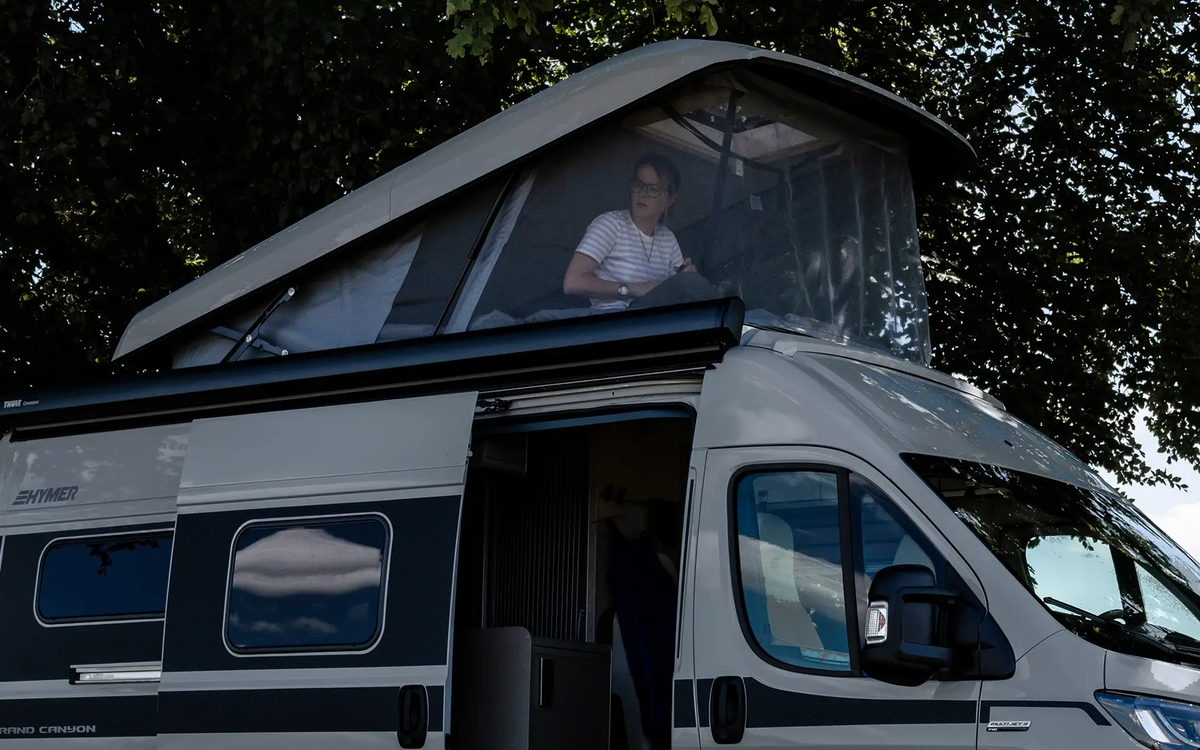

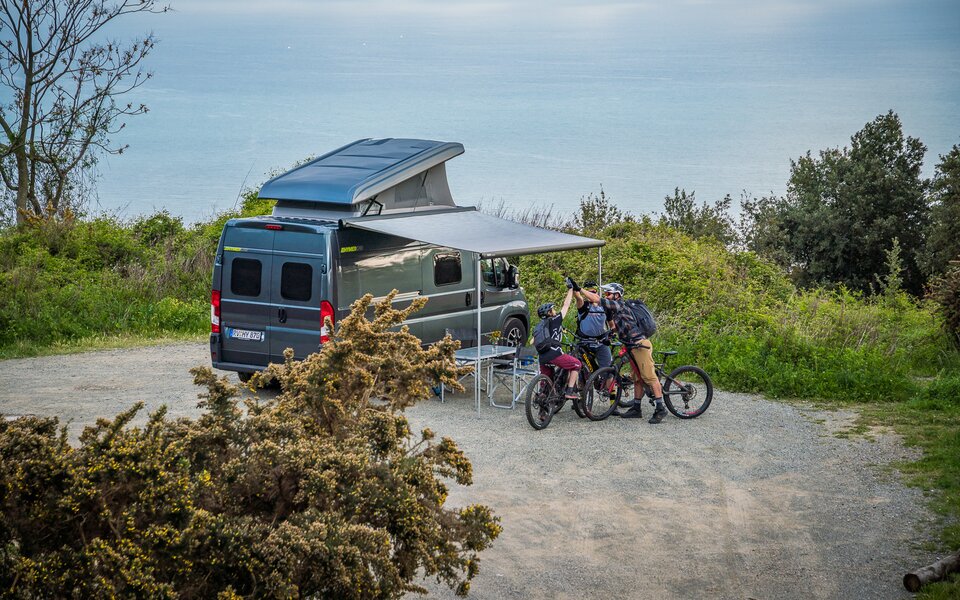

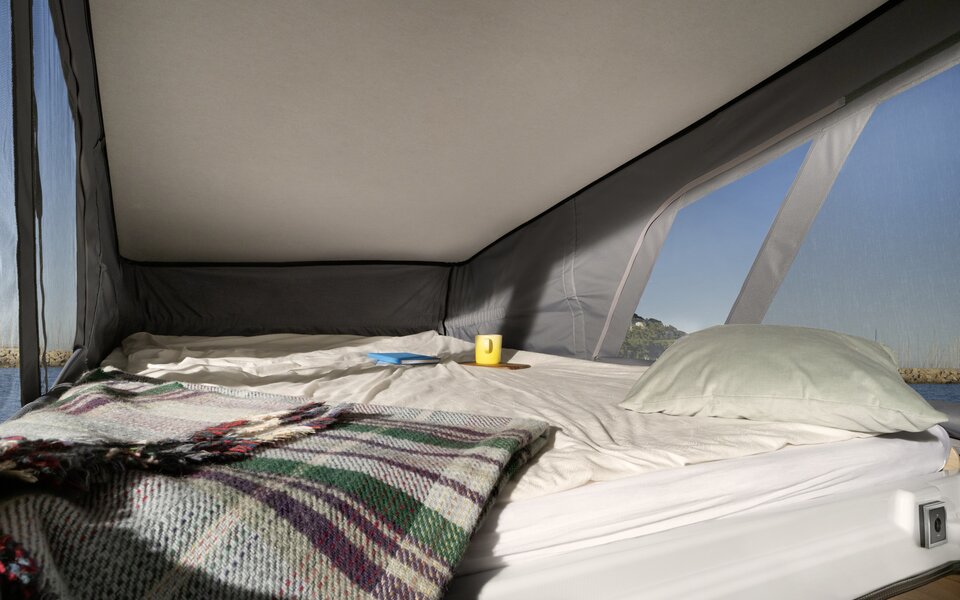

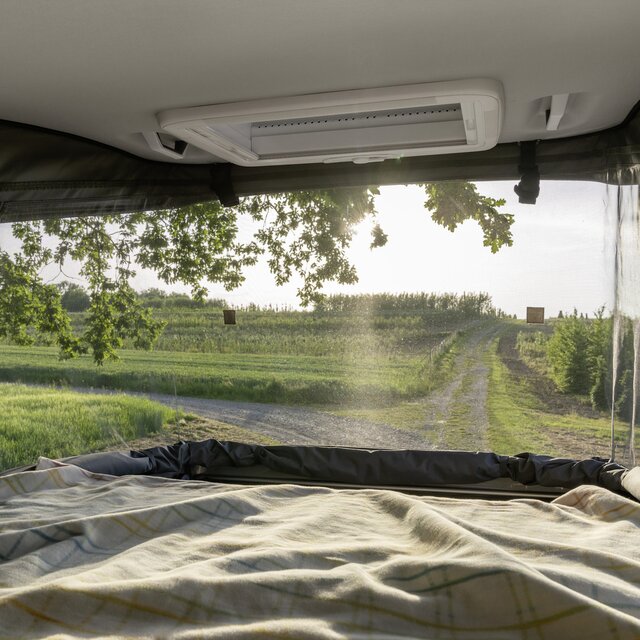

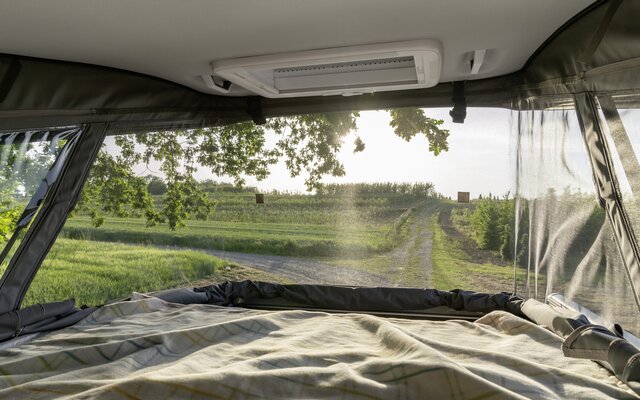

  • Perfect hangout for stargazers

    The pop-top roof comes with two special features that are unique in the industry – the widest bed found in any camper van’s pop-top roof (bed surface: 1.45 x 2.10 m) and a paint finish matching the colour of the vehicle’s bodywork. Complemented by the standard 70 x 50 cm rooflight, an electric locking system, a 12-volt connection and an LED reading light with USB connection, the pop-top roof combines an exciting “tent feeling” with typical HYMER comfort. And needless to say, it is also characterised by an unrivalled price-performance ratio.

  • Like sleeping on air

    The Lattoflex comfort sleeping system promises a good night’s sleep thanks to perfect ergonomics and durable high-tech materials. The optimal ventilation ensures a pleasant sleeping climate and prevents mildew spotting. The entire bed is “Made in Germany” and can be rolled up to save space together with the integrated disc-spring system.

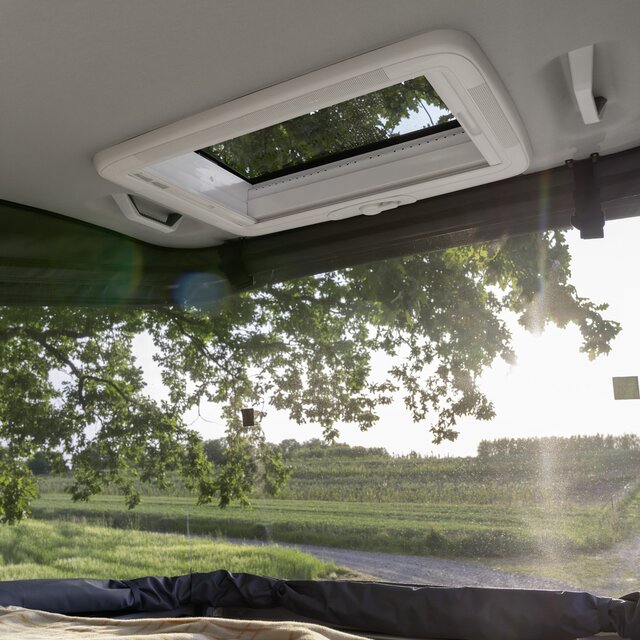

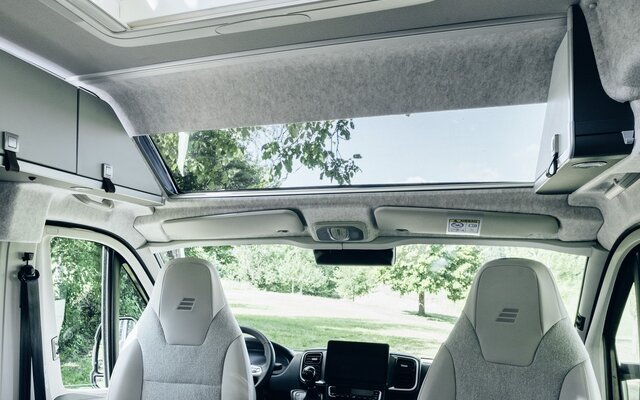

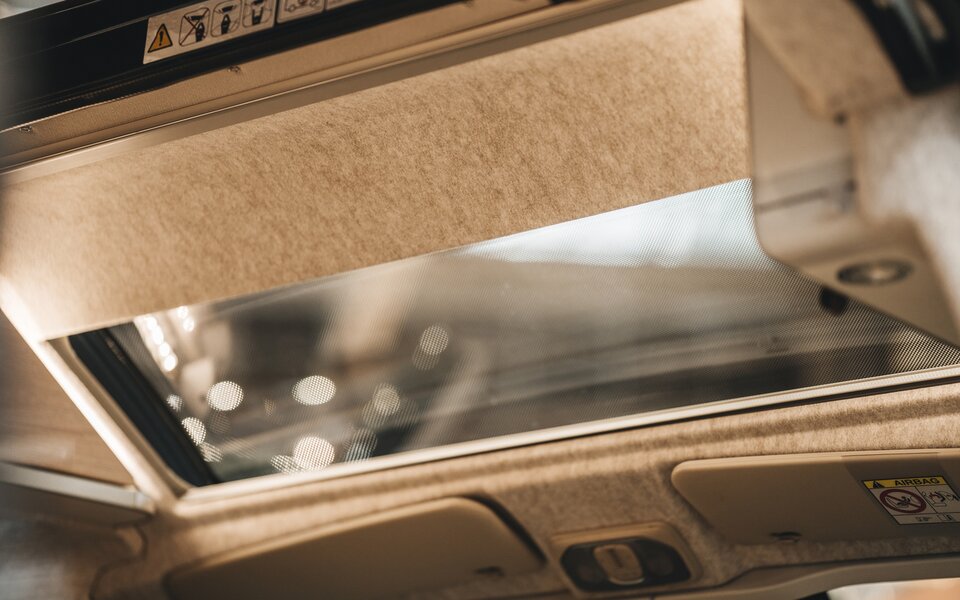

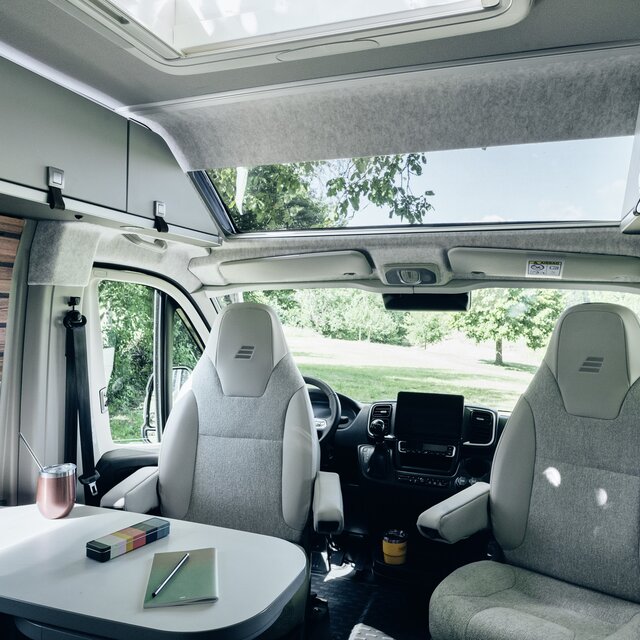

  • Magnificent Skyview

    Get a new perspective while still on the move – thanks to Skyview. The skylight at the front of the vehicle above the cab is optionally available with or without a pop-top roof for all layouts. In the variant without a pop-top roof, Skyview decreases the airflow onto the rooflight, thereby reducing wind noise. For an amazing view with an added bonus!

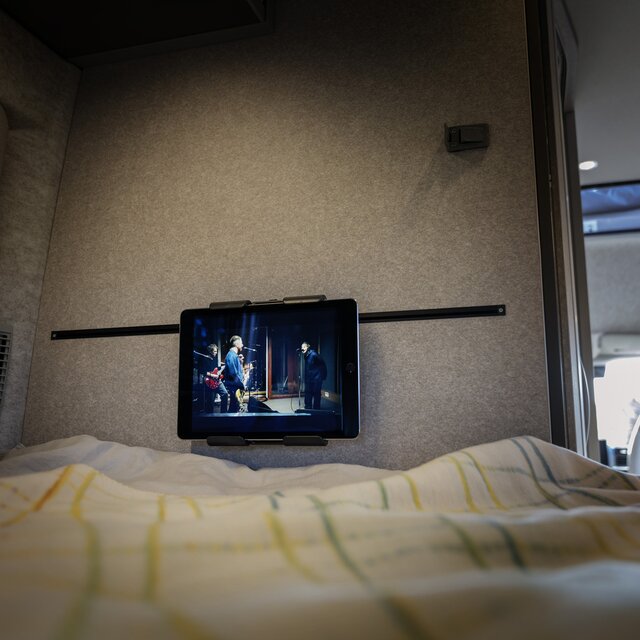

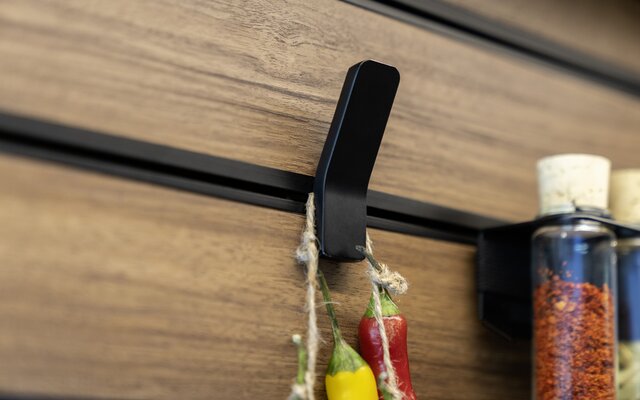

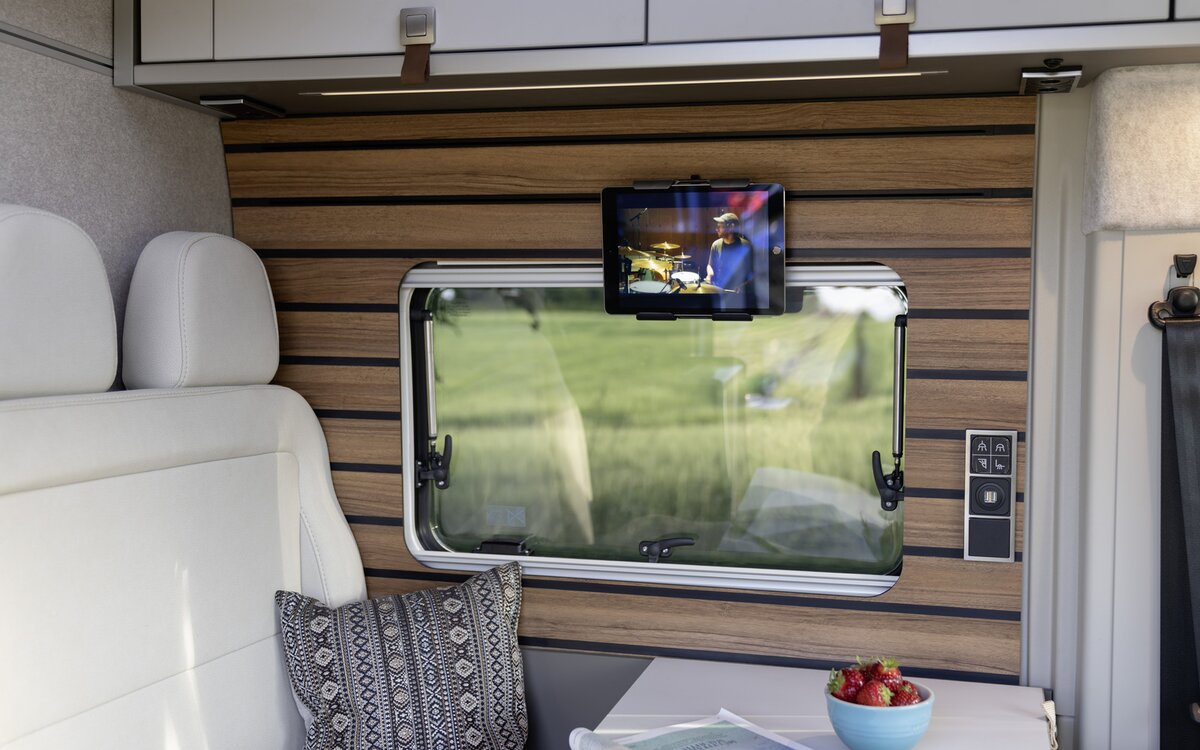

  • Versatile multifunctional rails

    You can equip the new multifunctional rails as required – exactly as you want them. Various hanging elements or kitchen accessories such as hooks, spice racks, shelves, containers, tablet holders, picture clips and kitchen roll holders are just the beginning of a constantly growing range of compatible accessories.

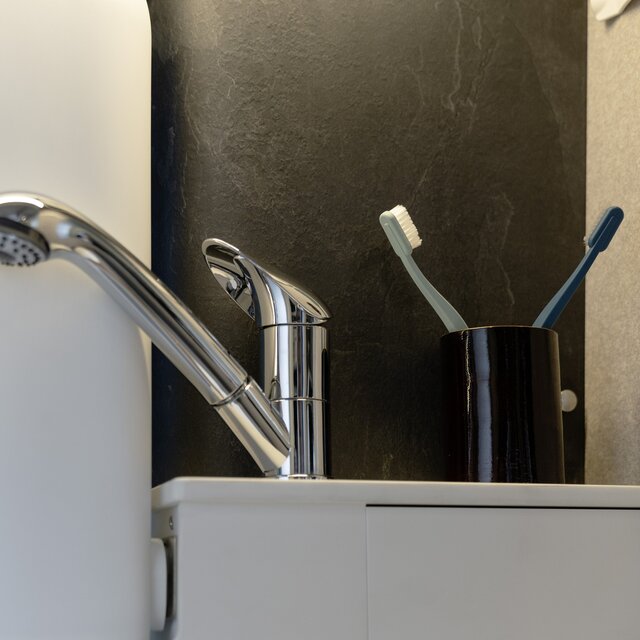

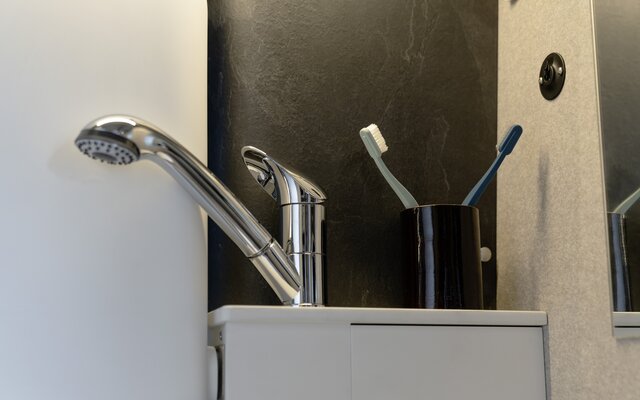

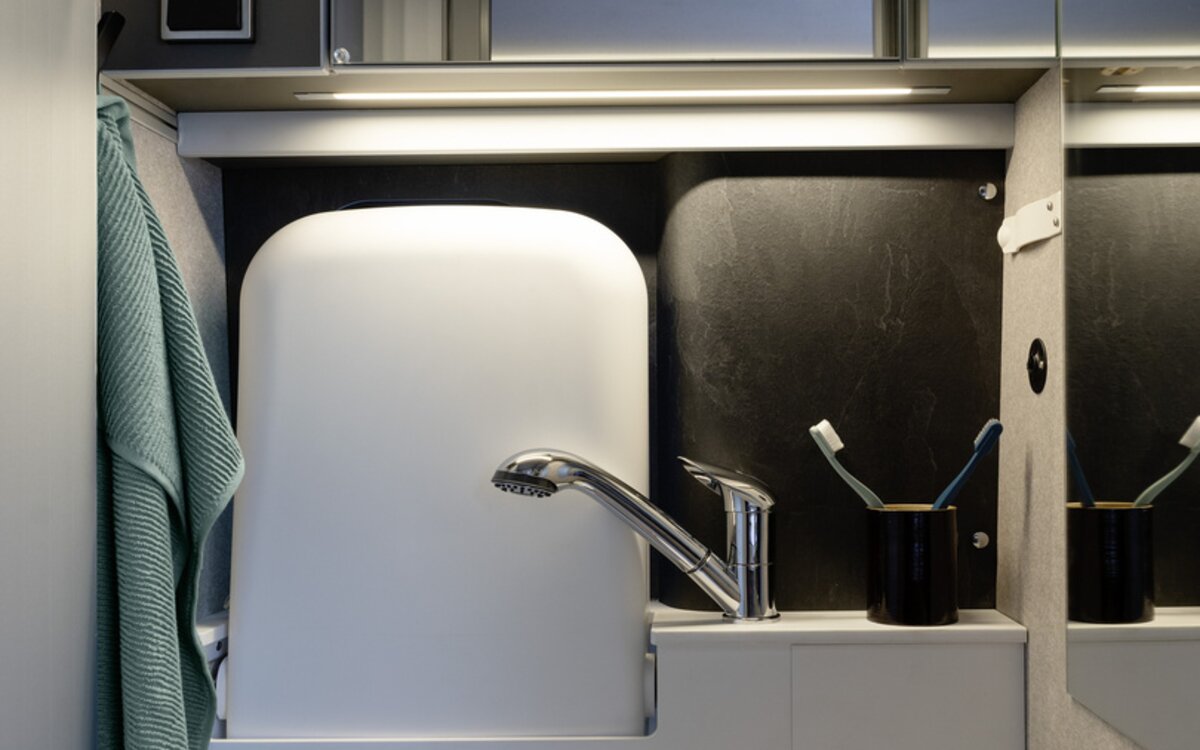

  • Bathroom backsplash in a slate look

    The bathroom splashback features a modern and timeless slate look and brings the ambience of natural stone into your compact or Vario bathroom. The material is extremely robust, particularly easy to clean and, above all, it simply looks beautiful. For even easier operation, the optimised folding washbasin in solid-surface material, which sets new standards in terms of quality and functionality, does not need to be unlocked since it is held in the vertical position by means of a magnet.

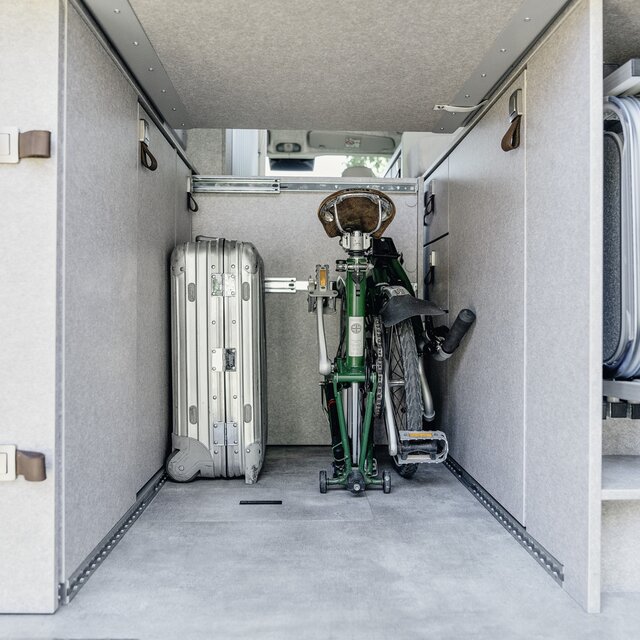

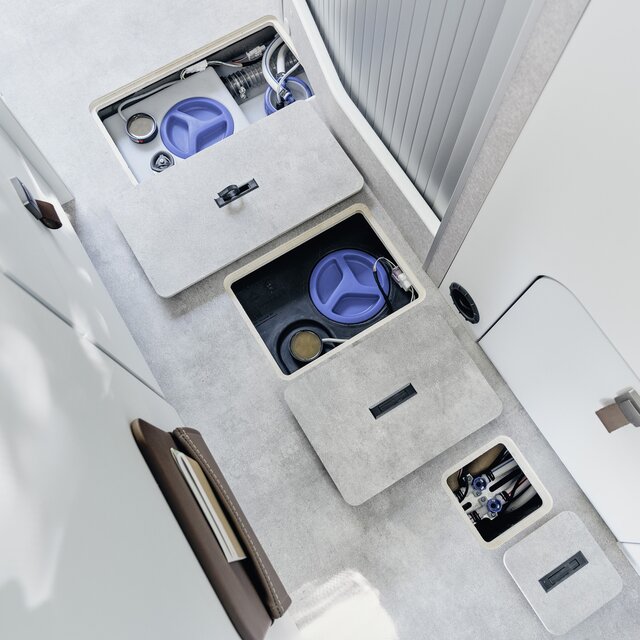

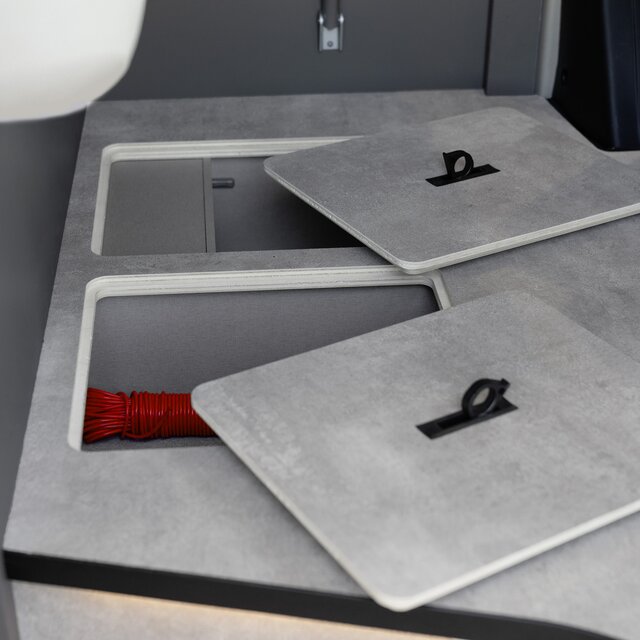

  • Significant increase in interior storage space

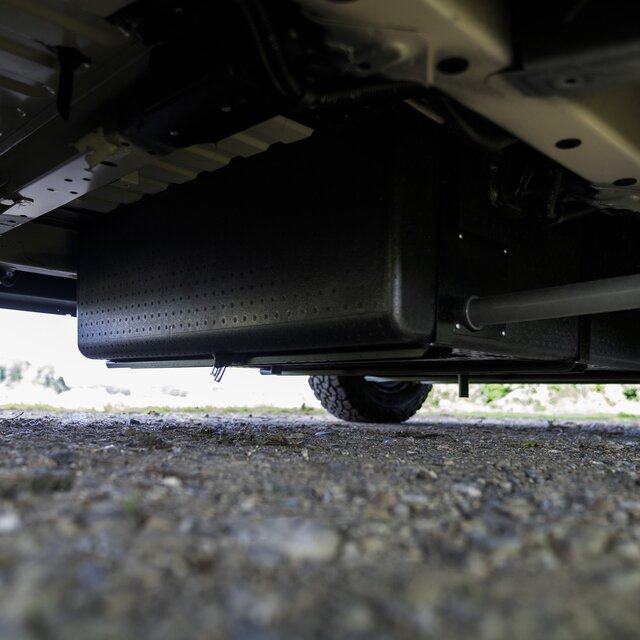

    By installing the water tanks under the floor, HYMER has hugely increased both the available storage volume and the overall flexibility of the vehicle’s interior. This has made it possible to accommodate a large rear wardrobe as well as precisely tailored vehicle accessories, such as the pop-top roof ladder, camping chairs and a vehicle tool kit. In addition, the centre aisle can still be used to transport sports equipment or larger objects with the help of the standard lashing rails.

  • Greater self-sufficiency than ever before – with the HYMER Smart Battery System 2.0

    The HYMER Smart Battery System 2.0 redefines freedom. Once you’ve found the perfect pitch, you’ll never need to leave. The new, self-sufficient, on-board power supply system combines cutting-edge technology Made in Germany with even more convenience than before. Using only state-of-the-art LiFePo4 lithium batteries, which removes the need for a back-up lead battery, it is more powerful, longer-lasting and significantly more compact.
1 / 9

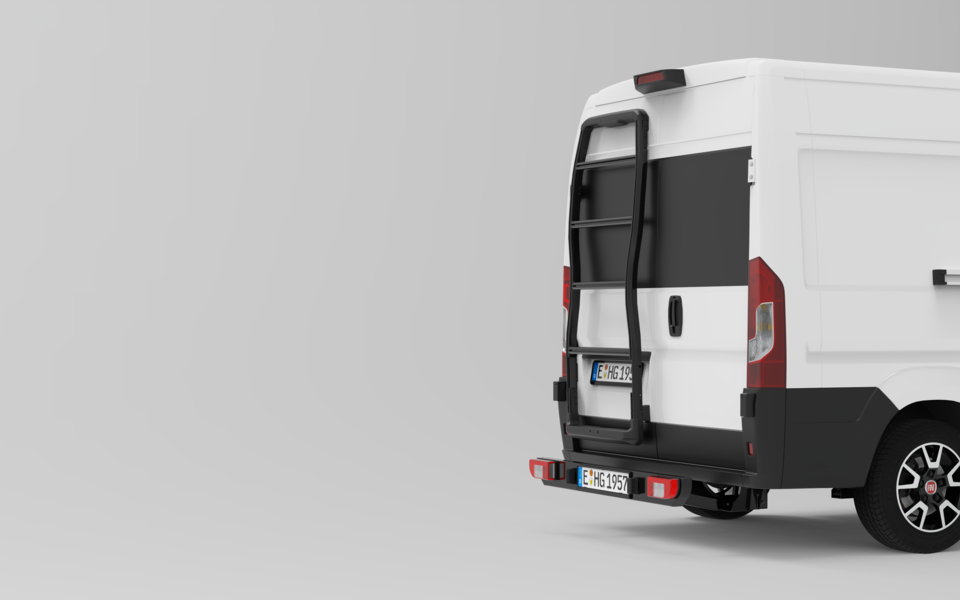

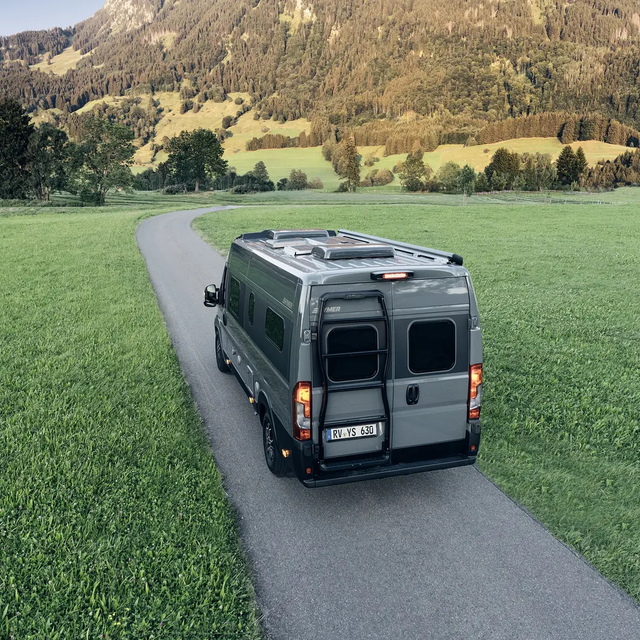

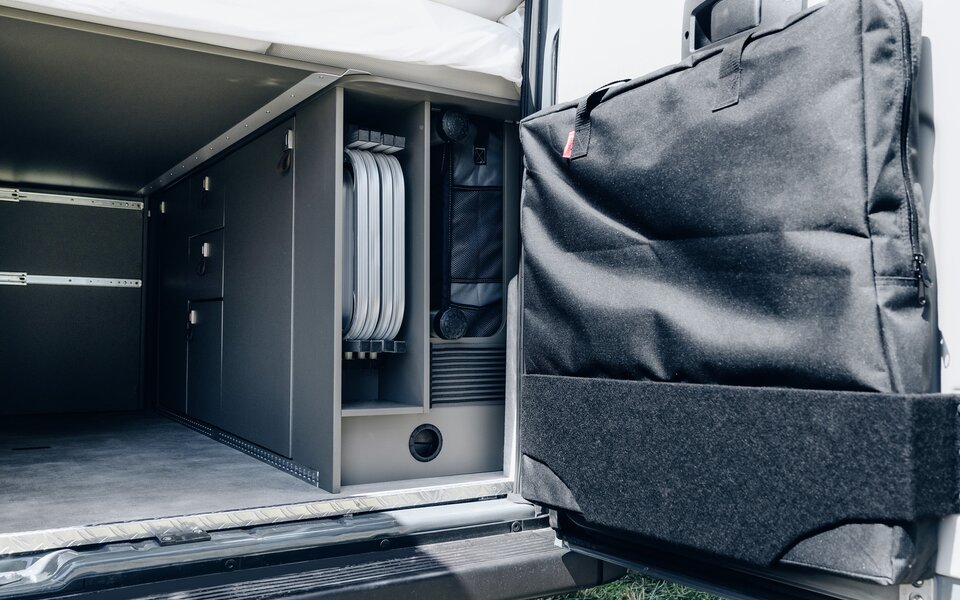

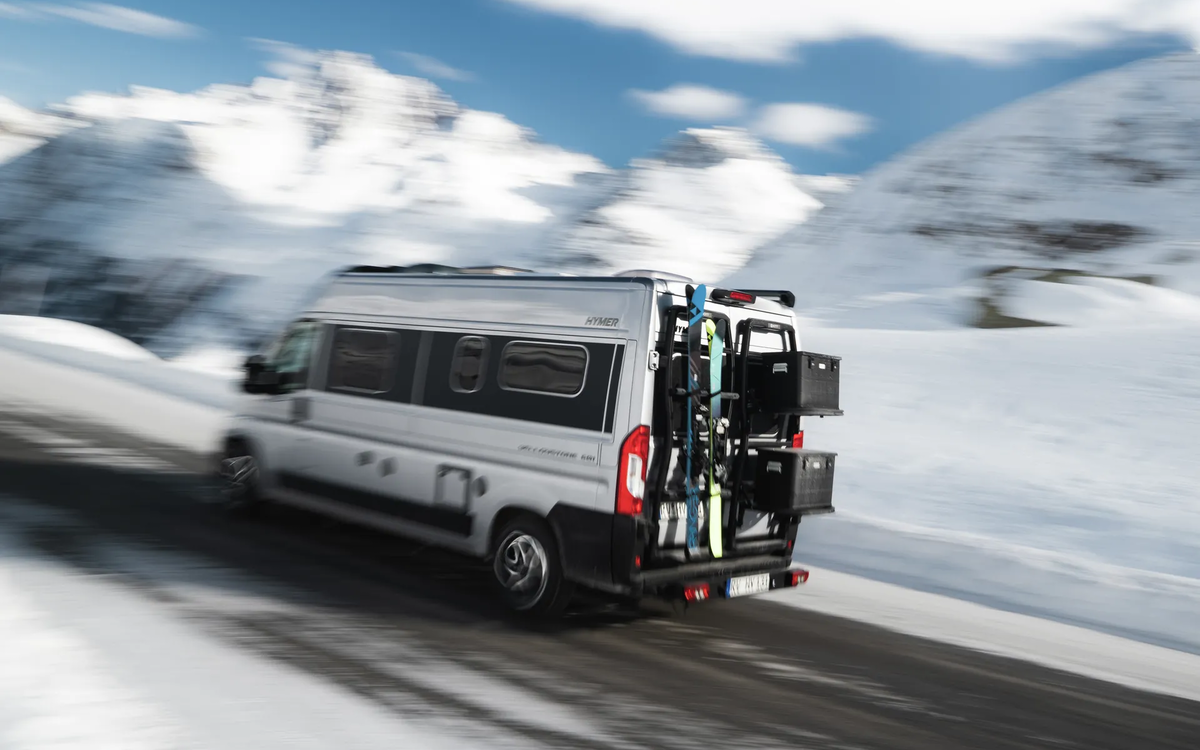

The HYMER Backrack+

Whatever you plan to do and wherever you want to go – take all your leisure equipment with you. The HYMER Backrack+ opens up a new world of personalised transport thanks to a wide range of modular components – and makes your camper van stand out from the crowd. The HYMER Backrack+ base support is available directly from the factory. Like all matching module components, it can also be ordered and retrofitted from HYMER Original Accessories via your HYMER dealer.
Discover the HYMER Backrack+

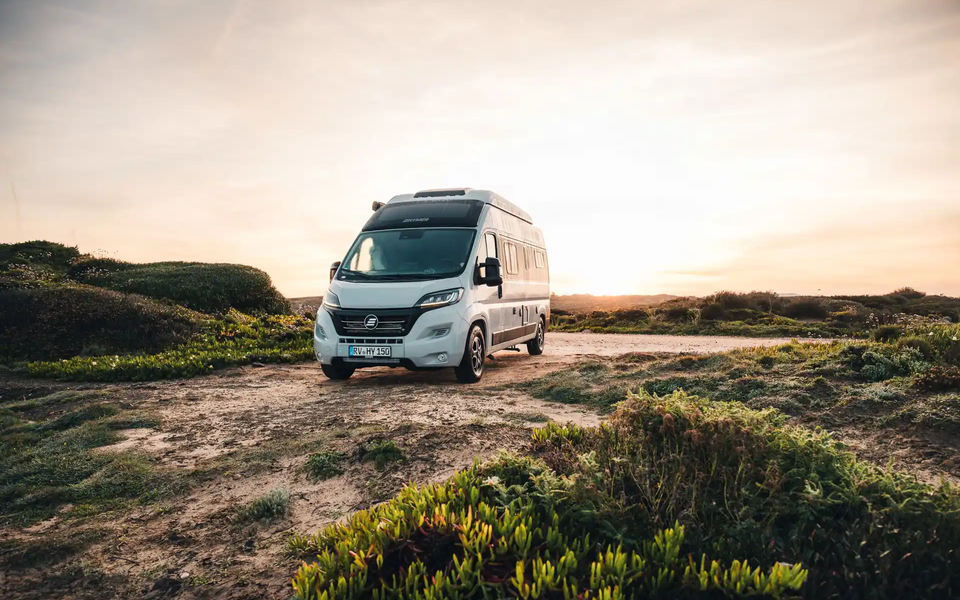

Exterior design

One for all – and all for you! The HYMER Fiat camper vans are agile all-rounders that are equally suitable for everyday city traffic and cross-country tours.

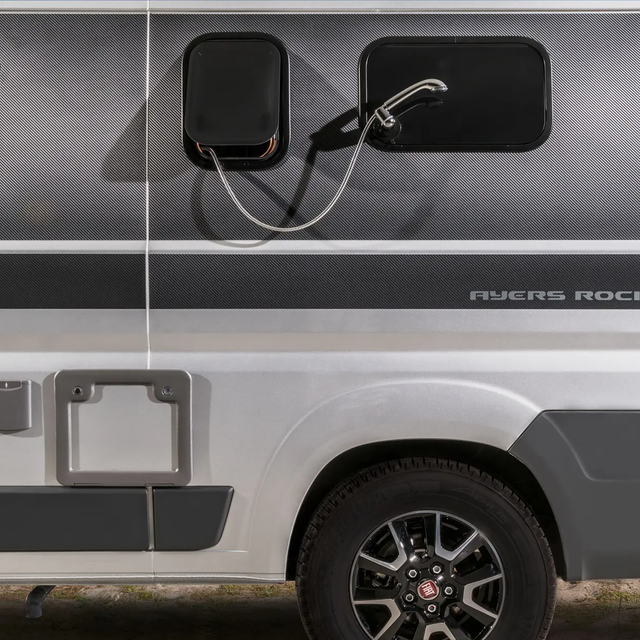

Shower head attached to the outside wall for an open-air shower on the HYMER Camper Van Ayers Rock

Get the travel bug at first sight

The compact and versatile HYMER camper vans ensure a comfortable driving experience both in daily life and on your travels – and are well equipped for every adventure.

Interior features

Maximum comfort in the smallest space – two new furniture finishes combine high-quality textiles with a welcoming wood aesthetic. Enjoy the cosy design of your “living room on wheels.”

Two furniture finishes – for the personal touch

Home means different things to different people. Choose either of these furniture finishes and personalise your travel companion with different colour and fabric combinations – down to the last detail. Both designs are based on modern furniture finishes that inspire with premium materials characterised by a natural look and pleasant feel. Whichever one you choose, your camper van will become your dream home from home – anywhere in the world.

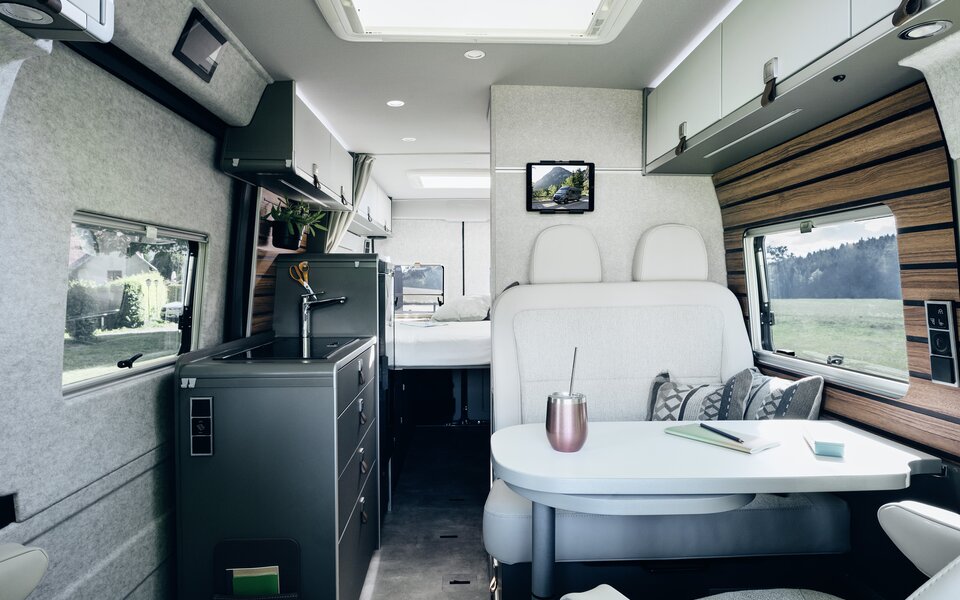

  • Ivy Green furniture finish

    The Ivy Green furniture finish is dominated by olive green furniture set against walls finished in a homely, decorative felt film. The multifunctional walls in a silky, shimmering, natural-looking walnut decor are perfectly matched to the interior furnishings and cleverly combine utility with a harmonious overall appearance. Black matt rails in all lounge areas let you attach a wide range of camping equipment and practical tools from the extensive HYMER Original Parts repertoire – van-life feeling guaranteed!

    The modern look is underlined by the unobtrusive concrete-effect flooring and faux leather details, such as the handles on the overhead lockers.

    Haptic qualities and high-quality workmanship were the focus when choosing these materials, as well as their visual appearance. Indeed, this furniture finish with its anti-fingerprint coating is characterised by easy-care, scratch- and dirt-resistant surfaces. Thus, both the robust concrete-effect flooring and the subtly textured decorative film with its felt-like finish effortlessly conceal dirt and minor damage.

  • Pearl Grey furniture finish

    The Pearl Grey furniture finish is based on a light-grey design with black colour accents that create a fresh, modern ambience. Additional warmth and cosiness are provided by the overhead locker doors in an elegant oak finish. The clean interior look is underlined by the light, homely walls with a felt-like finish. Here, too, the multifunctional matt aluminium rails embedded in the side wall create that genuine “glamping feeling” – they can be equipped with a range of accessories from the versatile HYMER Original Parts range.

    Together, the black kitchen backsplash, black fittings and the sturdy, black table surface create a bold contrast to the surrounding lighter tones, enhancing the modern ambience. Leather elements in a beautiful, warm brown shade emphasise the special feel of the surfaces and the “van-life” aesthetic.

    When selecting these materials, quality and haptics were key criteria besides their visual appearance. As a result, this furniture finish, which includes an anti-fingerprint coating, is characterised by particularly solid, dirt-repellent and easy-care surfaces. In addition, the hard-wearing concrete-look flooring and the subtly textured decorative film with its felt-like finish effortlessly conceal dirt and minor damage.

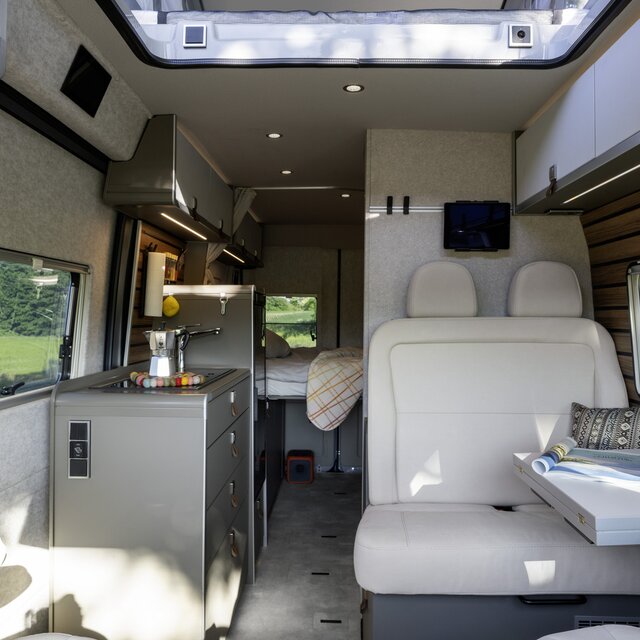

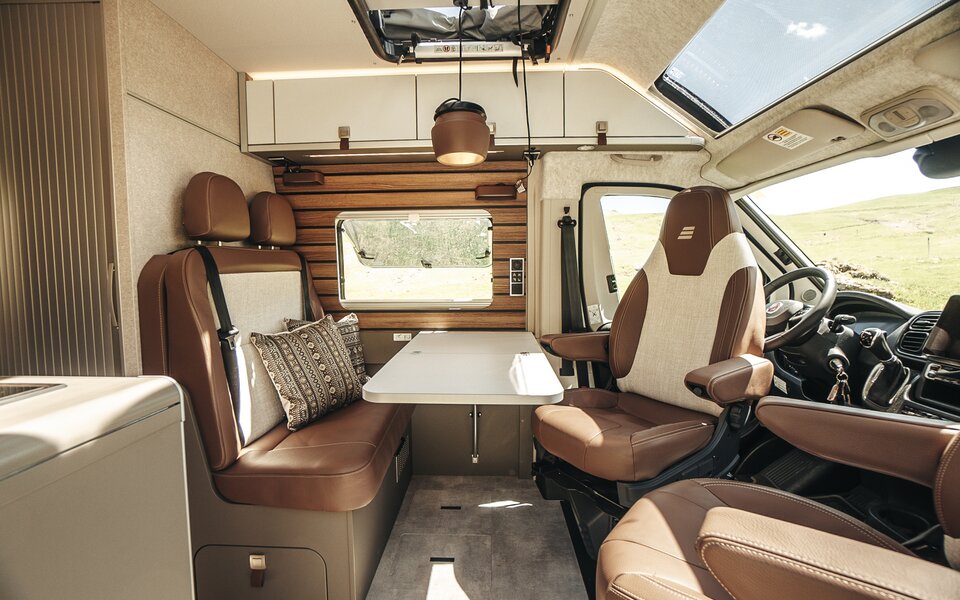

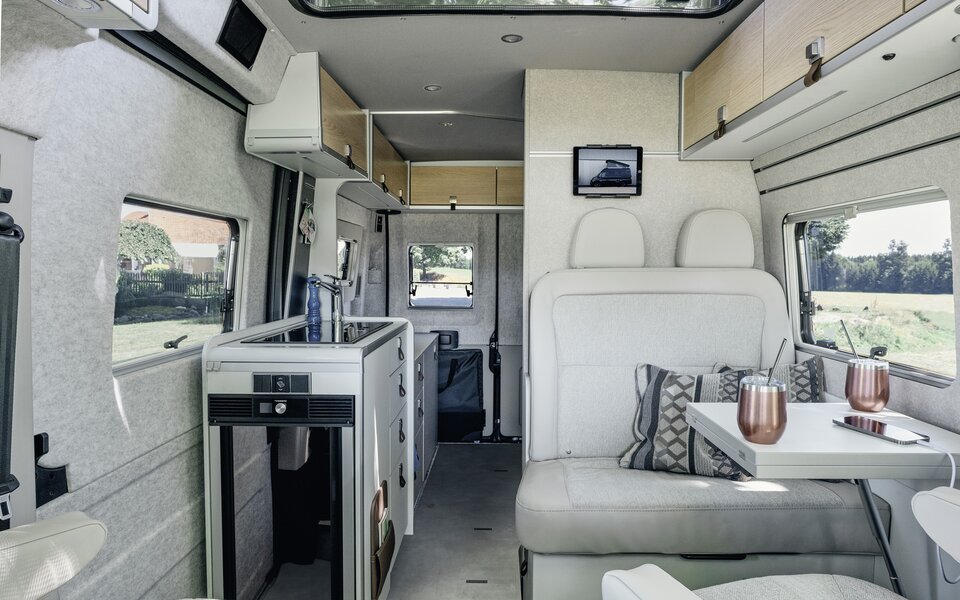

  • HYMER Camper Van living space: driver's seats, table, bench, kitchen, side wall windows, overhead storage cupboards, rear door with window

    Home from home

    With their compact dimensions and intelligent interior solutions, HYMER Fiat camper vans open up a new dimension of flexible travel and camping freedom.

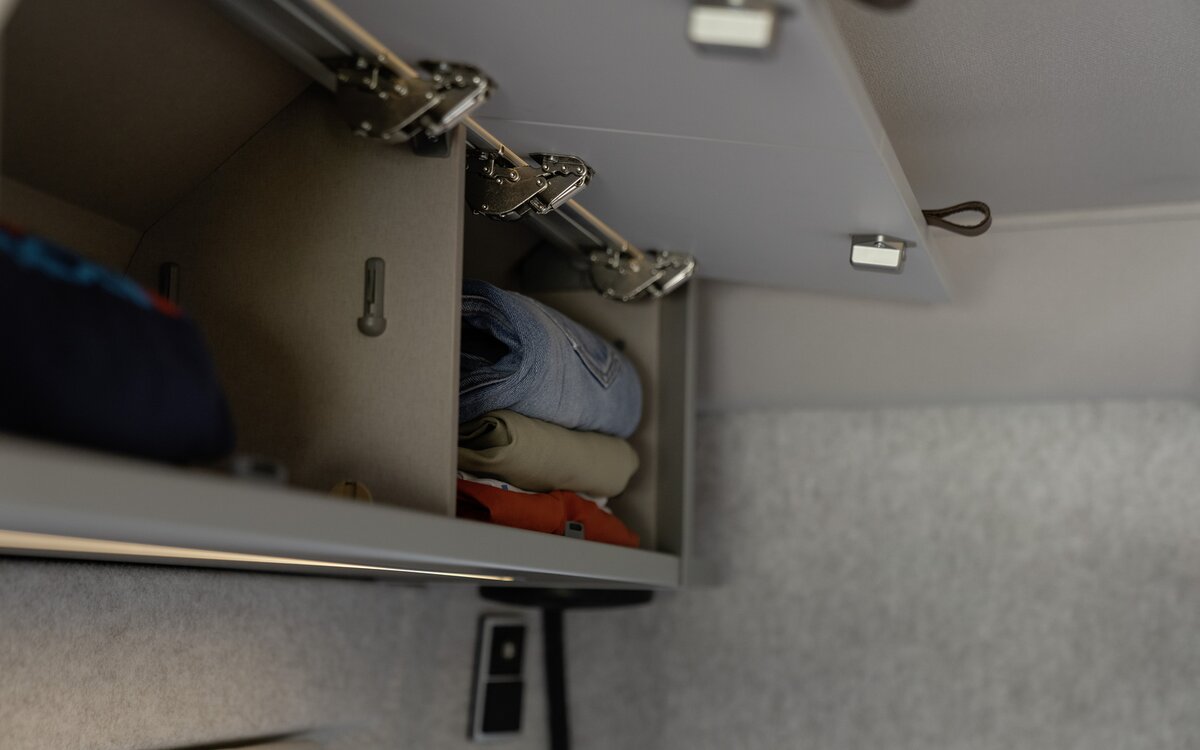

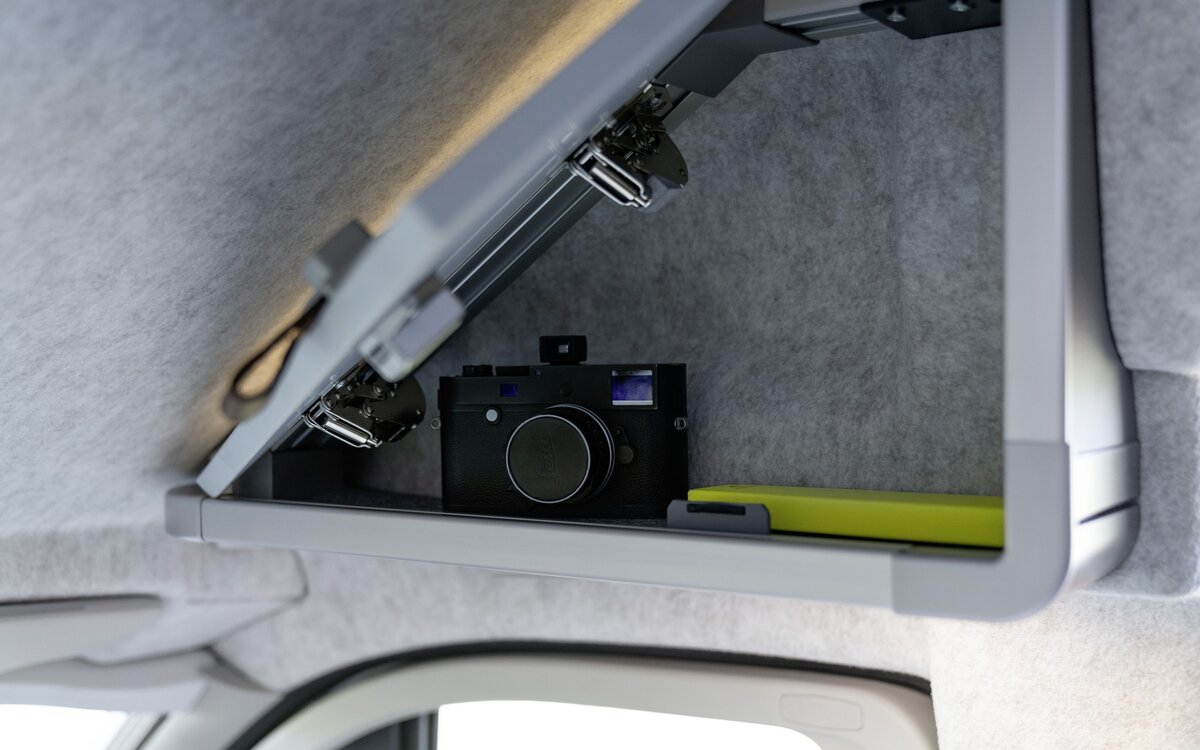

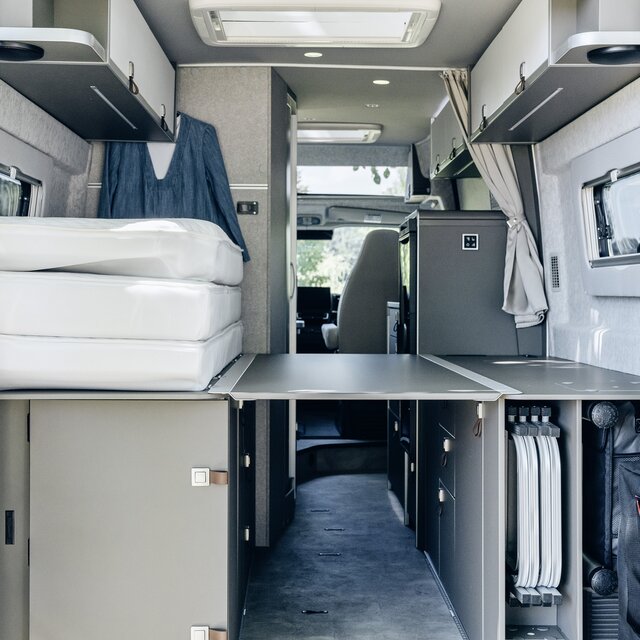

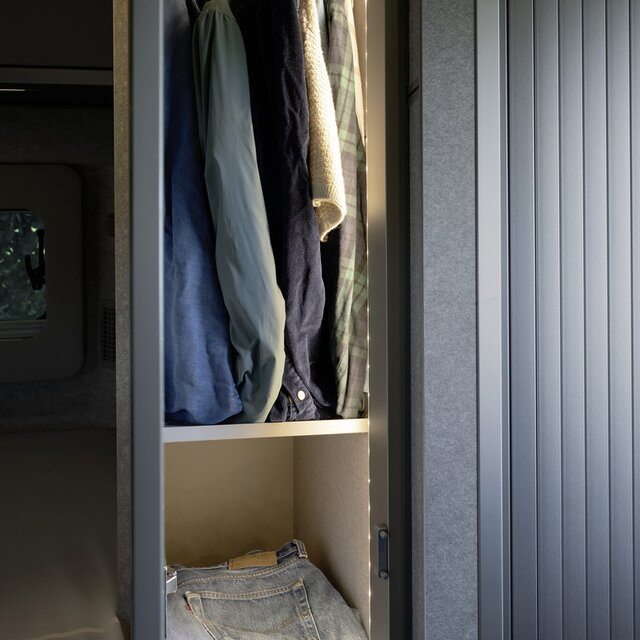

  • Top-shelf storage space

    Storage space everywhere you look. The new interior offers up to 50% more storage space for your travel equipment, as well as customised compartments for vehicle accessories.

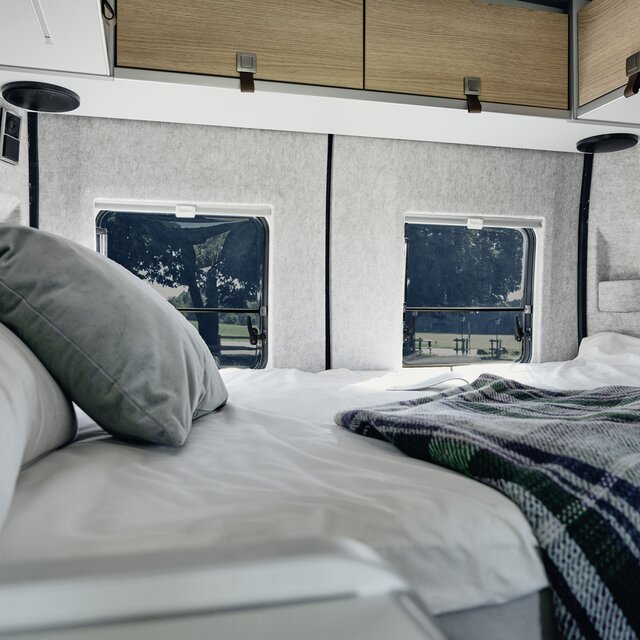

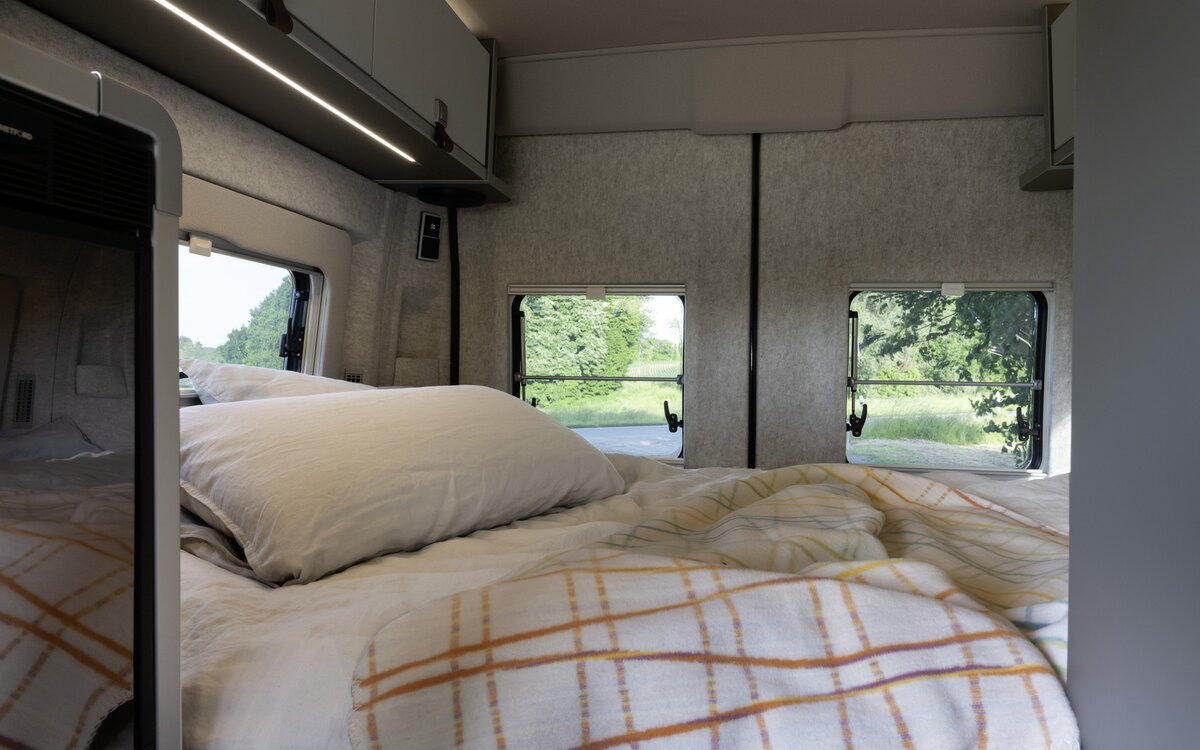

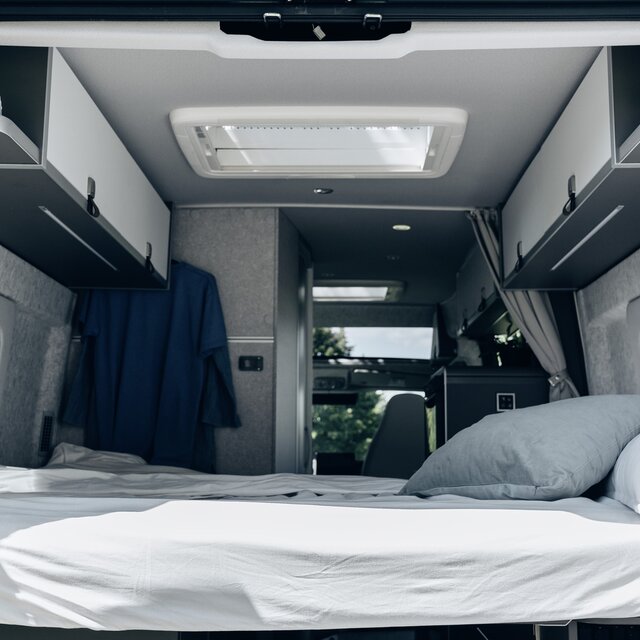

  • Good night!

    You can count on getting a good night’s sleep thanks to the comfort sleeping system, which is fitted as standard. It is also available for the bed inside the optionally available pop-top roof.

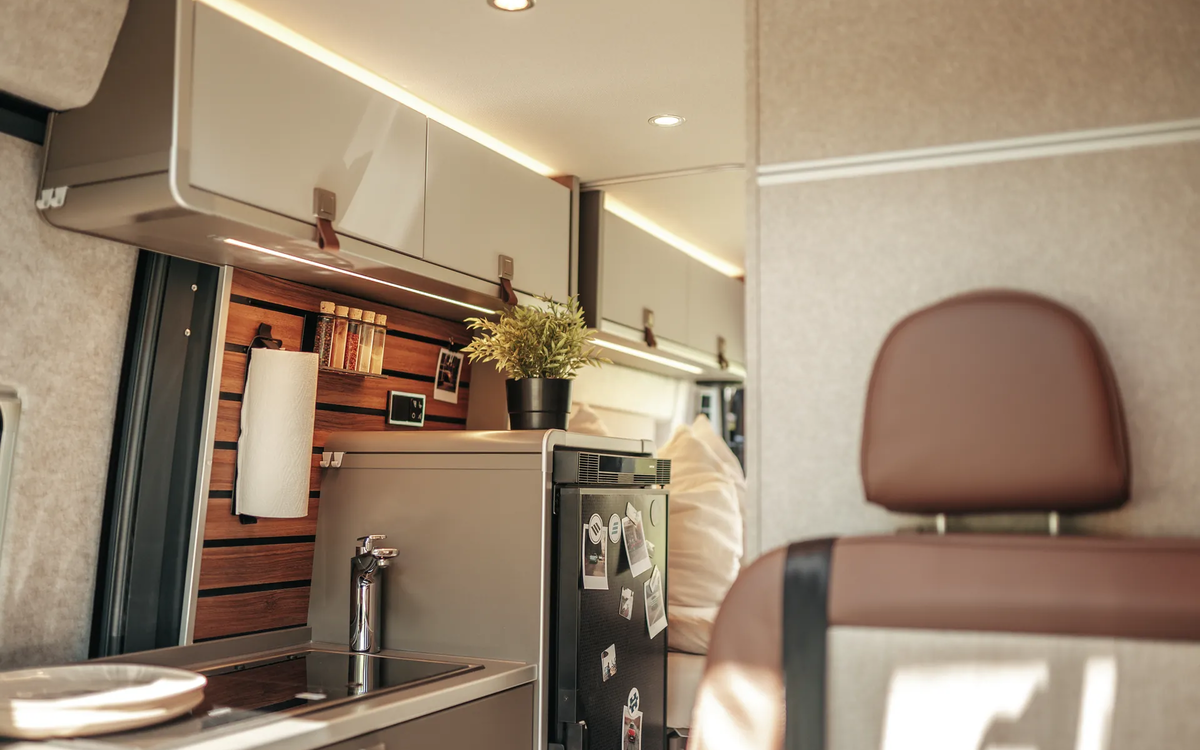

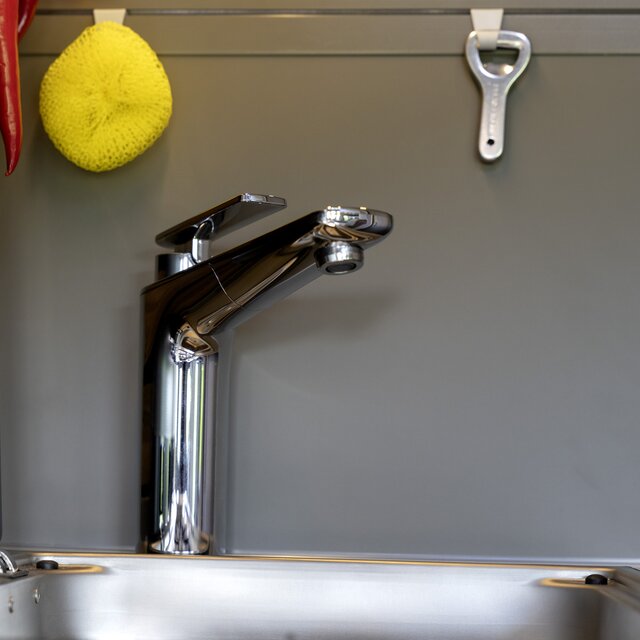

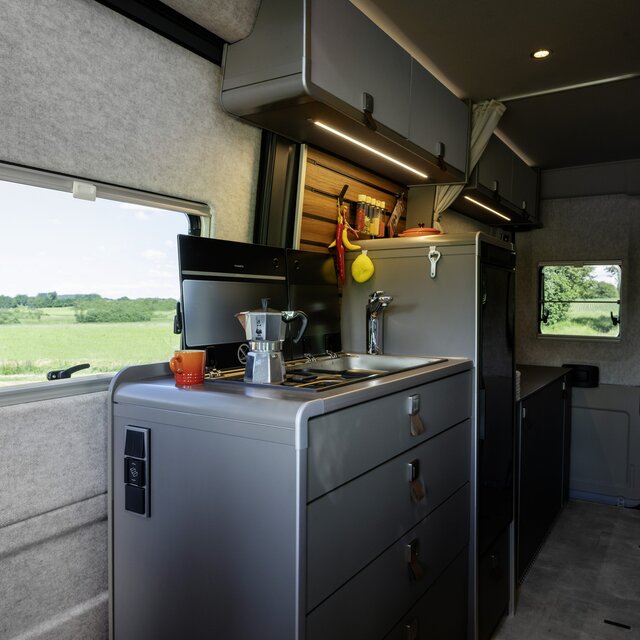

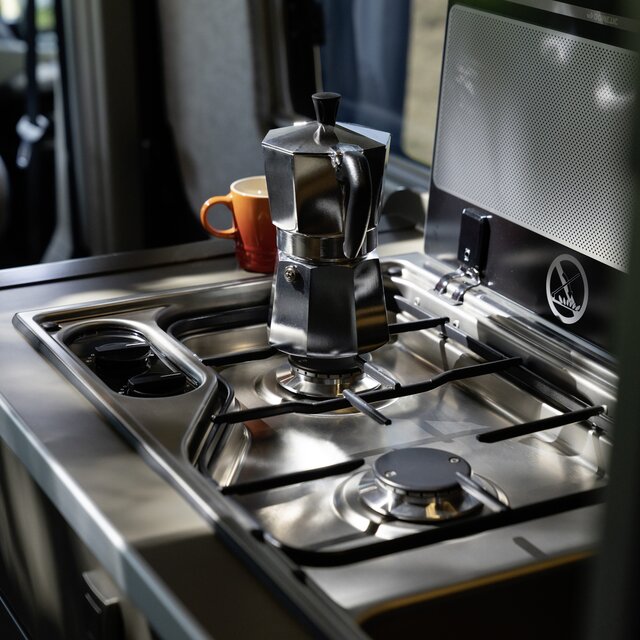

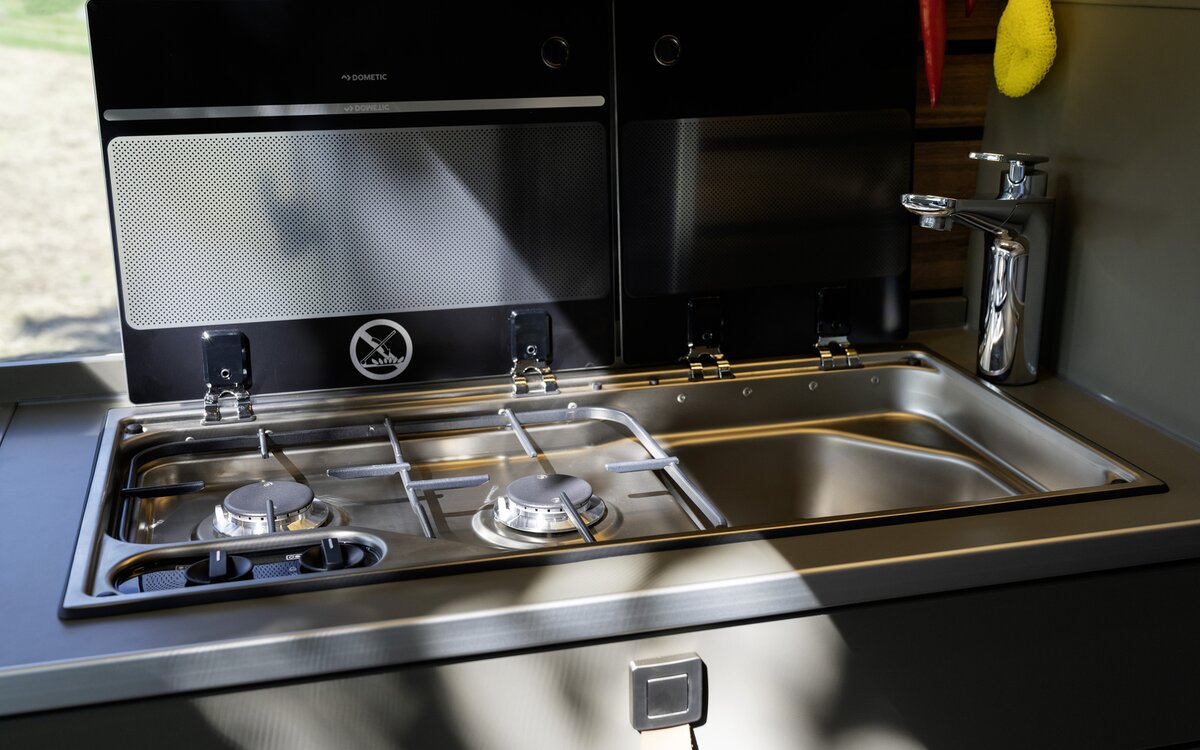

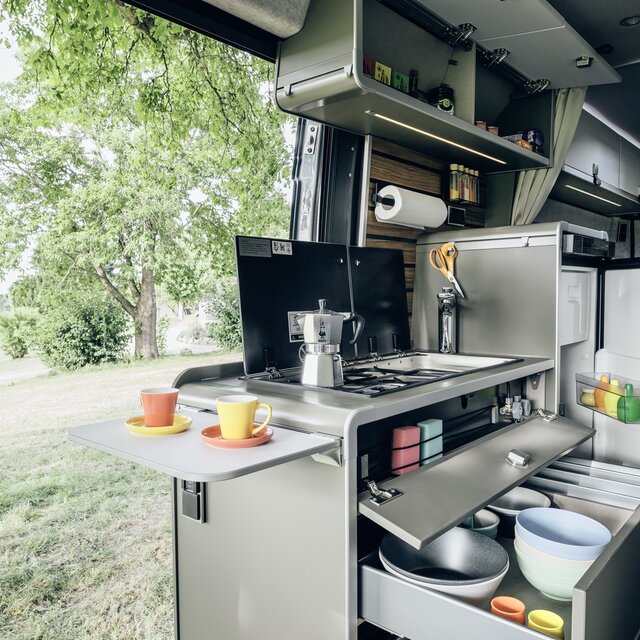

  • Gourmet kitchen

    The full-size kitchen certainly delivers in terms of both space and equipment. Apropos: cooking with the side door open provides an incredible sense of freedom.

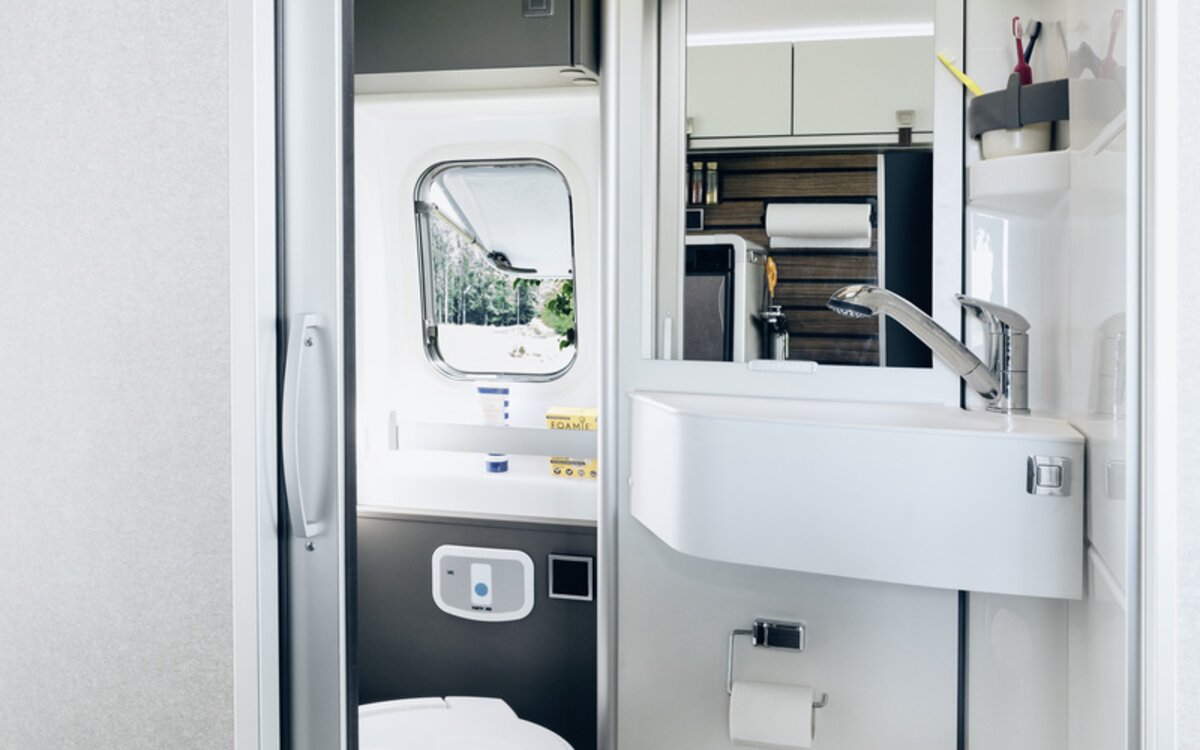

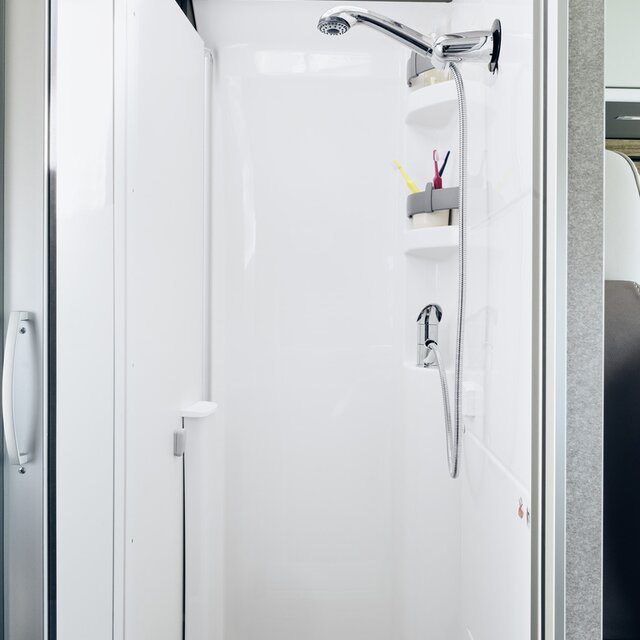

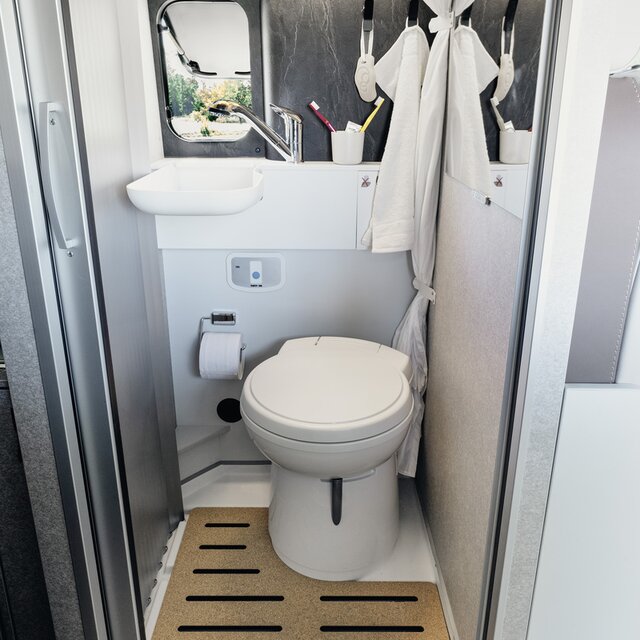

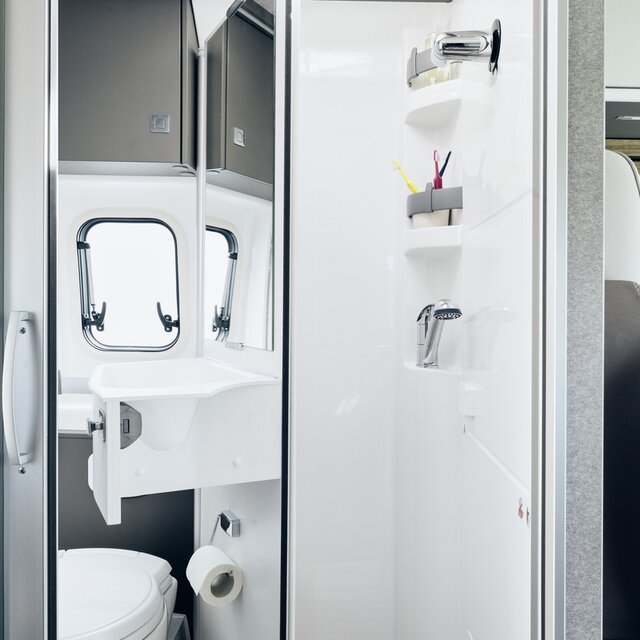

  • Refreshingly compact

    Your bright and cosy compact or Vario bathroom is a toilet, shower and drying room in one. Prepare to discover a host of clever solutions and new materials.

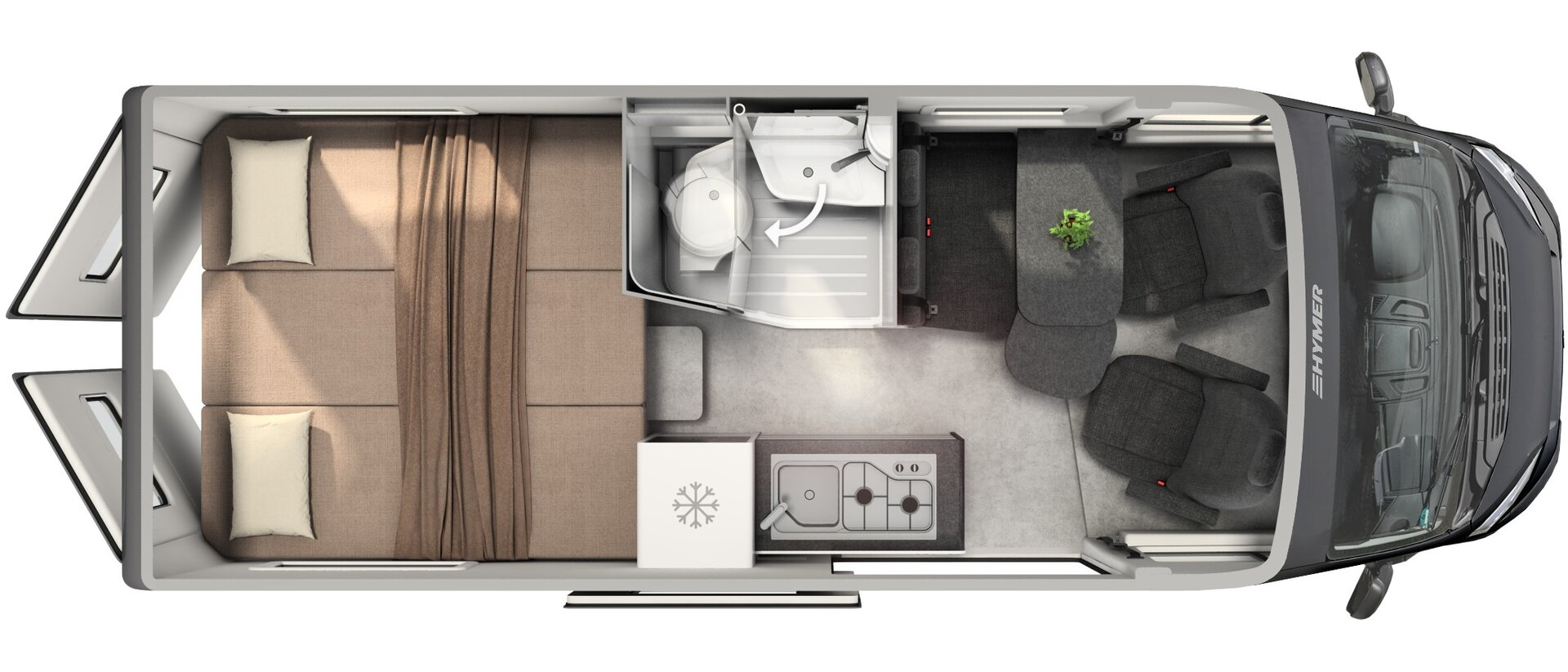

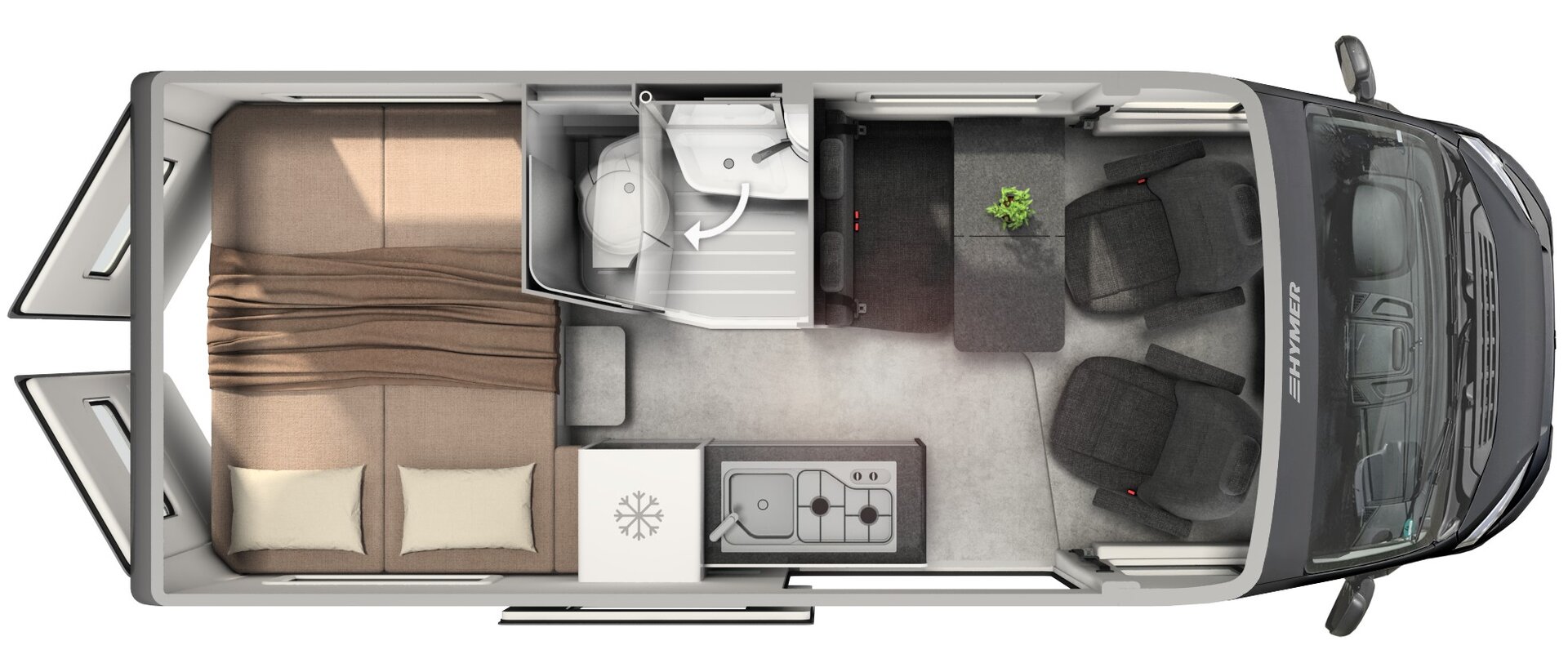

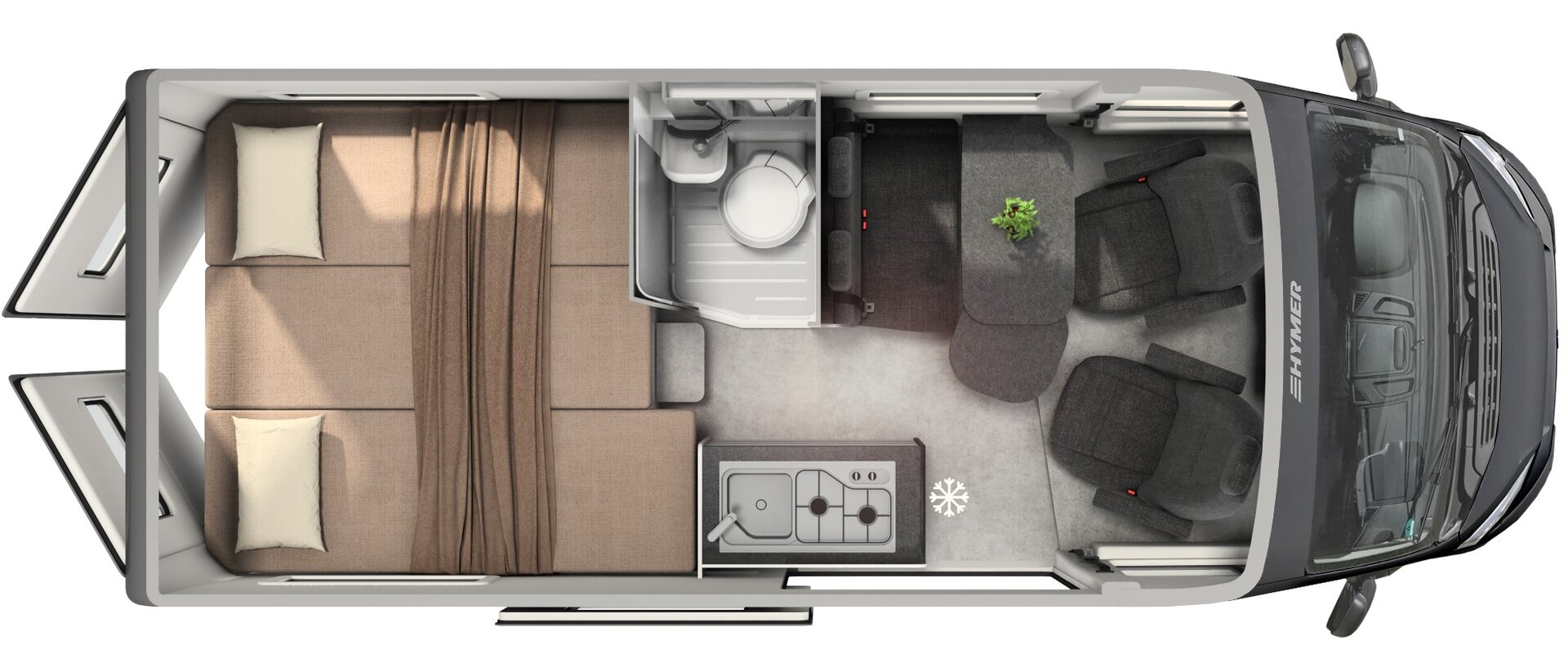

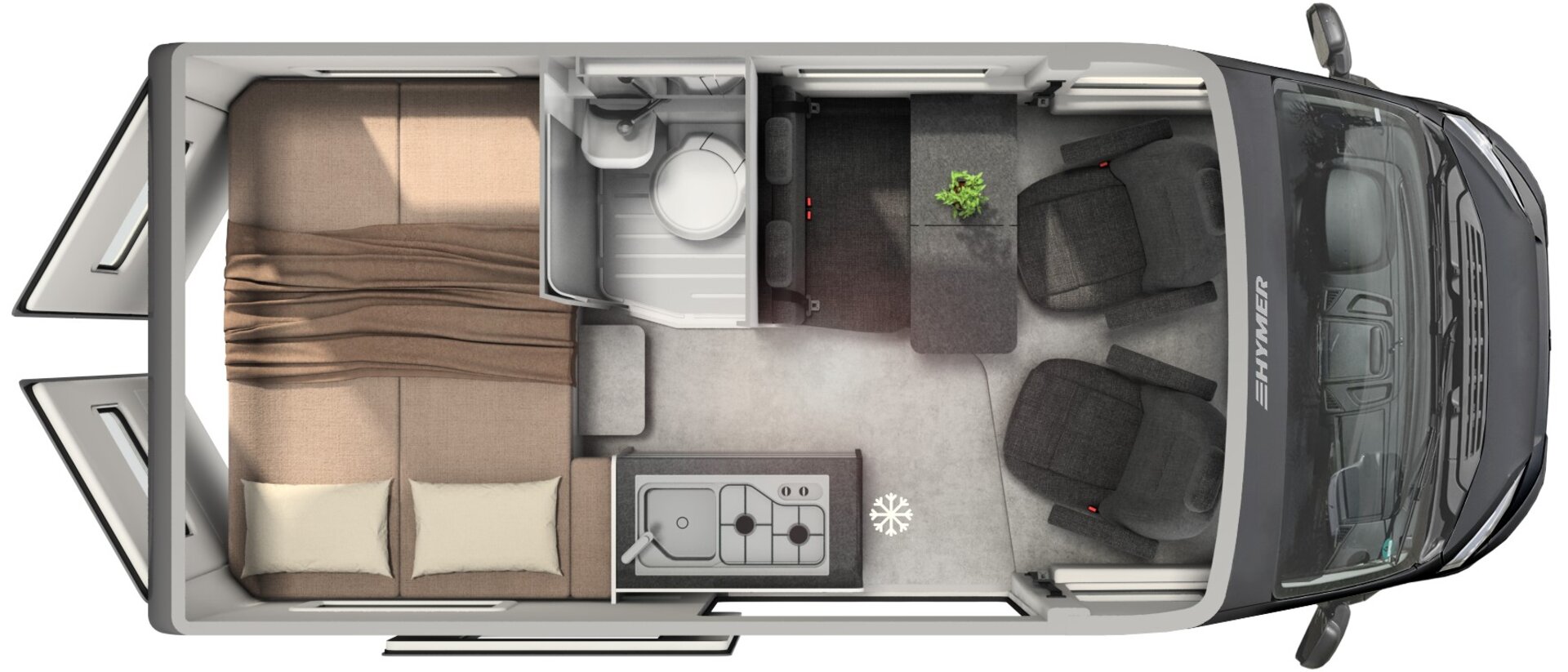

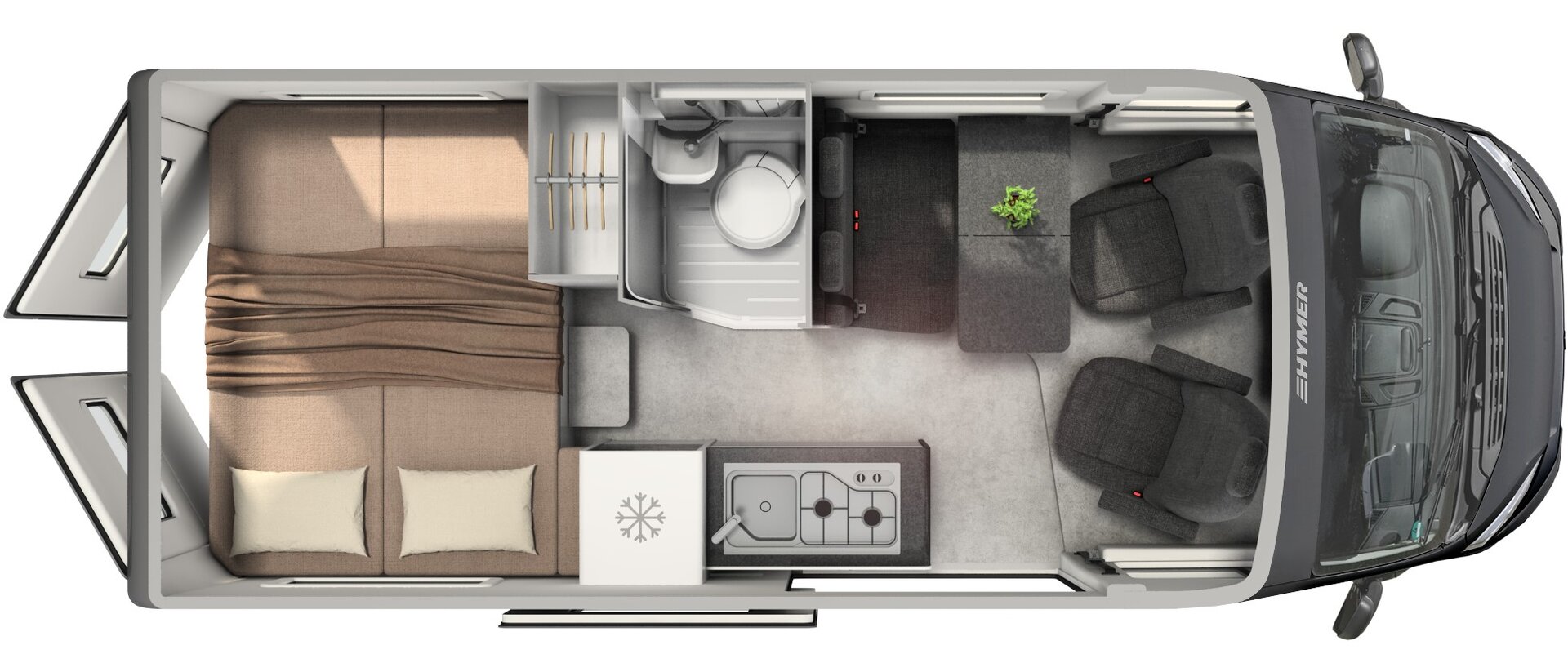

Available layouts (4)

  • 360° View
    Detailed view

    Detailed view

    HYMER Ayers Rock

    £71,840
    Price froma)
    2 - 4
    Berths
    541 cm
    Length
    3500 kg
    Technically permissible maximum laden mass from*
    208 cm
    Width
    260 cm
    Height
    Configure Technical data

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER Ayers Rock
    Description Value
    Price a)
         		 71840
    Standard chassis Fiat Ducato
    Drive Front Wheel Drive
    kW (hp) 103 (140)
    Tyre size 215/70 R15 C
    Length / Width / Height (cm) 541 / 208 / 260
    Roof type Sleeping roof (○)
    Standing height in living area (cm) 190
    Wheelbase (mm) 3450
    Mass in running order (-/+ 5%) (kg)* 2804 (2664 - 2944)*
    Manufacturer-specified mass for optional equipment (kg)* 367
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 3000
    Permitted number of seats (including driver)* 4
    Bed dimension: Rear bed L x W (cm) 196 x 140 - 125
    Bed dimension: Central bed L x W (cm) 174 x 71 - 42 (○)
    Bed dimension: Sleeping roof L x W (cm) 209 x 143 (○)
    Berths 2 - 4 (○)
    Fridge volume (freezer compartment) (l) 70 (7,5)
    Standard heating Warm air, 4 kW
    Gas bottle storage (Filling weight) 2 x 11kg1 x 6kg (○)
    Total fresh water tank capacity (l) 110
    Fresh water tank in driving filling level (l) 20
    Warm water tank (l) Gas boiler 11 l
    Waste water tank (l) 95
    Standard habitation battery 95 Ah (AGM)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 6
    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

    (○) Optional
    Equipment & accessories
    Equipment & accessories
    HYMER Ayers Rock
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E
      Basis
      Exterior colour: White
      6G manual transmission
      19 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric immobilizer
      Daytime Running Light integrated in headlights
      15'' steel rims
      M+S All Season tyres (with snowflake symbol)
      Tool kit
      Digital display with on-board computer
      Electric cab windows
      Driver and passenger airbag
      Cupholder in the centre of the dashboard
      Belt warning device "Unfastened seat belt"
      Glovebox, passenger side, with cooling compartment lid for 1.5 litre bottle
      Coaxial steering wheel adjustment
      Breakdown kit (air compressor with additional valve)
      DAB radio and audio pre-installation incl. speaker in the rear
      Sensor for water in diesel fuel
      Power steering
      Seat base panelling
      Start-Stop-System incl. intelligent alternator
      Door storage boxes with integrated bottle holder for 1.5 liter bottles
      Central locking with internal operation and remote control
      Outside temperature display
      ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System
      Body
      Electric entrance step
      Expandable rear door opening
      Black gutter above the sliding door with integrated LED lighting
      Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
      Insulated floor
      Cab interior in felt optics
      Dark tinted windows in the living area
      Skylight in bathroom, 40 x 40 cm
      Skylight in bedroom, 40 x 40 cm
      Skylight in living room, 70 x 50 cm
      Insulated aluminium framed windows
      Outfitting

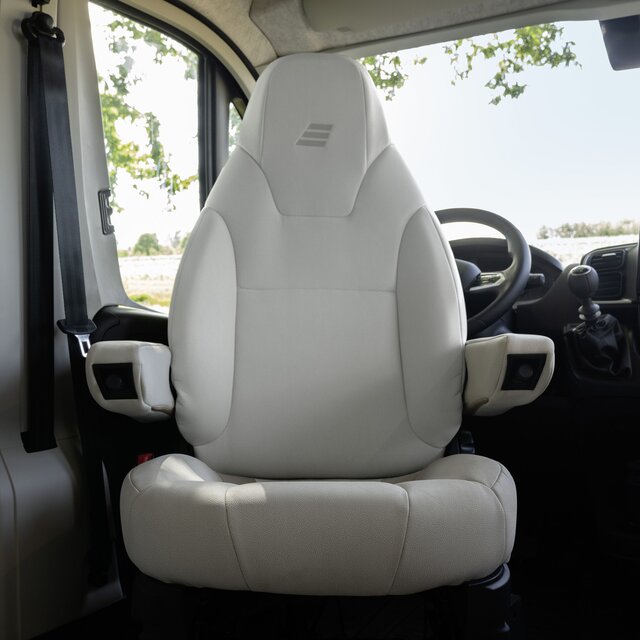

      Cab seats, swivelling, with armrests, height- and tilt adjustable
      Cab seats, armrests and seat bench upholstered in living area fabric

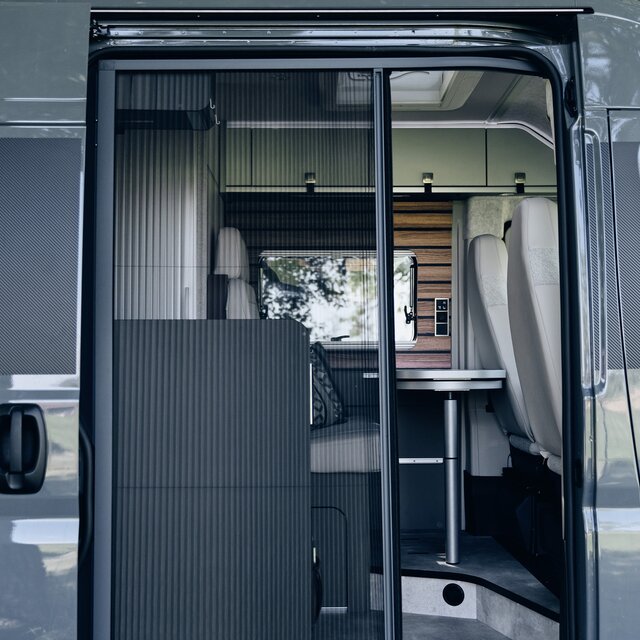

      Mosquito net pleated blind for sliding door
      Pedestal with two storage compartments

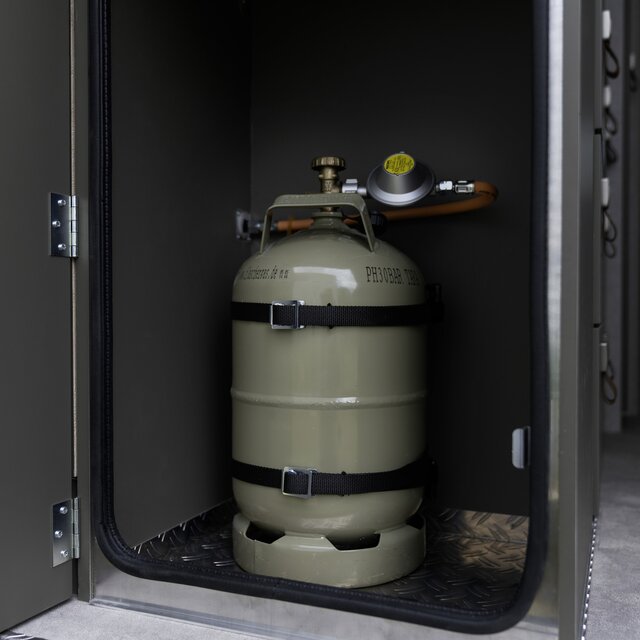

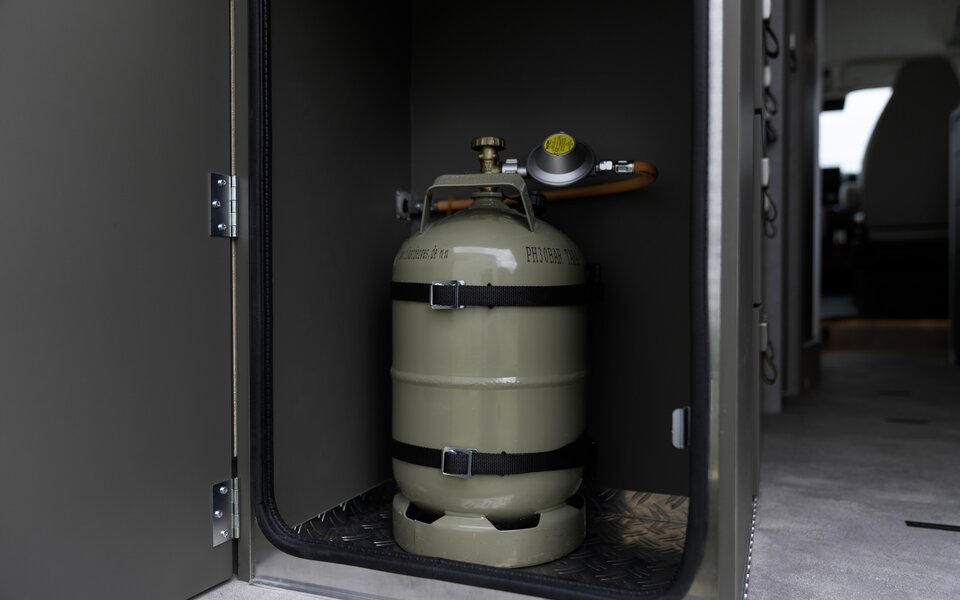

      Gas bottle compartment for 2 gas bottles
      Pull-out bed climb incl. load compartment partition
      Folding table with possibility to enlarge
      Pleated blackout cab blinds for front and side windows
      "Travel Lounge" bench with adjustable inclination

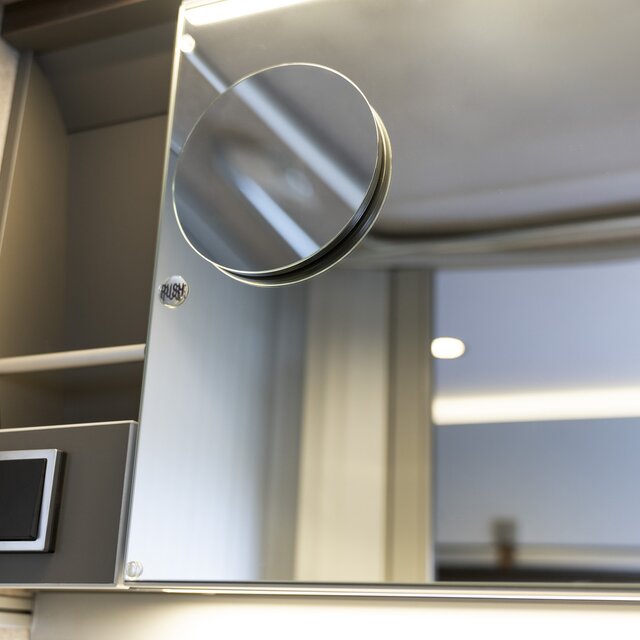

      Mirror cabinet incl. magnetic vanity mirror

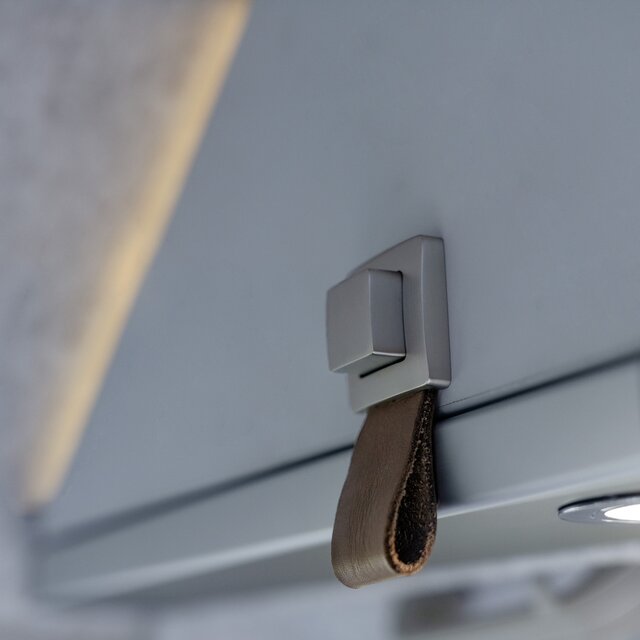

      Comfort push locks with genuine leather loops on flaps and drawers
      Wall panel with multifunctional rail system at the seating group and kitchen for multiple use
      Lashing rails with 4 adjustable eyelets
      Living and bedroom + lighting
      Side panelling in the bedroom with premium heat and sound-absorbing fabric lamination

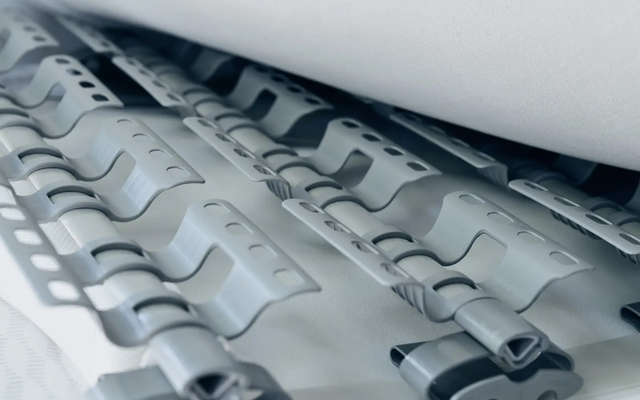

      Innovative sleeping comfort mattress with integrated disc spring system
      LED illumination, dimmable with touch control
      LED reading spotlights with touch control (living area)
      Kitchen

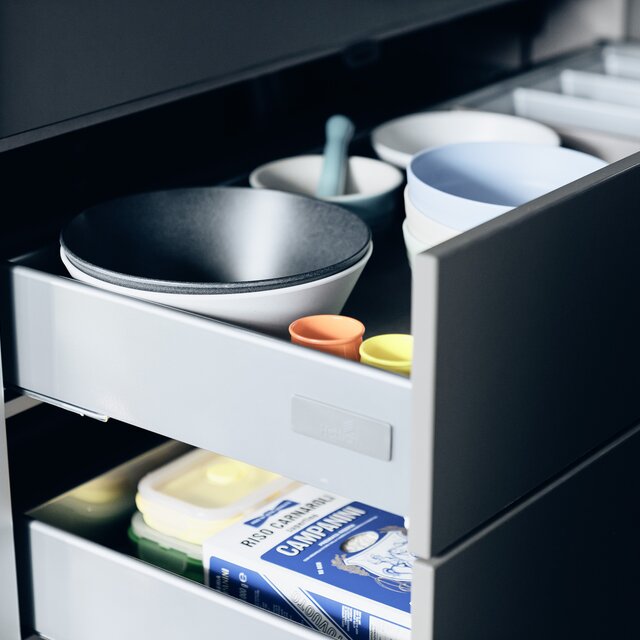

      Deep drawers with Premium pull-outs incl. self-closing
      Large 2-piece cutlery insert

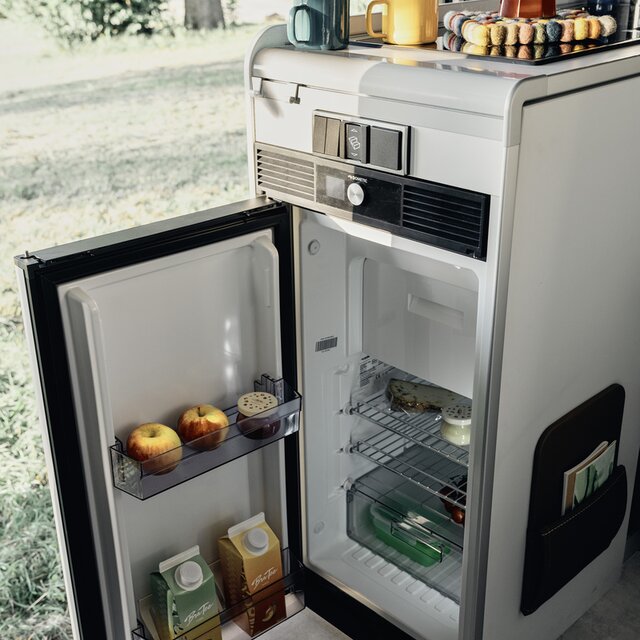

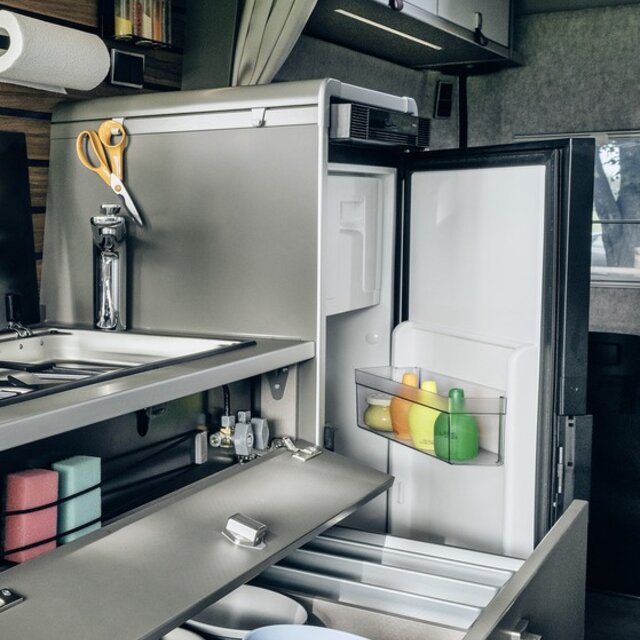

      70 l compressor fridge with 2-way opening

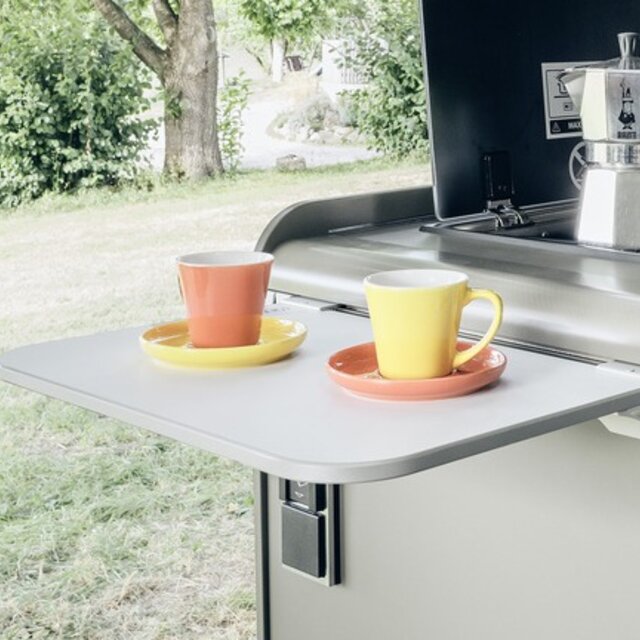

      Expandable kitchen worktop
      Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap
      Bathroom
      Compact bathroom with Lamella door
      Design folding washbasin (made of solid surface)
      Mirror cabinet with vanity mirror
      Shower head holder with suction cup
      Shower tray with circular gutter
      Cassette toilet with level indicator
      Installation & Technology
      4 kW gas warm air heating incl. 10 l warm water boiler
      7" touch display for convenient control and monitoring of smart vehicle features
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      Indoor temperature sensor
      LCD keypad for heating
      Patented insulated underfloor battery tray
      95 Ah AGM habitation battery with charger
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)

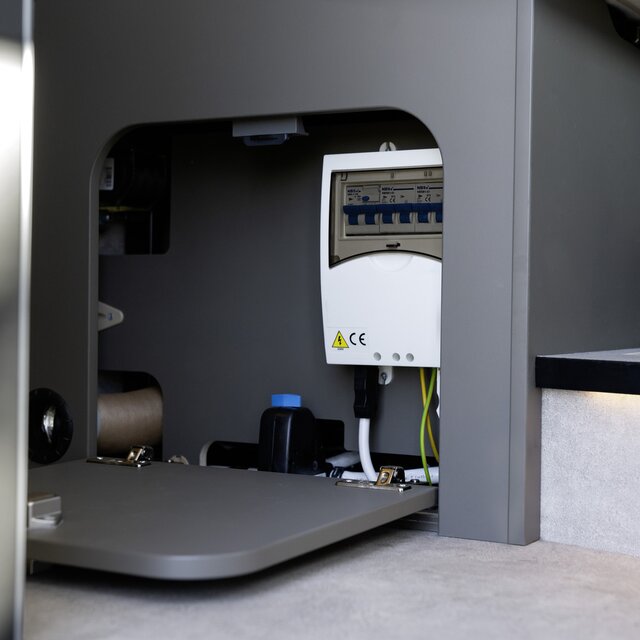

      230 V external connection with earth leakage circuit breaker for 230 V & 12 V
      110 l fresh water tank (fitted underfloor) with service lid in walking floor
      95 l waste water tank (fitted underfloor)
      Fresh and waste water tank, insulated and heated
      Level indicator for fresh water as well as waste water tank

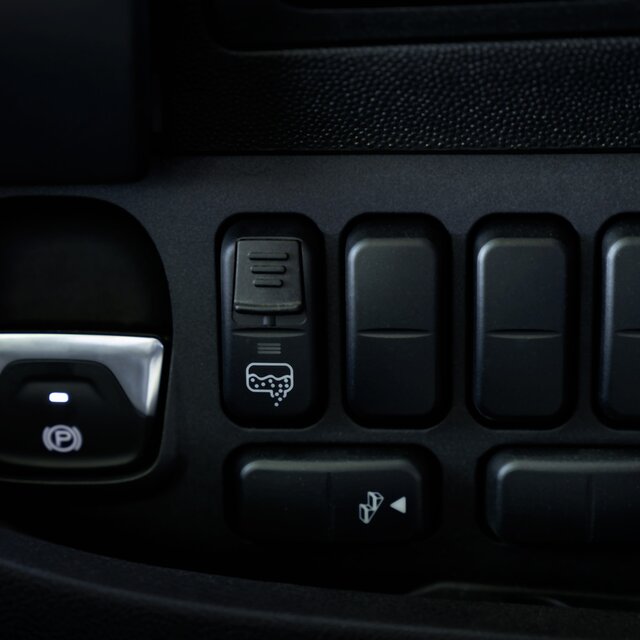

      Electric waste water drainage
      Heat conduction concept at the rear bed for optimum heat distribution

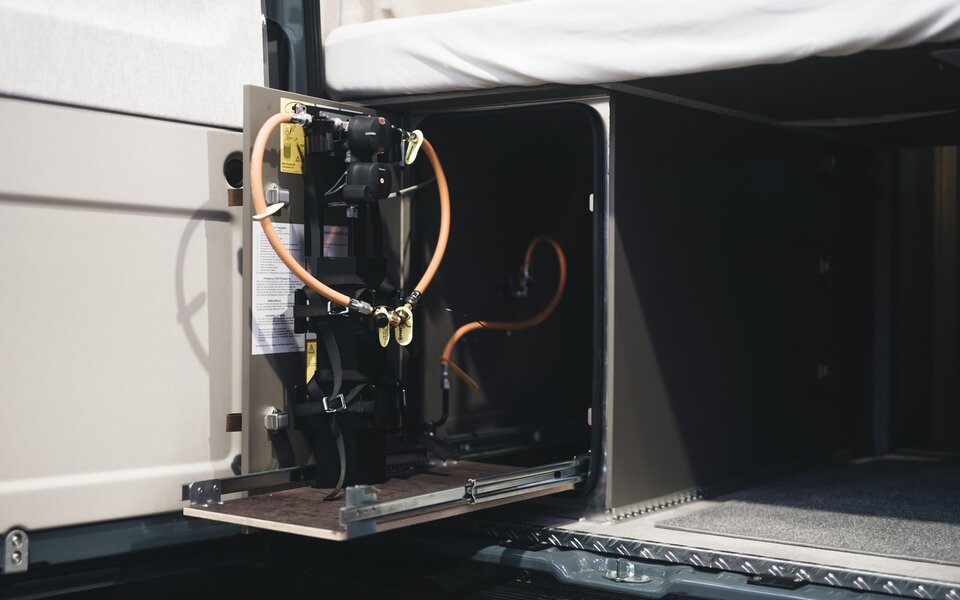

      Automatic gas bottle changeover system with crash sensor and IceEx
      Fabrics & Furniture finishes
      Furniture finish: Ivy Green
      Fabric combination: Indiana
      Packages
      Standard equipment
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 MultiJet - 103 KW/140 hp - Euro 6E
      Basis
      Pastel: Lanzarote grey
      Pastel: Grigio Campovolo
      Metallic: Artense grey

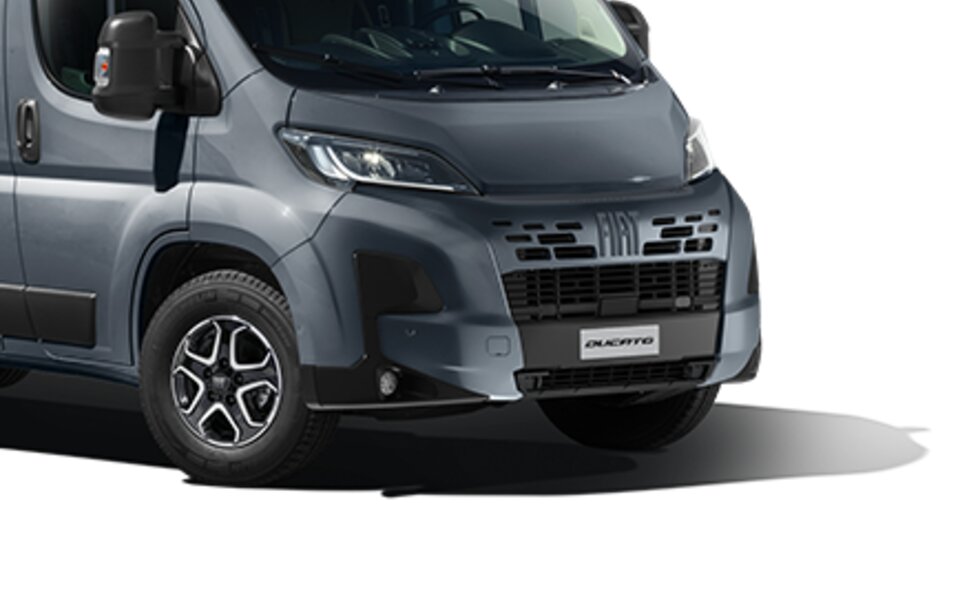

      Metallic: Fer grey
      Metallic: Black
      Metallic: Storm blue
      Bumper painted in storm blue metallic
      Weight saving with 180 hp engine and automatic transmission (- 11 kg)
      8G automatic transmission
      Trailer hitch, removable
      Exterior mirror, electrically foldable
      LED headlights incl. LED Daytime Running Light
      Heated windscreen
      16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)

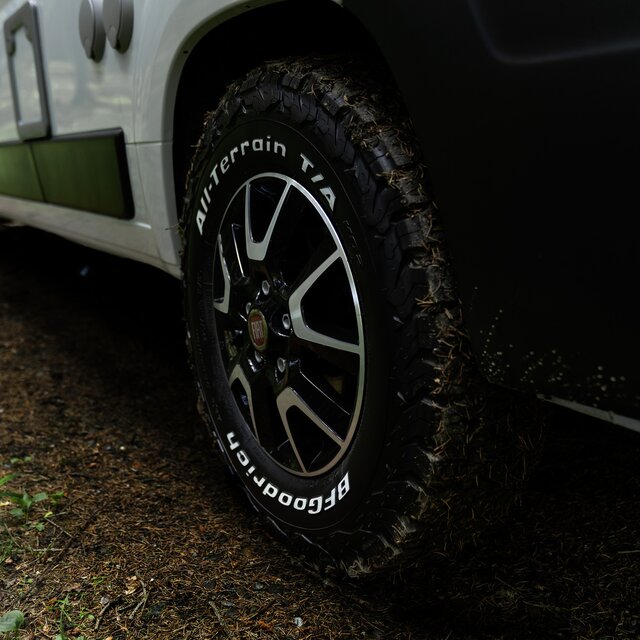

      Studded tyres (All Terrain)
      Shelf for smartphones incl. wireless charging with charge level indicator
      Automatic AirCon with pollen filter
      Dashboard with aluminium-coloured applications
      Leather steering wheel and gear knob lever
      Seat heating for cab seats, adjustable separately
      Tyres with optimised rolling resistance
      Fog lights with cornering light
      Bumper painted in vehicle colour
      Fully digital cockpit with integrated 7" display
      Park Pilot - audible warning of obstacles in the rear area
      Blind Spot Assist incl. Rear Cross Path Detection
      SKID PLATE in glossy black
      Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
      Body
      Sleeping roof in vehicle colour (maxi double bed with skylight and electric locking mechanism)
      Sleeping roof in black (Maxi double bed with skylight and electric locking mechanism)
      Sleeping roof white (maxi double bed with skylight and electric locking mechanism)
      Awning with adapter, anthracite housing, 325 x 250 cm
      Awning with special adapter for sleeping roof, anthracite housing, 315 x 250 cm
      Design graphics: Carbonline (Carbon black filling)
      Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors)
      Backrack+
      Opening window incl. blackout blind and mosquito net, RH side, rear
      Opening window incl. blackout blind and mosquito net, LH side, rear
      Skyview cab window incl. blackout blind
      Outfitting
      Omission of rear transverse overhead lockers

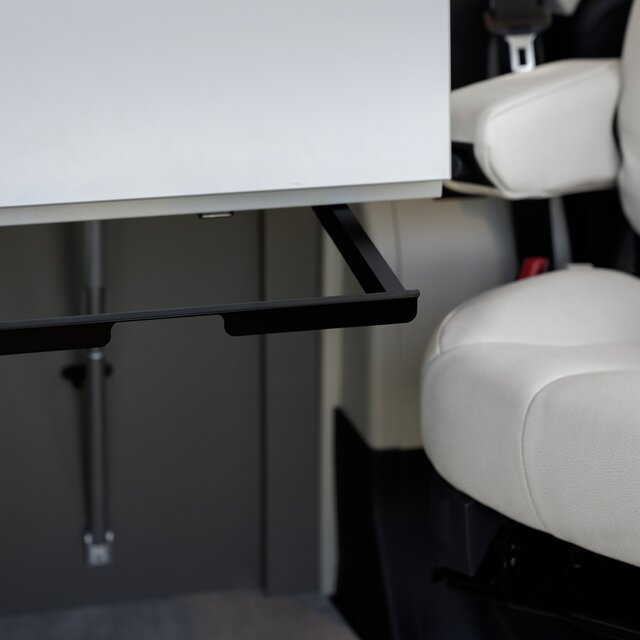

      Lowerable seating group table variant for bed conversion

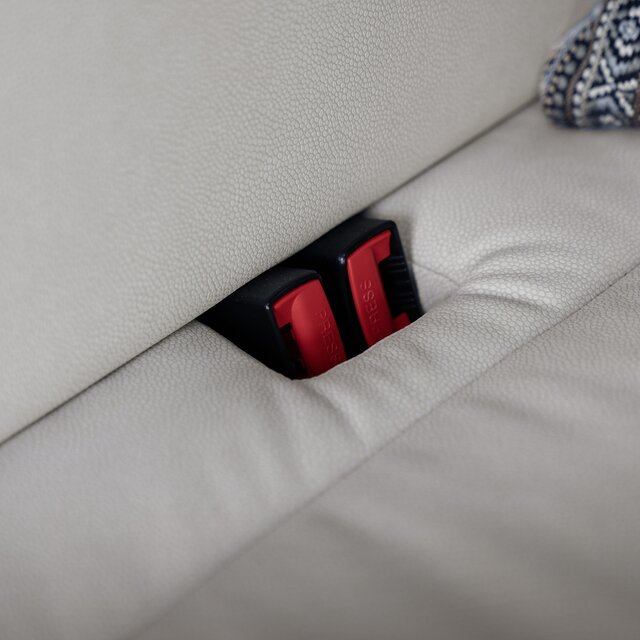

      ISOFIX (child seat fixation for seat bench)
      External shower (located at the rear of the vehicle)
      2 folding chairs and table, incl. fixation
      Safe with key (seat console passenger seat, volume approx. 18 l)
      Living and bedroom + lighting
      Bed conversion for seating group incl. additional cushion
      Fitted sheets made to measure for rear beds individually adapted to mattress

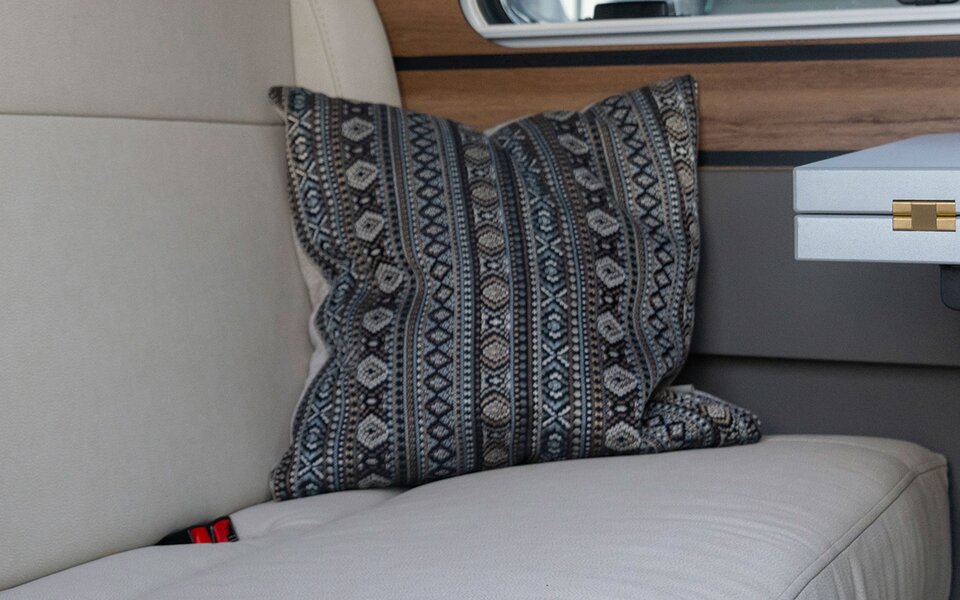

      Living style collection "HOME" (2 cushions as well as utensil bag)
      Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls)
      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      Bathroom
      Shower insert floor with cork surface
      Ceramic toilet
      Installation & Technology
      4 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      6 kW Diesel warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm)
      Gas bottle slide out
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      Second habitation battery (95 Ah AGM) incl. additional 18 A charger
      Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      Solar panel with solar charge controller (MPPT) and display, 1 x 95 W
      Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 85 W
      Roof AirCon, 1,700 W
      Security system (alarm system)
      Water filter for fresh water system
      Multimedia
      Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel
      Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera
      HYMER Premium Sound system incl. subwoofer
      TV pre-installation with DVB-T aerial (active)
      22" Smart-LED-TV with built-in speakers, remote control, DVD drive
      Fabrics & Furniture finishes
      Furniture finish: Pearl Grey
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Plus
      Equipment Line Premium
      Automatic package (for Standard Equipment Line)
      Automatic package (for Equipment Line Plus)
      Driver Assistance package
      Driver Assistance package incl. ACC Stop & Go
      Style package
      Autonomy package LFP
      Autonomy package LFP (for sleeping roof)
      Living Comfort package
    • Standard equipment
      90 l fuel tank

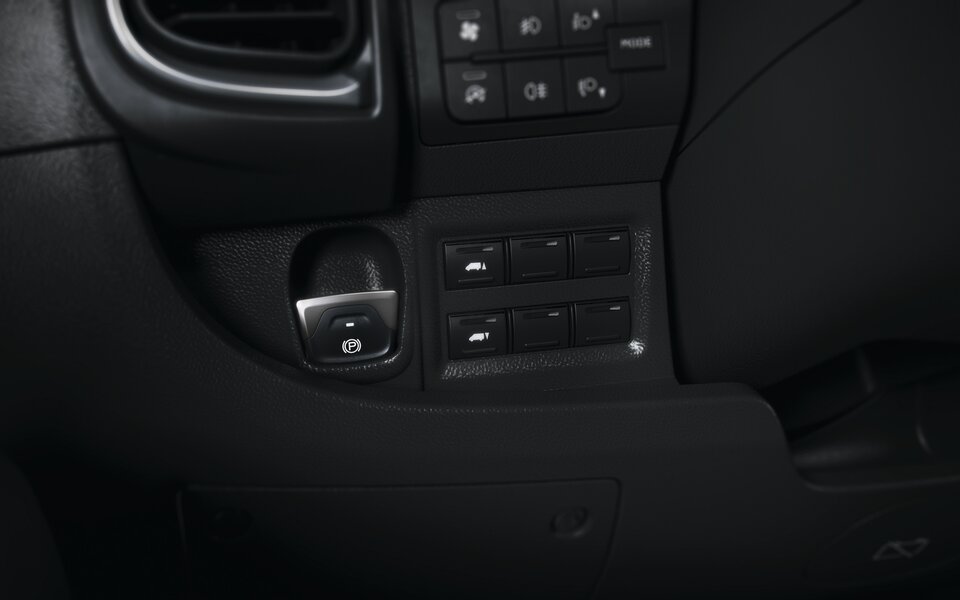

      Electric parking brake
      Manual AirCon with pollen filter
      Cruise Control
      DAB Radio pre-installation

    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

  • 360° View
    Detailed view

    Detailed view

    HYMER Grand Canyon

    £73,260
    Price froma)
    2 - 4
    Berths
    599 cm
    Length
    3500 kg
    Technically permissible maximum laden mass from*
    208 cm
    Width
    260 cm
    Height
    Configure Technical data

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER Grand Canyon
    Description Value
    Price a)
         		 73260
    Standard chassis Fiat Ducato
    Drive Front Wheel Drive
    kW (hp) 103 (140)
    Tyre size 215/70 R15 C
    Length / Width / Height (cm) 599 / 208 / 260
    Roof type Sleeping roof (○)
    Standing height in living area (cm) 190
    Wheelbase (mm) 4035
    Mass in running order (-/+ 5%) (kg)* 2932 (2785 - 3079)*
    Manufacturer-specified mass for optional equipment (kg)* 233
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 3000
    Permitted number of seats (including driver)* 4
    Bed dimension: Rear bed L x W (cm) 196 x 152 - 140
    Bed dimension: Central bed L x W (cm) 179 x 80 - 55 (○)
    Bed dimension: Sleeping roof L x W (cm) 209 x 143 (○)
    Berths 2 - 4 (○)
    Fridge volume (freezer compartment) (l) 90 (6,5)
    Standard heating Warm air, 4 kW
    Gas bottle storage (Filling weight) 2 x 11kg1 x 6kg (○)
    Total fresh water tank capacity (l) 110
    Fresh water tank in driving filling level (l) 20
    Warm water tank (l) Gas boiler 11 l
    Waste water tank (l) 95
    Standard habitation battery 95 Ah (AGM)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 6
    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

    (○) Optional
    Equipment & accessories
    Equipment & accessories
    HYMER Grand Canyon
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 MultiJet - 103 KW/140 hp - Euro 6E
      Basis
      Exterior colour: White
      6G manual transmission
      19 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric immobilizer
      Daytime Running Light integrated in headlights
      15'' steel rims
      M+S All Season tyres (with snowflake symbol)
      Tool kit
      Digital display with on-board computer
      Electric cab windows
      Driver and passenger airbag
      Cupholder in the centre of the dashboard
      Belt warning device "Unfastened seat belt"
      Glovebox, passenger side, with cooling compartment lid for 1.5 litre bottle
      Coaxial steering wheel adjustment
      Breakdown kit (air compressor with additional valve)
      DAB radio and audio pre-installation incl. speaker in the rear
      Sensor for water in diesel fuel
      Power steering
      Seat base panelling
      Start-Stop-System incl. intelligent alternator
      Door storage boxes with integrated bottle holder for 1.5 liter bottles
      Central locking with internal operation and remote control
      Outside temperature display
      ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System
      Body
      Electric entrance step
      Expandable rear door opening
      Black gutter above the sliding door with integrated LED lighting
      Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
      Insulated floor
      Cab interior in felt optics
      Dark tinted windows in the living area
      Skylight in bathroom, 40 x 40 cm
      Skylight in bedroom, 40 x 40 cm
      Skylight in living room, 70 x 50 cm
      Insulated aluminium framed windows
      Outfitting
      Cab seats, swivelling, with armrests, height- and tilt adjustable
      Cab seats, armrests and seat bench upholstered in living area fabric
      Mosquito net pleated blind for sliding door
      Pedestal with two storage compartments
      Gas bottle compartment for 2 gas bottles
      Pull-out bed climb incl. load compartment partition
      Folding table with possibility to enlarge
      Pleated blackout cab blinds for front and side windows
      "Travel Lounge" bench with adjustable inclination
      Mirror cabinet incl. magnetic vanity mirror
      Comfort push locks with genuine leather loops on flaps and drawers
      Wall panel with multifunctional rail system at the seating group and kitchen for multiple use
      Lashing rails with 4 adjustable eyelets
      Living and bedroom + lighting
      Side panelling in the bedroom with premium heat and sound-absorbing fabric lamination
      Innovative sleeping comfort mattress with integrated disc spring system
      LED illumination, dimmable with touch control
      LED reading spotlights with touch control (living area)
      Kitchen
      Deep drawers with Premium pull-outs incl. self-closing
      Large 2-piece cutlery insert
      90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode
      Expandable kitchen worktop
      Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap
      Bathroom
      Compact bathroom with Lamella door
      Design folding washbasin (made of solid surface)
      Mirror cabinet with vanity mirror
      Shower head holder with suction cup
      Shower tray with circular gutter
      Cassette toilet with level indicator
      Installation & Technology
      4 kW gas warm air heating incl. 10 l warm water boiler
      7" touch display for convenient control and monitoring of smart vehicle features
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      Indoor temperature sensor
      LCD keypad for heating
      Patented insulated underfloor battery tray
      95 Ah AGM habitation battery with charger
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)
      230 V external connection with earth leakage circuit breaker for 230 V & 12 V
      110 l fresh water tank (fitted underfloor) with service lid in walking floor
      95 l waste water tank (fitted underfloor)
      Fresh and waste water tank, insulated and heated
      Level indicator for fresh water as well as waste water tank
      Electric waste water drainage
      Heat conduction concept at the rear bed for optimum heat distribution
      Automatic gas bottle changeover system with crash sensor and IceEx
      Fabrics & Furniture finishes
      Furniture finish: Ivy Green
      Fabric combination: Indiana
      Packages
      Standard equipment
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E
      Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 4 t - 2.2 Multijet - 103 KW/140 hp - Euro 6E
      Downplating to 3.5 t (Fiat Ducato Maxi 4 t only)
      Basis
      Pastel: Lanzarote grey
      Pastel: Grigio Campovolo
      Metallic: Artense grey
      Metallic: Fer grey
      Metallic: Black
      Metallic: Storm blue
      Bumper painted in storm blue metallic
      Weight saving with 180 hp engine and automatic transmission (- 11 kg)
      8G automatic transmission
      Trailer hitch, removable
      Exterior mirror, electrically foldable
      LED headlights incl. LED Daytime Running Light
      Heated windscreen
      16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)
      Studded tyres (All Terrain)
      Shelf for smartphones incl. wireless charging with charge level indicator
      Automatic AirCon with pollen filter
      Dashboard with aluminium-coloured applications
      Leather steering wheel and gear knob lever
      Seat heating for cab seats, adjustable separately
      Tyres with optimised rolling resistance
      Fog lights with cornering light
      Bumper painted in vehicle colour
      Fully digital cockpit with integrated 7" display
      Park Pilot - audible warning of obstacles in the rear area
      Blind Spot Assist incl. Rear Cross Path Detection
      SKID PLATE in glossy black
      Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
      Body
      Sleeping roof in vehicle colour (maxi double bed with skylight and electric locking mechanism)
      Sleeping roof in black (Maxi double bed with skylight and electric locking mechanism)
      Sleeping roof white (maxi double bed with skylight and electric locking mechanism)
      Awning with adapter, anthracite housing, 375 x 250 cm
      Awning with special adapter for sleeping roof, anthracite housing, 375 x 250 cm
      Design graphics: Carbonline (Carbon black filling)
      Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors)
      Backrack+
      Opening window incl. blackout blind and mosquito net, RH side, rear
      Opening window incl. blackout blind and mosquito net, LH side, rear
      Skylight in bedroom, double-glazed, 70 x 50 cm
      Skyview cab window incl. blackout blind
      Outfitting
      Omission of rear transverse overhead lockers
      Lowerable seating group table variant for bed conversion
      ISOFIX (child seat fixation for seat bench)
      External shower (located at the rear of the vehicle)
      2 folding chairs and table, incl. fixation
      Safe with key (seat console passenger seat, volume approx. 18 l)
      Living and bedroom + lighting
      Bed conversion for seating group incl. additional cushion
      Fitted sheets made to measure for rear beds individually adapted to mattress
      Living style collection "HOME" (2 cushions as well as utensil bag)
      Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls)
      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      Bathroom
      Shower insert floor with cork surface
      Ceramic toilet
      Installation & Technology
      4 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      6 kW Diesel warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm)
      Gas bottle slide out
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      Second habitation battery (95 Ah AGM) incl. additional 18 A charger
      Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 85 W
      Roof AirCon, 1,700 W
      Security system (alarm system)
      Water filter for fresh water system
      Multimedia
      Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel
      Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera
      HYMER Premium Sound system incl. subwoofer
      TV pre-installation with DVB-T aerial (active)
      22" Smart-LED-TV with built-in speakers, remote control, DVD drive
      Fabrics & Furniture finishes
      Furniture finish: Pearl Grey
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Plus
      Equipment Line Premium
      Automatic package (for Standard Equipment Line)
      Automatic package (for Equipment Line Plus)
      Driver Assistance package
      Driver Assistance package incl. ACC Stop & Go
      Style package
      Autonomy package LFP
      Autonomy package LFP (for sleeping roof)
      Living Comfort package
    • Standard equipment
      90 l fuel tank
      Electric parking brake
      Manual AirCon with pollen filter
      Cruise Control
      DAB Radio pre-installation

    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

  • Detailed view

    Detailed view

    HYMER Yosemite

    £73,260
    Price froma)
    2 - 4
    Berths
    599 cm
    Length
    3500 kg
    Technically permissible maximum laden mass from*
    208 cm
    Width
    260 cm
    Height
    Configure Technical data

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER Yosemite
    Description Value
    Price a)
         		 73260
    Standard chassis Fiat Ducato
    Drive Front Wheel Drive
    kW (hp) 103 (140)
    Tyre size 215/70 R15 C
    Length / Width / Height (cm) 599 / 208 / 260
    Roof type Sleeping roof (○)
    Standing height in living area (cm) 190
    Wheelbase (mm) 4035
    Mass in running order (-/+ 5%) (kg)* 2917 (2771 - 3063)*
    Manufacturer-specified mass for optional equipment (kg)* 248
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 3000
    Permitted number of seats (including driver)* 4
    Bed dimension: Rear bed L x W (cm) 200 x 119 / 182 x 77
    Bed dimension: Central bed L x W (cm) 174 x 71 - 42 (○)
    Bed dimension: Sleeping roof L x W (cm) 209 x 143 (○)
    Berths 2 - 4 (○)
    Fridge volume (freezer compartment) (l) 70 (7,5)
    Standard heating Warm air, 4 kW
    Gas bottle storage (Filling weight) 2 x 11kg1 x 6kg (○)
    Total fresh water tank capacity (l) 110
    Fresh water tank in driving filling level (l) 20
    Warm water tank (l) Gas boiler 11 l
    Waste water tank (l) 95
    Standard habitation battery 95 Ah (AGM)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 6
    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

    (○) Optional
    Equipment & accessories
    Equipment & accessories
    HYMER Yosemite
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 MultiJet - 103 KW/140 hp - Euro 6E
      Basis
      Exterior colour: White
      6G manual transmission
      19 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric immobilizer
      Daytime Running Light integrated in headlights
      15'' steel rims
      M+S All Season tyres (with snowflake symbol)
      Tool kit
      Digital display with on-board computer
      Electric cab windows
      Driver and passenger airbag
      Cupholder in the centre of the dashboard
      Belt warning device "Unfastened seat belt"
      Glovebox, passenger side, with cooling compartment lid for 1.5 litre bottle
      Coaxial steering wheel adjustment
      Breakdown kit (air compressor with additional valve)
      DAB radio and audio pre-installation incl. speaker in the rear
      Sensor for water in diesel fuel
      Power steering
      Seat base panelling
      Start-Stop-System incl. intelligent alternator
      Door storage boxes with integrated bottle holder for 1.5 liter bottles
      Central locking with internal operation and remote control
      Outside temperature display
      ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System
      Body
      Electric entrance step
      Expandable rear door opening
      Black gutter above the sliding door with integrated LED lighting
      Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
      Insulated floor
      Cab interior in felt optics
      Dark tinted windows in the living area
      Skylight in bathroom, 40 x 40 cm
      Skylight in bedroom, 40 x 40 cm
      Skylight in living room, 70 x 50 cm
      Insulated aluminium framed windows
      Outfitting
      Cab seats, swivelling, with armrests, height- and tilt adjustable
      Cab seats, armrests and seat bench upholstered in living area fabric
      Mosquito net pleated blind for sliding door
      Pedestal with two storage compartments
      Gas bottle compartment for 2 gas bottles
      Pull-out bed climb incl. load compartment partition
      Folding table with possibility to enlarge
      Pleated blackout cab blinds for front and side windows
      "Travel Lounge" bench with adjustable inclination
      Mirror cabinet incl. magnetic vanity mirror
      Comfort push locks with genuine leather loops on flaps and drawers
      Wall panel with multifunctional rail system at the seating group and kitchen for multiple use
      Lashing rails with 4 adjustable eyelets
      Living and bedroom + lighting
      Side panelling in the bedroom with premium heat and sound-absorbing fabric lamination
      Innovative sleeping comfort mattress with integrated disc spring system
      LED illumination, dimmable with touch control
      LED reading spotlights with touch control (living area)
      Kitchen
      Deep drawers with Premium pull-outs incl. self-closing
      Large 2-piece cutlery insert
      70 l compressor fridge with 2-way opening
      Expandable kitchen worktop
      Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap
      Bathroom
      Compact bathroom with Lamella door
      Design folding washbasin (made of solid surface)
      Mirror cabinet with vanity mirror
      Shower head holder with suction cup
      Shower tray with circular gutter
      Cassette toilet with level indicator
      Installation & Technology
      4 kW gas warm air heating incl. 10 l warm water boiler
      7" touch display for convenient control and monitoring of smart vehicle features
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      Indoor temperature sensor
      LCD keypad for heating
      Patented insulated underfloor battery tray
      95 Ah AGM habitation battery with charger
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)
      230 V external connection with earth leakage circuit breaker for 230 V & 12 V
      110 l fresh water tank (fitted underfloor) with service lid in walking floor
      95 l waste water tank (fitted underfloor)
      Fresh and waste water tank, insulated and heated
      Level indicator for fresh water as well as waste water tank
      Electric waste water drainage
      Heat conduction concept at the rear bed for optimum heat distribution
      Automatic gas bottle changeover system with crash sensor and IceEx
      Fabrics & Furniture finishes
      Furniture finish: Ivy Green
      Fabric combination: Indiana
      Packages
      Standard equipment
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 103 KW/140 hp - Euro VI-E
      Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 4 t - 2.2 Multijet - 103 KW/140 hp - Euro 6E
      Downplating to 3.5 t (Fiat Ducato Maxi 4 t only)
      Basis
      Pastel: Lanzarote grey
      Pastel: Grigio Campovolo
      Metallic: Artense grey
      Metallic: Fer grey
      Metallic: Black
      Metallic: Storm blue
      Bumper painted in storm blue metallic
      Weight saving with 180 hp engine and automatic transmission (- 11 kg)
      8G automatic transmission
      Trailer hitch, removable
      Exterior mirror, electrically foldable
      LED headlights incl. LED Daytime Running Light
      Heated windscreen
      16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)
      Studded tyres (All Terrain)
      Shelf for smartphones incl. wireless charging with charge level indicator
      Automatic AirCon with pollen filter
      Dashboard with aluminium-coloured applications
      Leather steering wheel and gear knob lever
      Seat heating for cab seats, adjustable separately
      Tyres with optimised rolling resistance
      Fog lights with cornering light
      Bumper painted in vehicle colour
      Fully digital cockpit with integrated 7" display
      Park Pilot - audible warning of obstacles in the rear area
      Blind Spot Assist incl. Rear Cross Path Detection
      SKID PLATE in glossy black
      Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
      Body
      Sleeping roof in vehicle colour (maxi double bed with skylight and electric locking mechanism)
      Sleeping roof in black (Maxi double bed with skylight and electric locking mechanism)
      Sleeping roof white (maxi double bed with skylight and electric locking mechanism)
      Awning with adapter, anthracite housing, 375 x 250 cm
      Awning with special adapter for sleeping roof, anthracite housing, 375 x 250 cm
      Design graphics: Carbonline (Carbon black filling)
      Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors)
      Backrack+
      Opening window incl. blackout blind and mosquito net, RH side, rear
      Opening window incl. blackout blind and mosquito net, LH side, rear
      Skylight in bedroom, double-glazed, 70 x 50 cm
      Skyview cab window incl. blackout blind
      Outfitting
      Omission of rear transverse overhead lockers
      Lowerable seating group table variant for bed conversion
      ISOFIX (child seat fixation for seat bench)
      External shower (located at the rear of the vehicle)
      2 folding chairs and table, incl. fixation
      Safe with key (seat console passenger seat, volume approx. 18 l)
      Living and bedroom + lighting
      Bed conversion for seating group incl. additional cushion
      Fitted sheets made to measure for rear beds individually adapted to mattress
      Living style collection "HOME" (2 cushions as well as utensil bag)
      Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls)
      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      Bathroom
      Shower insert floor with cork surface
      Ceramic toilet
      Installation & Technology
      4 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      6 kW Diesel warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm)
      Gas bottle slide out
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      Second habitation battery (95 Ah AGM) incl. additional 18 A charger
      Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 85 W
      Roof AirCon, 1,700 W
      Security system (alarm system)
      Water filter for fresh water system
      Multimedia
      Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel
      Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera
      HYMER Premium Sound system incl. subwoofer
      TV pre-installation with DVB-T aerial (active)
      22" Smart-LED-TV with built-in speakers, remote control, DVD drive
      Fabrics & Furniture finishes
      Furniture finish: Pearl Grey
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Plus
      Equipment Line Premium
      Automatic package (for Standard Equipment Line)
      Automatic package (for Equipment Line Plus)
      Driver Assistance package
      Driver Assistance package incl. ACC Stop & Go
      Style package
      Autonomy package LFP
      Autonomy package LFP (for sleeping roof)
      Living Comfort package
    • Standard equipment
      90 l fuel tank
      Electric parking brake
      Manual AirCon with pollen filter
      Cruise Control
      DAB Radio pre-installation

    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

  • 360° View
    Detailed view

    Detailed view

    HYMER Yellowstone

    £74,240
    Price froma)
    2 - 4
    Berths
    636 cm
    Length
    3500 kg
    Technically permissible maximum laden mass from*
    208 cm
    Width
    260 cm
    Height
    Configure Technical data

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER Yellowstone
    Description Value
    Price a)
         		 74240
    Standard chassis Fiat Ducato
    Drive Front Wheel Drive
    kW (hp) 103 (140)
    Tyre size 215/70 R15 C
    Length / Width / Height (cm) 636 / 208 / 260
    Roof type Sleeping roof (○)
    Standing height in living area (cm) 190
    Wheelbase (mm) 4035
    Mass in running order (-/+ 5%) (kg)* 2993 (2843 - 3143)*
    Manufacturer-specified mass for optional equipment (kg)* 168
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 3000
    Permitted number of seats (including driver)* 4
    Bed dimension: Rear bed L x W (cm) 190 x 119 / 188 x 77
    Bed dimension: Central bed L x W (cm) 174 x 71 - 42 (○)
    Bed dimension: Sleeping roof L x W (cm) 209 x 143 (○)
    Berths 2 - 4 (○)
    Fridge volume (freezer compartment) (l) 90 (6,5)
    Standard heating Gas warm air, 6 kW
    Gas bottle storage (Filling weight) 2 x 11kg1 x 6kg (○)
    Total fresh water tank capacity (l) 110
    Fresh water tank in driving filling level (l) 20
    Warm water tank (l) Gas boiler 11 l
    Waste water tank (l) 95
    Standard habitation battery 95 Ah (AGM)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 6
    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

    (○) Optional
    Equipment & accessories
    Equipment & accessories
    HYMER Yellowstone
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 MultiJet - 103 KW/140 hp - Euro 6E
      Basis
      Exterior colour: White
      6G manual transmission
      19 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric immobilizer
      Daytime Running Light integrated in headlights
      15'' steel rims
      M+S All Season tyres (with snowflake symbol)
      Tool kit
      Digital display with on-board computer
      Electric cab windows
      Driver and passenger airbag
      Cupholder in the centre of the dashboard
      Belt warning device "Unfastened seat belt"
      Glovebox, passenger side, with cooling compartment lid for 1.5 litre bottle
      Coaxial steering wheel adjustment
      Breakdown kit (air compressor with additional valve)
      DAB radio and audio pre-installation incl. speaker in the rear
      Sensor for water in diesel fuel
      Power steering
      Seat base panelling
      Start-Stop-System incl. intelligent alternator
      Door storage boxes with integrated bottle holder for 1.5 liter bottles
      Central locking with internal operation and remote control
      Outside temperature display
      ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist, Traction+, Crosswind Assist, Trailer Stability Control and Post Collision Braking System
      Body
      Electric entrance step
      Expandable rear door opening
      Black gutter above the sliding door with integrated LED lighting
      Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
      Insulated floor
      Cab interior in felt optics
      Dark tinted windows in the living area
      Skylight in bathroom, 40 x 40 cm
      Skylight in bedroom, 40 x 40 cm
      Skylight in living room, 70 x 50 cm
      Insulated aluminium framed windows
      Outfitting
      Cab seats, swivelling, with armrests, height- and tilt adjustable
      Cab seats, armrests and seat bench upholstered in living area fabric
      Mosquito net pleated blind for sliding door
      Pedestal with two storage compartments
      Gas bottle compartment for 2 gas bottles
      Pull-out bed climb incl. load compartment partition
      Folding table with possibility to enlarge
      Pleated blackout cab blinds for front and side windows
      "Travel Lounge" bench with adjustable inclination
      Mirror cabinet incl. magnetic vanity mirror
      Comfort push locks with genuine leather loops on flaps and drawers
      Wall panel with multifunctional rail system at the seating group and kitchen for multiple use
      Lashing rails with 4 adjustable eyelets
      Living and bedroom + lighting
      Side panelling in the bedroom with premium heat and sound-absorbing fabric lamination
      Innovative sleeping comfort mattress with integrated disc spring system
      LED illumination, dimmable with touch control
      LED reading spotlights with touch control (living area)
      Kitchen
      Deep drawers with Premium pull-outs incl. self-closing
      Large 2-piece cutlery insert
      90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode
      Expandable kitchen worktop
      Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap
      Bathroom
      Variable bathroom with swivel wall
      Shower head holder with suction cup
      Shower tray with circular gutter
      Cassette toilet with level indicator
      Installation & Technology
      6 kW gas warm air heating with 10 l warm water boiler
      7" touch display for convenient control and monitoring of smart vehicle features
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      Indoor temperature sensor
      LCD keypad for heating
      Patented insulated underfloor battery tray
      95 Ah AGM habitation battery with charger
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)
      230 V external connection with earth leakage circuit breaker for 230 V & 12 V
      110 l fresh water tank (fitted underfloor) with service lid in walking floor
      95 l waste water tank (fitted underfloor)
      Fresh and waste water tank, insulated and heated
      Level indicator for fresh water as well as waste water tank
      Electric waste water drainage
      Heat conduction concept at the rear bed for optimum heat distribution
      Automatic gas bottle changeover system with crash sensor and IceEx
      Fabrics & Furniture finishes
      Furniture finish: Ivy Green
      Fabric combination: Indiana
      Packages
      Standard equipment
    • Chassis / Weight variants
      Fiat Ducato 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 3.5 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Fiat Ducato Maxi 4 t - 2.2 Multijet - 132 KW/180 hp - Euro 6E
      Downplating to 3.5 t (Fiat Ducato Maxi 4 t only)
      Basis
      Pastel: Lanzarote grey
      Pastel: Grigio Campovolo
      Metallic: Artense grey
      Metallic: Fer grey
      Metallic: Black
      Metallic: Storm blue
      Bumper painted in storm blue metallic
      Weight saving with 180 hp engine and automatic transmission (- 11 kg)
      8G automatic transmission
      Trailer hitch, removable
      Exterior mirror, electrically foldable
      LED headlights incl. LED Daytime Running Light
      Heated windscreen
      16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)
      Studded tyres (All Terrain)
      Shelf for smartphones incl. wireless charging with charge level indicator
      Automatic AirCon with pollen filter
      Dashboard with aluminium-coloured applications
      Leather steering wheel and gear knob lever
      Seat heating for cab seats, adjustable separately
      Tyres with optimised rolling resistance
      Fog lights with cornering light
      Bumper painted in vehicle colour
      Fully digital cockpit with integrated 7" display
      Park Pilot - audible warning of obstacles in the rear area
      Blind Spot Assist incl. Rear Cross Path Detection
      SKID PLATE in glossy black
      Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
      Body
      Sleeping roof in vehicle colour (maxi double bed with skylight and electric locking mechanism)
      Sleeping roof in black (Maxi double bed with skylight and electric locking mechanism)
      Sleeping roof white (maxi double bed with skylight and electric locking mechanism)
      Awning with adapter, anthracite housing, 375 x 250 cm
      Awning with special adapter for sleeping roof, anthracite housing, 400 x 250 cm
      Design graphics: Carbonline (Carbon black filling)
      Design graphics: Window filling Carbon (full-surface foiling surrounding side windows, LH and RH side as well as rear doors)
      Backrack+
      Opening window incl. blackout blind and mosquito net, RH side, rear
      Opening window incl. blackout blind and mosquito net, LH side, rear
      Skylight in bedroom, double-glazed, 70 x 50 cm
      Skyview cab window incl. blackout blind
      Outfitting
      Omission of rear transverse overhead lockers
      Lowerable seating group table variant for bed conversion
      ISOFIX (child seat fixation for seat bench)
      External shower (located at the rear of the vehicle)
      2 folding chairs and table, incl. fixation
      Safe with key (seat console passenger seat, volume approx. 18 l)
      Living and bedroom + lighting
      Bed conversion for seating group incl. additional cushion
      Fitted sheets made to measure for rear beds individually adapted to mattress
      Living style collection "HOME" (2 cushions as well as utensil bag)
      Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls)
      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      Bathroom
      Shower insert floor with cork surface
      Ceramic toilet
      Installation & Technology
      4 kW gas warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      6 kW Diesel warm air heating with 10 l warm water boiler and 1,800 W electric bar heater
      Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm)
      Gas bottle slide out
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      Second habitation battery (95 Ah AGM) incl. additional 18 A charger
      Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 85 W
      Roof AirCon, 1,700 W
      Security system (alarm system)
      Water filter for fresh water system
      Multimedia
      Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel
      Multimedia SatNav System with 9" Touchscreen incl. motorhome software, DAB+, Apple Car Play, Google Android Auto and reversing camera
      HYMER Premium Sound system incl. subwoofer
      TV pre-installation with DVB-T aerial (active)
      22" Smart-LED-TV with built-in speakers, remote control, DVD drive
      Fabrics & Furniture finishes
      Furniture finish: Pearl Grey
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Plus
      Equipment Line Premium
      Automatic package (for Standard Equipment Line)
      Automatic package (for Equipment Line Plus)
      Driver Assistance package
      Driver Assistance package incl. ACC Stop & Go
      Style package
      Autonomy package LFP
      Autonomy package LFP (for sleeping roof)
      Living Comfort package
    • Standard equipment
      90 l fuel tank
      Electric parking brake
      Manual AirCon with pollen filter
      Cruise Control
      DAB Radio pre-installation

    a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

Equipment

The HYMER camper vans have a four-seater layout – the unique pop-top solution transforms them into fully fledged four-berth models. From the daylight bathroom with folding washbasin to the optional ceramic toilet, you will have everything you need for the perfect camping experience.

    • Extending table

      The folding table has an extending tabletop which folds up quickly and easily as required to increase the surface area. It can also be simply folded away against the wall when not in use.

    • Open-air shower

      A practical suction cup even enables the shower fitting to be attached to the exterior of the vehicle – for a refreshing shower experience in the open air.

    • Perfectly secured for transport

      Integrated high-strength aluminium lashing rails with 4 adjustable eyelets allow flexible and secure mounting of various accessories for transportation purposes. Optionally, you can fit a storage space partition in the luggage compartment.

    • For perfect privacy

      The concertina cab blinds made from a premium pleated fabric for the cab front and side windows protect your motorhome from prying eyes and excessive sunlight during summer time.

    • The clever way to get into bed

      The pull-out bed step makes getting into the rear bed especially convenient. It’s also a clever feature due to its double function as a storage space partition.

    • Effective insect screens

      The pleated insect screen on the sliding door ensures that uninvited guests stay outside.

    • Multifunctional comfort

      The height and angle-adjustable swivel cab seats are fully upholstered in the same fabric combination as the living area. Their exceptional seating comfort and tiltable arm rests make them ideal for settling down to watch TV and for relaxed driving.

    • Sleep restfully

      The innovative HYMER sleeping comfort mattress offers maximum lying and sleeping comfort thanks to perfect ergonomics and durable high-tech material. The integrated disc spring system enables easy handling inside the vehicle, so that storage spaces under the bed are easily and quickly accessible.

    • Convenient 7 inch touch display

      The 7 inch touch display enables convenient control and monitoring of important vehicle functions and components. From the charge status of the body battery, the display of the fresh and grey water tanks to the heating control.

    • Free in design, great in use

      These multifunctional walls, including rail system at the seating area and in the kitchen, offer you maximum design freedom: There is room for a herb pot or a spice rack as well as a tablet holder and other useful utensils.

    • Driver and passenger airbags

      In the event of a serious collision, the airbag can reduce the force of an impact with the head or chest. This can protect you, if you’re wearing a seatbelt, from head or chest injuries, or mitigate such injuries. Airbags on the driver and passenger sides are part of the standard equipment in all HYMER motorhomes.

    • For a good climate

      The manual air conditioning controls the climate inside your vehicle as well as the air flow from outside. Included here is a pollen filter which actively prevents pollen, fine dust and other particles from entering the interior.

    • The feel-good factor – centrally controlled

      Individual temperature adjustments and the boost function for fast hot water supply and room heating - can be controlled via the central LCD control panel for the heater, also equipped with a timer.

    • No thermal bridges

      The modern, high-quality framed windows in the vehicle are fitted with acrylic double glazing for better protection against break-ins and optimal thermal insulation. The aluminium frame is especially lightweight and sturdy and has an insulating layer to protect against thermal bridging.

    • Electric entrance step

      The electric step at the entrance to the living area of the camper van ensures easy access.

    • Be seen by others

      The high-visibility daytime running light ensures safety even in poor light conditions. The daytime running lights mean other traffic participants spot your vehicle more easily during the day, reducing the risk of accidents caused by failure to see you.
    1 / 16

    • More power on the road

      The controlled solar installation supplies 2 x 85 W and thus makes you even more independent on the move – for greater freedom and self-sufficiency.

    • Water filter for fresh water system

      Enjoy longer independence, safety and pleasure with the water filter for your motorhome: By filtering bacteria, dirt and chlorine as well as odours, you can enjoy drinking water anywhere and at any time.

    • All-round vision

      The Blind Spot Assist alerts the driver to vehicles in their blind spot via visual and acoustic signals. The rear cross path detection system checks for vehicles in the rear when you are reversing. It also detects a vehicle approaching from the side when you start to change lanes or overtake.

    • Safer on the road

      A whole range of Driver Assistance systems warn the driver of possible dangers. The Lane Departure warning system alerts you if you leave the lane, the Traffic Sign Recognition system displays traffic signs, the Collision Warning system prevents collisions and the rain sensor automatically controls the windscreen wipers.

    • For cosy warmth and hot water

      The 6,000 W, diesel-powered hot-air heating system equipped with iNet ready effortlessly ensures a cosy indoor temperature and hot water, even when it’s below freezing outside. The integrated electric bar heater reduces the heating-up time.

    • Easy gas bottle replacement

      The gas bottles are housed securely and accessibly in an exterior compartment. Changing the gas bottles couldn’t be easier thanks to the practical sliding shelf.

    • Fast child seat fixation

      Thanks to ISOFIX, a child seat can be attached to the seat bench particularly safely and easily, so that children can also be transported safely and comfortably in the vehicle.

    • New and larger sleeping roof - same price as before

      With a size of 1.43 x 2.09 m, the sleeping roof offers the widest bed in the industry. Enjoy maximum sleeping comfort thanks to the cold foam mattress, full safety thanks to the electric locking mechanism and the usual HYMER comfort thanks to 12 V connection, LED reading light with USB and skylight (70 x 50 cm) as standard. Experience "sleeping under the stars" with HYMER comfort.

    • Extra cosiness with the “HOME” furniture finish

      Two stylish scatter cushions with covers that match the seating area fabric as well as a practical utensil bag on the front end of the kitchen add extra comfort in the living area.

    • Additional berth

      The seating area can be converted into a single bed using an extra cushion. That provides an additional travel companion with a comfortable place to sleep for the night.

    • More power on the road

      The controlled solar installation supplies 2 x 95 W and thus makes you even more independent on the move – for greater freedom and self-sufficiency.
    1 / 11

    • Living Comfort package

      • Skyview cab window incl. blackout blind
      • Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      • Living style collection "HOME" (2 cushions as well as utensil bag)
      • Fitted sheets made to measure for rear beds individually adapted to mattress
      • Shower insert floor with cork surface

    • Standard equipment

      • Manual AirCon with pollen filter
      • 90 l fuel tank
      • Electric parking brake
      • Cruise Control
      • DAB Radio pre-installation

    • Equipment Line Plus

      • 90 l fuel tank
      • Electric parking brake
      • Cruise Control
      • DAB Radio pre-installation
      • Automatic AirCon with pollen filter
      • Leather steering wheel and gear knob lever
      • 16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)
      • Fully digital cockpit with integrated 7" display
      • Shelf for smartphones incl. wireless charging with charge level indicator
      • Dashboard with aluminium-coloured applications

    • Equipment Line Premium

      • 90 l fuel tank
      • Electric parking brake
      • Cruise Control
      • DAB Radio pre-installation
      • Automatic AirCon with pollen filter
      • Leather steering wheel and gear knob lever
      • 16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)
      • Fully digital cockpit with integrated 7" display
      • Shelf for smartphones incl. wireless charging with charge level indicator
      • Dashboard with aluminium-coloured applications
      • 8G automatic transmission
      • LED headlights incl. LED Daytime Running Light
      • Fiat Infotainmentsystem with 10" Touchscreen, integrated SatNav, DAB+, Apple Car Play, Google Android Auto incl. reversing camera and multifunctional steering wheel

    • Automatic package (for Standard Equipment Line)

      • 8G automatic transmission
      • 16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)

    • Automatic package (for Equipment Line Plus)

      • 8G automatic transmission
      • 16" alloy wheels with 225/75 R16 tyres (Fiat Ducato Light chassis only)

    • Autonomy package LFP (for sleeping roof)

      • Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      • HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      • Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 85 W
      • Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      • Water filter for fresh water system

    • Style package

      • SKID PLATE in glossy black
      • Fog lights with cornering light
      • Bumper painted in vehicle colour

    • Driver Assistance package

      • Driver Assistance System: Emergency Brake, Lane Keeping & Intelligent Speed Assist, rain & light sensor incl. High Beam Assist, Traffic sign recognition as well as Driver Fatigue Detection
      • Park Pilot - audible warning of obstacles in the rear area
      • Blind Spot Assist incl. Rear Cross Path Detection
      • Exterior mirror, electrically foldable

    • Autonomy package LFP

      • Habitation Smart Battery System 2.0: habitation battery module 80 Ah LFP incl. additional 18 A charger instead of 95 Ah AGM
      • HYMER Smart Battery System 2.0: extension habitation battery module with 2x 80 Ah LFP
      • Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      • Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger
      • Water filter for fresh water system
    1 / 10

    • Furniture finish: Pearl Grey

    • Furniture finish: Ivy Green

    • Carpet: Laguna

    • Fabric combination: Indiana

    • Textile leather-/ fabric combination: Marquis

    • Fabric combination: Gomera

    • Leather: Grigio

    • Leather / fabric combination: Moreno

    1 / 8

Design your vehicle in our configurator

In our configurator, you can design the HYMER Fiat camper vans to perfectly suit your taste. Discover all of the design variants and find your dream configuration.
To configurator

An adventure in the HYMER camper vans on Fiat

  • Travel Report

    A spring dream: Three week road trip from Innsbruck to Portugal

    With the new HYMER Yosemite, we've added another destination to our bucket list: Portugal! But for us, the focus is not only on the destination, but also on the journey there and back. We cross five countries on our journey of more than 5,000 km: Austria, Switzerland, Italy, France and Spain.
    Start the road trip!
  • Travel stories

    Spontaneous trip to the Swiss Alps – with the HYMER Grand Canyon

    Spontaneously and without much thought: With this setting, John and Vanessa set off on their mountain vacation in Switzerland in the HYMER Grand Canyon. From breathtaking panoramas to mountain lakes to sporty mountain bike tours: In four days, the two of them experienced the Grand Canyon, which others would have to travel for several weeks to experience - that is real freedom.
    Spontaneously to the Swiss Alps
  • Travel stories

    Sardinia – an intentional blind date with a happy ending

    A Blind date with an island? Valerie and Flori set off without all the well-meant advice to find out if Sardinia suits them. It's an exciting way to get to know each other during all kinds of sports activities in the Mediterranean.
    Get to know Sardinia
  • Travel stories

    Charged relaxation – Touring Italy on E-bikes

    How a failed attempt at a mountain tour can turn into something special. Three mountain bike fanatics make their way to Italy and discover paradise in an explosion of colour. Learn more about where they were originally planning to go and their other adventures in their Hymercar Fiat Yosemite in the travel story.
    To the Italy travel story
1 / 4

HYMER brochures and price lists

Download a current HYMER brochure and price list and be inspired by our innovative and comfortable motorhomes and campervans
HYMER product brochure and price lists for download

Further offers and information

Discover the technologies in your HYMER

Our technology - your plus in comfort: you are entitled to a vehicle of the highest standard - whether it's comfort, quality, safety equipment, extensive features or value retention. Discover which technologies & innovations will enhance your next journey.
To Technology & Innovation

Be inspired

We produce meticulously designed vehicles – for maximum comfort on the road to provide unforgettable adventures. Find inspiration in our travel stories.
To the travel stories

Your local partner

Find out more about first-class “Made in Germany” quality. Experience the premium finish. Give the beds, seats and engine a test drive. With more than 300 HYMER service partners and dealers worldwide, someone is always nearby.
To dealer search
Arrange test drive
Dealer search
Configurator
Newsletter

Models and Technology

Travel & Enjoy

Service

Company

Learn more about HYMER Original Parts & Accessories:
https://www.hymer-original-parts.com/en

Caravans in premium quality:
https://www.eriba.com/gb/en

Discover our travel portal:
https://www.freeontour.com/en

© 2024 Hymer GmbH & Co. KG
