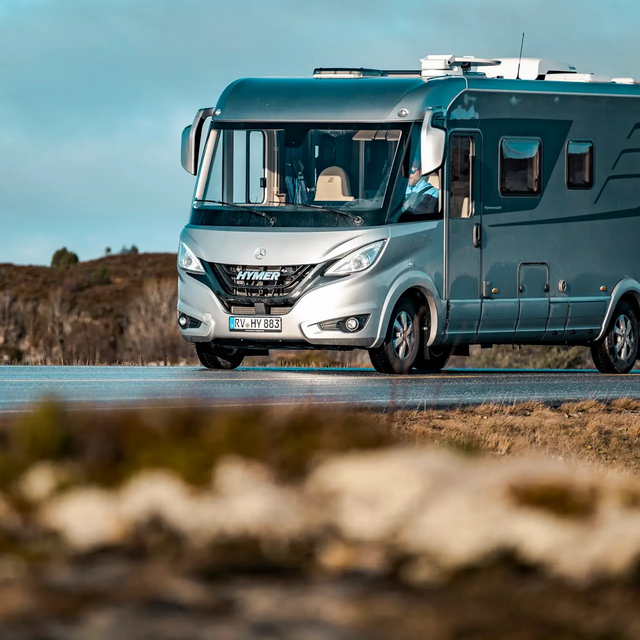

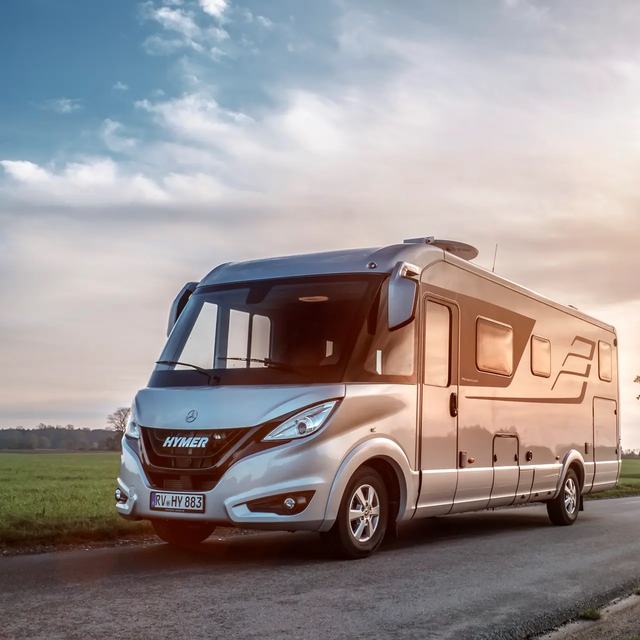

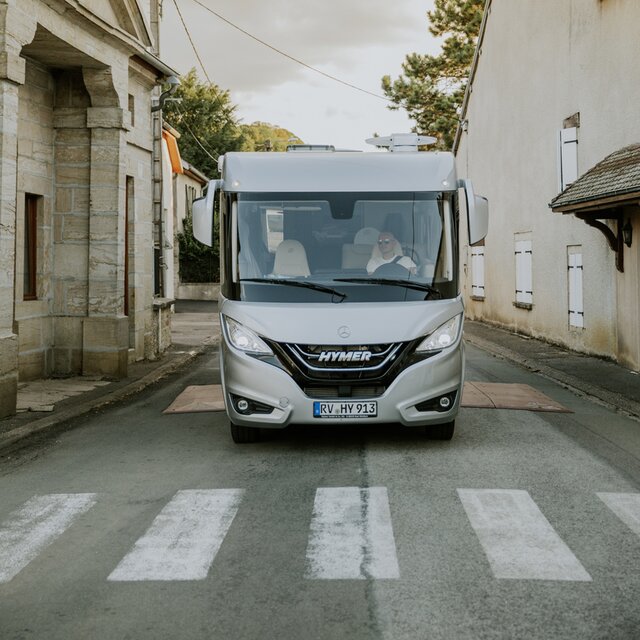

With the HYMER B-Class MasterLine, we have created a vehicle that truly lives up to this claim – for the journey of a lifetime in the HYMER among motorhomes.
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Price a) | 159.500 € |
Standard chassis | Mercedes-Benz Sprinter 415 CDI |
Drive | Front Wheel Drive |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Length / Width / Height (cm) | 789 / 235 / 298 |
Body width / Internal width (cm) | 225 / 218 |
Standing height in living area (cm) | 198 |
Wheelbase (mm) | 4500 |
Mass in running order (-/+ 5%) (kg)* | 3467 (3294 - 3640)* |
Manufacturer-specified mass for optional equipment (kg)* | 594 |
Technically permissible maximum laden mass (kg)* | 4430 |
Technically permissible maximum towable mass (kg)* | 1450 |
Permitted number of seats (including driver)* | 4 - 5 |
Insulation Floor / Wall / Roof (mm) | 41 / 34 / 34 |
Overall clearance storage- / garage door W x H (cm) | 110 x 123 |
Bed dimension: Pull-down bed L x W (cm) | 197 x 145 / 2x 199 x 65 |

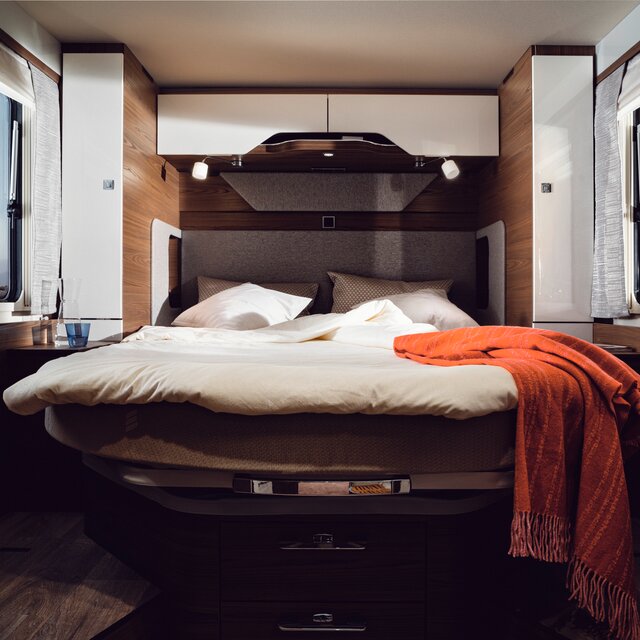

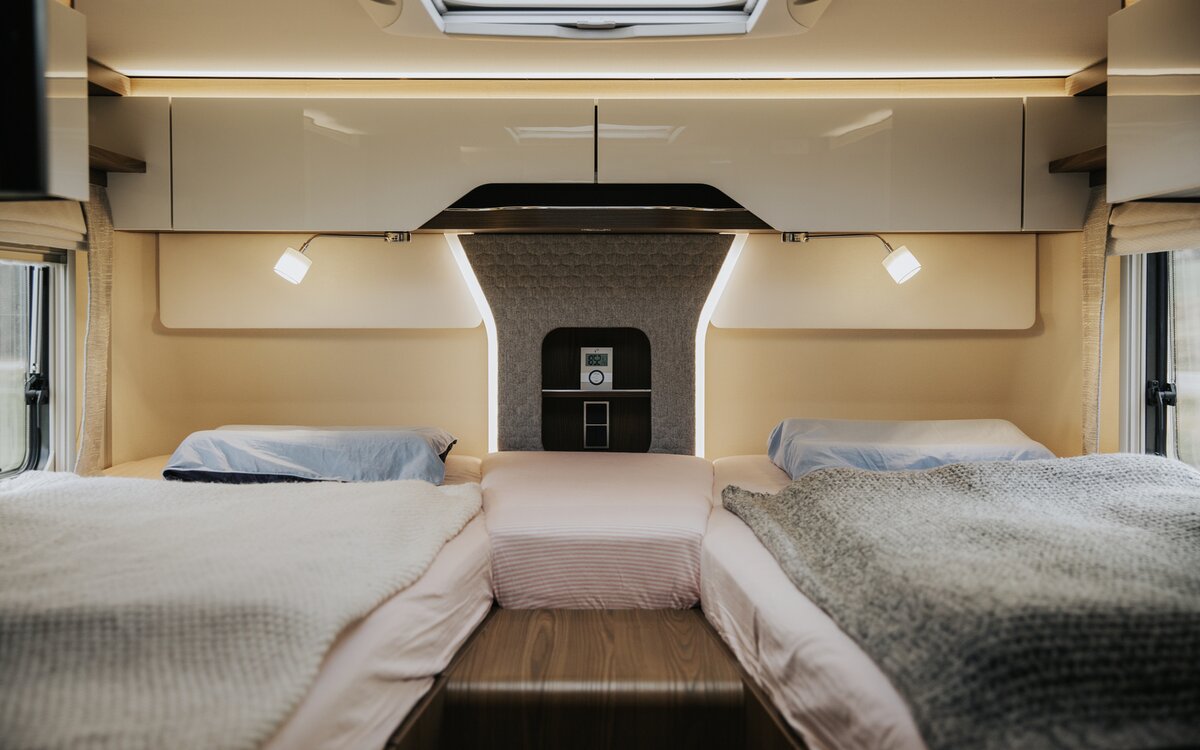

Bed dimension: Rear bed L x W (cm) | 207 x 90 / 202 x 90 |
Bed dimension: Central bed L x W (cm) | 205 x 110 - 50 |
Berths | 4 - 5 |
Bathroom W x D (cm) | 90 x 80 |
Separate shower W x D (cm) | 73 x 77 |

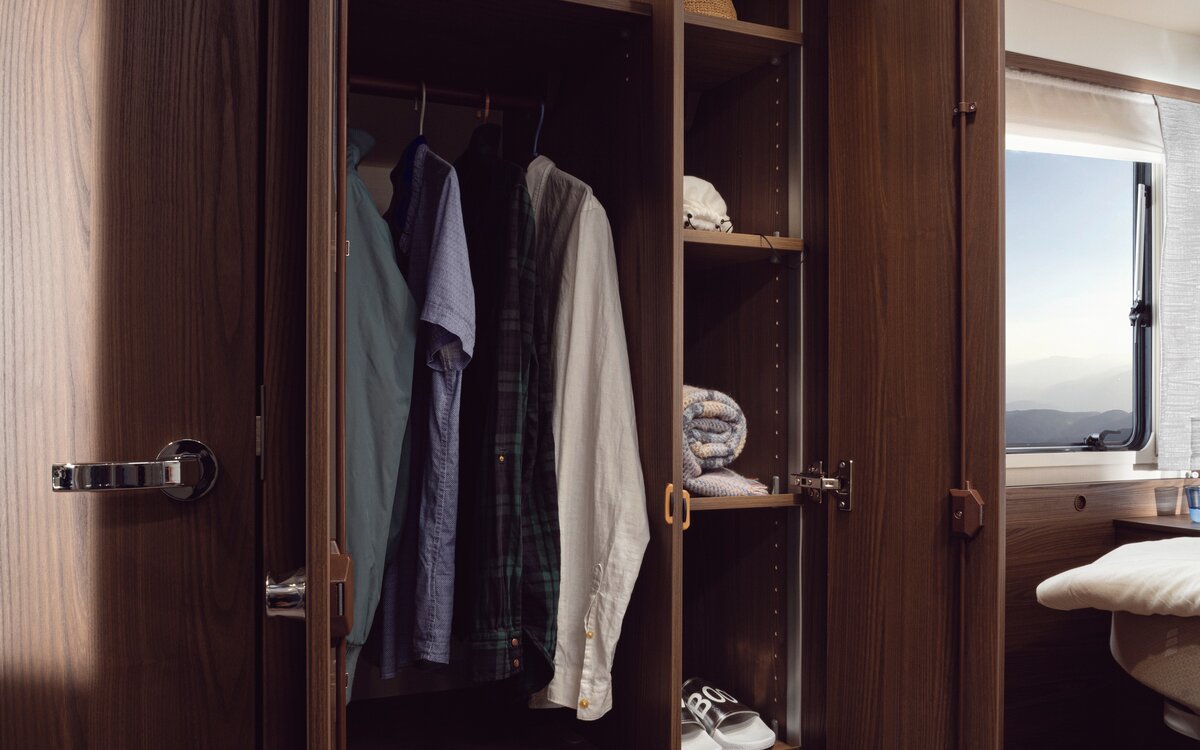

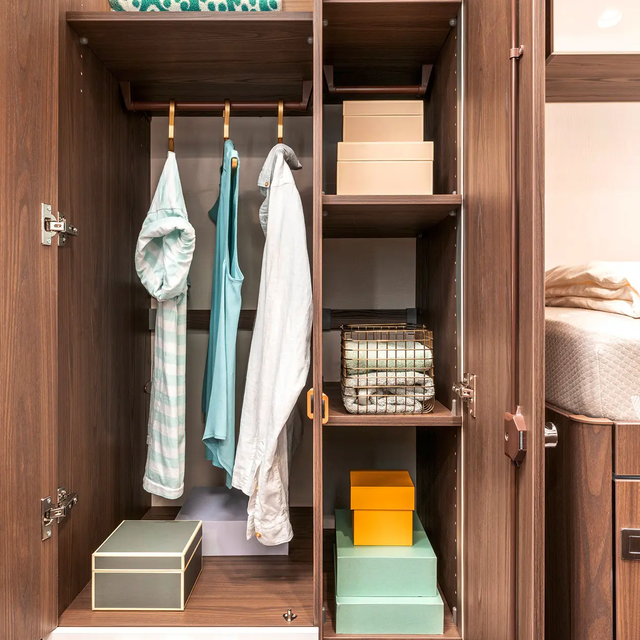

Wardrobe W x D x H (cm) | 30 x 57 x 190 |
Fridge volume (freezer compartment) (l) | 153 |
Standard heating | Warm water heating |
Gas bottle storage (Filling weight) | 2x 11kg |
Total fresh water tank capacity (l) | 180 |
Fresh water tank in driving filling level (l) | 20 |
Waste water tank (l) | 150 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 2 / 6 |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|
Smooth aluminium skin, Color: Carrara white |
Super lightweight chassis (SLC) |
Low-frame chassis with through-loading feature |
6 gear manual transmission |
92 l fuel tank |
22 l AdBlue tank |
Exterior mirrors suspended, in vehicle colour, electrically heated and adjustable, incl. wide-angle mirror |
Chrome version front (grill / fog light cover) |

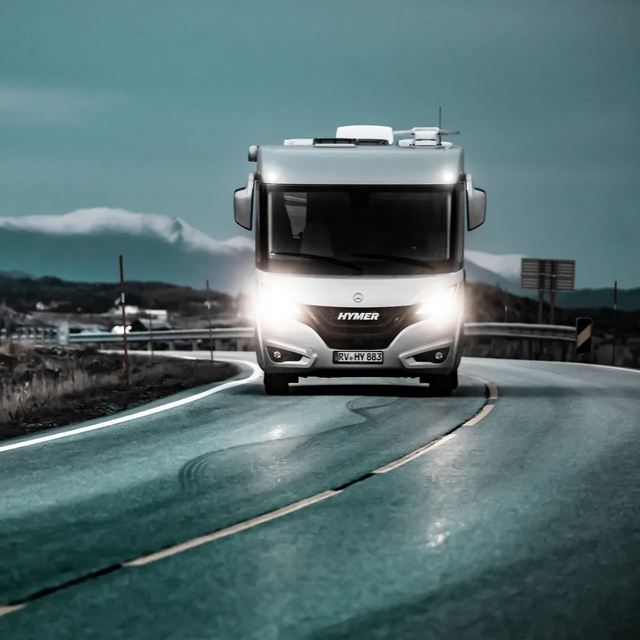

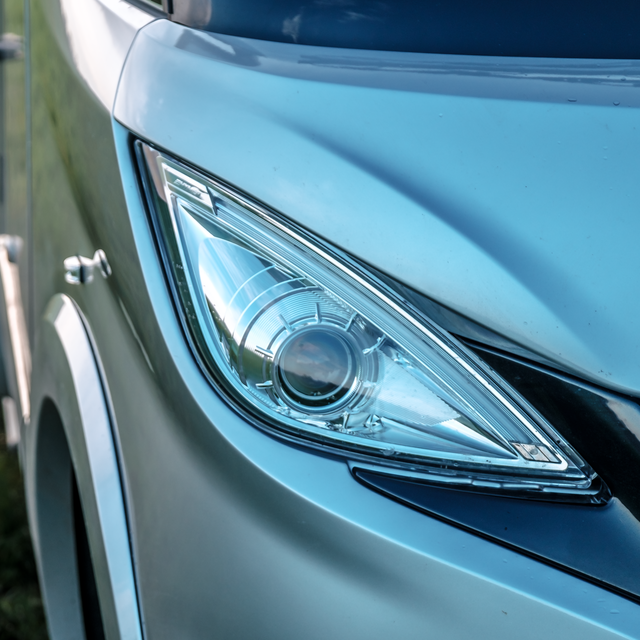

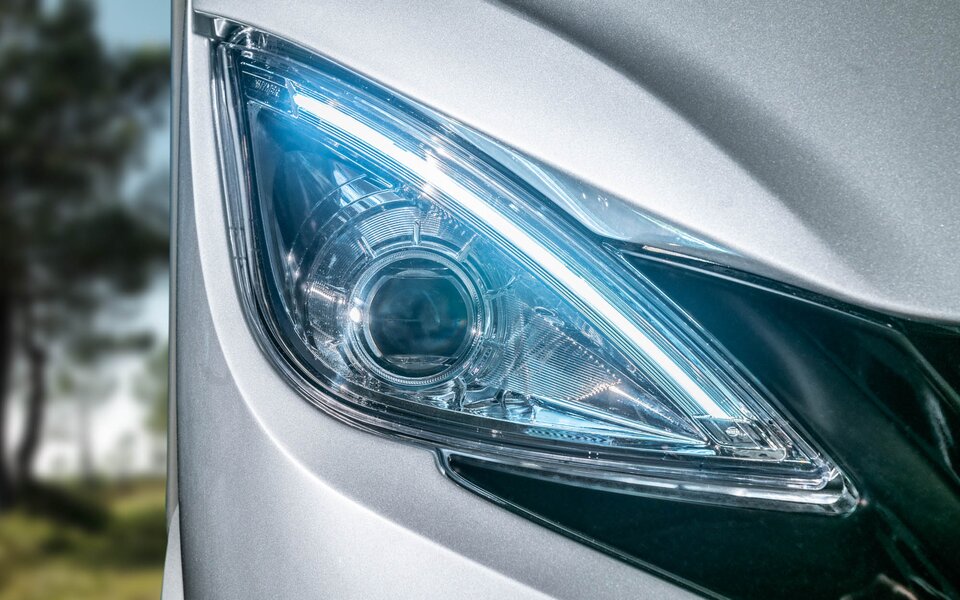

LED Daytime running light and LED indicator integrated in HYMER headlights |
Comfort suspension chassis |
Engine compartment insulation and cab underbody paneling |
Mud flaps, front and rear axle |
Trailer hitch pre-installation |
16" steel rims with full wheel cover and all season tires |
Cupholder instead of storage compartment |
ECO Start-Stop feature |
Driver and passenger airbag |
Cupholder driver and passenger seat |
Keyless Start (start-stop button for comfortable engine start) |
Open shelf cockpit passenger side |
Warm air auxiliary heating, electric |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Automatic headlight control |
Intelligent Speed Assistant |
Crosswind Assist |
Body |
---|
Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet |
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness) |
Real glass side windows, superimposed |
Electric entrance step, 1-step |
Cab door with electric power windows and entry lighting |
65 cm Maxi Comfort habitation door with inner shell, 2-way lock, window with blackout blind and waste bin |
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology |

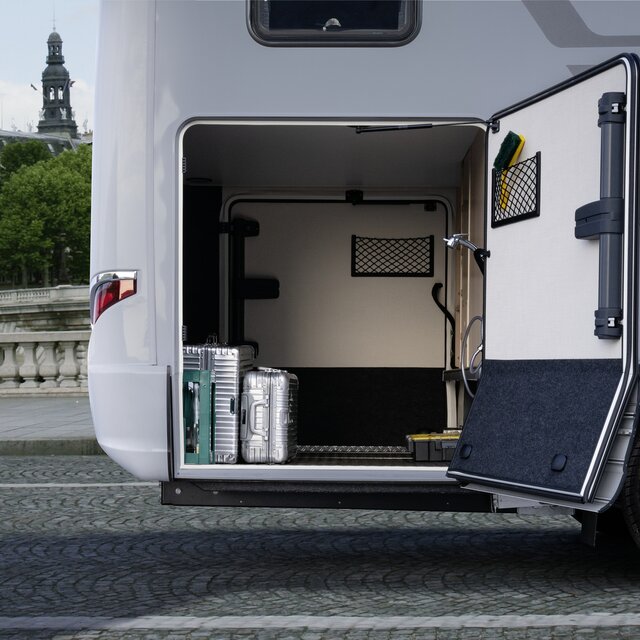

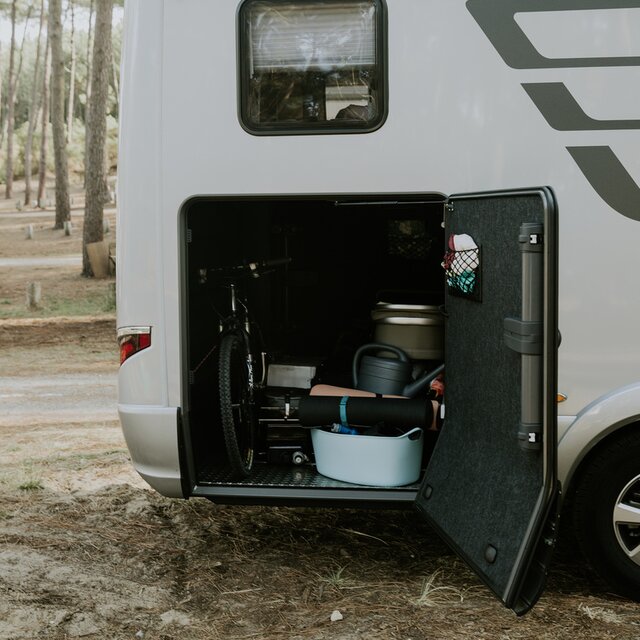

Garage load up to 350 kg (optional 450 kg). Please note the axle load. |
Large garage doors, LH and RH side |
Glossy grille with chrome trim |

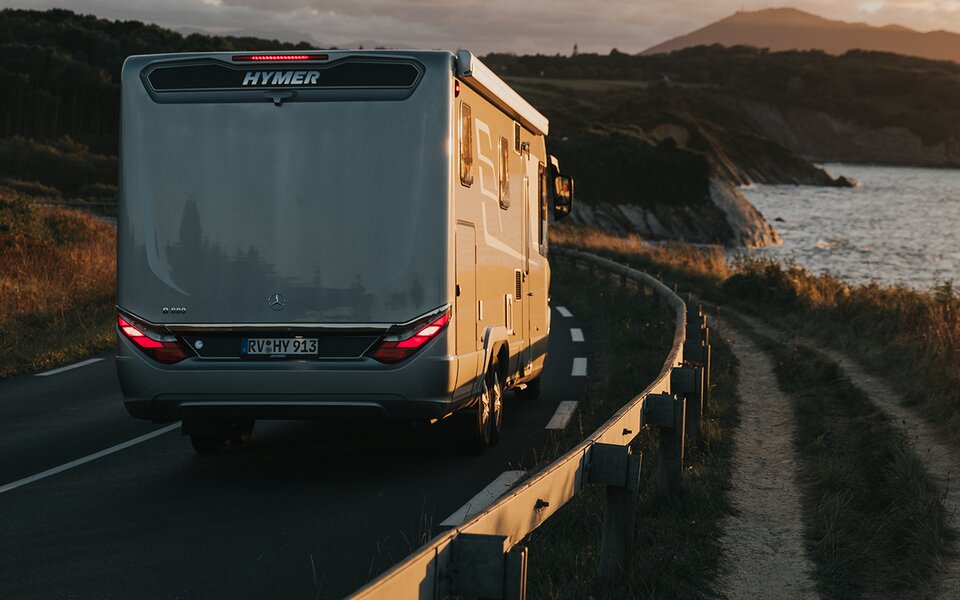

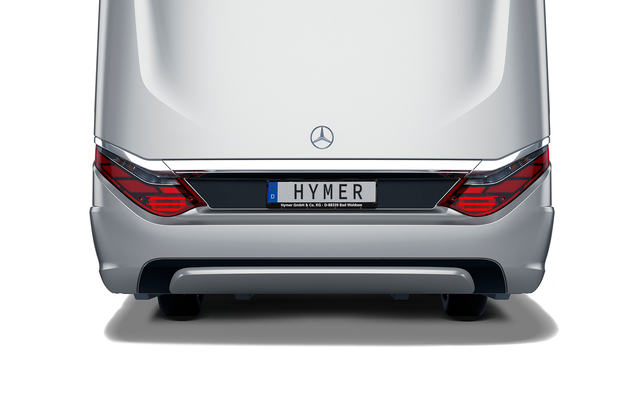

Modern 3D rear design, insulated, with integrated lights |
Heated double floor incl. cellar compartments |
GRP roof coating |
GRP lightweight floor with XPS insulation (41 mm floor thickness) |

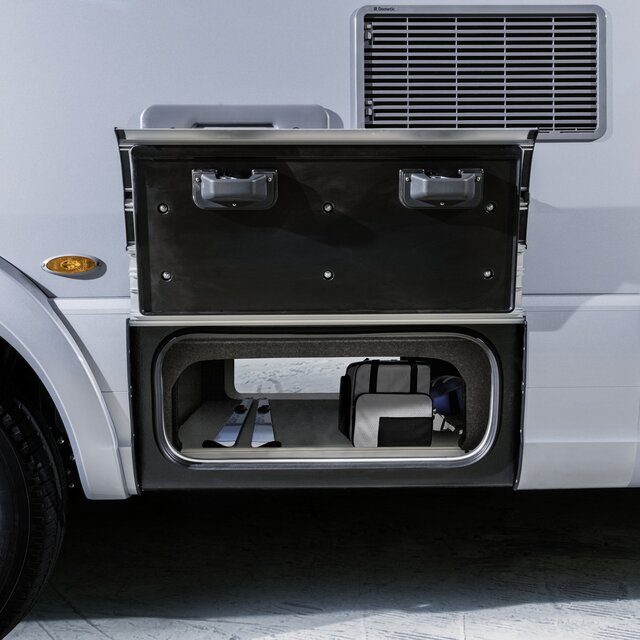

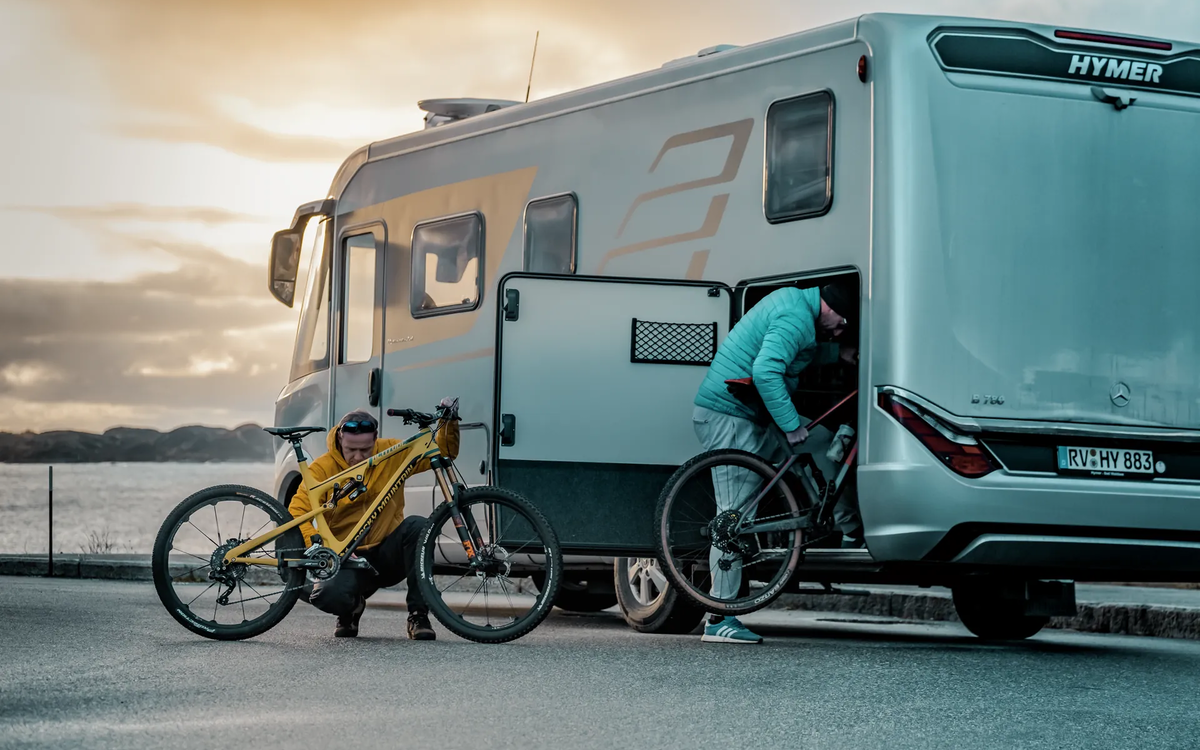

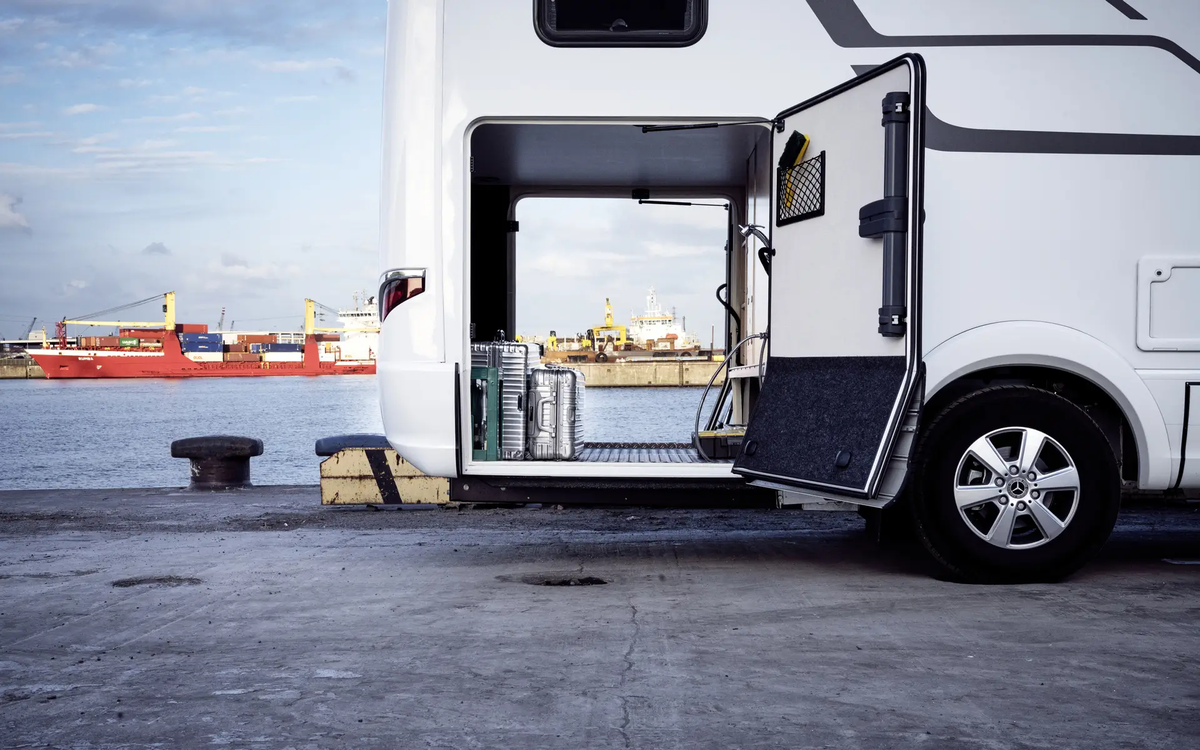

Large through-loading compartment with external access from both sides incl. extra deep basement compartment and access from the inside |
Skylight above pull-down bed with blackout blind and mosquito net, 40 x 40 cm |
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room |
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Outfitting |
---|
Cab seats, upholstered in living area fabric, swivelling, height- and tilt adjustable with 2 armrests |

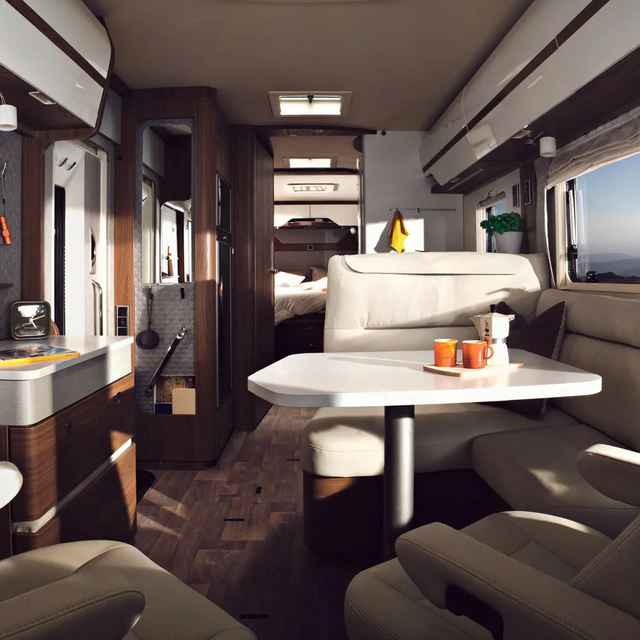

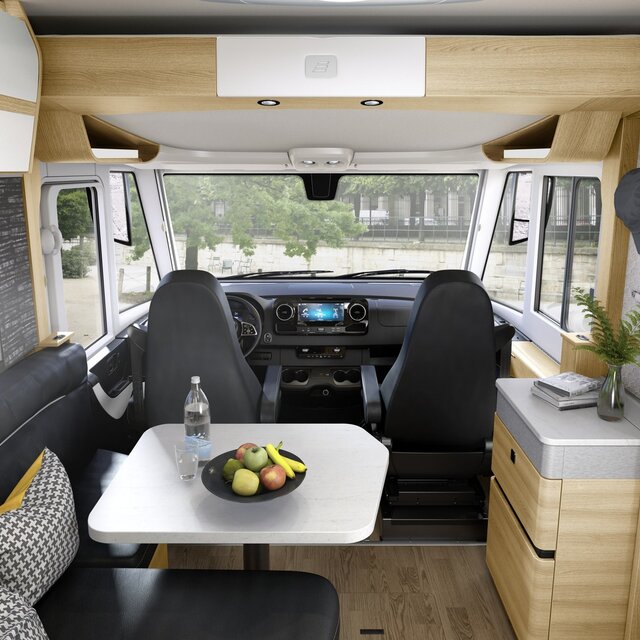

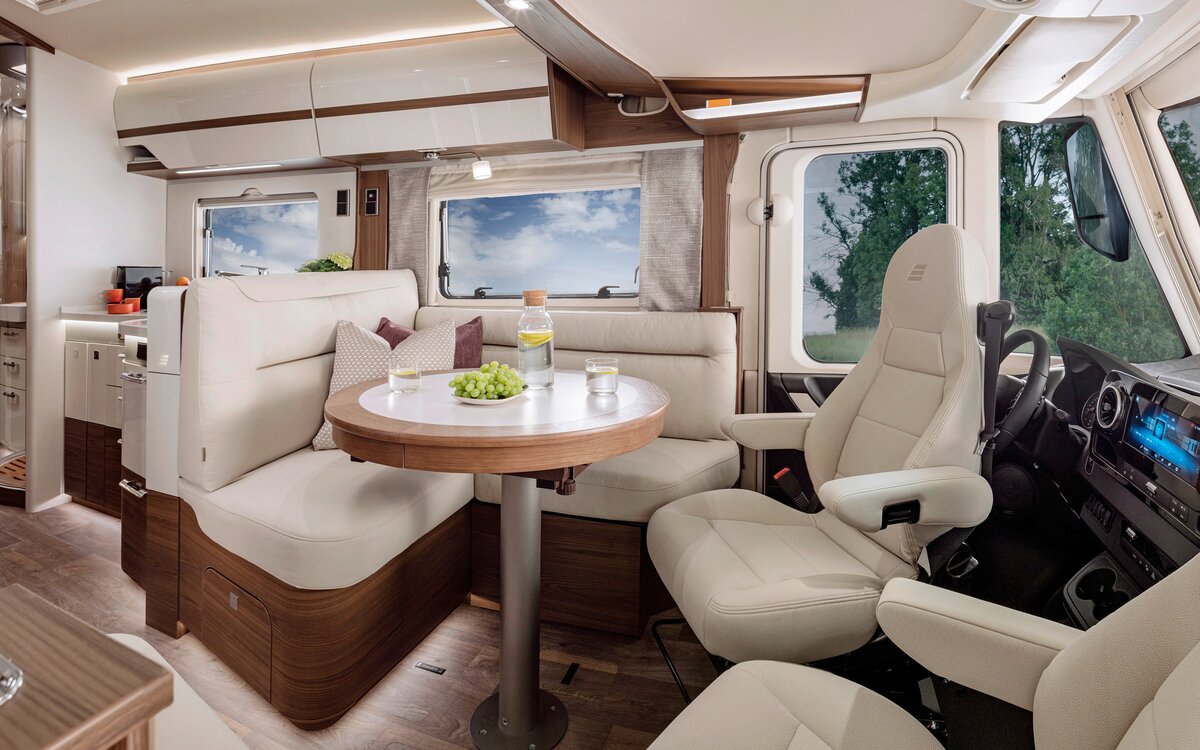

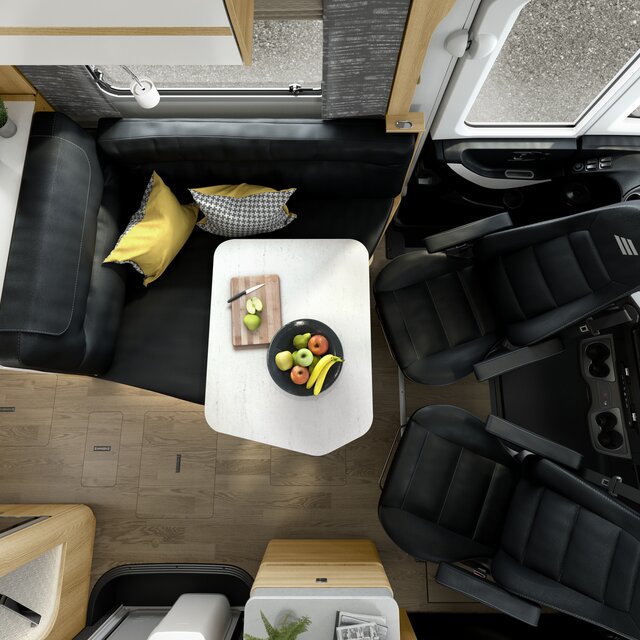

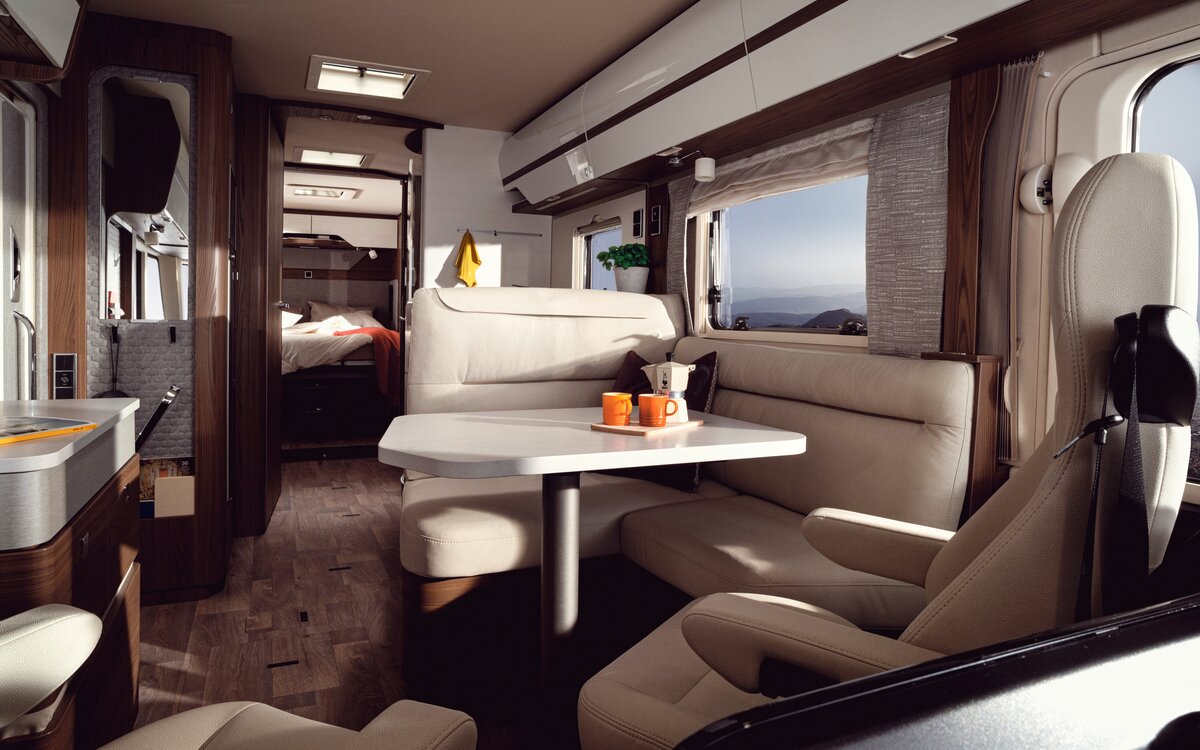

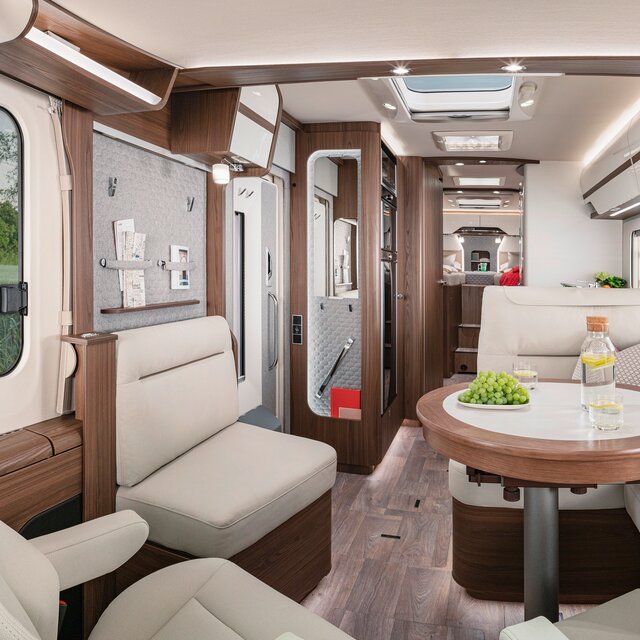

Comfort L-shaped seating group with Lounge cushions and 2 integrated 3-point belts |

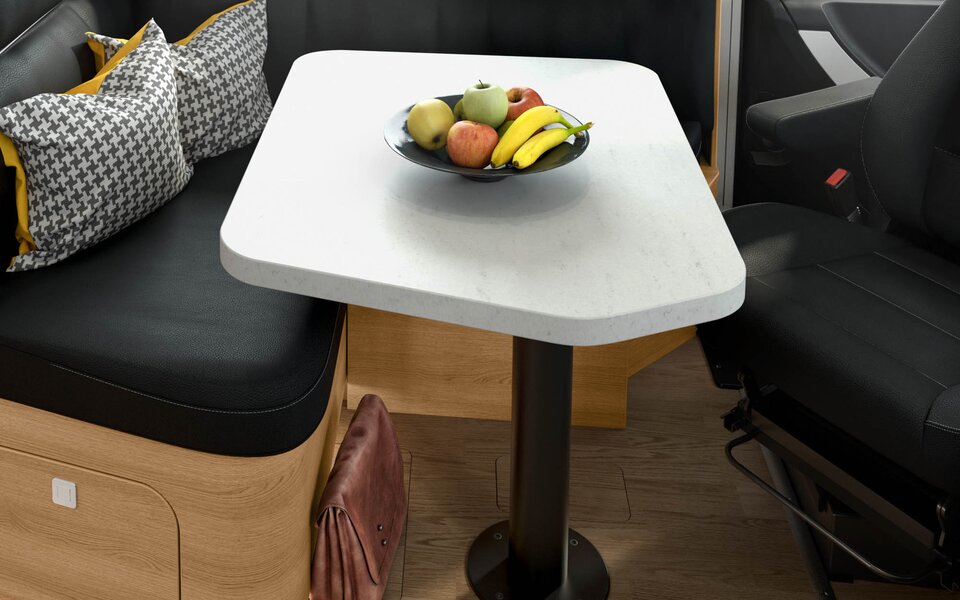

Luxury table: 360° rotatable, longitudinally and transversably displaceable |
Mosquito net on habitation door |

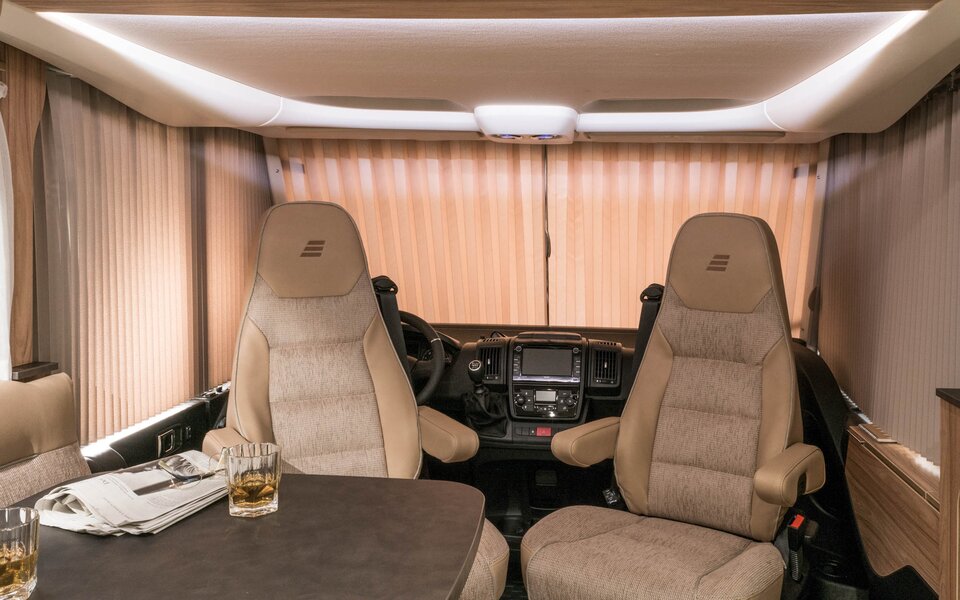

Cab blinds made of high-quality pleated fabric |
Living and bedroom + lighting |
---|
Multi-functional ergonomic furniture elements |

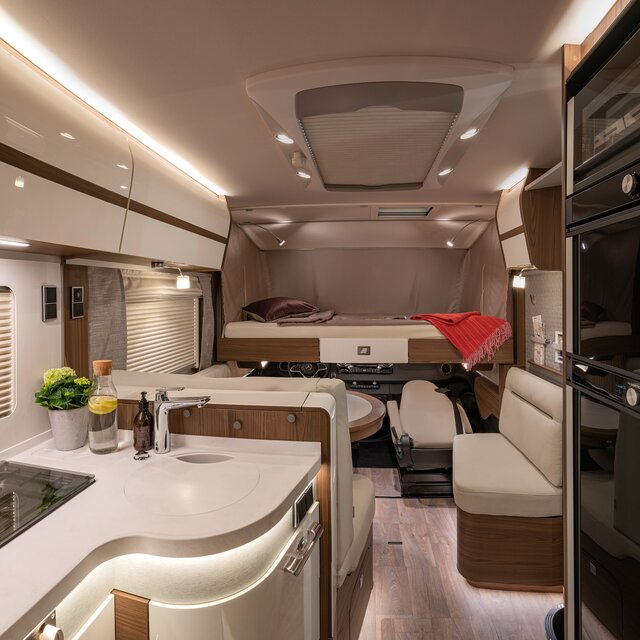

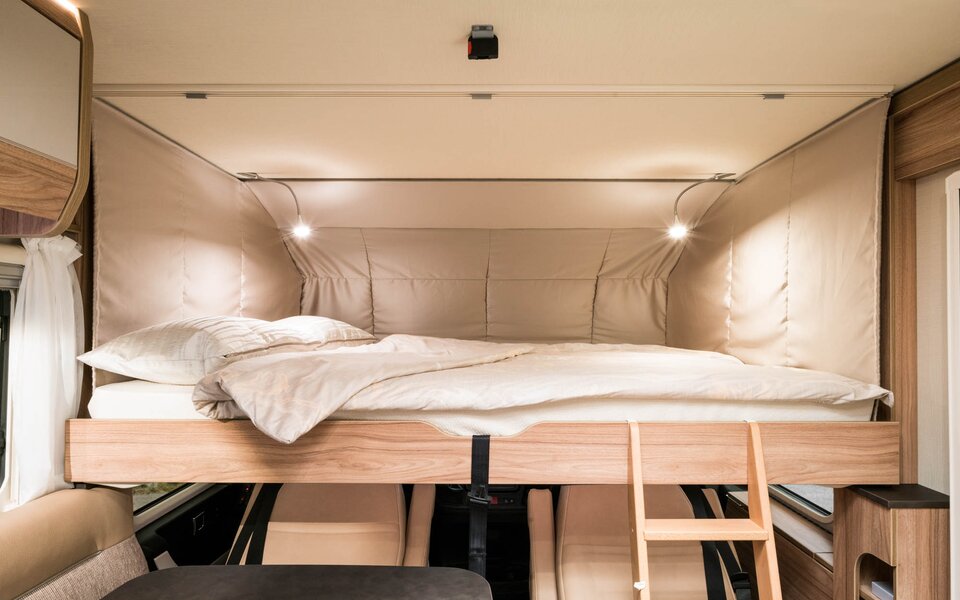

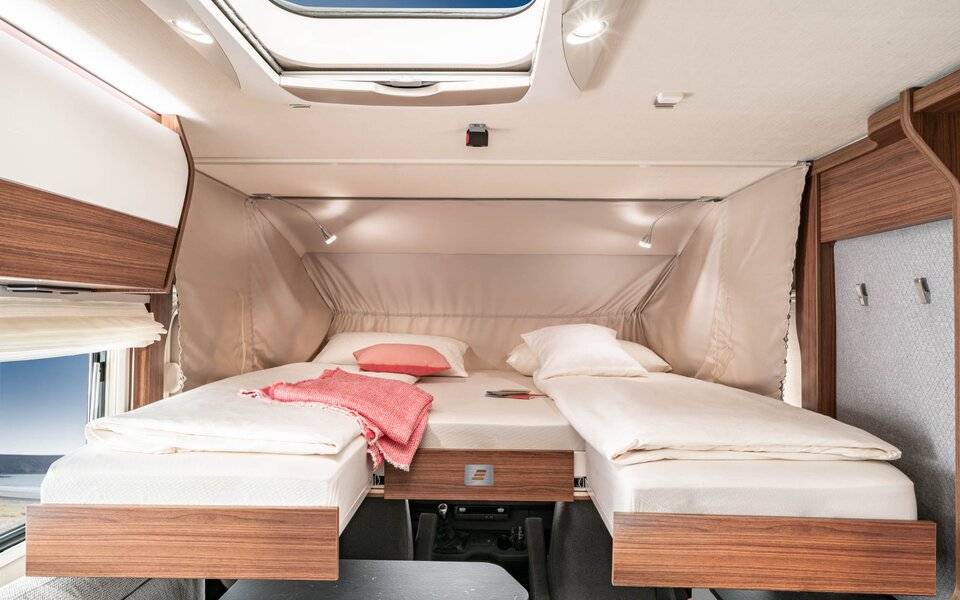

Pull-down bed, manual |

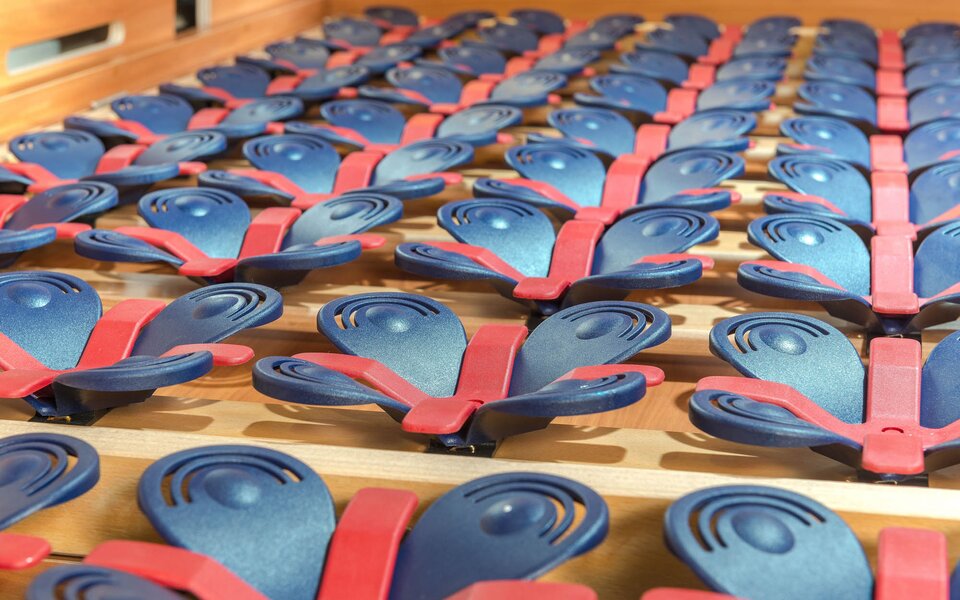

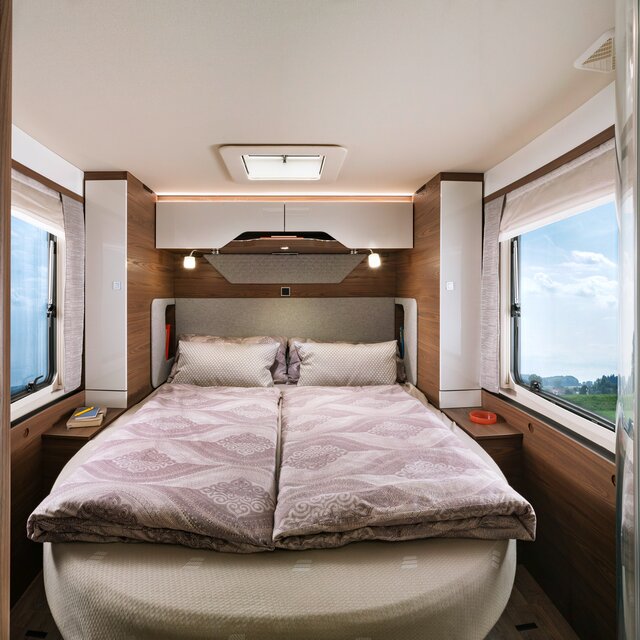

Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for pull-down bed |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for rear bed(s) |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Lighting dimmable (via push button) |
Complete LED interior lighting |
LED worktop lighting |
Night lighting with toggle switch |

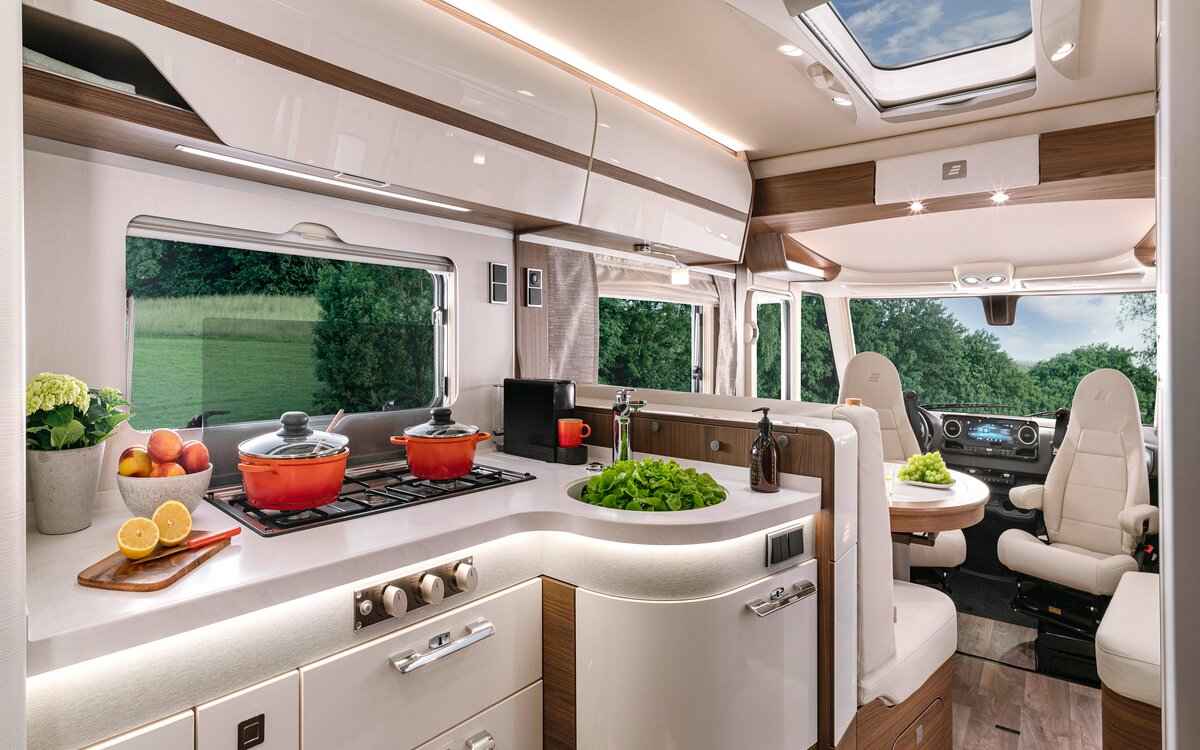

Kitchen |
---|
Pantry |

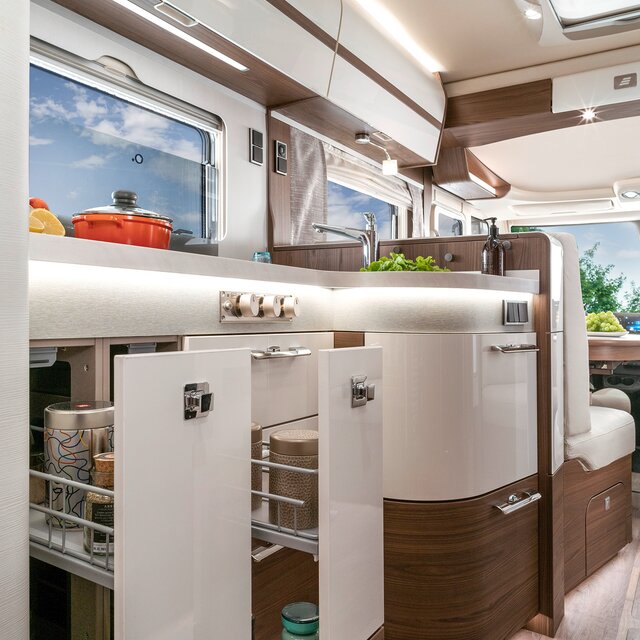

Kitchen drawer with Soft close feature and cutlery insert |
Freely arrangeable kitchen drawers, extra wide |

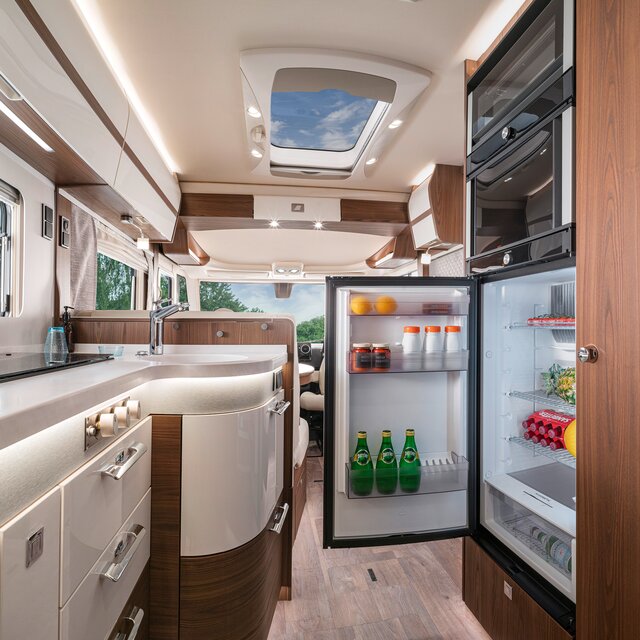

153 l Jumbo fridge |

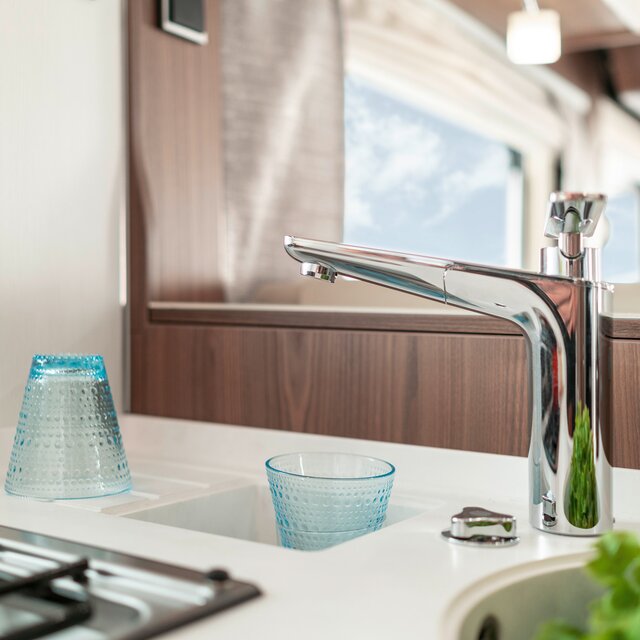

Extra deep sink with tight-fitting chopping board and high water tap |
Large cooker with glass cover and front panel operation |
Structure wall paneling also serving as splash guard |

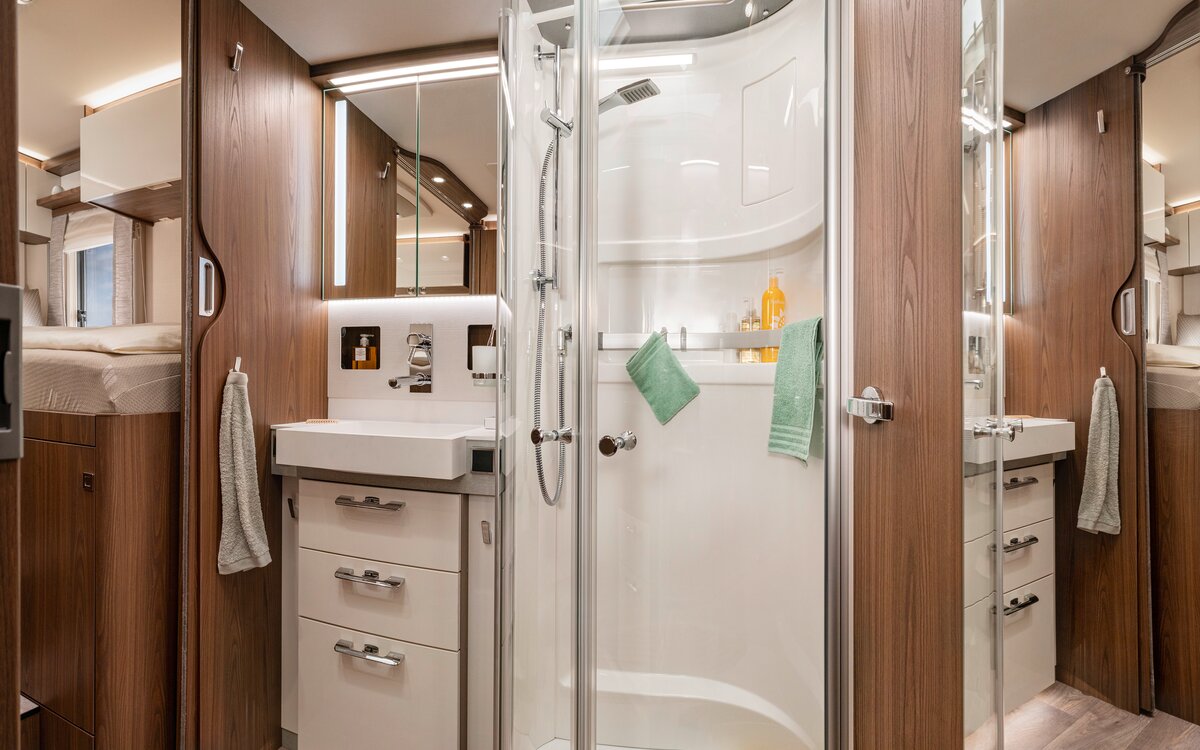

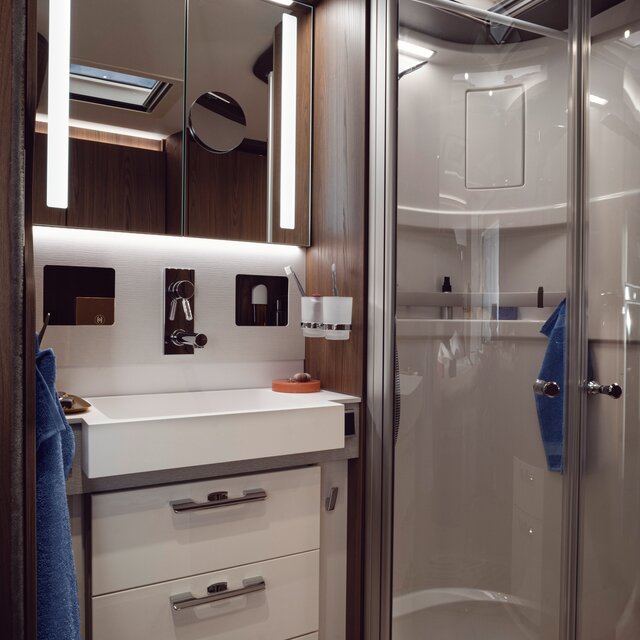

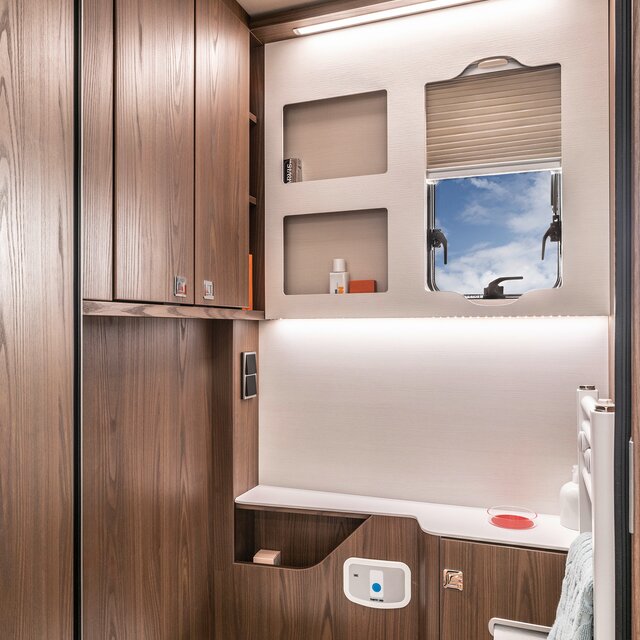

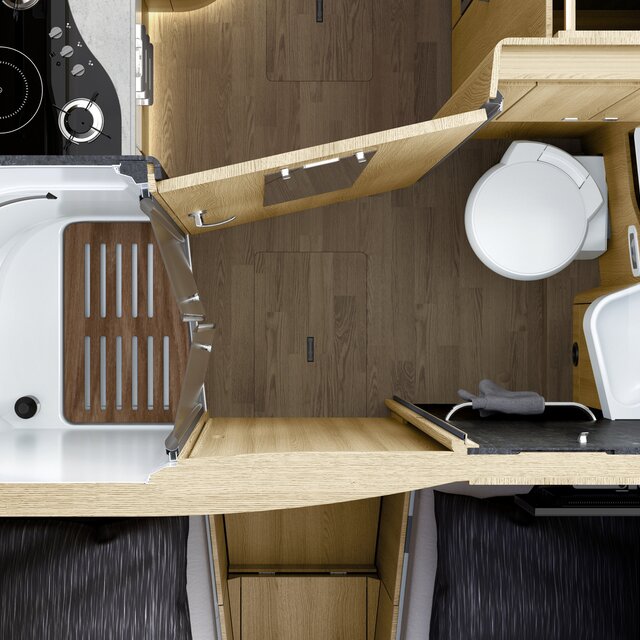

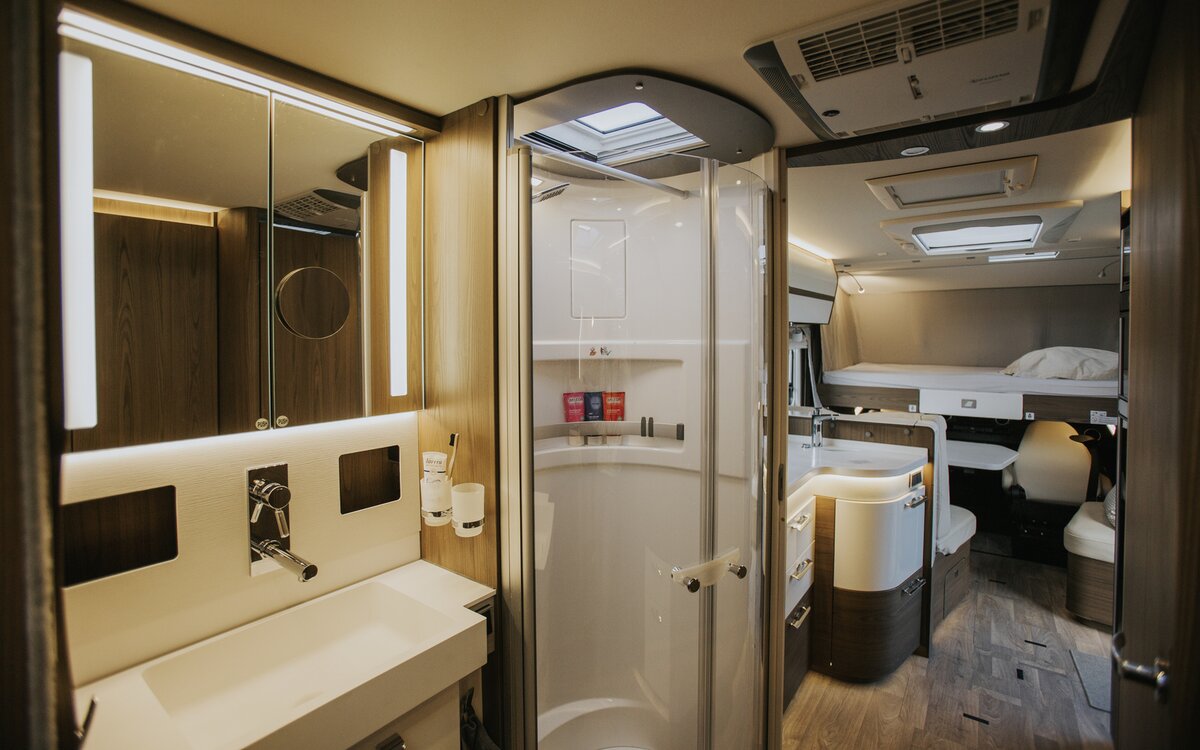

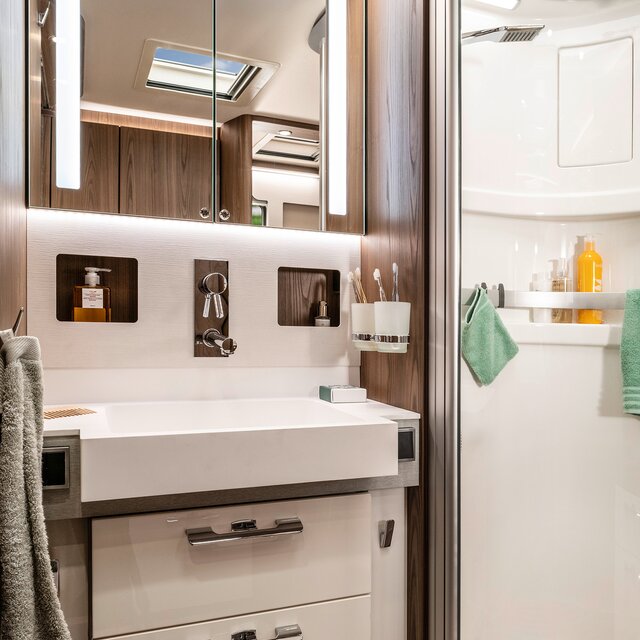

Bathroom |
---|
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm |
Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm |
Installation & Technology |
---|
Gas-Warm water heating (incl. booster in the cab) incl. dashboard convectors |
LCD keypad for heating |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
7" touch display for convenient control and monitoring of smart vehicle features |
Extra low gas bottle compartment for easy gas bottle change with comfy access via external door |
HYMER Smart Battery System 2.0 (80 Ah LFP) incl. additional charger |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
Twin USB on seating group and in small cab cupboard |
180 l fresh water tank, insulated and heated (20 l in driving position) |
150 l waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab, the front bed as well as the rear bedroom, radio and DVB-T2 antenna |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Bogota |
Packages |
---|

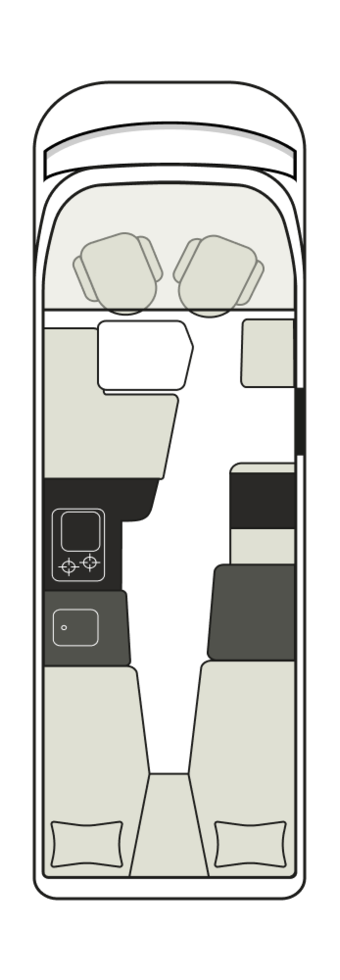

Standard equipment (B-ML I 780 / 790) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Weight variant 4,500 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Basis |
---|
9G-TRONIC automatic transmission incl. Hold function |
Halogen fog lights |

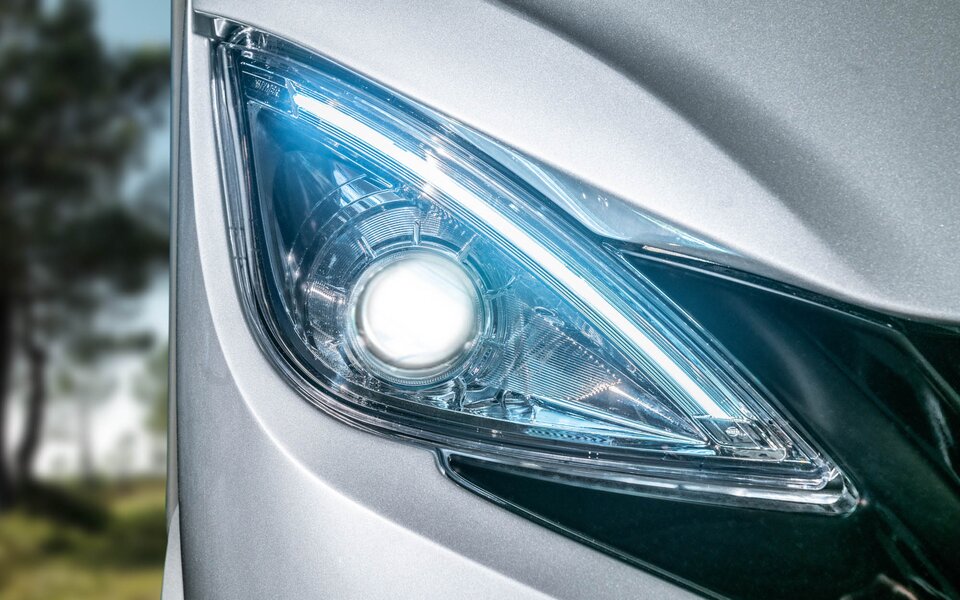

HYMER Premium Full-LED headlights |
LED fog lights incl. static cornering light |
16" alloy wheels (black) with All Season tires |
16" alloy wheels (silver) with All Season tires |
Exterior color: Crystal-Silver Metallic |
Track widening front axle (60 mm in total) |
Four-circuit air suspension (2 axles) |
17" alloy wheels (silver) with summer tires |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Leather steering wheel (automatic transmission only) |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Auxiliary heating (supports heating when heating up the vehicle) |
Traffic Sign Assist |
Fully automatic climate control THERMOTRONIC |
Body |
---|
Roof awning incl. dimmable LED lighting, white housing, 550 x 300 cm |
Roof awning incl. dimmable LED lighting, silver housing, 550 x 300 cm |
Trailer hitch (detachable ball head) |
Electric windscreen warming |
Electric entrance step on driver's door (when opening the driver's door the step automatically extends) |
Hydraulic lift system with automatic front and rear levelling |
Comfort-Plus habitation door incl. closing aid, RFID (keyless) access as well as central locking |
Comfort jacks, rear (2 units) |
Frame extension incl. 450 kg garage load |
Security lock for cab and habitation door |
Electric roof vent with function supply and exhaust air at kitchen |
HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom |
External insulation windscreen mat |
Outfitting |
---|
Seat heating and lumbar support for pilot seats |
Premium round and extendable table with real wood frame |
5th seat with lap belt on seat bench, RH side against direction of travel |

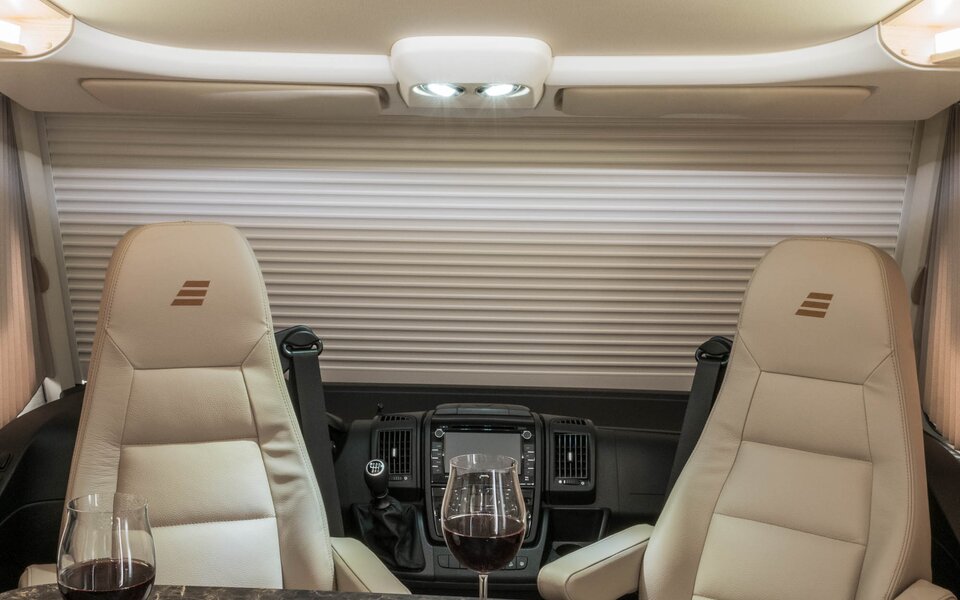

Electric front roller shutter with roller blind that can be drawn bottom up as well as sun visor |
Insulating mat for cab footwell, supplied loose |
Front overhead lockers instead of pull-down bed |

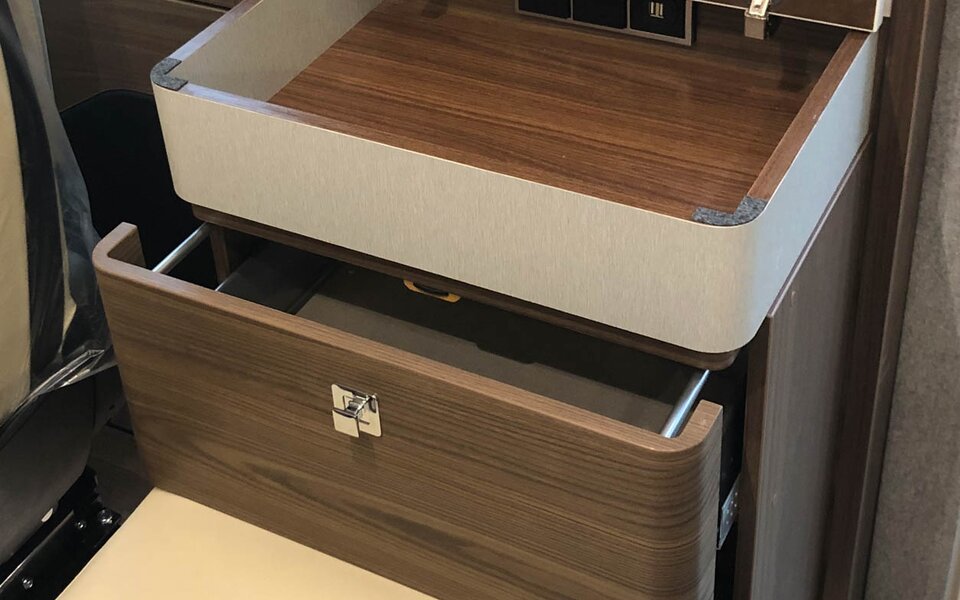

Multifunctional sideboard instead of couch incl. seating, shoe- and multimedia compartment as well as 2 x 230 V and 1 Twin-USB socket |
Drawer and insert tray storage space in seating group |
Checker plate floor, felt trim as well as 2 additional lashing rails in the rear garage |
External shower, located in garage |
Lockable compartment, RH side |
Living and bedroom + lighting |
---|
Bed conversion for L-shaped seating group incl. lowerable table |

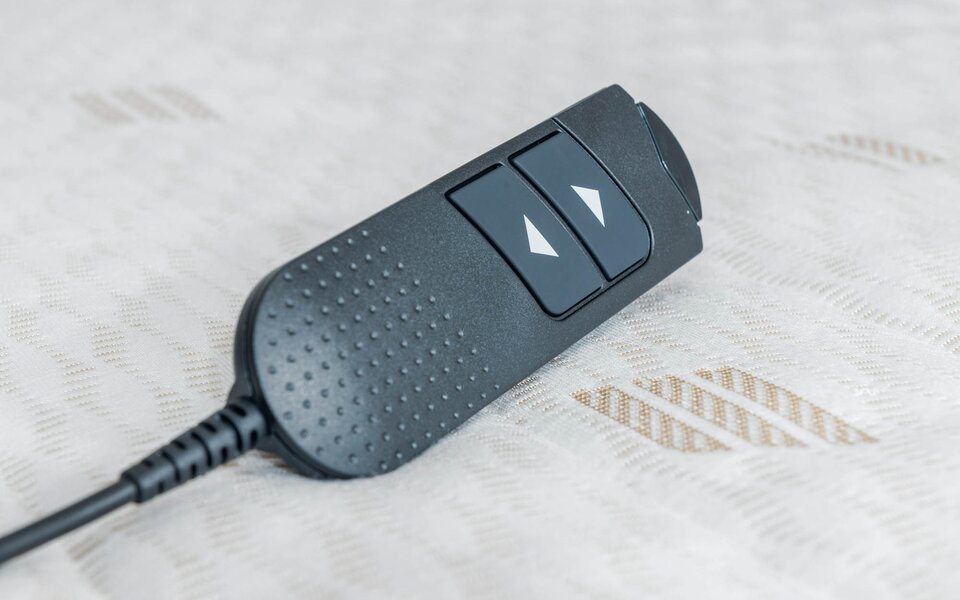

Pull-down bed, electric |

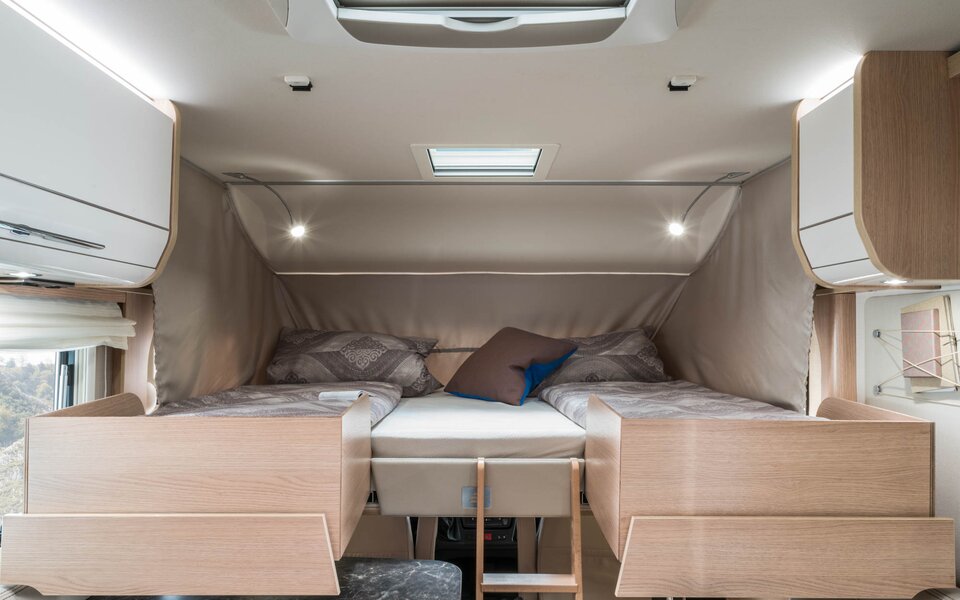

Pull-down bed with single bed feature, electric |
Pull-down bed with single bed feature incl. comfort sleeping system with cup-slatted bed frame, manual |
Ladder for pull-down bed |

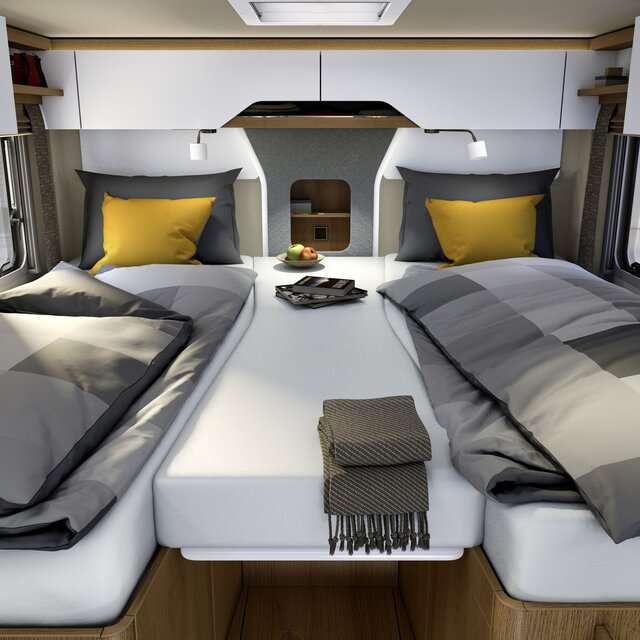

Additional cushion between the longitudinal single beds incl. integrated comfort access |
Fitted sheets made to measure for rear beds individually adapted to mattress |
4 cushions |
Kitchen |
---|
TEC-Tower (153 l fridge/freezer unit, oven) |
Cooker- / oven combination |

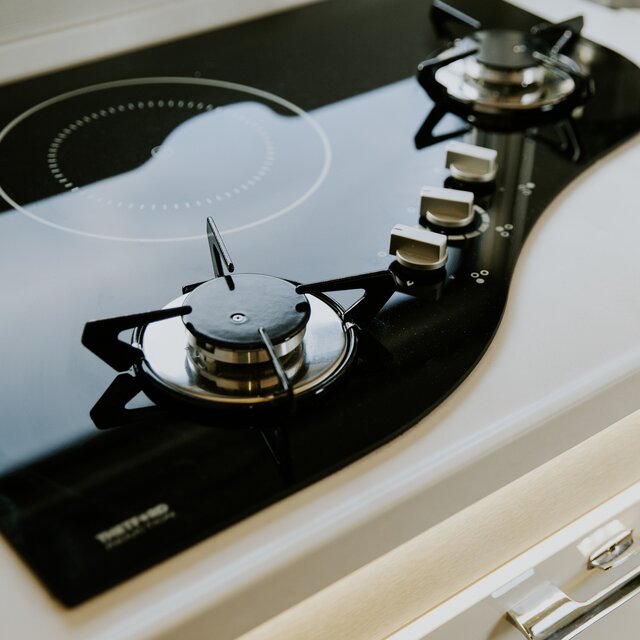

Hybrid cooker (gas- and induction cooker) |
Kitchen worktop made of solid surface |
Bathroom |
---|
Ceramic toilet |
Shower insert floor with wooden surface |
Installation & Technology |
---|
Automatic gas bottle changeover system with crash sensor and IceEx |
Gas filter for automatic gas bottle changeover |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0: 2nd habitation battery 80 Ah LFP incl. additional charger |
HYMER Smart Battery System 2.0: 3rd habitation battery 160 Ah LFP |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB as well as comfort lights |
Roof AirCon, 2,400 W |

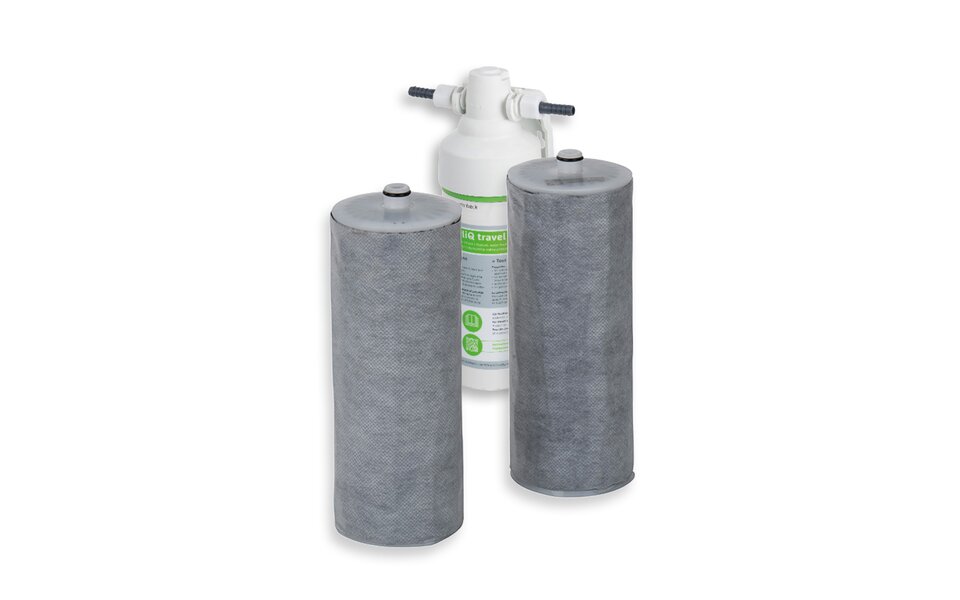

Water filter for fresh water system |
Toilet vent |
Heat exchanger pre-installation, Mercedes-Benz |
Heat exchanger for warm water heating |
Inverter 12 V to 230 V, 1,800 W with network priority circuit |
Gas-Warm water garage floor heating |
Multimedia |
---|
32" LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system with Bluetooth® (DVB-T / C, DVB-S2), electric bracket as well as receiver |
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket |
Digital flat antenna, without receiver |
Digital satellite dish, 80 cm, without receiver |
Digital satellite dish, 80 cm, Twin LNB |
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Fabrics & Furniture finishes |
---|
Furniture finish: Velvet Ash |
Fabric combination: Porto |
Textile leather-/ fabric combination: Marquis |
Leather-/ Fabric combination: Tenerife |
Leather: Grigio |
Leather: Isola |
Carpet: Laguna |
Carpet: Samona |
Packages |
---|
Equipment Line Plus (B-ML I 780 / 790) |
Equipment Line Premium (B-ML I 780 / 790) |
Living Comfort package |
Autonomy package Lithium XL |
Arctic package SMART |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Parkpilot - rear parking aid |
Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm |
Replacement cartridge for water filter |
Bike Carrier for two bikes |
E-Bike Charger |
Pull-out loading box inside the double floor |
HYMER Anti-theft tracking device Protect & Connect |
Sun protection mat |

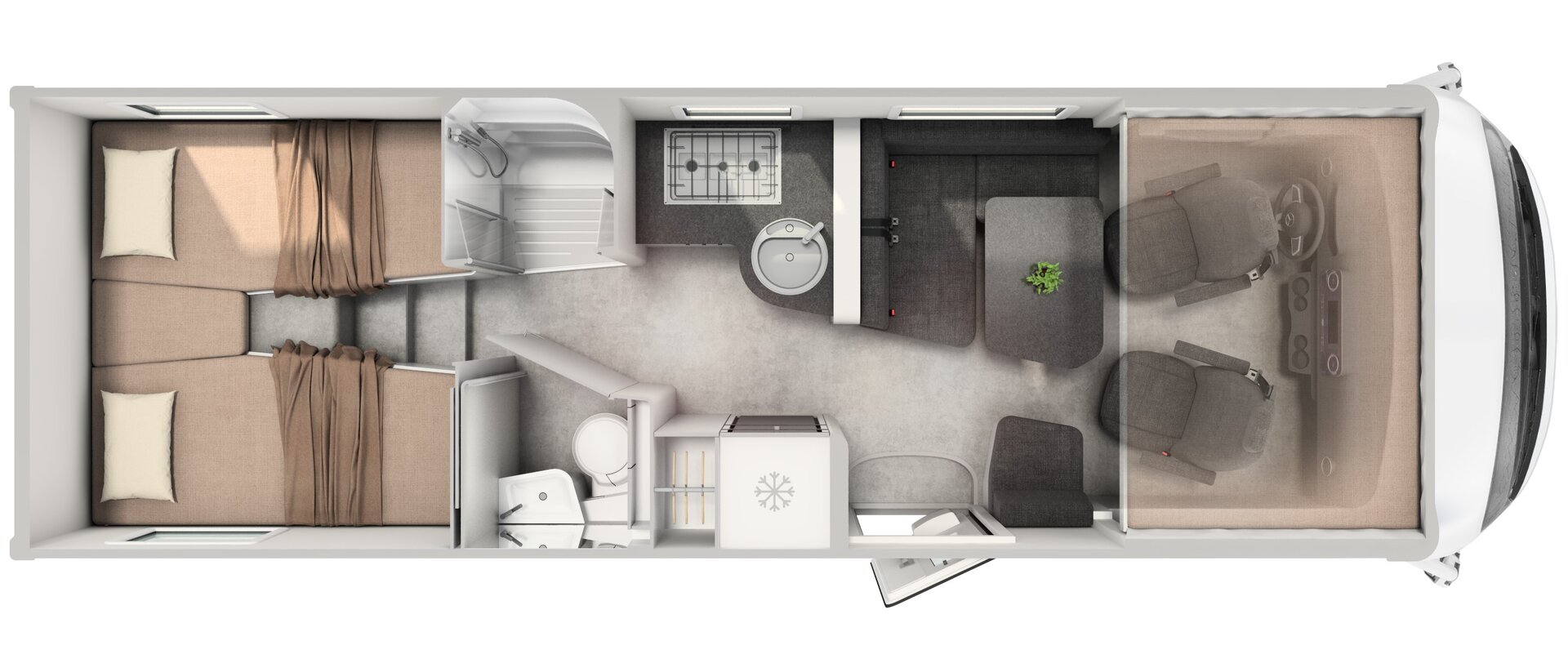

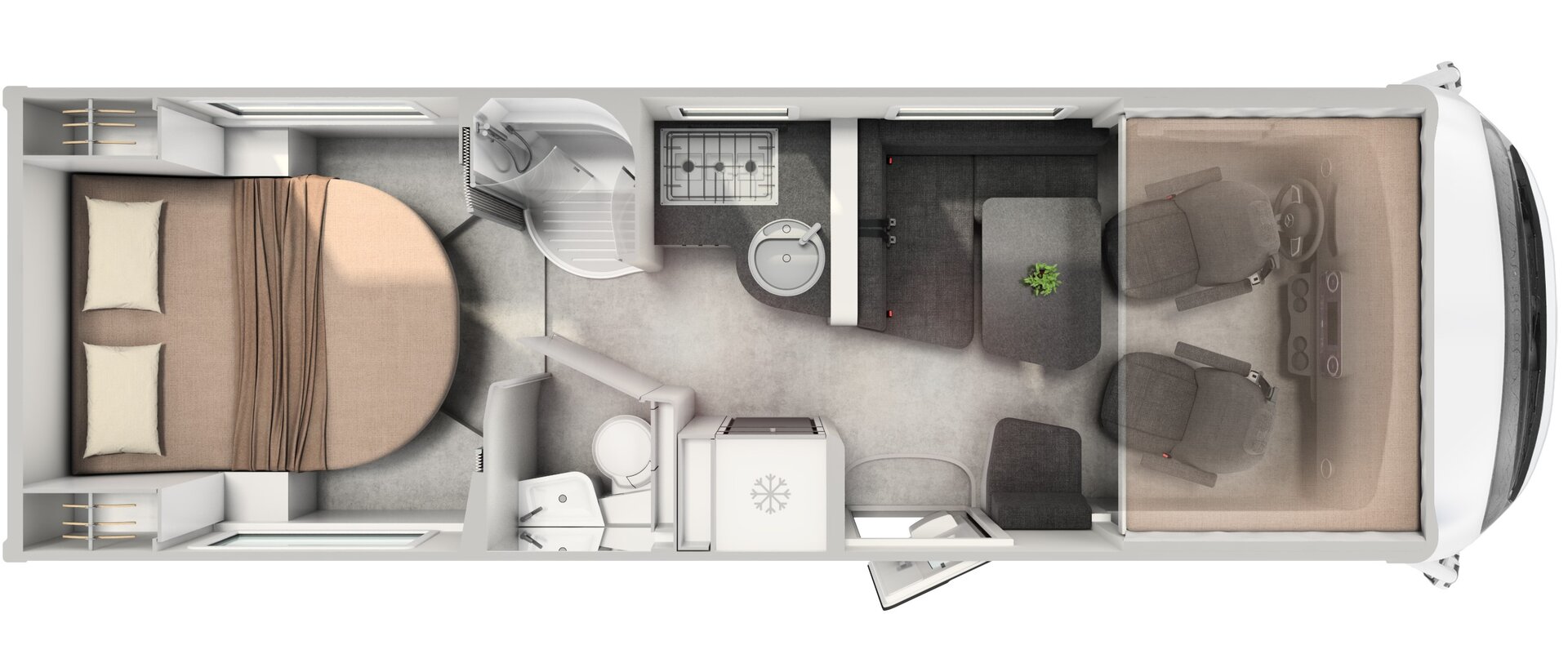

Standard equipment (B-ML I 780 / 790) |
---|
Rain sensor |
Active Lane Keeping Assist |
Attention Assist |
DAB Radio |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Electric parking brake |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Price a) | 159.500 € |
Standard chassis | Mercedes-Benz Sprinter 415 CDI |
Drive | Front Wheel Drive |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Length / Width / Height (cm) | 789 / 235 / 298 |
Body width / Internal width (cm) | 225 / 218 |
Standing height in living area (cm) | 198 |
Wheelbase (mm) | 4500 |
Mass in running order (-/+ 5%) (kg)* | 3477 (3303 - 3651)* |
Manufacturer-specified mass for optional equipment (kg)* | 584 |
Technically permissible maximum laden mass (kg)* | 4430 |
Technically permissible maximum towable mass (kg)* | 1450 |
Permitted number of seats (including driver)* | 4 - 5 |
Insulation Floor / Wall / Roof (mm) | 41 / 34 / 34 |
Overall clearance storage- / garage door W x H (cm) | 90 x 114 / 90 x 94 |
Bed dimension: Pull-down bed L x W (cm) | 197 x 145 / 2x 199 x 65 |
Bed dimension: Rear bed L x W (cm) | 200 x 156 |
Bed dimension: Central bed L x W (cm) | 205 x 110 - 50 |
Berths | 4 - 5 |
Bathroom W x D (cm) | 90 x 80 |
Separate shower W x D (cm) | 73 x 77 |
Wardrobe W x D x H (cm) | 30 x 56 x 107 / 30 x 56 x 107 |
Fridge volume (freezer compartment) (l) | 153 |
Standard heating | Warm water heating |
Gas bottle storage (Filling weight) | 2x 11kg |
Total fresh water tank capacity (l) | 180 |
Fresh water tank in driving filling level (l) | 20 |
Waste water tank (l) | 150 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 2 / 6 |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|
Smooth aluminium skin, Color: Carrara white |
Super lightweight chassis (SLC) |
Low-frame chassis with through-loading feature |
6 gear manual transmission |
92 l fuel tank |
22 l AdBlue tank |
Exterior mirrors suspended, in vehicle colour, electrically heated and adjustable, incl. wide-angle mirror |
Chrome version front (grill / fog light cover) |
LED Daytime running light and LED indicator integrated in HYMER headlights |
Comfort suspension chassis |
Engine compartment insulation and cab underbody paneling |
Mud flaps, front and rear axle |
Trailer hitch pre-installation |
16" steel rims with full wheel cover and all season tires |
Cupholder instead of storage compartment |
ECO Start-Stop feature |
Driver and passenger airbag |
Cupholder driver and passenger seat |
Keyless Start (start-stop button for comfortable engine start) |
Open shelf cockpit passenger side |
Warm air auxiliary heating, electric |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Automatic headlight control |
Intelligent Speed Assistant |
Crosswind Assist |
Body |
---|
Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet |
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness) |
Real glass side windows, superimposed |
Electric entrance step, 1-step |
Cab door with electric power windows and entry lighting |
65 cm Maxi Comfort habitation door with inner shell, 2-way lock, window with blackout blind and waste bin |
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology |
Garage load up to 350 kg (optional 450 kg). Please note the axle load. |
Large garage doors, LH and RH side |
Glossy grille with chrome trim |
Modern 3D rear design, insulated, with integrated lights |
Heated double floor incl. cellar compartments |
GRP roof coating |
GRP lightweight floor with XPS insulation (41 mm floor thickness) |
Large through-loading compartment with external access from both sides incl. extra deep basement compartment and access from the inside |
Skylight above pull-down bed with blackout blind and mosquito net, 40 x 40 cm |
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room |
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Outfitting |
---|
Cab seats, upholstered in living area fabric, swivelling, height- and tilt adjustable with 2 armrests |
Comfort L-shaped seating group with Lounge cushions and 2 integrated 3-point belts |
Luxury table: 360° rotatable, longitudinally and transversably displaceable |
Mosquito net on habitation door |
Cab blinds made of high-quality pleated fabric |
Living and bedroom + lighting |
---|
Multi-functional ergonomic furniture elements |
Pull-down bed, manual |
Queensbed in the rear, electrically height adjustable |
Multi-zone cold foam mattress incl. high-quality mattress pad (knitted fabric) for ventilation in the rear |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for pull-down bed |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Lighting dimmable (via push button) |
Complete LED interior lighting |
LED worktop lighting |
Night lighting with toggle switch |
Kitchen |
---|
Pantry |
Kitchen drawer with Soft close feature and cutlery insert |
Freely arrangeable kitchen drawers, extra wide |
153 l Jumbo fridge |
Extra deep sink with tight-fitting chopping board and high water tap |
Large cooker with glass cover and front panel operation |
Structure wall paneling also serving as splash guard |
Bathroom |
---|
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm |
Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm |
Installation & Technology |
---|
Gas-Warm water heating (incl. booster in the cab) incl. dashboard convectors |
LCD keypad for heating |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
7" touch display for convenient control and monitoring of smart vehicle features |
Extra low gas bottle compartment for easy gas bottle change with comfy access via external door |
HYMER Smart Battery System 2.0 (80 Ah LFP) incl. additional charger |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
Twin USB on seating group and in small cab cupboard |
180 l fresh water tank, insulated and heated (20 l in driving position) |
150 l waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab, the front bed as well as the rear bedroom, radio and DVB-T2 antenna |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Bogota |
Packages |
---|
Standard equipment (B-ML I 780 / 790) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 4.43 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Weight variant 4,500 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Basis |
---|
9G-TRONIC automatic transmission incl. Hold function |
Halogen fog lights |
HYMER Premium Full-LED headlights |
LED fog lights incl. static cornering light |
16" alloy wheels (black) with All Season tires |
16" alloy wheels (silver) with All Season tires |
Exterior color: Crystal-Silver Metallic |
Track widening front axle (60 mm in total) |
Four-circuit air suspension (2 axles) |
17" alloy wheels (silver) with summer tires |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Leather steering wheel (automatic transmission only) |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Auxiliary heating (supports heating when heating up the vehicle) |
Traffic Sign Assist |
Fully automatic climate control THERMOTRONIC |
Body |
---|
Roof awning incl. dimmable LED lighting, white housing, 550 x 300 cm |
Roof awning incl. dimmable LED lighting, silver housing, 550 x 300 cm |
Trailer hitch (detachable ball head) |
Electric windscreen warming |
Electric entrance step on driver's door (when opening the driver's door the step automatically extends) |
Hydraulic lift system with automatic front and rear levelling |
Comfort-Plus habitation door incl. closing aid, RFID (keyless) access as well as central locking |
Comfort jacks, rear (2 units) |
Frame extension incl. 450 kg garage load |
Security lock for cab and habitation door |
Electric roof vent with function supply and exhaust air at kitchen |
HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom |
External insulation windscreen mat |
Outfitting |
---|
Seat heating and lumbar support for pilot seats |
Premium round and extendable table with real wood frame |
5th seat with lap belt on seat bench, RH side against direction of travel |
Electric front roller shutter with roller blind that can be drawn bottom up as well as sun visor |
Insulating mat for cab footwell, supplied loose |
Front overhead lockers instead of pull-down bed |
Multifunctional sideboard instead of couch incl. seating, shoe- and multimedia compartment as well as 2 x 230 V and 1 Twin-USB socket |
Drawer and insert tray storage space in seating group |
Checker plate floor, felt trim as well as 2 additional lashing rails in the rear garage |
External shower, located in garage |
Lockable compartment, RH side |
Living and bedroom + lighting |
---|
Bed conversion for L-shaped seating group incl. lowerable table |
Pull-down bed, electric |
Pull-down bed with single bed feature, electric |
Pull-down bed with single bed feature incl. comfort sleeping system with cup-slatted bed frame, manual |
Ladder for pull-down bed |
Fitted sheets made to measure for rear beds individually adapted to mattress |
4 cushions |
Kitchen |
---|
TEC-Tower (153 l fridge/freezer unit, oven) |
Cooker- / oven combination |
Hybrid cooker (gas- and induction cooker) |
Kitchen worktop made of solid surface |
Bathroom |
---|
Ceramic toilet |
Shower insert floor with wooden surface |
Installation & Technology |
---|
Automatic gas bottle changeover system with crash sensor and IceEx |
Gas filter for automatic gas bottle changeover |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0: 2nd habitation battery 80 Ah LFP incl. additional charger |
HYMER Smart Battery System 2.0: 3rd habitation battery 160 Ah LFP |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB as well as comfort lights |
Roof AirCon, 2,400 W |
Water filter for fresh water system |
Toilet vent |
Heat exchanger pre-installation, Mercedes-Benz |
Heat exchanger for warm water heating |
Inverter 12 V to 230 V, 1,800 W with network priority circuit |
Gas-Warm water garage floor heating |
Multimedia |
---|
32" LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system with Bluetooth® (DVB-T / C, DVB-S2), electric bracket as well as receiver |
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket |
Digital flat antenna, without receiver |
Digital satellite dish, 80 cm, without receiver |
Digital satellite dish, 80 cm, Twin LNB |
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Fabrics & Furniture finishes |
---|
Furniture finish: Velvet Ash |
Fabric combination: Porto |
Textile leather-/ fabric combination: Marquis |
Leather-/ Fabric combination: Tenerife |
Leather: Grigio |
Leather: Isola |
Carpet: Laguna |
Carpet: Samona |
Packages |
---|
Equipment Line Plus (B-ML I 780 / 790) |
Equipment Line Premium (B-ML I 780 / 790) |
Living Comfort package |
Autonomy package Lithium XL |
Arctic package SMART |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Parkpilot - rear parking aid |
Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm |
Replacement cartridge for water filter |
E-Bike Charger |
Pull-out loading box inside the double floor |
HYMER Anti-theft tracking device Protect & Connect |
Sun protection mat |
Standard equipment (B-ML I 780 / 790) |
---|
Rain sensor |
Active Lane Keeping Assist |
Attention Assist |
DAB Radio |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Electric parking brake |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Price a) | 174.500 € |
Standard chassis | Mercedes-Benz Sprinter 415 CDI |
Drive | Front Wheel Drive |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Length / Width / Height (cm) | 899 / 235 / 298 |
Body width / Internal width (cm) | 225 / 218 |
Standing height in living area (cm) | 198 |
Wheelbase (mm) | 4800 |
Mass in running order (-/+ 5%) (kg)* | 3992 (3792 - 4192)* |
Manufacturer-specified mass for optional equipment (kg)* | 1128 |
Technically permissible maximum laden mass (kg)* | 5500 |
Technically permissible maximum towable mass (kg)* | 1100 |
Permitted number of seats (including driver)* | 4 - 5 |
Insulation Floor / Wall / Roof (mm) | 41 / 34 / 34 |
Overall clearance storage- / garage door W x H (cm) | 110 x 123 |
Bed dimension: Pull-down bed L x W (cm) | 197 x 145 / 2x 199 x 65 |
Bed dimension: Rear bed L x W (cm) | 2x 205 x 90 |
Bed dimension: Central bed L x W (cm) | 205 x 110 - 75 |
Berths | 4 - 5 |
Bathroom W x D (cm) | 90 x 80 |
Separate shower W x D (cm) | 73 x 77 |
Wardrobe W x D x H (cm) | 30 x 57 x 190 / 65 x 57 x 190 |
Fridge volume (freezer compartment) (l) | 153 |
Standard heating | Warm water heating |
Gas bottle storage (Filling weight) | 2x 11kg |
Total fresh water tank capacity (l) | 180 |
Fresh water tank in driving filling level (l) | 20 |
Waste water tank (l) | 150 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 2 / 6 |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 5.5 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|
Smooth aluminium skin, Color: Carrara white |
Super lightweight chassis (SLC) |
Low-frame chassis with through-loading feature |
92 l fuel tank |
22 l AdBlue tank |
Exterior mirrors suspended, in vehicle colour, electrically heated and adjustable, incl. wide-angle mirror |
Chrome version front (grill / fog light cover) |
LED Daytime running light and LED indicator integrated in HYMER headlights |
Comfort suspension chassis |
Engine compartment insulation and cab underbody paneling |
Mud flaps, front and rear axle |
Trailer hitch pre-installation |

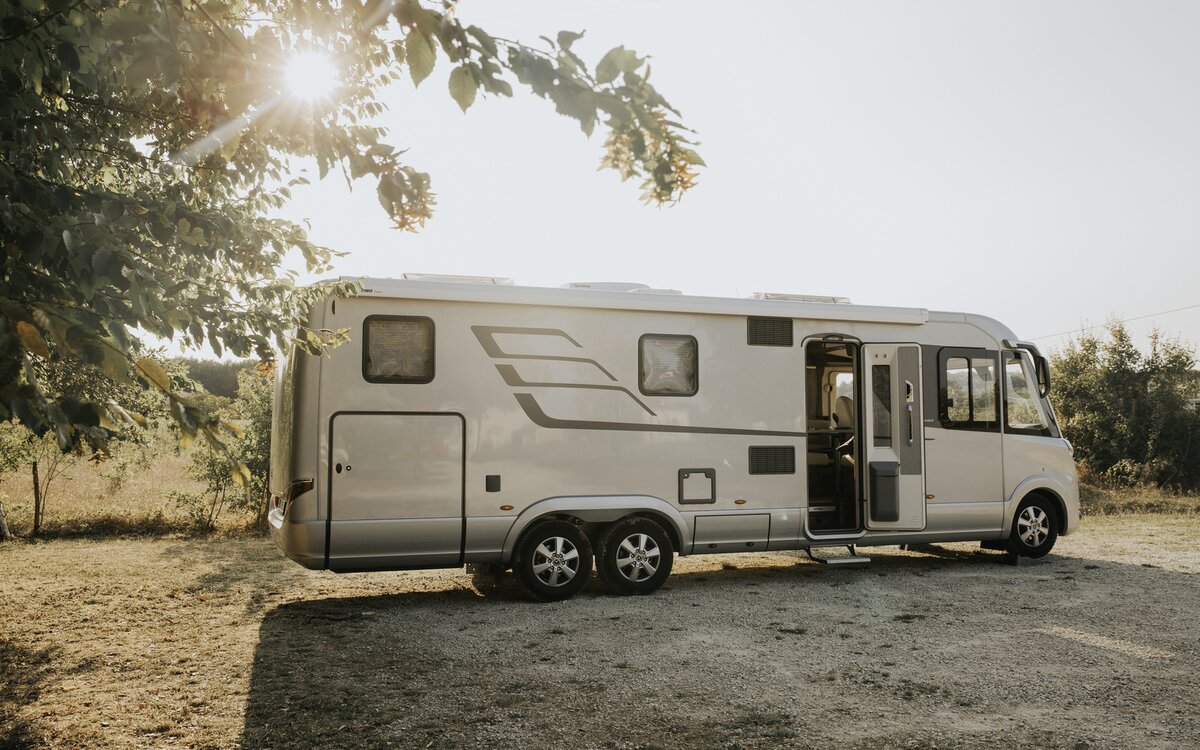

Tandem axle |
16" alloy wheels (black) with All Season tires |
Cupholder instead of storage compartment |
ECO Start-Stop feature |
Driver and passenger airbag |
Cupholder driver and passenger seat |
Keyless Start (start-stop button for comfortable engine start) |
Open shelf cockpit passenger side |
Warm air auxiliary heating, electric |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Automatic headlight control |
Intelligent Speed Assistant |
Body |
---|
Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet |
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness) |
Real glass side windows, superimposed |
Electric entrance step, 1-step |
Cab door with electric power windows and entry lighting |
65 cm Maxi Comfort habitation door with inner shell, 2-way lock, window with blackout blind and waste bin |
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology |
Garage load up to 350 kg (optional 450 kg). Please note the axle load. |
Large garage doors, LH and RH side |
Glossy grille with chrome trim |
Modern 3D rear design, insulated, with integrated lights |
Heated double floor incl. cellar compartments |
GRP roof coating |
GRP lightweight floor with XPS insulation (41 mm floor thickness) |
Large through-loading compartment with external access from both sides incl. extra deep basement compartment and access from the inside |
Skylight above pull-down bed with blackout blind and mosquito net, 40 x 40 cm |
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room |
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Outfitting |
---|
Cab seats, upholstered in living area fabric, swivelling, height- and tilt adjustable with 2 armrests |
Comfort L-shaped seating group with Lounge cushions and 2 integrated 3-point belts |
Luxury table: 360° rotatable, longitudinally and transversably displaceable |
Mosquito net on habitation door |
Cab blinds made of high-quality pleated fabric |
Living and bedroom + lighting |
---|
Multi-functional ergonomic furniture elements |
Pull-down bed, manual |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for pull-down bed |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for rear bed(s) |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |

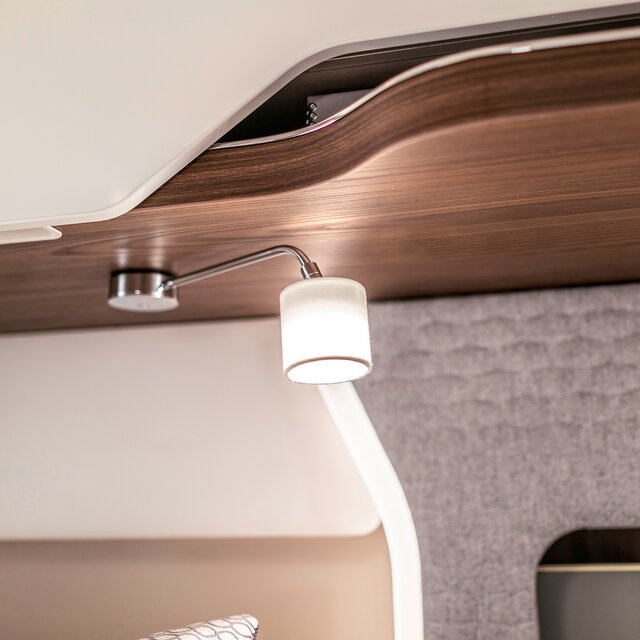

Lighting dimmable (via push button) |
Complete LED interior lighting |
LED worktop lighting |
Night lighting with toggle switch |
Kitchen |
---|
Pantry |
Kitchen drawer with Soft close feature and cutlery insert |
Freely arrangeable kitchen drawers, extra wide |
153 l Jumbo fridge |
Extra deep sink with tight-fitting chopping board and high water tap |
Large cooker with glass cover and front panel operation |
Structure wall paneling also serving as splash guard |
Kitchen worktop made of solid surface |
Bathroom |
---|
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm |
Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm |
Saloon bathroom with separate shower, wash area, toilet and wardrobe |
Installation & Technology |
---|
Gas-Warm water heating (incl. booster in the cab) incl. dashboard convectors |
LCD keypad for heating |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
7" touch display for convenient control and monitoring of smart vehicle features |
Extra low gas bottle compartment for easy gas bottle change with comfy access via external door |
HYMER Smart Battery System 2.0 (80 Ah LFP) incl. additional charger |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
Twin USB on seating group and in small cab cupboard |
180 l fresh water tank, insulated and heated (20 l in driving position) |
150 l waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab, the front bed as well as the rear bedroom, radio and DVB-T2 antenna |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Bogota |
Packages |
---|
Standard equipment (B-ML I 880 / 890) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 5.5 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Weight variant 5,000 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Basis |
---|
Halogen fog lights |
HYMER Premium Full-LED headlights |
LED fog lights incl. static cornering light |
Four-circuit air suspension (3 axles) |
Exterior color: Crystal-Silver Metallic |
Track widening front axle (60 mm in total) |
16" alloy wheels (silver) with all season tires (B-ML I 880 / 890) |
17" alloy wheels (silver) with summer tires (B-ML I 880 / 890) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Leather steering wheel (automatic transmission only) |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Auxiliary heating (supports heating when heating up the vehicle) |
Traffic Sign Assist |
Fully automatic climate control THERMOTRONIC |
Body |
---|
Roof awning incl. dimmable LED lighting, white housing, 600 x 300 cm |
Roof awning incl. dimmable LED lighting, silver housing, 600 x 300 cm |
Trailer hitch (detachable ball head) |
Electric windscreen warming |
Electric entrance step on driver's door (when opening the driver's door the step automatically extends) |
Hydraulic lift system with automatic front and rear levelling |
Comfort-Plus habitation door incl. closing aid, RFID (keyless) access as well as central locking |
Comfort jacks, rear (2 units) |
Frame extension incl. 450 kg garage load |
Security lock for cab and habitation door |
Electric roof vent with function supply and exhaust air at kitchen |
HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom |
External insulation windscreen mat |
Outfitting |
---|
Seat heating and lumbar support for pilot seats |
Premium round and extendable table with real wood frame |
5th seat with 3-point belt on seat bench, RH side in direction of travel |
Electric front roller shutter with roller blind that can be drawn bottom up as well as sun visor |
Insulating mat for cab footwell, supplied loose |
Front overhead lockers instead of pull-down bed |
Multifunctional sideboard instead of couch incl. seating, shoe- and multimedia compartment as well as 2 x 230 V and 1 Twin-USB socket |
Drawer and insert tray storage space in seating group |
Checker plate floor, felt trim as well as 2 additional lashing rails in the rear garage |
External shower, located in garage |
Lockable compartment, RH side |
Living and bedroom + lighting |
---|
Bed conversion for L-shaped seating group incl. lowerable table |
Pull-down bed, electric |
Pull-down bed with single bed feature, electric |
Pull-down bed with single bed feature incl. comfort sleeping system with cup-slatted bed frame, manual |
Ladder for pull-down bed |
Additional cushion between the longitudinal single beds incl. integrated comfort access |
Fitted sheets made to measure for rear beds individually adapted to mattress |
4 cushions |
Kitchen |
---|
TEC-Tower (153 l fridge/freezer unit, oven) |
Cooker- / oven combination |
Hybrid cooker (gas- and induction cooker) |
Bathroom |
---|
Ceramic toilet |
Shower insert floor with wooden surface |
Installation & Technology |
---|
Automatic gas bottle changeover system with crash sensor and IceEx |
Gas filter for automatic gas bottle changeover |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0: 2nd habitation battery 80 Ah LFP incl. additional charger |
HYMER Smart Battery System 2.0: 3rd habitation battery 160 Ah LFP |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB as well as comfort lights |
Roof AirCon, 2,400 W |
Water filter for fresh water system |
Toilet vent |
Heat exchanger pre-installation, Mercedes-Benz |
Heat exchanger for warm water heating |
Inverter 12 V to 230 V, 1,800 W with network priority circuit |
Gas-Warm water garage floor heating |
Multimedia |
---|
32" LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system with Bluetooth® (DVB-T / C, DVB-S2), electric bracket as well as receiver |
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket |
Digital flat antenna, without receiver |
Digital satellite dish, 80 cm, without receiver |
Digital satellite dish, 80 cm, Twin LNB |
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Fabrics & Furniture finishes |
---|
Furniture finish: Velvet Ash |
Fabric combination: Porto |
Textile leather-/ fabric combination: Marquis |
Leather-/ Fabric combination: Tenerife |
Leather: Grigio |
Leather: Isola |
Carpet: Laguna |
Carpet: Samona |
Packages |
---|
Equipment Line Plus (B-ML I 880 / 890) |
Equipment Line Premium (B-ML I 880 / 890) |
Living Comfort package |
Autonomy package Lithium XL |
Arctic package SMART |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Parkpilot - rear parking aid |
Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm |
Replacement cartridge for water filter |
Bike Carrier for two bikes |
E-Bike Charger |
Pull-out loading box inside the double floor |
HYMER Anti-theft tracking device Protect & Connect |
Sun protection mat |
Standard equipment (B-ML I 880 / 890) |
---|
Attention Assist |
Active Lane Keeping Assist |
Rain sensor |
DAB Radio |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
9G-TRONIC automatic transmission incl. Hold function |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Electric parking brake |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Description | Value |
---|---|
Price a) | 174.500 € |
Standard chassis | Mercedes-Benz Sprinter 415 CDI |
Drive | Front Wheel Drive |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Length / Width / Height (cm) | 899 / 235 / 298 |
Body width / Internal width (cm) | 225 / 218 |
Standing height in living area (cm) | 198 |
Wheelbase (mm) | 4800 |
Mass in running order (-/+ 5%) (kg)* | 4027 (3826 - 4228)* |
Manufacturer-specified mass for optional equipment (kg)* | 1093 |
Technically permissible maximum laden mass (kg)* | 5500 |
Technically permissible maximum towable mass (kg)* | 1100 |
Permitted number of seats (including driver)* | 4 - 5 |
Insulation Floor / Wall / Roof (mm) | 41 / 34 / 34 |
Overall clearance storage- / garage door W x H (cm) | 90 x 114 / 90 x 94 |
Bed dimension: Pull-down bed L x W (cm) | 197 x 145 / 2x 199 x 65 |
Bed dimension: Rear bed L x W (cm) | 200 x 156 |
Bed dimension: Central bed L x W (cm) | 205 x 110 - 75 |
Berths | 4 - 5 |
Bathroom W x D (cm) | 90 x 80 |
Separate shower W x D (cm) | 73 x 77 |
Wardrobe W x D x H (cm) | 30 x 56 x 107 / 30 x 56 x 107 / 65 x 57 x 190 |
Fridge volume (freezer compartment) (l) | 153 |
Standard heating | Warm water heating |
Gas bottle storage (Filling weight) | 2x 11kg |
Total fresh water tank capacity (l) | 180 |
Fresh water tank in driving filling level (l) | 20 |
Waste water tank (l) | 150 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 2 / 6 |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 5.5 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|
Smooth aluminium skin, Color: Carrara white |
Super lightweight chassis (SLC) |
Low-frame chassis with through-loading feature |
92 l fuel tank |
22 l AdBlue tank |
Exterior mirrors suspended, in vehicle colour, electrically heated and adjustable, incl. wide-angle mirror |
Chrome version front (grill / fog light cover) |
LED Daytime running light and LED indicator integrated in HYMER headlights |
Comfort suspension chassis |
Engine compartment insulation and cab underbody paneling |
Mud flaps, front and rear axle |
Trailer hitch pre-installation |
Tandem axle |
16" alloy wheels (black) with All Season tires |
Cupholder instead of storage compartment |
ECO Start-Stop feature |
Driver and passenger airbag |
Cupholder driver and passenger seat |
Keyless Start (start-stop button for comfortable engine start) |
Open shelf cockpit passenger side |
Warm air auxiliary heating, electric |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Automatic headlight control |
Intelligent Speed Assistant |
Body |
---|
Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet |
Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness) |
Real glass side windows, superimposed |
Electric entrance step, 1-step |
Cab door with electric power windows and entry lighting |
65 cm Maxi Comfort habitation door with inner shell, 2-way lock, window with blackout blind and waste bin |
Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology |
Garage load up to 350 kg (optional 450 kg). Please note the axle load. |
Large garage doors, LH and RH side |
Glossy grille with chrome trim |
Modern 3D rear design, insulated, with integrated lights |
Heated double floor incl. cellar compartments |
GRP roof coating |
GRP lightweight floor with XPS insulation (41 mm floor thickness) |
Large through-loading compartment with external access from both sides incl. extra deep basement compartment and access from the inside |
Skylight above pull-down bed with blackout blind and mosquito net, 40 x 40 cm |
HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room |
Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Outfitting |
---|
Cab seats, upholstered in living area fabric, swivelling, height- and tilt adjustable with 2 armrests |
Comfort L-shaped seating group with Lounge cushions and 2 integrated 3-point belts |
Luxury table: 360° rotatable, longitudinally and transversably displaceable |
Mosquito net on habitation door |
Cab blinds made of high-quality pleated fabric |
Living and bedroom + lighting |
---|
Multi-functional ergonomic furniture elements |
Pull-down bed, manual |
Queensbed in the rear, electrically height adjustable |
Multi-zone cold foam mattress incl. high-quality mattress pad (knitted fabric) for ventilation in the rear |
Sleeping Comfort system with cup-slatted bed frame and Multizone cold foam mattress(es) for pull-down bed |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Lighting dimmable (via push button) |
Complete LED interior lighting |
LED worktop lighting |
Night lighting with toggle switch |
Kitchen |
---|
Pantry |
Kitchen drawer with Soft close feature and cutlery insert |
Freely arrangeable kitchen drawers, extra wide |
153 l Jumbo fridge |
Extra deep sink with tight-fitting chopping board and high water tap |
Large cooker with glass cover and front panel operation |
Structure wall paneling also serving as splash guard |
Kitchen worktop made of solid surface |
Bathroom |
---|
Skylight (frosted glass) in bathroom with blackout blind and mosquito net, 40 x 40 cm |
Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm |

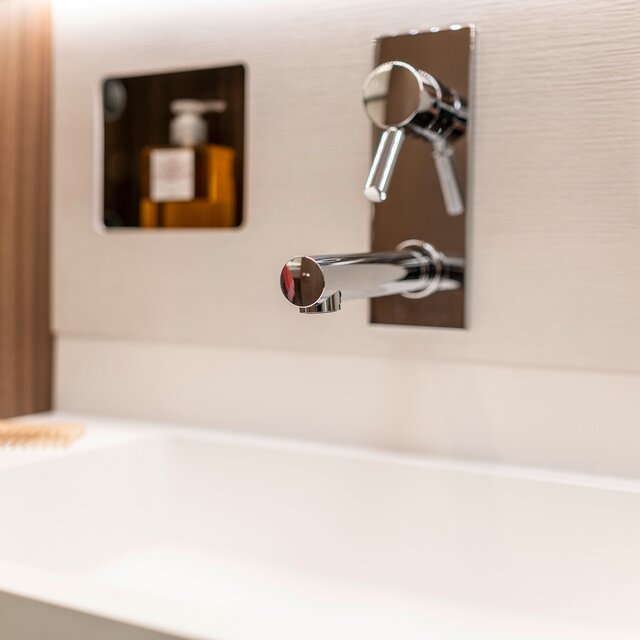

Saloon bathroom with separate shower, wash area, toilet and wardrobe |
Installation & Technology |
---|
Gas-Warm water heating (incl. booster in the cab) incl. dashboard convectors |
LCD keypad for heating |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
7" touch display for convenient control and monitoring of smart vehicle features |
Extra low gas bottle compartment for easy gas bottle change with comfy access via external door |
HYMER Smart Battery System 2.0 (80 Ah LFP) incl. additional charger |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
Twin USB on seating group and in small cab cupboard |
180 l fresh water tank, insulated and heated (20 l in driving position) |
150 l waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Radio / TV pre-installation incl. 12 V and 230 V socket, 2 speakers in the cab, the front bed as well as the rear bedroom, radio and DVB-T2 antenna |
Fabrics & Furniture finishes |
---|
Furniture finish: Grand Oak |
Fabric combination: Bogota |
Packages |
---|
Standard equipment (B-ML I 880 / 890) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 5.5 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Weight variant 5,000 kg (Mercedes-Benz Sprinter 415 / 417 CDI only) |
Basis |
---|
Halogen fog lights |
HYMER Premium Full-LED headlights |
LED fog lights incl. static cornering light |
Four-circuit air suspension (3 axles) |
Exterior color: Crystal-Silver Metallic |
Track widening front axle (60 mm in total) |
16" alloy wheels (silver) with all season tires (B-ML I 880 / 890) |
17" alloy wheels (silver) with summer tires (B-ML I 880 / 890) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Leather steering wheel (automatic transmission only) |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Auxiliary heating (supports heating when heating up the vehicle) |
Traffic Sign Assist |
Fully automatic climate control THERMOTRONIC |
Body |
---|
Roof awning incl. dimmable LED lighting, white housing, 600 x 300 cm |
Roof awning incl. dimmable LED lighting, silver housing, 600 x 300 cm |
Trailer hitch (detachable ball head) |
Electric windscreen warming |
Electric entrance step on driver's door (when opening the driver's door the step automatically extends) |
Hydraulic lift system with automatic front and rear levelling |
Comfort-Plus habitation door incl. closing aid, RFID (keyless) access as well as central locking |
Comfort jacks, rear (2 units) |
Frame extension incl. 450 kg garage load |
Security lock for cab and habitation door |
Electric roof vent with function supply and exhaust air at kitchen |
HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom |
External insulation windscreen mat |
Outfitting |
---|
Seat heating and lumbar support for pilot seats |
Premium round and extendable table with real wood frame |
5th seat with 3-point belt on seat bench, RH side in direction of travel |
Electric front roller shutter with roller blind that can be drawn bottom up as well as sun visor |
Insulating mat for cab footwell, supplied loose |
Front overhead lockers instead of pull-down bed |
Multifunctional sideboard instead of couch incl. seating, shoe- and multimedia compartment as well as 2 x 230 V and 1 Twin-USB socket |
Drawer and insert tray storage space in seating group |
Checker plate floor, felt trim as well as 2 additional lashing rails in the rear garage |
External shower, located in garage |
Lockable compartment, RH side |
Living and bedroom + lighting |
---|
Bed conversion for L-shaped seating group incl. lowerable table |
Pull-down bed, electric |
Pull-down bed with single bed feature, electric |
Pull-down bed with single bed feature incl. comfort sleeping system with cup-slatted bed frame, manual |
Ladder for pull-down bed |
Fitted sheets made to measure for rear beds individually adapted to mattress |
4 cushions |
Kitchen |
---|
TEC-Tower (153 l fridge/freezer unit, oven) |
Cooker- / oven combination |
Hybrid cooker (gas- and induction cooker) |
Bathroom |
---|
Ceramic toilet |
Shower insert floor with wooden surface |
Installation & Technology |
---|
Automatic gas bottle changeover system with crash sensor and IceEx |
Gas filter for automatic gas bottle changeover |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0: 2nd habitation battery 80 Ah LFP incl. additional charger |
HYMER Smart Battery System 2.0: 3rd habitation battery 160 Ah LFP |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB as well as comfort lights |
Roof AirCon, 2,400 W |
Water filter for fresh water system |
Toilet vent |
Heat exchanger pre-installation, Mercedes-Benz |
Heat exchanger for warm water heating |
Inverter 12 V to 230 V, 1,800 W with network priority circuit |
Gas-Warm water garage floor heating |
Multimedia |
---|
32" LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system with Bluetooth® (DVB-T / C, DVB-S2), electric bracket as well as receiver |
Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket |
Digital flat antenna, without receiver |
Digital satellite dish, 80 cm, without receiver |
Digital satellite dish, 80 cm, Twin LNB |
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Fabrics & Furniture finishes |
---|
Furniture finish: Velvet Ash |
Fabric combination: Porto |
Textile leather-/ fabric combination: Marquis |
Leather-/ Fabric combination: Tenerife |
Leather: Grigio |
Leather: Isola |
Carpet: Laguna |
Carpet: Samona |
Packages |
---|
Equipment Line Plus (B-ML I 880 / 890) |
Equipment Line Premium (B-ML I 880 / 890) |
Living Comfort package |
Autonomy package Lithium XL |
Arctic package SMART |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Parkpilot - rear parking aid |
Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm |
Replacement cartridge for water filter |
E-Bike Charger |
Pull-out loading box inside the double floor |
HYMER Anti-theft tracking device Protect & Connect |
Sun protection mat |
Standard equipment (B-ML I 880 / 890) |
---|
Attention Assist |
Active Lane Keeping Assist |
Rain sensor |
DAB Radio |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
9G-TRONIC automatic transmission incl. Hold function |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Electric parking brake |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
