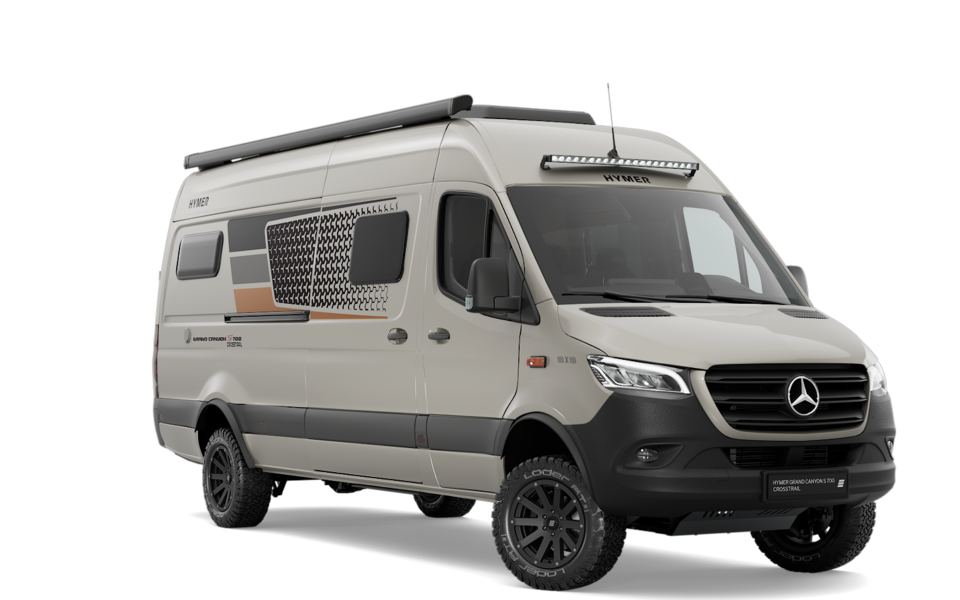

The new HYMER Grand Canyon S redefines self-sufficiency and makes it the standard. Built on the powerful Mercedes-Benz Sprinter, it will take you wherever you want to go – and beyond. A mobile base that suits your lifestyle perfectly: with unmistakable style, plenty of power and HYMER Connect as standard – for maximum freedom to go wherever you want and in style.
More comfortable, more functional and available with a larger hook-on table as an option. The new seating area adapts perfectly to your unique travel style.
A practical extension is available for the new kitchenette, giving you even more room to create culinary masterpieces on your holidays.
A comfortable bed at night – storage space during the day. Recharge your batteries for new adventures on the roll-up, full-length mattress.
You get to choose the backdrop for your adventures. It’s your experiences. It’s your choice. Make your very own motorhoming dream come true.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Pricing information:
Price a) | 97320 |
Chassis and engine:
Standard chassis | Mercedes-Benz Sprinter 315 CDI |
Drive | Rear Wheel Drive / All Wheel Drive (○) |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Tire size | 235/65 R16 C |
Vehicle dimensions:
Length / Width / Height (cm) | 593 / 206 / 276 |
Standing height in living area (cm) | 192 |
Wheelbase (mm) | 3665 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 2857 (2714 - 3000)* |
Manufacturer-specified mass for optional equipment (kg)* | 303 |
Technically permissible maximum laden mass (kg)* | 3500 |
Technically permissible maximum towable mass (kg)* | 3500 |
Permitted number of seats (including driver)* | 4 |
Technology:

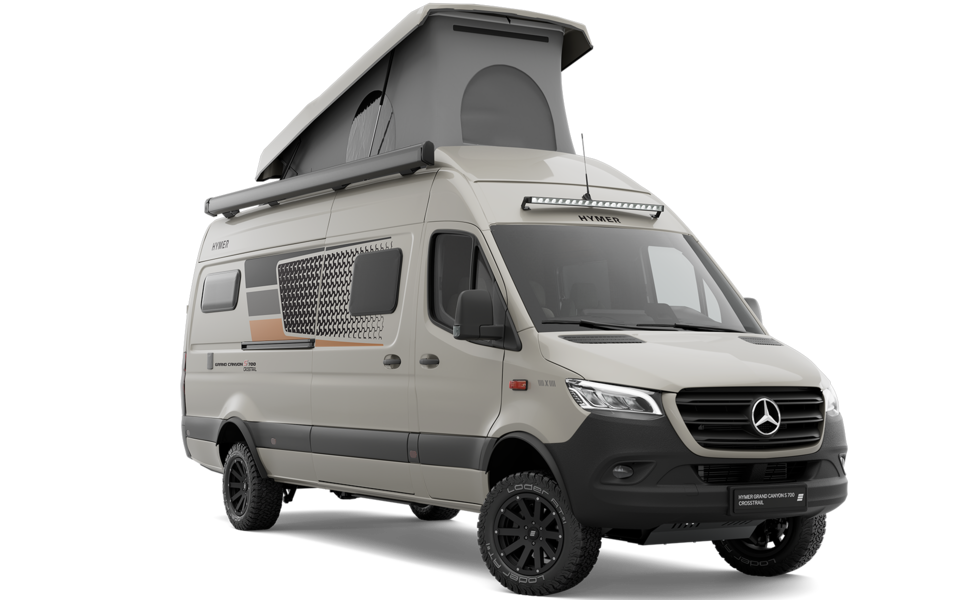

Roof type | Sleeping roof (○) |
Standard heating | Diesel warm air, 6 kW |
Gas bottle storage (Filling weight) | 1 x 6kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | 10 l |
Waste water tank (l) | 85 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 3 / 2 |
Interior:
Bed dimension: Rear bed L x W (cm) | 195 x 135 |
Bed dimension: Central bed L x W (cm) | 156 x 74 - 43 (○) |
Bed dimension: Sleeping roof L x W (cm) | 200 x 122 (○) |
Berths | 2 - 4 (○) |
Fridge volume (freezer compartment) (l) | 90 (6,5) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.5 t - 315 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|

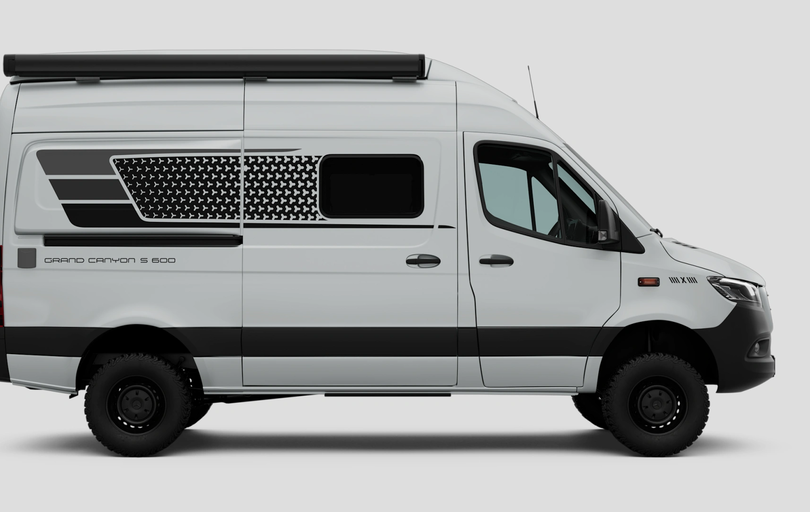

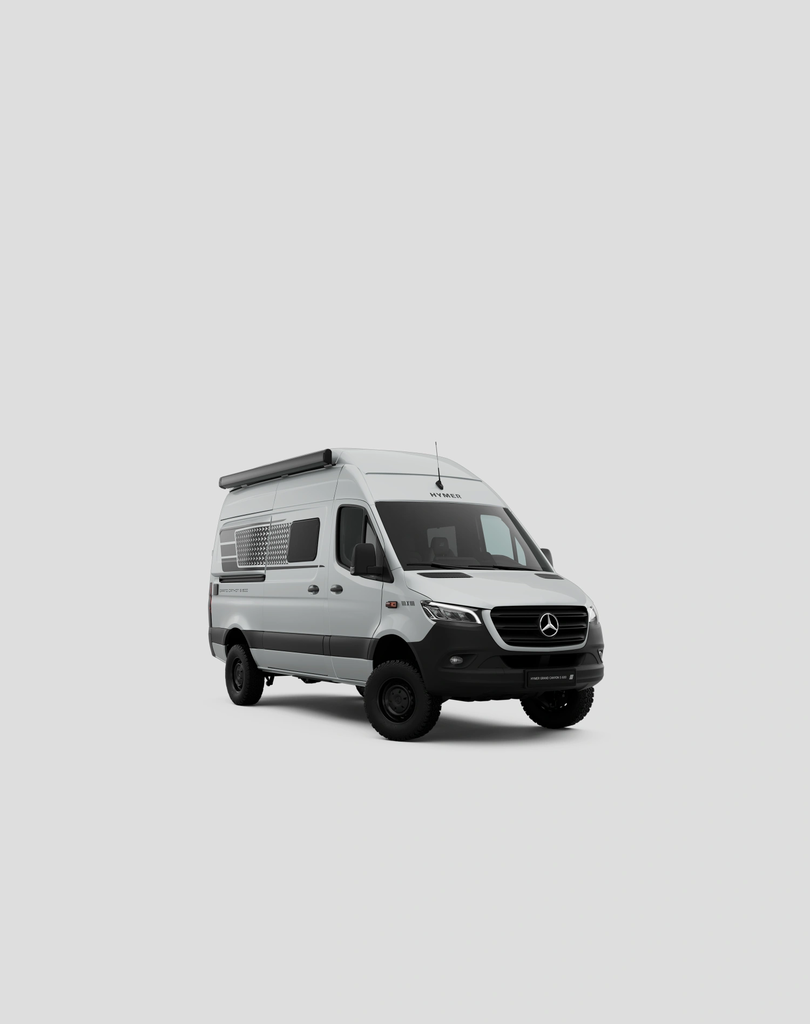

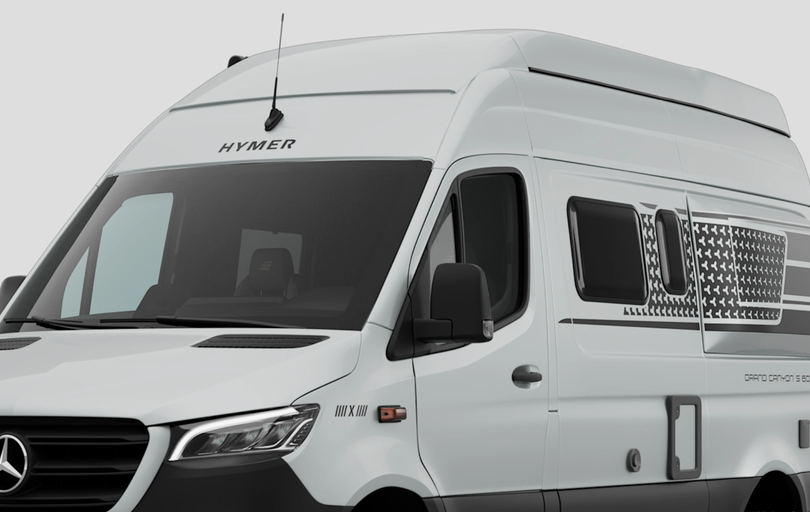

Exterior color: Arctic white |
6-speed manual transmission ECO Gear |
93 l fuel tank |
22 l AdBlue tank |
Adaptive Brake Light |
Automatic headlight control |
Exterior mirror electrically foldable |
Electrically adjustable and heated exterior mirrors |
Halogen H7 headlights in clear glass technology |
Comfort suspension chassis (vibration absorbers, stabilizers, shock absorbers) |
Side indicators in exterior mirrors |
Daytime Running Light integrated in headlights |
Trailer hitch pre-installation |
Windscreen made of laminated glass |
16" steel rims (silver) with wheel hub cover and All Season tires |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Belt warning device "Unfastened seat belt" |
Grab handle for entry, sliding door |
Keyless Start (start-stop button for comfortable engine start) |
Hinged lid for central storage compartment on the dashboard |
Steering wheel, height and tilt adjustable |
Open shelf cockpit passenger side |
Parameterisable special module for controlling retrofitted electronic add-on parts |
Sun visor for cab seats, swiveling |
Warm air auxiliary heating, electric |
Central locking with remote control |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Outside temperature display |
Hill Start Assist |
ECO Start-Stop feature |
Headlight range adjustment |
Crosswind Assist |
Power steering |
Body |
---|
Electric entrance step |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Expandable rear door opening |
Skylight in bathroom, 28 x 28 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Design graphics: Window filling Carbon (full-surface foiling around rear windows) |
Outfitting |
---|

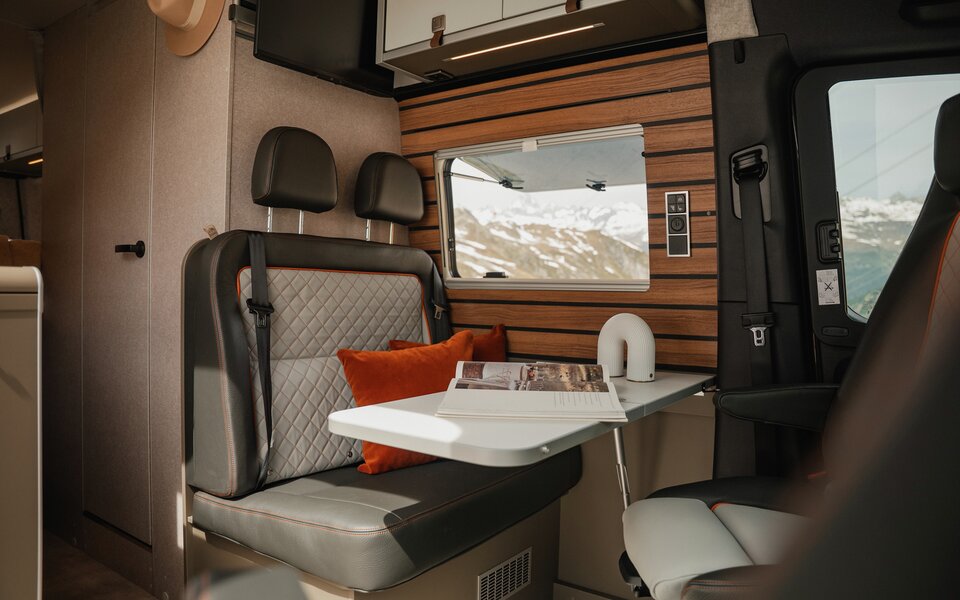

Mercedes-Benz Comfort seat in living area fabric, height- and tilt adjustable, rotating, with 2 armrests and integral look |
Front seating group with 2 integrated 3-point belts |
All overhead lockers with Soft-Close feature |
Comfort push locks with genuine leather loops on flaps and drawers |
Folding table with possibility to enlarge |
Pull-out bed climb incl. load compartment partition |
Mosquito net pleated blind for sliding door |
Pleated blackout cab blinds for front and side windows |
Mosquito net and blackout blinds on all windows in the body construction (except bathroom) |
Wall panel with multifunctional rail system at the seating group and kitchen for multiple use |
Lashing rails with 4 adjustable eyelets |
Living and bedroom + lighting |
---|
Side paneling in the bedroom with premium heat and sound-absorbing fabric lamination |
Innovative sleeping comfort mattress with integrated disc spring system |
Partitioning curtain between bed- and living room |
LED illumination, dimmable with touch control |
LED reading lights with touch controls (living area) |
Kitchen |
---|
Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap |
Deep drawers with Premium pull-outs incl. self-closing |
Kitchen drawer with Soft close feature and cutlery insert |
Expandable kitchen worktop |
90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode |
Bathroom |
---|
Compact bathroom with door |
Design folding washbasin (made of solid surface) |
Shower head holder with suction cup |
Cassette toilet with level indicator |
Mirror cabinet with vanity mirror |
Installation & Technology |
---|
6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit) |
Indoor temperature sensor |
LCD keypad for heating |
HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah) |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
7" touch display for convenient control and monitoring of smart vehicle features |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
100 l fresh water tank, internal (20 l in driving position) |
85 l waste water tank (fitted underfloor) |
Level indicator for fresh water as well as waste water tank |
Waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Audio pre-installation with 4 speakers |
Fabrics & Furniture finishes |
---|
Furniture finish: Ivy Green |
Fabric combination: Indiana |
Packages |
---|
Standard equipment |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.5 t - 317 CDI - 125 KW/170 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.5 t - 319 CDI - 141 KW/190 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 419 CDI - 141 KW/190 hp - Euro VI-E |
Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Downplating to 3.5 t (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Basis |
---|

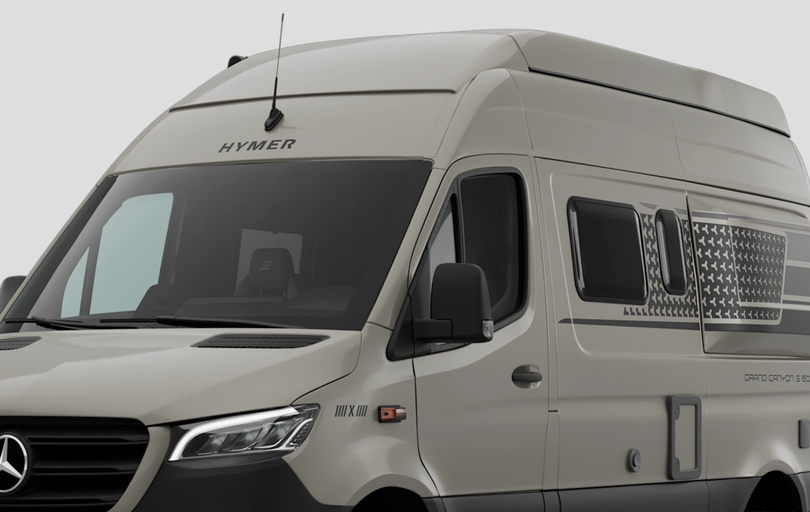

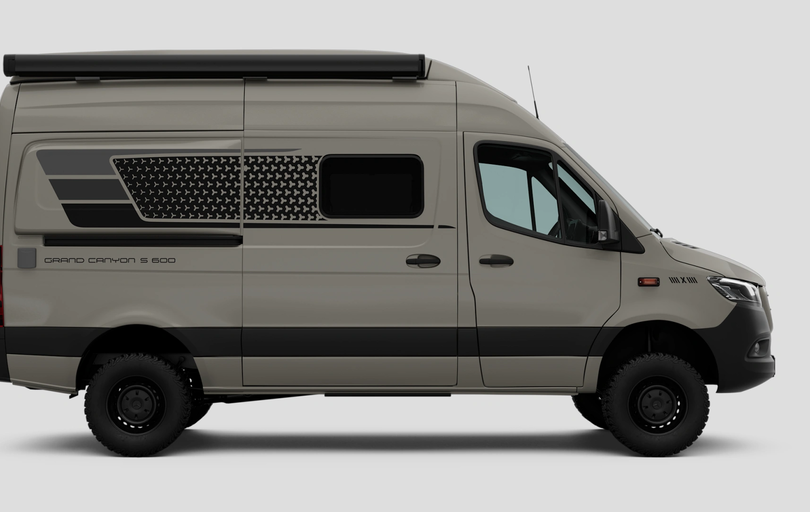

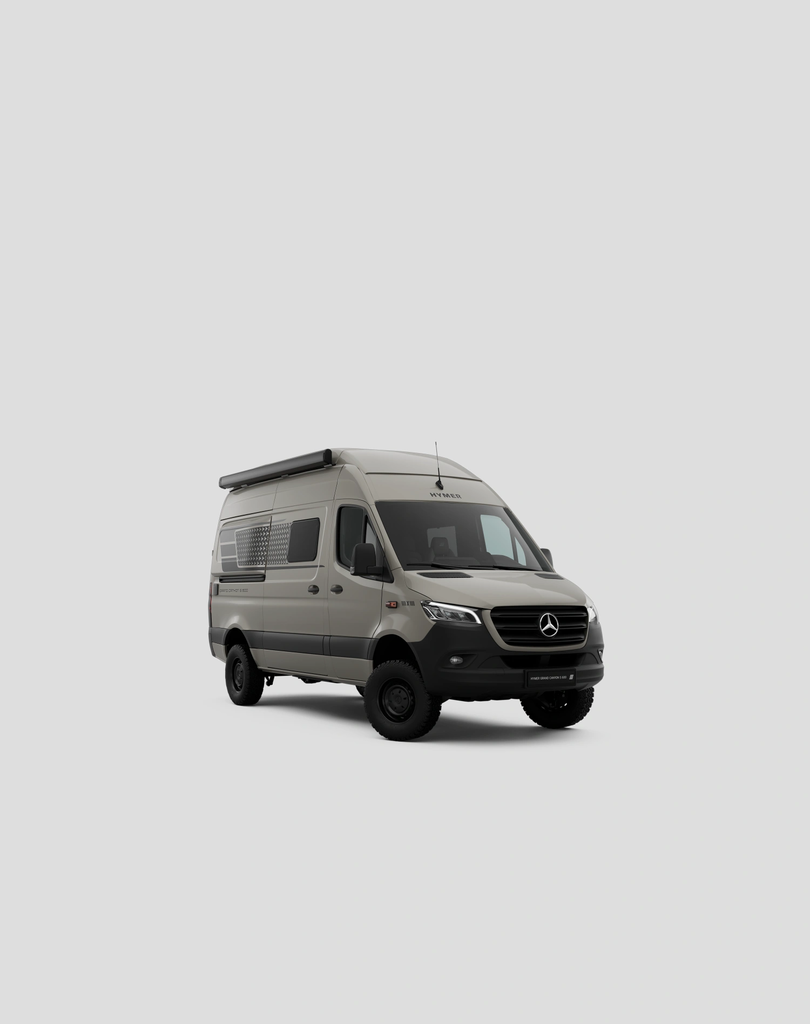

Pastel: Stone gray |
Pastel: Steel blue |

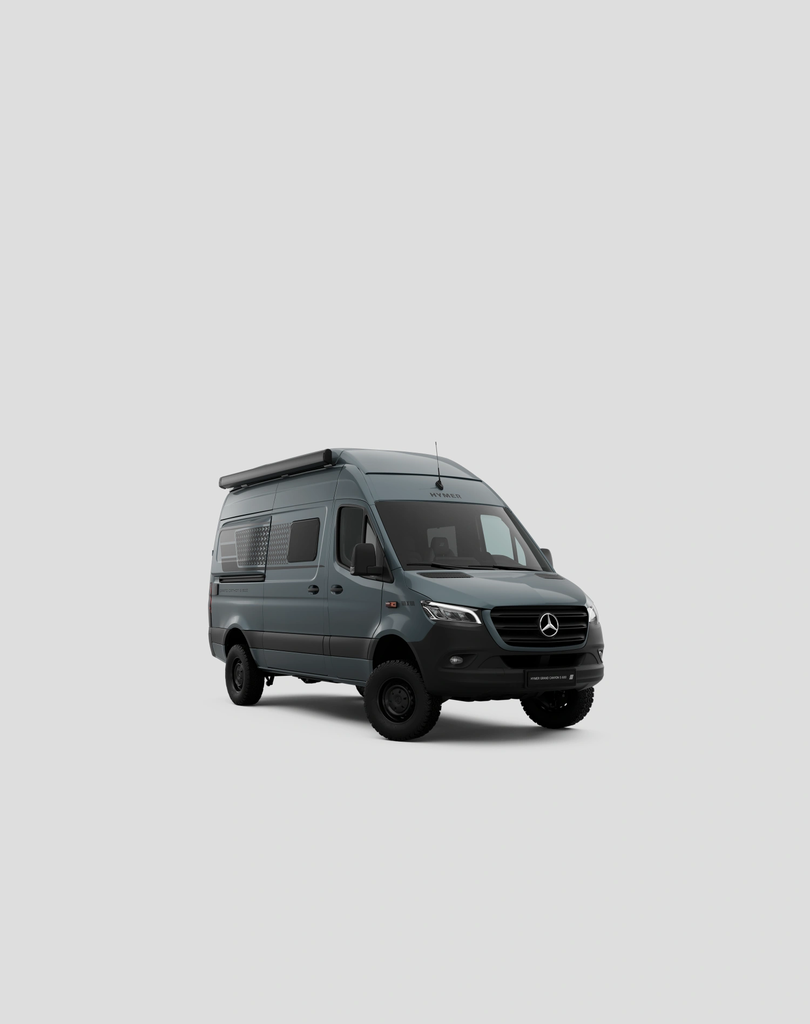

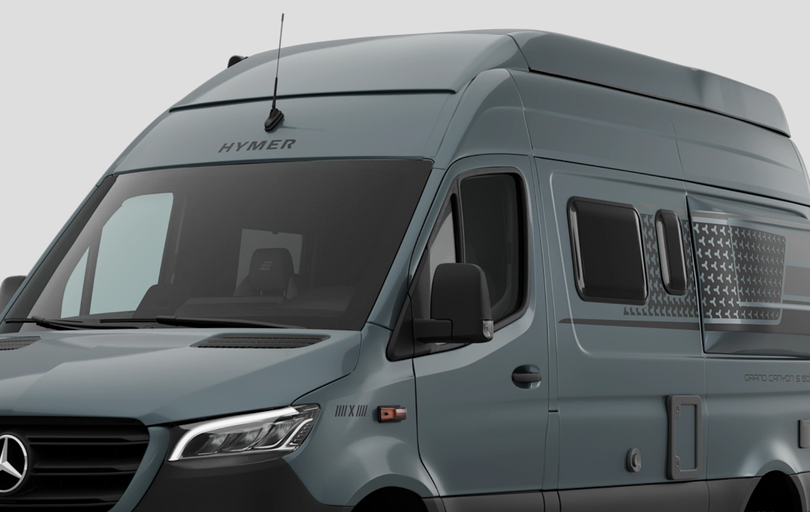

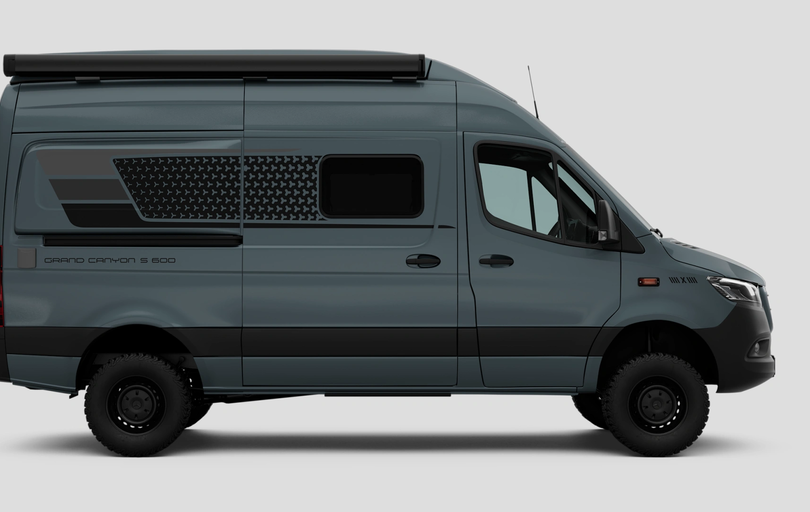

Pastel: Blue gray |

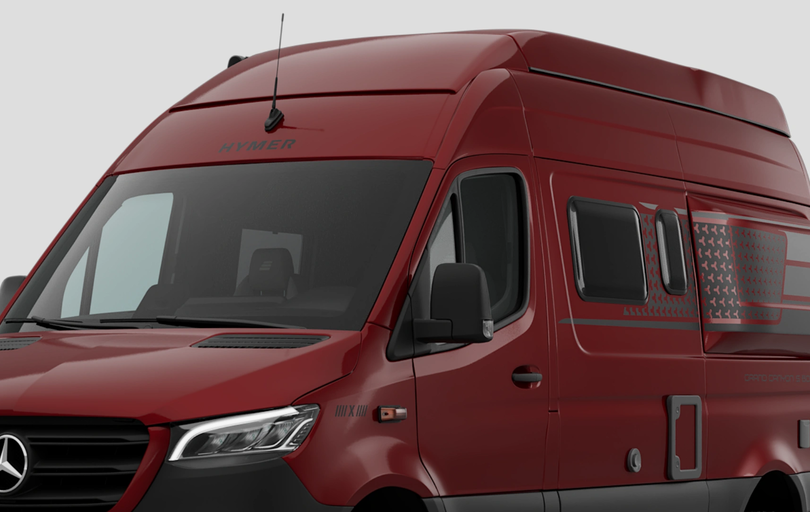

Pastel: Jupiter red |

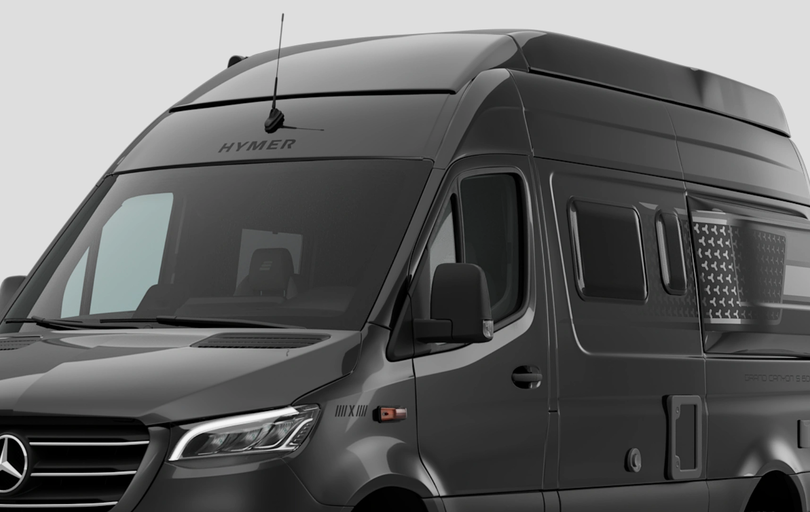

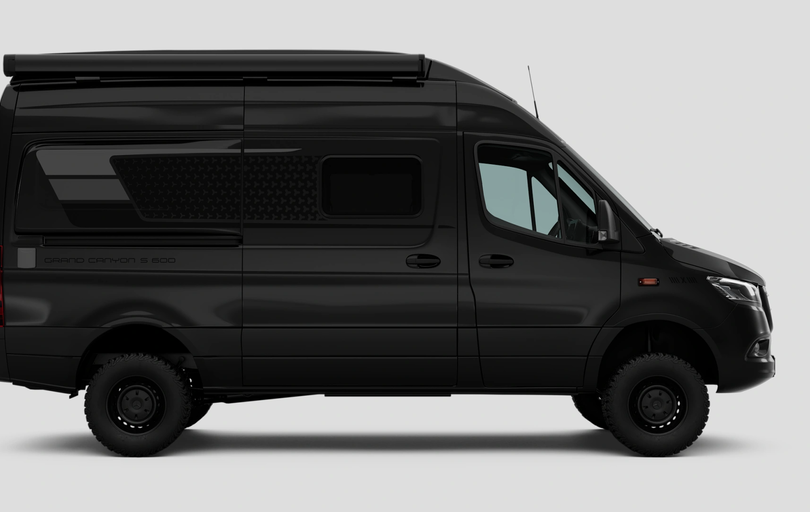

Metallic: Obsidian black |

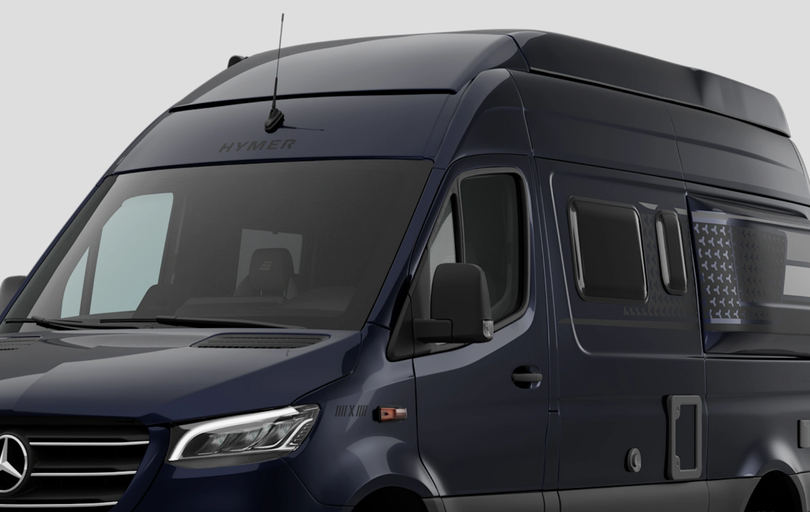

Metallic: Canvasite blue |

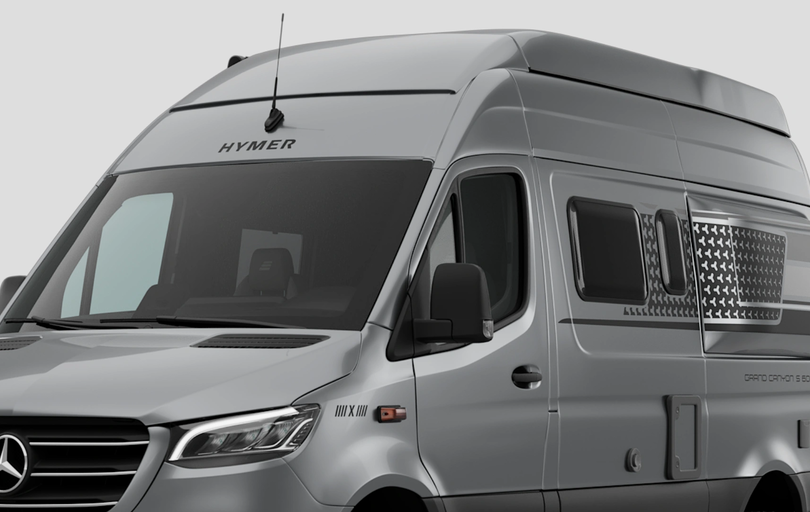

Metallic Hightech Silver |

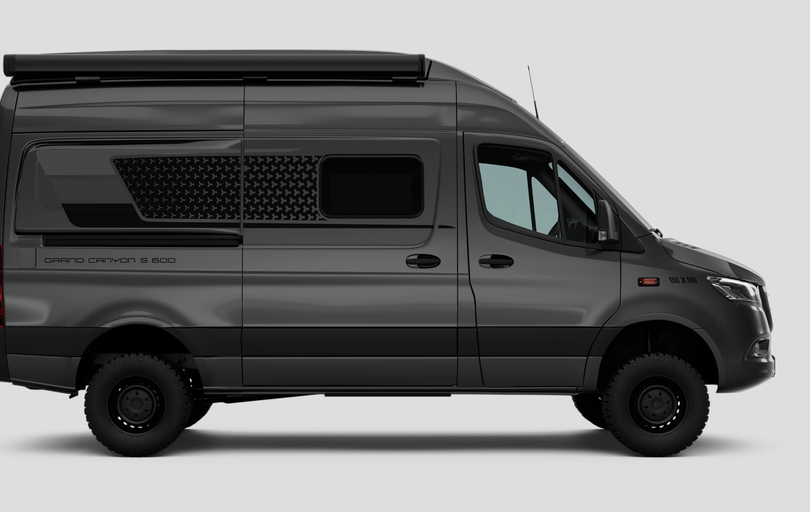

Metallic: Tenorite gray |
Permanent All Wheel Drive incl. LED rear lights |
9G-TRONIC automatic transmission incl. Hold function |
Weight saving with x19 engine and automatic transmission (- 9 kg) |
LED High-Performance headlights |
Trailer hitch, removable ball head (max. 2 t) |
Trailer hitch for increased trailer load, 2.8 t |
Trailer hitch for increased trailer load, 3.5 t (not available in combination with All Wheel Drive) |
Chrome grill |
Mercedes-Benz engine compartment insulation for noise reduction |
Fog lights with cornering light |
Heated windscreen |
Wet Wiper System (windscreen wiper with integrated spray nozzles) |
Front bumper as well as grill frame painted in vehicle color |
16" alloy wheels (silver) with All Season tires |
17" alloy wheels (silver) with summer tires |
16" steel rims (silver) with wheel hub cover and summer tires |
16" alloy rims (silver) with summer tires |
16" steel rim (black) with studded tires (All Terrain) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Electric sliding door incl. remote control, RH side |
Electric closing aid for sliding door, RH side |
Leather steering wheel (automatic transmission only) |
Leather steering wheel and gear knob lever (manual transmission only) |
Seat heating and lumbar support for Original Mercedes-Benz seats |
Fully automatic climate control THERMOTRONIC |
Warm water auxiliary heating (auxiliary parking heating) |
Remote control for warm water auxiliary heating |
Auxiliary heating (supports heating when heating up the vehicle) |
Downhill Speed Regulation (Offroad mode) |
High Beam Assist |
Blind Spot Assist |
Traffic Sign Assist |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Heat insulating cab |
Steering wheel heating |
Body |
---|

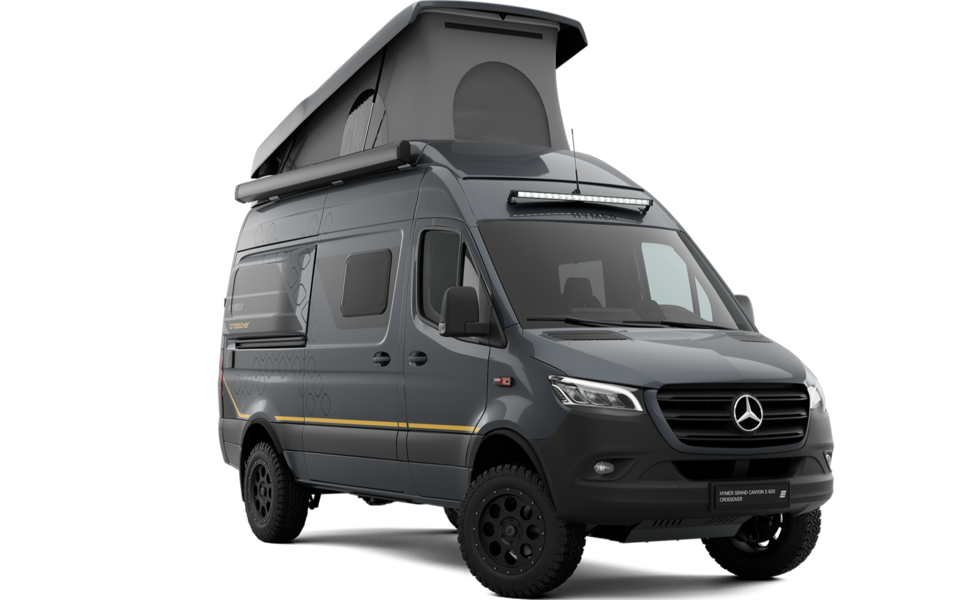

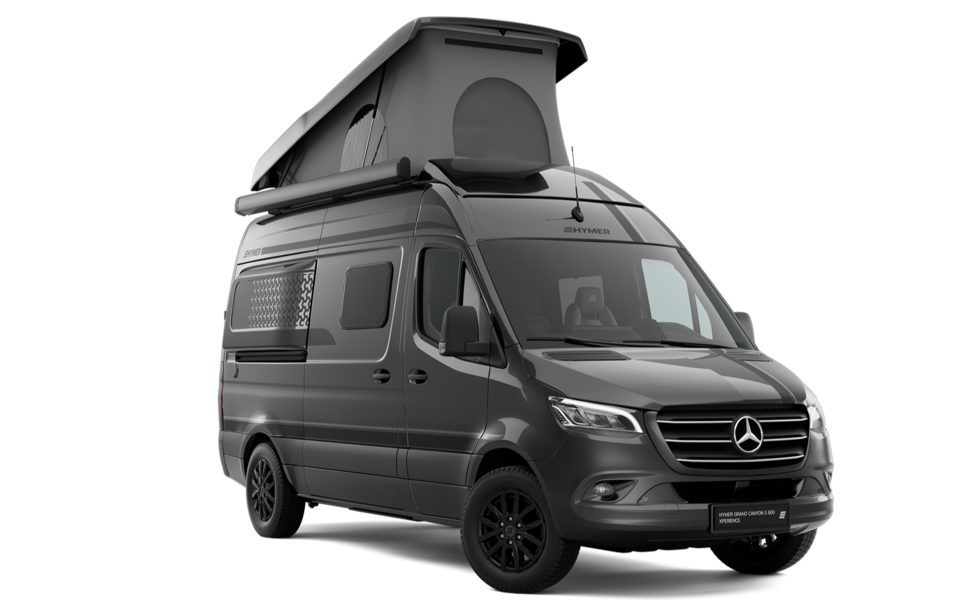

Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Awning (anthracite) with dimmable LED illumination and adapter, 325 x 250 cm |
Awning (anthracite) with dimmable LED-illumination and special adapter, 300 x 250 cm |
Engine / Underride protection |
Electric off-road step ( retractable) for more ground clearance |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Opening window incl. blackout blind and mosquito net, LH side, rear |
Design graphics: Carbonline (Carbon black filling) |
Design graphics: Window filling Carbon (full-surface foiling surrounding the side windows, LH and RH side) |
Outfitting |
---|
Lowerable seating group table variant for bed conversion |
Omission of rear transverse overhead lockers |
ISOFIX (child seat fixation for seat bench) |
2 folding chairs and table, incl. fixation |
Living and bedroom + lighting |
---|
Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls) |
Bed conversion for seating group incl. additional cushion |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Fitted sheets made to measure for rear beds individually adapted to mattress |
Living style collection "HOME" (2 cushions as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
1,800 W electric bar heater (for 6 kW Diesel warm air heating) |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity) |
HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah) |
Solar panel with solar charge controller (MPPT) and display, 1 x 95 W |
Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 95 W |
Water filter for fresh water system |
HYMER Smart Battery System 2.0 - additional 3 x 80 Ah LFP (overall capacity 320 Ah) |
Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger |
Multimedia |
---|
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Parking package with 360° camera |
HYMER Premium Sound system incl. subwoofer |
TV pre-installation with DVB-T aerial (active) |
22" Smart-LED-TV with built-in speakers, remote control, DVD drive |
Fabrics & Furniture finishes |
---|
Furniture finish: Pearl Gray |
Fabric combination: Gomera |
Textile leather-/ fabric combination: Marquis |
Leather / fabric combination: Moreno |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Equipment Line Plus |
Equipment Line Premium |
Autonomy package LFP (GCS 600) |
Autonomy package LFP (GCS 600 - for sleeping roof) |
Winter package |
Style package |
Living Comfort package GCS |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Pop-top roof insulation |
External insulation |
Sun protection mat |
Thermal insulation kit for rear doors |
Mosquito nets for the rear doors |
Seat console safe passenger seat |
Filzboxen für das Heck |
Cot |
Tablet holder |
Spice rack |
Herb pot |
Universal shelf |
Kitchen roll holder |
Replacement cartridge for water filter |
Tire pressure sensor |
Contact sensor |
Temperature and humidity sensor |
Gas level sensor |
Steel adapter for aluminum gas bottles |
Standard equipment |
---|
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
Electric parking brake |
Active Lane Keeping Assist |
Rain sensor |
Attention Assist |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Heat-insulating glass with tinting strip on windscreen |
DAB Radio |
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Pricing information:
Price a) | 97320 |
Chassis and engine:
Standard chassis | Mercedes-Benz Sprinter 315 CDI |
Drive | Rear Wheel Drive / All Wheel Drive (○) |
kW (hp) | 110 (150) |
Emission standards | Euro VI-E |
Tire size | 235/65 R16 C |
Vehicle dimensions:
Length / Width / Height (cm) | 593 / 206 / 276 |
Standing height in living area (cm) | 192 |
Wheelbase (mm) | 3665 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 2857 (2714 - 3000)* |
Manufacturer-specified mass for optional equipment (kg)* | 303 |
Technically permissible maximum laden mass (kg)* | 3500 |
Technically permissible maximum towable mass (kg)* | 3500 |
Permitted number of seats (including driver)* | 4 |
Technology:
Roof type | Sleeping roof (○) |
Standard heating | Diesel warm air, 6 kW |
Gas bottle storage (Filling weight) | 1 x 6kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | 10 l |
Waste water tank (l) | 85 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 3 / 2 |
Interior:
Bed dimension: Rear bed L x W (cm) | 195 x 135 |
Bed dimension: Central bed L x W (cm) | 156 x 74 - 43 (○) |
Bed dimension: Sleeping roof L x W (cm) | 200 x 122 (○) |
Berths | 2 - 4 (○) |
Fridge volume (freezer compartment) (l) | 90 (6,5) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.5 t - 315 CDI - 110 KW/150 hp - Euro VI-E |
Basis |
---|
Exterior color: Arctic white |
6-speed manual transmission ECO Gear |
93 l fuel tank |
22 l AdBlue tank |
Adaptive Brake Light |
Automatic headlight control |
Exterior mirror electrically foldable |
Electrically adjustable and heated exterior mirrors |
Halogen H7 headlights in clear glass technology |
Comfort suspension chassis (vibration absorbers, stabilizers, shock absorbers) |
Side indicators in exterior mirrors |
Daytime Running Light integrated in headlights |
Trailer hitch pre-installation |
Windscreen made of laminated glass |
16" steel rims (silver) with wheel hub cover and All Season tires |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Belt warning device "Unfastened seat belt" |
Grab handle for entry, sliding door |
Keyless Start (start-stop button for comfortable engine start) |
Hinged lid for central storage compartment on the dashboard |
Steering wheel, height and tilt adjustable |
Open shelf cockpit passenger side |
Parameterisable special module for controlling retrofitted electronic add-on parts |
Sun visor for cab seats, swiveling |
Warm air auxiliary heating, electric |
Central locking with remote control |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Outside temperature display |
Hill Start Assist |
ECO Start-Stop feature |
Headlight range adjustment |
Crosswind Assist |
Power steering |
Body |
---|
Electric entrance step |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Expandable rear door opening |
Skylight in bathroom, 28 x 28 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Design graphics: Window filling Carbon (full-surface foiling around rear windows) |
Outfitting |
---|
Mercedes-Benz Comfort seat in living area fabric, height- and tilt adjustable, rotating, with 2 armrests and integral look |
Front seating group with 2 integrated 3-point belts |
All overhead lockers with Soft-Close feature |
Comfort push locks with genuine leather loops on flaps and drawers |
Folding table with possibility to enlarge |
Pull-out bed climb incl. load compartment partition |
Mosquito net pleated blind for sliding door |
Pleated blackout cab blinds for front and side windows |
Mosquito net and blackout blinds on all windows in the body construction (except bathroom) |
Wall panel with multifunctional rail system at the seating group and kitchen for multiple use |
Lashing rails with 4 adjustable eyelets |
Living and bedroom + lighting |
---|
Side paneling in the bedroom with premium heat and sound-absorbing fabric lamination |
Innovative sleeping comfort mattress with integrated disc spring system |
Partitioning curtain between bed- and living room |
LED illumination, dimmable with touch control |
LED reading lights with touch controls (living area) |
Kitchen |
---|
Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap |
Deep drawers with Premium pull-outs incl. self-closing |
Kitchen drawer with Soft close feature and cutlery insert |
Expandable kitchen worktop |
90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode |
Bathroom |
---|
Compact bathroom with door |
Design folding washbasin (made of solid surface) |
Shower head holder with suction cup |
Cassette toilet with level indicator |
Mirror cabinet with vanity mirror |
Installation & Technology |
---|
6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit) |
Indoor temperature sensor |
LCD keypad for heating |
HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah) |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
7" touch display for convenient control and monitoring of smart vehicle features |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
100 l fresh water tank, internal (20 l in driving position) |
85 l waste water tank (fitted underfloor) |
Level indicator for fresh water as well as waste water tank |
Waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Audio pre-installation with 4 speakers |
Fabrics & Furniture finishes |
---|
Furniture finish: Ivy Green |
Fabric combination: Indiana |
Packages |
---|
Standard equipment |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.5 t - 317 CDI - 125 KW/170 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.5 t - 319 CDI - 141 KW/190 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 415 CDI - 110 KW/150 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Mercedes-Benz Sprinter 3.88 t - 419 CDI - 141 KW/190 hp - Euro VI-E |
Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Downplating to 3.5 t (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Basis |
---|
Pastel: Stone gray |
Pastel: Steel blue |
Pastel: Blue gray |
Pastel: Jupiter red |
Metallic: Obsidian black |
Metallic: Canvasite blue |
Metallic Hightech Silver |
Metallic: Tenorite gray |
Permanent All Wheel Drive incl. LED rear lights |
9G-TRONIC automatic transmission incl. Hold function |
Weight saving with x19 engine and automatic transmission (- 9 kg) |
LED High-Performance headlights |
Trailer hitch, removable ball head (max. 2 t) |
Trailer hitch for increased trailer load, 2.8 t |
Trailer hitch for increased trailer load, 3.5 t (not available in combination with All Wheel Drive) |
Chrome grill |
Mercedes-Benz engine compartment insulation for noise reduction |
Fog lights with cornering light |
Heated windscreen |
Wet Wiper System (windscreen wiper with integrated spray nozzles) |
Front bumper as well as grill frame painted in vehicle color |
16" alloy wheels (silver) with All Season tires |
17" alloy wheels (silver) with summer tires |
16" steel rims (silver) with wheel hub cover and summer tires |
16" alloy rims (silver) with summer tires |
16" steel rim (black) with studded tires (All Terrain) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Electric sliding door incl. remote control, RH side |
Electric closing aid for sliding door, RH side |
Leather steering wheel (automatic transmission only) |
Leather steering wheel and gear knob lever (manual transmission only) |
Seat heating and lumbar support for Original Mercedes-Benz seats |
Fully automatic climate control THERMOTRONIC |
Warm water auxiliary heating (auxiliary parking heating) |
Remote control for warm water auxiliary heating |
Auxiliary heating (supports heating when heating up the vehicle) |
Downhill Speed Regulation (Offroad mode) |
High Beam Assist |
Blind Spot Assist |
Traffic Sign Assist |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Heat insulating cab |
Steering wheel heating |
Body |
---|
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Awning (anthracite) with dimmable LED illumination and adapter, 325 x 250 cm |
Awning (anthracite) with dimmable LED-illumination and special adapter, 300 x 250 cm |
Engine / Underride protection |
Electric off-road step ( retractable) for more ground clearance |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Opening window incl. blackout blind and mosquito net, LH side, rear |
Design graphics: Carbonline (Carbon black filling) |
Design graphics: Window filling Carbon (full-surface foiling surrounding the side windows, LH and RH side) |
Outfitting |
---|
Lowerable seating group table variant for bed conversion |
Omission of rear transverse overhead lockers |
ISOFIX (child seat fixation for seat bench) |
2 folding chairs and table, incl. fixation |
Living and bedroom + lighting |
---|
Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls) |
Bed conversion for seating group incl. additional cushion |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Fitted sheets made to measure for rear beds individually adapted to mattress |
Living style collection "HOME" (2 cushions as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
1,800 W electric bar heater (for 6 kW Diesel warm air heating) |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity) |
HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah) |
Solar panel with solar charge controller (MPPT) and display, 1 x 95 W |
Solar panel with solar charge controller (MPPT) and display for sleeping roof, 2 x 95 W |
Water filter for fresh water system |
HYMER Smart Battery System 2.0 - additional 3 x 80 Ah LFP (overall capacity 320 Ah) |
Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger |
Multimedia |
---|
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Parking package with 360° camera |
HYMER Premium Sound system incl. subwoofer |
TV pre-installation with DVB-T aerial (active) |
22" Smart-LED-TV with built-in speakers, remote control, DVD drive |
Fabrics & Furniture finishes |
---|
Furniture finish: Pearl Gray |
Fabric combination: Gomera |
Textile leather-/ fabric combination: Marquis |
Leather / fabric combination: Moreno |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Equipment Line Plus |
Equipment Line Premium |
Autonomy package LFP (GCS 600) |
Autonomy package LFP (GCS 600 - for sleeping roof) |
Winter package |
Style package |
Living Comfort package GCS |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Services |
---|
12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to |
Hymer Original Parts |
---|
Pop-top roof insulation |
External insulation |
Sun protection mat |
Thermal insulation kit for rear doors |
Mosquito nets for the rear doors |
Seat console safe passenger seat |
Filzboxen für das Heck |
Cot |
Tablet holder |
Spice rack |
Herb pot |
Universal shelf |
Kitchen roll holder |
Replacement cartridge for water filter |
Tire pressure sensor |
Contact sensor |
Temperature and humidity sensor |
Gas level sensor |
Steel adapter for aluminum gas bottles |
Standard equipment |
---|
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Semi-automatic climate control TEMPMATIC |
Electric parking brake |
Active Lane Keeping Assist |
Rain sensor |
Attention Assist |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Heat-insulating glass with tinting strip on windscreen |
DAB Radio |
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Pricing information:
Price a) | 101500 |
Chassis and engine:
Standard chassis | Mercedes-Benz Sprinter 417 CDI |
Drive | Rear Wheel Drive / All Wheel Drive (○) |
kW (hp) | 125 (170) |
Emission standards | Euro VI-E |
Tire size | 235/65 R16 C |
Vehicle dimensions:
Length / Width / Height (cm) | 697 / 206 / 276 |
Standing height in living area (cm) | 192 |
Wheelbase (mm) | 4325 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 3160 (3002 - 3318)* |
Manufacturer-specified mass for optional equipment (kg)* | 365 |
Technically permissible maximum laden mass (kg)* | 3880 |
Technically permissible maximum towable mass (kg)* | 3500 |
Permitted number of seats (including driver)* | 4 |
Technology:
Roof type | Sleeping roof (○) |
Standard heating | Diesel warm air, 6 kW |
Gas bottle storage (Filling weight) | 1 x 6kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | 10 l |
Waste water tank (l) | 85 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 3 / 2 |
Interior:
Bed dimension: Rear bed L x W (cm) | 200 x 168 |
Bed dimension: Central bed L x W (cm) | 156 x 74 - 43 (○) |
Bed dimension: Sleeping roof L x W (cm) | 200 x 122 (○) |
Berths | 2 - 4 (○) |
Fridge volume (freezer compartment) (l) | 90 (6,5) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.88 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Basis |
---|
Exterior color: Arctic white |
6-speed manual transmission ECO Gear |
93 l fuel tank |
22 l AdBlue tank |
Adaptive Brake Light |
Automatic headlight control |
Exterior mirror electrically foldable |
Electrically adjustable and heated exterior mirrors |
Halogen H7 headlights in clear glass technology |
Comfort suspension chassis (vibration absorbers, stabilizers, shock absorbers) |
Side indicators in exterior mirrors |
Daytime Running Light integrated in headlights |
Trailer hitch pre-installation |
Windscreen made of laminated glass |
16" steel rims (silver) with wheel hub cover and All Season tires |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Belt warning device "Unfastened seat belt" |
Grab handle for entry, sliding door |
Keyless Start (start-stop button for comfortable engine start) |
Hinged lid for central storage compartment on the dashboard |
Steering wheel, height and tilt adjustable |
Open shelf cockpit passenger side |
Parameterisable special module for controlling retrofitted electronic add-on parts |
Sun visor for cab seats, swiveling |
Warm air auxiliary heating, electric |
Central locking with remote control |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Outside temperature display |
Hill Start Assist |
ECO Start-Stop feature |
Headlight range adjustment |
Crosswind Assist |
Power steering |
Body |
---|
Electric entrance step |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Expandable rear door opening |
Skylight in bathroom, 28 x 28 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in kitchen, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Design graphics: Window filling Carbon (full-surface foiling around rear windows) |
Outfitting |
---|
Mercedes-Benz Comfort seat in living area fabric, height- and tilt adjustable, rotating, with 2 armrests and integral look |
Front seating group with 2 integrated 3-point belts |
All overhead lockers with Soft-Close feature |
Comfort push locks with genuine leather loops on flaps and drawers |
Folding table with possibility to enlarge |
Pull-out bed climb incl. load compartment partition |
Mosquito net pleated blind for sliding door |
Pleated blackout cab blinds for front and side windows |
Mosquito net and blackout blinds on all windows in the body construction (except bathroom) |
Wall panel with multifunctional rail system at the seating group and kitchen for multiple use |
Lashing rails with 4 adjustable eyelets |
Living and bedroom + lighting |
---|
Side paneling in the bedroom with premium heat and sound-absorbing fabric lamination |
Innovative sleeping comfort mattress with integrated disc spring system |
Partitioning curtain between bed- and living room |
LED illumination, dimmable with touch control |
LED reading lights with touch controls (living area) |
Kitchen |
---|
Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap |
Deep drawers with Premium pull-outs incl. self-closing |
Kitchen drawer with Soft close feature and cutlery insert |
Expandable kitchen worktop |
90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode |
Bathroom |
---|
Variable bathroom with swivel wall |
Design folding washbasin (made of solid surface) |
Shower head holder with suction cup |
Cassette toilet with level indicator |
Installation & Technology |
---|
6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit) |
Indoor temperature sensor |
LCD keypad for heating |
HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah) |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
7" touch display for convenient control and monitoring of smart vehicle features |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
100 l fresh water tank, internal (20 l in driving position) |
85 l waste water tank (fitted underfloor) |
Level indicator for fresh water as well as waste water tank |
Waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Audio pre-installation with 4 speakers |
Fabrics & Furniture finishes |
---|
Furniture finish: Ivy Green |
Fabric combination: Indiana |
Packages |
---|
Standard equipment |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.88 t - 419 CDI - 141 KW/190 hp - Euro VI-E |
Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Downplating to 3.5 t (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Basis |
---|
Pastel: Stone gray |
Pastel: Steel blue |
Pastel: Blue gray |
Pastel: Jupiter red |
Metallic: Obsidian black |
Metallic: Canvasite blue |

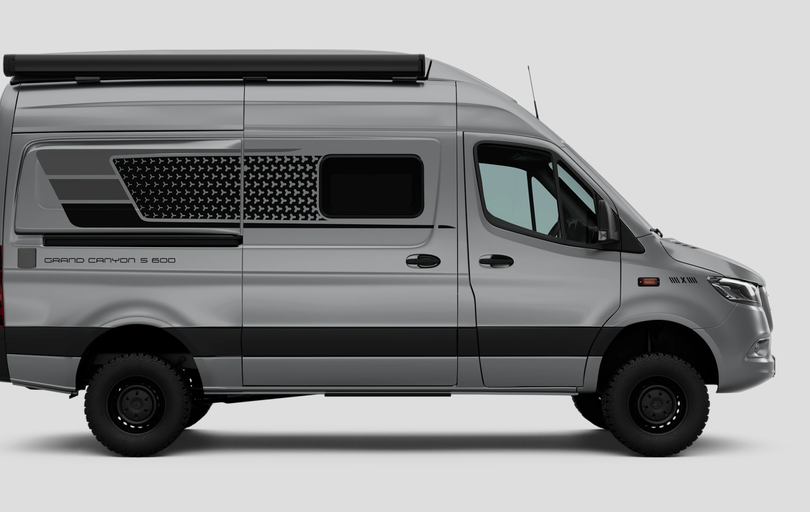

Metallic Hightech Silver |

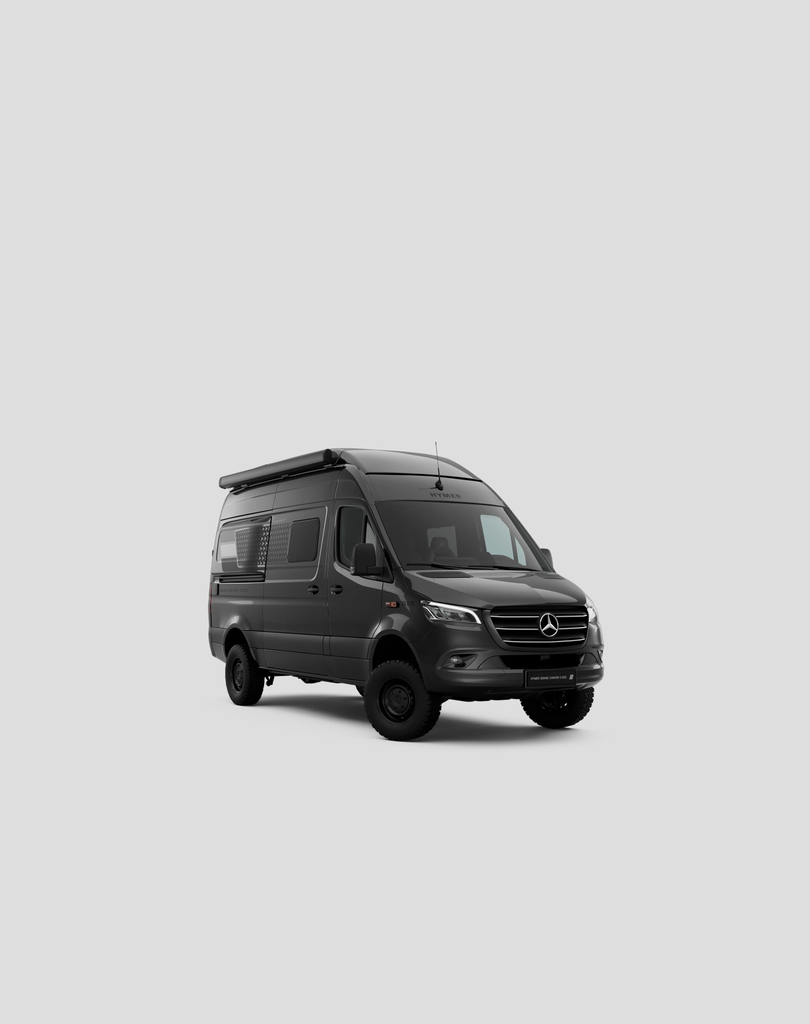

Metallic: Tenorite gray |
Permanent All Wheel Drive incl. LED rear lights |
9G-TRONIC automatic transmission incl. Hold function |
Weight saving with x19 engine and automatic transmission (- 9 kg) |
LED High-Performance headlights |
Trailer hitch, removable ball head (max. 2 t) |
Trailer hitch for increased trailer load, 2.8 t |
Trailer hitch for increased trailer load, 3.5 t (not available in combination with All Wheel Drive) |
Chrome grill |
Mercedes-Benz engine compartment insulation for noise reduction |
Fog lights with cornering light |
Heated windscreen |
Wet Wiper System (windscreen wiper with integrated spray nozzles) |
Front bumper as well as grill frame painted in vehicle color |
16" alloy wheels (silver) with All Season tires |
17" alloy wheels (silver) with summer tires |
16" steel rims (silver) with wheel hub cover and summer tires |
16" alloy rims (silver) with summer tires |
16" steel rim (black) with studded tires (All Terrain) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Electric sliding door incl. remote control, RH side |
Electric closing aid for sliding door, RH side |
Leather steering wheel (automatic transmission only) |
Leather steering wheel and gear knob lever (manual transmission only) |
Seat heating and lumbar support for Original Mercedes-Benz seats |
Fully automatic climate control THERMOTRONIC |
Warm water auxiliary heating (auxiliary parking heating) |
Remote control for warm water auxiliary heating |
Auxiliary heating (supports heating when heating up the vehicle) |
Downhill Speed Regulation (Offroad mode) |
High Beam Assist |
Blind Spot Assist |
Traffic Sign Assist |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Heat insulating cab |
Steering wheel heating |
Body |
---|
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Awning (anthracite) with dimmable LED-illumination and adapter, 425 x 250 cm |
Awning (anthracite) with dimmable LED-illumination and special adapter, 400 x 250 cm |
Engine / Underride protection |
Electric off-road step ( retractable) for more ground clearance |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Design graphics: Carbonline (Carbon black filling) |
Design graphics: Window filling Black (full-surface foiling around windows, LH and RH windows as well as rear doors) |
Outfitting |
---|
Lowerable seating group table variant for bed conversion |
Omission of rear transverse overhead lockers |
ISOFIX (child seat fixation for seat bench) |
2 folding chairs and table, incl. fixation |
External shower (located at the rear of the vehicle) |
Living and bedroom + lighting |
---|
Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls) |
Bed conversion for seating group incl. additional cushion |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Fitted sheets made to measure for rear beds individually adapted to mattress |
Living style collection "HOME" (2 cushions as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
1,800 W electric bar heater (for 6 kW Diesel warm air heating) |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity) |
HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah) |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Water filter for fresh water system |
HYMER Smart Battery System 2.0 - additional 3 x 80 Ah LFP (overall capacity 320 Ah) |
Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger |
Multimedia |
---|
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Parking package with 360° camera |
HYMER Premium Sound system incl. subwoofer |
TV pre-installation with DVB-T aerial (active) |
22" Smart-LED-TV with built-in speakers, remote control, DVD drive |
Fabrics & Furniture finishes |
---|
Furniture finish: Pearl Gray |
Fabric combination: Gomera |
Textile leather-/ fabric combination: Marquis |
Leather / fabric combination: Moreno |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Equipment Line Plus |
Equipment Line Premium |
Autonomy package LFP (GCS 700) |
Winter package |
Style package |
Living Comfort package GCS |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Parts |
---|
Pop-top roof insulation |
External insulation |
Sun protection mat |
Thermal insulation kit for rear doors |
Mosquito nets for the rear doors |
Seat console safe passenger seat |
Cot |
Tablet holder |
Spice rack |
Herb pot |
Universal shelf |
Kitchen roll holder |
Replacement cartridge for water filter |
Tire pressure sensor |
Contact sensor |
Temperature and humidity sensor |
Gas level sensor |
Steel adapter for aluminum gas bottles |
Standard equipment |
---|
Semi-automatic climate control TEMPMATIC |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Electric parking brake |
Active Lane Keeping Assist |
Rain sensor |
Attention Assist |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Heat-insulating glass with tinting strip on windscreen |
DAB Radio |
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
Pricing information:
Price a) | 101500 |
Chassis and engine:
Standard chassis | Mercedes-Benz Sprinter 417 CDI |
Drive | Rear Wheel Drive / All Wheel Drive (○) |
kW (hp) | 125 (170) |
Emission standards | Euro VI-E |
Tire size | 235/65 R16 C |
Vehicle dimensions:
Length / Width / Height (cm) | 697 / 206 / 276 |
Standing height in living area (cm) | 192 |
Wheelbase (mm) | 4325 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 3160 (3002 - 3318)* |
Manufacturer-specified mass for optional equipment (kg)* | 365 |
Technically permissible maximum laden mass (kg)* | 3880 |
Technically permissible maximum towable mass (kg)* | 3500 |
Permitted number of seats (including driver)* | 4 |
Technology:
Roof type | Sleeping roof (○) |
Standard heating | Diesel warm air, 6 kW |
Gas bottle storage (Filling weight) | 1 x 6kg |
Total fresh water tank capacity (l) | 100 |
Fresh water tank in driving filling level (l) | 20 |
Warm water tank (l) | 10 l |
Waste water tank (l) | 85 |
Standard habitation battery | 80 Ah (LFP) |
Sockets: 230 V/ 12 V/ USB | 4 / 3 / 2 |
Interior:
Bed dimension: Rear bed L x W (cm) | 200 x 168 |
Bed dimension: Central bed L x W (cm) | 156 x 74 - 43 (○) |
Bed dimension: Sleeping roof L x W (cm) | 200 x 122 (○) |
Berths | 2 - 4 (○) |
Fridge volume (freezer compartment) (l) | 90 (6,5) |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.88 t - 417 CDI - 125 KW/170 hp - Euro VI-E |
Basis |
---|
Exterior color: Arctic white |
6-speed manual transmission ECO Gear |
93 l fuel tank |
22 l AdBlue tank |
Adaptive Brake Light |
Automatic headlight control |
Exterior mirror electrically foldable |
Electrically adjustable and heated exterior mirrors |
Halogen H7 headlights in clear glass technology |
Comfort suspension chassis (vibration absorbers, stabilizers, shock absorbers) |
Side indicators in exterior mirrors |
Daytime Running Light integrated in headlights |
Trailer hitch pre-installation |
Windscreen made of laminated glass |
16" steel rims (silver) with wheel hub cover and All Season tires |
Electric cab windows |
Electric immobilizer |
Driver and passenger airbag |
Belt warning device "Unfastened seat belt" |
Grab handle for entry, sliding door |
Keyless Start (start-stop button for comfortable engine start) |
Hinged lid for central storage compartment on the dashboard |
Steering wheel, height and tilt adjustable |
Open shelf cockpit passenger side |
Parameterisable special module for controlling retrofitted electronic add-on parts |
Sun visor for cab seats, swiveling |
Warm air auxiliary heating, electric |
Central locking with remote control |
ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program) |
Active Brake Assist |
Outside temperature display |
Hill Start Assist |
ECO Start-Stop feature |
Headlight range adjustment |
Crosswind Assist |
Power steering |
Body |
---|
Electric entrance step |
Optimal heat and noise insulation thanks to 16 mm closed-cell polyethylene foam in the wall area and 23 mm XPS insulation in the roof area |
Insulated floor |
Expandable rear door opening |
Skylight in bathroom, 28 x 28 cm |
Skylight in bedroom, 40 x 40 cm |
Skylight in kitchen, 40 x 40 cm |
Skylight in living room, 70 x 50 cm |
Insulated aluminum framed windows |
Opening windows with blackout blind and mosquito net, LH and RH side, rear |
Design graphics: Window filling Carbon (full-surface foiling around rear windows) |
Outfitting |
---|
Mercedes-Benz Comfort seat in living area fabric, height- and tilt adjustable, rotating, with 2 armrests and integral look |
Front seating group with 2 integrated 3-point belts |
All overhead lockers with Soft-Close feature |
Comfort push locks with genuine leather loops on flaps and drawers |
Folding table with possibility to enlarge |
Pull-out bed climb incl. load compartment partition |
Mosquito net pleated blind for sliding door |
Pleated blackout cab blinds for front and side windows |
Mosquito net and blackout blinds on all windows in the body construction (except bathroom) |
Wall panel with multifunctional rail system at the seating group and kitchen for multiple use |
Lashing rails with 4 adjustable eyelets |
Living and bedroom + lighting |
---|
Side paneling in the bedroom with premium heat and sound-absorbing fabric lamination |
Innovative sleeping comfort mattress with integrated disc spring system |
Partitioning curtain between bed- and living room |
LED illumination, dimmable with touch control |
LED reading lights with touch controls (living area) |
Kitchen |
---|
Cooking/sink combination with glass cover (2-burner gas hob) and high-quality single-lever mixer tap |
Deep drawers with Premium pull-outs incl. self-closing |
Kitchen drawer with Soft close feature and cutlery insert |
Expandable kitchen worktop |
90 l compressor fridge (12 V or 230 V) incl. freezer compartment with excellent cooling performance and silent night mode |
Bathroom |
---|
Variable bathroom with swivel wall |
Design folding washbasin (made of solid surface) |
Shower head holder with suction cup |
Cassette toilet with level indicator |
Installation & Technology |
---|
6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit) |
Indoor temperature sensor |
LCD keypad for heating |
HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah) |
Charging booster for safe charging of the habitation battery while driving (up to 70 A) |
230 V external connection with earth leakage circuit breaker for 230 V & 12 V |
7" touch display for convenient control and monitoring of smart vehicle features |
HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App. |
100 l fresh water tank, internal (20 l in driving position) |
85 l waste water tank (fitted underfloor) |
Level indicator for fresh water as well as waste water tank |
Waste water tank, insulated and heated |
Electric waste water drainage with dashboard switch |
Multimedia |
---|
Audio pre-installation with 4 speakers |
Fabrics & Furniture finishes |
---|
Furniture finish: Ivy Green |
Fabric combination: Indiana |
Packages |
---|
Standard equipment |
Chassis / Weight variants |
---|
Mercedes-Benz Sprinter 3.88 t - 419 CDI - 141 KW/190 hp - Euro VI-E |
Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Downplating to 3.5 t (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only) |
Basis |
---|
Pastel: Stone gray |
Pastel: Steel blue |
Pastel: Blue gray |
Pastel: Jupiter red |
Metallic: Obsidian black |
Metallic: Canvasite blue |
Metallic Hightech Silver |
Metallic: Tenorite gray |
Permanent All Wheel Drive incl. LED rear lights |
9G-TRONIC automatic transmission incl. Hold function |
Weight saving with x19 engine and automatic transmission (- 9 kg) |
LED High-Performance headlights |
Trailer hitch, removable ball head (max. 2 t) |
Trailer hitch for increased trailer load, 2.8 t |
Trailer hitch for increased trailer load, 3.5 t (not available in combination with All Wheel Drive) |
Chrome grill |
Mercedes-Benz engine compartment insulation for noise reduction |
Fog lights with cornering light |
Heated windscreen |
Wet Wiper System (windscreen wiper with integrated spray nozzles) |
Front bumper as well as grill frame painted in vehicle color |
16" alloy wheels (silver) with All Season tires |
17" alloy wheels (silver) with summer tires |
16" steel rims (silver) with wheel hub cover and summer tires |
16" alloy rims (silver) with summer tires |
16" steel rim (black) with studded tires (All Terrain) |
Shelf for smartphones incl. wireless charging with charge level indicator |
Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket) |
Electric sliding door incl. remote control, RH side |
Electric closing aid for sliding door, RH side |
Leather steering wheel (automatic transmission only) |
Leather steering wheel and gear knob lever (manual transmission only) |
Seat heating and lumbar support for Original Mercedes-Benz seats |
Fully automatic climate control THERMOTRONIC |
Warm water auxiliary heating (auxiliary parking heating) |
Remote control for warm water auxiliary heating |
Auxiliary heating (supports heating when heating up the vehicle) |
Downhill Speed Regulation (Offroad mode) |
High Beam Assist |
Blind Spot Assist |
Traffic Sign Assist |
Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons |
Heat insulating cab |
Steering wheel heating |
Body |
---|
Sleeping roof in vehicle color (Maxi double bed with Sleeping Comfort system) |
Sleeping roof in white (Maxi double bed with Sleeping Comfort system) |
Awning (anthracite) with dimmable LED-illumination and adapter, 425 x 250 cm |
Awning (anthracite) with dimmable LED-illumination and special adapter, 400 x 250 cm |
Engine / Underride protection |
Electric off-road step ( retractable) for more ground clearance |
Skylight in bedroom, double-glazed, 70 x 50 cm |
Design graphics: Carbonline (Carbon black filling) |
Design graphics: Window filling Black (full-surface foiling around windows, LH and RH windows as well as rear doors) |
Outfitting |
---|
Lowerable seating group table variant for bed conversion |
Omission of rear transverse overhead lockers |
ISOFIX (child seat fixation for seat bench) |
2 folding chairs and table, incl. fixation |
External shower (located at the rear of the vehicle) |
Living and bedroom + lighting |
---|
Light package (Multifunctional pendant lamp as well as 2 ambient reading lights for multifunctional walls) |
Bed conversion for seating group incl. additional cushion |
Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination |
Fitted sheets made to measure for rear beds individually adapted to mattress |
Living style collection "HOME" (2 cushions as well as utensil bag) |
Bathroom |
---|
Shower insert floor with cork surface |
Installation & Technology |
---|
1,800 W electric bar heater (for 6 kW Diesel warm air heating) |
Sleeping roof heating - Thermal blanket, 12 V (155 x 60 cm) |
External gas socket with shut-off valve |
HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity) |
HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah) |
Solar panel with solar charge controller (MPPT) and display, 2 x 95 W |
Water filter for fresh water system |
HYMER Smart Battery System 2.0 - additional 3 x 80 Ah LFP (overall capacity 320 Ah) |
Inverter 12 V to 230 V, 1,600 VA, 2,800 Watt peak power incl. 70 A additional charger |
Multimedia |
---|
SatNav & Smartpone integration for Mercedes-Benz MBUX |
Parking package with 360° camera |
HYMER Premium Sound system incl. subwoofer |
TV pre-installation with DVB-T aerial (active) |
22" Smart-LED-TV with built-in speakers, remote control, DVD drive |
Fabrics & Furniture finishes |
---|
Furniture finish: Pearl Gray |
Fabric combination: Gomera |
Textile leather-/ fabric combination: Marquis |
Leather / fabric combination: Moreno |
Leather: Grigio |
Carpet: Laguna |
Packages |
---|
Equipment Line Plus |
Equipment Line Premium |
Autonomy package LFP (GCS 700) |
Winter package |
Style package |
Living Comfort package GCS |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Hymer Original Parts |
---|
Pop-top roof insulation |
External insulation |
Sun protection mat |
Thermal insulation kit for rear doors |
Mosquito nets for the rear doors |
Seat console safe passenger seat |
Cot |
Tablet holder |
Spice rack |
Herb pot |
Universal shelf |
Kitchen roll holder |
Replacement cartridge for water filter |
Tire pressure sensor |
Contact sensor |
Temperature and humidity sensor |
Gas level sensor |
Steel adapter for aluminum gas bottles |
Standard equipment |
---|
Semi-automatic climate control TEMPMATIC |
10.25" MBUX Multimedia system with reversing camera, Voice recognition and Touchscreen |
Electric parking brake |
Active Lane Keeping Assist |
Rain sensor |
Attention Assist |
Multifunctional steering wheel |
Reinforced front axle |
Cruise Control incl. steering wheel multifunction buttons |
Heat-insulating glass with tinting strip on windscreen |
DAB Radio |
Make a statement with the perfect paint finish for your HYMER Grand Canyon S. Choose from nine colours to suit your personal taste.
It’s as if the HYMER Grand Canyon S was made specifically to leave your daily routine behind. And you can count on having lots of adventures as the extensive equipment will have you ideally prepared to enjoy your freedom as you see fit.
Learn more about HYMER Original Parts & Accessories:
https://www.hymer-original-parts.com/en
Caravans in premium quality:
https://www.eriba.com/de/en
Discover our travel portal:
https://www.freeontour.com/en
